Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 614659K 61247F — REINFORCEMENT, ROOF SIDE RAIL, INNER (6 parts) 61248F — REINFORCEMENT, ROOF SIDE RAIL, INNER, LH (6 parts) 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (7 parts) 63111 — PANEL, ROOF (6 parts) 63127 — REINFORCEMENT, ROOF PANEL, NO.5 (6 parts) 63133B — FRAME, BACK WINDOW (7 parts) 63141H — REINFORCEMENT, ROOF PANEL, CENTER (6 parts) 63143A — REINFORCEMENT, ROOF PANEL (6 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (6 parts) 64101 — PANEL SUB-ASSY, UPPER BACK (8 parts) 64336A — PAD, PACKAGE TRAY TRIM SILENCER, SIDE (6 parts) 64336A — PAD, PACKAGE TRAY TRIM SILENCER, SIDE (6 parts) 64351A — PAD, PACKAGE TRAY TRIM, NO.1 (5 parts) 64351A — PAD, PACKAGE TRAY TRIM, NO.1 (5 parts) 64811 — GLASS, BACK WINDOW (9 parts) 64813D — DAM, BACK WINDOW GLASS ADHESIVE (6 parts) 90119W0132 — not listed in this catalogue 56116D — STOPPER, BACK WINDOW GLASS, NO.2 (6 parts) 56115B — STOPPER, BACK WINDOW GLASS, NO.1 (6 parts) 6105 — not listed in this catalogue 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (7 parts)

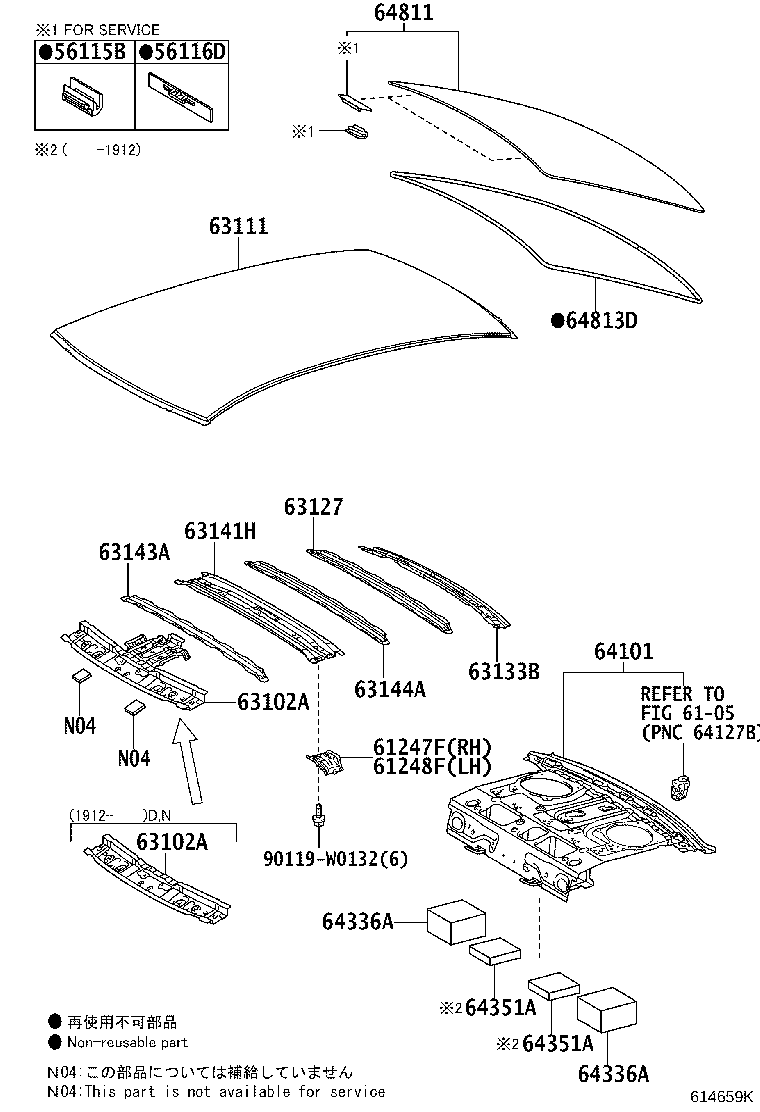

614659K · 19 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
102 parts on this figure
Part number Description Fitment Price
56115B — Stopper, Back Window Glass, NO.1
56115-30120 Stopper, Back Window Glass, NO.1
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
56115-30120 Stopper, Back Window Glass, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
56115-30120 Stopper, Back Window Glass, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
56115-30120 Stopper, Back Window Glass, NO.1
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
56115-30120 Stopper, Back Window Glass, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
56115-30120 Stopper, Back Window Glass, NO.1
2019-12 → —
ZRE182 —
56116D — Stopper, Back Window Glass, NO.2
56116-22050 Stopper, Back Window Glass, NO.2
2013-06 → 2016-05 ended
NDE180 TUP —
56116-22050 Stopper, Back Window Glass, NO.2
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
56116-22050 Stopper, Back Window Glass, NO.2
2016-06 → 2018-08 ended
NRE180 TUP —
56116-22050 Stopper, Back Window Glass, NO.2
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
56116-22050 Stopper, Back Window Glass, NO.2
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
56116-22050 Stopper, Back Window Glass, NO.2
2019-12 → —
ZRE182 —
61247F — Reinforcement, Roof Side Rail, Inner
61247-02060 Reinforcement, Roof Side Rail, Inner
2013-06 → 2016-05 ended
NDE180 TUP —
61247-12070 Reinforcement, Roof Side Rail, Inner
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
61247-02060 Reinforcement, Roof Side Rail, Inner
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
61247-02060 Reinforcement, Roof Side Rail, Inner
2016-06 → 2018-08 ended
NRE180 TUP —
61247-12070 Reinforcement, Roof Side Rail, Inner
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
61247-12070 Reinforcement, Roof Side Rail, Inner
2019-12 → —
ZRE182 —
61248F — Reinforcement, Roof Side Rail, Inner, LH
61247-02060 Reinforcement, Roof Side Rail, Inner, LH
2013-06 → 2016-05 ended
NDE180 TUP —
61247-12070 Reinforcement, Roof Side Rail, Inner, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
61247-02060 Reinforcement, Roof Side Rail, Inner, LH
2016-06 → 2018-08 ended
NRE180 TUP —
61247-02060 Reinforcement, Roof Side Rail, Inner, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
61247-12070 Reinforcement, Roof Side Rail, Inner, LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
61247-12070 Reinforcement, Roof Side Rail, Inner, LH
2019-12 → —
ZRE182 —
63102A — Panel Sub-assy, Windshield Header
63102-02290 Panel Sub-assy, Windshield Header
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
63102-02300 Panel Sub-assy, Windshield Header
2013-06 → 2016-05 ended
NDE180 TUP —
63102-02290 Panel Sub-assy, Windshield Header
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
63102-02300 Panel Sub-assy, Windshield Header
2016-06 → 2018-08 ended
NRE180 TUP —
63102-02300 Panel Sub-assy, Windshield Header
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
63102-02290 Panel Sub-assy, Windshield Header
2019-12 → —
ZRE182 G —
63132-02180 Panel Sub-assy, Windshield Header
2019-12 → —
ZRE182 D,N —
63111 — Panel, Roof
63111-02440 Panel, Roof
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
63111-02450 Panel, Roof
2013-06 → 2016-05 ended
NDE180 TUP —
63111-02440 Panel, Roof
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
63111-02450 Panel, Roof
2016-06 → 2018-08 ended
NRE180 TUP —
63111-02450 Panel, Roof
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
63111-02440 Panel, Roof
2019-12 → —
ZRE182 —
63127 — Reinforcement, Roof Panel, NO.5
63127-02080 Reinforcement, Roof Panel, NO.5
2013-06 → 2016-05 ended
NDE180 TUP —
63127-02080 Reinforcement, Roof Panel, NO.5
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
63127-02080 Reinforcement, Roof Panel, NO.5
2016-06 → 2018-08 ended
NRE180 TUP —
63127-02080 Reinforcement, Roof Panel, NO.5
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
63127-02080 Reinforcement, Roof Panel, NO.5
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
63127-02080 Reinforcement, Roof Panel, NO.5
2019-12 → —
ZRE182 —
63133B — Frame, Back Window
63133-02120 Frame, Back Window
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
63133-02130 Frame, Back Window
2013-06 → 2015-08 ended
NDE180 TUP —
63133-02131 Frame, Back Window
2015-09 → 2016-05 ended
NDE180 TUP —
63133-02120 Frame, Back Window
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
63133-02131 Frame, Back Window
2016-06 → 2018-08 ended
NRE180 TUP —
63133-02131 Frame, Back Window
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
63133-02120 Frame, Back Window
2019-12 → —
ZRE182 —
63141H — Reinforcement, Roof Panel, Center
63141-02160 Reinforcement, Roof Panel, Center
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
63141-02170 Reinforcement, Roof Panel, Center
2013-06 → 2016-05 ended
NDE180 TUP —
63141-02160 Reinforcement, Roof Panel, Center
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
63141-02170 Reinforcement, Roof Panel, Center
2016-06 → 2018-08 ended
NRE180 TUP —
63141-02170 Reinforcement, Roof Panel, Center
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
63141-02160 Reinforcement, Roof Panel, Center
2019-12 → —
ZRE182 —
63143A — Reinforcement, Roof Panel
63143-02140 Reinforcement, Roof Panel
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
63143-02150 Reinforcement, Roof Panel
2013-06 → 2016-05 ended
NDE180 TUP —
63143-02140 Reinforcement, Roof Panel
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
63143-02150 Reinforcement, Roof Panel
2016-06 → 2018-08 ended
NRE180 TUP —
63143-02150 Reinforcement, Roof Panel
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
63143-02140 Reinforcement, Roof Panel
2019-12 → —
ZRE182 —
63144A — Reinforcement, Roof Panel, NO.4
63144-02170 Reinforcement, Roof Panel, NO.4
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
63144-02180 Reinforcement, Roof Panel, NO.4
2013-06 → 2016-05 ended
NDE180 TUP —
63144-02170 Reinforcement, Roof Panel, NO.4
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
63144-02180 Reinforcement, Roof Panel, NO.4
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
63144-02180 Reinforcement, Roof Panel, NO.4
2016-06 → 2018-08 ended
NRE180 TUP —
63144-02170 Reinforcement, Roof Panel, NO.4
2019-12 → —
ZRE182 —
64101 — Panel Sub-assy, Upper Back
64101-02320 Panel Sub-assy, Upper Back
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
64101-02330 Panel Sub-assy, Upper Back
2013-06 → 2016-05 ended
NDE180 TUP —
64101-02320 Panel Sub-assy, Upper Back
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
64101-02330 Panel Sub-assy, Upper Back
2016-06 → 2018-08 ended
NRE180 TUP —
64101-02330 Panel Sub-assy, Upper Back
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
64101-02320 Panel Sub-assy, Upper Back
2019-12 → —
ZRE182 G —
64101-02560 Panel Sub-assy, Upper Back
2019-12 → —
ZRE182 D,N —
64101-02560 note Panel Sub-assy, Upper Back
2019-12 → —
ZRE182 G —
64336A — Pad, Package Tray Trim Silencer, Side
64336-02050 Pad, Package Tray Trim Silencer, Side
2013-06 → 2016-05 ended
NDE180 TUP —
64336-02060 Pad, Package Tray Trim Silencer, Side
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
64336-02050 Pad, Package Tray Trim Silencer, Side
2016-06 → 2018-08 ended
NRE180 TUP —
64336-02050 Pad, Package Tray Trim Silencer, Side
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
64336-02060 Pad, Package Tray Trim Silencer, Side
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
64336-02060 Pad, Package Tray Trim Silencer, Side
2019-12 → —
ZRE182 —
64351A — Pad, Package Tray Trim, NO.1
64351-02060 Pad, Package Tray Trim, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
64351-02070 Pad, Package Tray Trim, NO.1
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
64351-02060 Pad, Package Tray Trim, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
64351-02060 Pad, Package Tray Trim, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
64351-02070 Pad, Package Tray Trim, NO.1
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
64811 — Glass, Back Window
64801-02180 Glass, Back Window
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
64801-02190 Glass, Back Window
2013-06 → 2016-05 ended
NDE180 TUP —
64801-02180 Glass, Back Window
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
64801-02190 Glass, Back Window
2016-06 → 2018-08 ended
NRE180 TUP —
64801-02190 Glass, Back Window
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
64801-02370 note Glass, Back Window
2016-06 → 2019-01 ended
ZRE18# N TUP —
64801-02370 note Glass, Back Window
2016-11 → 2019-01 ended
NDE180 N TUP —
64801-02370 note Glass, Back Window
2016-06 → 2018-08 ended
NRE180 N TUP —
64801-02180 Glass, Back Window
2019-12 → —
ZRE182 —
64813D — Dam, Back Window Glass Adhesive
56117-50130 note Dam, Back Window Glass Adhesive
2013-06 → 2016-05 ended
NDE180 TUP —
56117-50130 note Dam, Back Window Glass Adhesive
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
56117-50130 note Dam, Back Window Glass Adhesive
2016-06 → 2018-08 ended
NRE180 TUP —
56117-50130 note Dam, Back Window Glass Adhesive
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
56117-50130 note Dam, Back Window Glass Adhesive
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
56117-50130 note Dam, Back Window Glass Adhesive
2019-12 → —
ZRE182 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
