Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

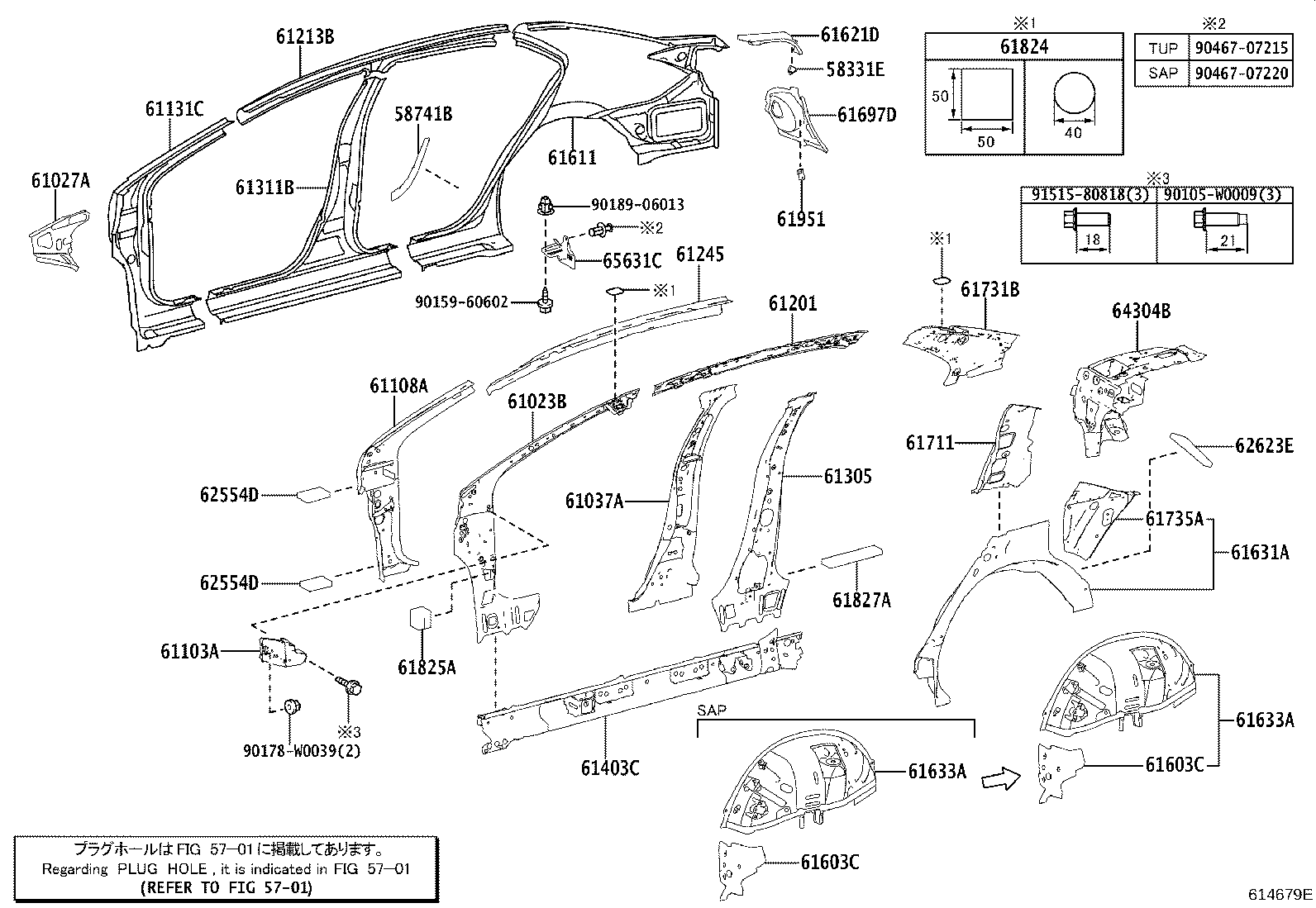

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58331E — Bracket, Luggage Compartment Trim, NO.1 | ||||
| 58331-02120 |
Bracket, Luggage Compartment Trim, NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58331-02120 |
Bracket, Luggage Compartment Trim, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 58331-02120 |
Bracket, Luggage Compartment Trim, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58331-02120 |
Bracket, Luggage Compartment Trim, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58331-02120 |
Bracket, Luggage Compartment Trim, NO.1
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58331-02120 |
Bracket, Luggage Compartment Trim, NO.1
2019-12 → —
|
ZRE182 | — | |
| 58741B — Protector, Quarter Panel, RH | ||||
| 58741-02180 note |
Protector, Quarter Panel, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 58741-02190 note |
Protector, Quarter Panel, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58741-02180 note |
Protector, Quarter Panel, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58741-02180 note |
Protector, Quarter Panel, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58741-02190 note |
Protector, Quarter Panel, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58741-02190 note |
Protector, Quarter Panel, RH
2019-12 → —
|
ZRE182 | — | |
| 61023B — Pillar Sub-assy, Front Body, Inner RH | ||||
| 61023-02300 |
Pillar Sub-assy, Front Body, Inner RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61023-02300 |
Pillar Sub-assy, Front Body, Inner RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61023-02300 |
Pillar Sub-assy, Front Body, Inner RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61023-02300 |
Pillar Sub-assy, Front Body, Inner RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61023-02300 |
Pillar Sub-assy, Front Body, Inner RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61023-02300 |
Pillar Sub-assy, Front Body, Inner RH
2019-12 → —
|
ZRE182 | — | |
| 61027A — Pillar Sub-assy, Front Body, Outer RH | ||||
| 61027-02020 |
Pillar Sub-assy, Front Body, Outer RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61027-02020 |
Pillar Sub-assy, Front Body, Outer RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61027-02020 |
Pillar Sub-assy, Front Body, Outer RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61027-02020 |
Pillar Sub-assy, Front Body, Outer RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61027-02020 |
Pillar Sub-assy, Front Body, Outer RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61027-02020 |
Pillar Sub-assy, Front Body, Outer RH
2019-12 → —
|
ZRE182 | — | |
| 61037A — Reinforcement Sub-assy, Center Body Pillar, RH | ||||
| 61037-02230 |
Reinforcement Sub-assy, Center Body Pillar, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61037-02230 |
Reinforcement Sub-assy, Center Body Pillar, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61037-02230 |
Reinforcement Sub-assy, Center Body Pillar, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61037-02230 |
Reinforcement Sub-assy, Center Body Pillar, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61037-02230 |
Reinforcement Sub-assy, Center Body Pillar, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61037-02230 |
Reinforcement Sub-assy, Center Body Pillar, RH
2019-12 → —
|
ZRE182 | — | |
| 61103A — Reinforcement Sub-assy, Cowl Side, RH | ||||
| 61103-02170 |
Reinforcement Sub-assy, Cowl Side, RH
2014-01 → 2016-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61103-02210 |
Reinforcement Sub-assy, Cowl Side, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61103-02171 |
Reinforcement Sub-assy, Cowl Side, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61103-02211 |
Reinforcement Sub-assy, Cowl Side, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61103-02211 |
Reinforcement Sub-assy, Cowl Side, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61103-02171 |
Reinforcement Sub-assy, Cowl Side, RH
2019-12 → —
|
ZRE182 | — | |
| 61108A — Reinforce Sub-assy, Front Body Pillar, Lower RH | ||||
| 61108-02210 |
Reinforce Sub-assy, Front Body Pillar, Lower RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61108-02210 |
Reinforce Sub-assy, Front Body Pillar, Lower RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61108-02210 |
Reinforce Sub-assy, Front Body Pillar, Lower RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61108-02210 |
Reinforce Sub-assy, Front Body Pillar, Lower RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61108-02210 |
Reinforce Sub-assy, Front Body Pillar, Lower RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61108-02210 |
Reinforce Sub-assy, Front Body Pillar, Lower RH
2019-12 → —
|
ZRE182 | — | |
| 61131C — Pillar, Front Body, Outer RH | ||||
| 61131-02290 |
Pillar, Front Body, Outer RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61131-02300 |
Pillar, Front Body, Outer RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61131-02290 |
Pillar, Front Body, Outer RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61131-02290 |
Pillar, Front Body, Outer RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61131-02300 |
Pillar, Front Body, Outer RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61131-02300 |
Pillar, Front Body, Outer RH
2019-12 → —
|
ZRE182 | — | |
| 61201 — Rail Sub-assy, Roof Side, RH | ||||
| 61201-02220 |
Rail Sub-assy, Roof Side, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61201-02220 |
Rail Sub-assy, Roof Side, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61201-02220 |
Rail Sub-assy, Roof Side, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61201-02220 |
Rail Sub-assy, Roof Side, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61201-02220 |
Rail Sub-assy, Roof Side, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61201-02220 |
Rail Sub-assy, Roof Side, RH
2019-12 → —
|
ZRE182 | — | |
| 61213B — Rail, Roof Side, Outer NO.2 RH | ||||
| 61213-02080 |
Rail, Roof Side, Outer NO.2 RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61213-02090 |
Rail, Roof Side, Outer NO.2 RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61213-02080 |
Rail, Roof Side, Outer NO.2 RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61213-02080 |
Rail, Roof Side, Outer NO.2 RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61213-02090 |
Rail, Roof Side, Outer NO.2 RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61213-02090 |
Rail, Roof Side, Outer NO.2 RH
2019-12 → —
|
ZRE182 | — | |
| 61245 — Reinforcement, Roof Side Rail, Outer RH | ||||
| 61245-02210 |
Reinforcement, Roof Side Rail, Outer RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61245-02210 |
Reinforcement, Roof Side Rail, Outer RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61245-02210 |
Reinforcement, Roof Side Rail, Outer RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61245-02210 |
Reinforcement, Roof Side Rail, Outer RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61245-02210 |
Reinforcement, Roof Side Rail, Outer RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61245-02210 |
Reinforcement, Roof Side Rail, Outer RH
2019-12 → —
|
ZRE182 | — | |
| 61305 — Reinforce Sub-assy, Center Body Pillar, Lower RH | ||||
| 61305-02130 |
Reinforce Sub-assy, Center Body Pillar, Lower RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61305-02130 |
Reinforce Sub-assy, Center Body Pillar, Lower RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61305-02130 |
Reinforce Sub-assy, Center Body Pillar, Lower RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61305-02130 |
Reinforce Sub-assy, Center Body Pillar, Lower RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61305-02130 |
Reinforce Sub-assy, Center Body Pillar, Lower RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61305-02130 |
Reinforce Sub-assy, Center Body Pillar, Lower RH
2019-12 → —
|
ZRE182 | — | |
| 61311B — Pillar, Center Body, Outer RH | ||||
| 61311-02280 |
Pillar, Center Body, Outer RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61311-02290 |
Pillar, Center Body, Outer RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61311-02280 |
Pillar, Center Body, Outer RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61311-02280 |
Pillar, Center Body, Outer RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61311-02290 |
Pillar, Center Body, Outer RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61311-02290 |
Pillar, Center Body, Outer RH
2019-12 → —
|
ZRE182 | — | |
| 61403C — Reinforce Sub-assy, Rocker, Outer RH | ||||
| 61403-02180 |
Reinforce Sub-assy, Rocker, Outer RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61403-02180 |
Reinforce Sub-assy, Rocker, Outer RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61403-02180 |
Reinforce Sub-assy, Rocker, Outer RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61403-02180 |
Reinforce Sub-assy, Rocker, Outer RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61403-02180 |
Reinforce Sub-assy, Rocker, Outer RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61403-02180 |
Reinforce Sub-assy, Rocker, Outer RH
2019-12 → —
|
ZRE182 | — | |
| 61603C — Panel Sub-assy, Quarter Wheel House, RH | ||||
| 61603-02020 |
Panel Sub-assy, Quarter Wheel House, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61603-12600 |
Panel Sub-assy, Quarter Wheel House, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61603-02020 |
Panel Sub-assy, Quarter Wheel House, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61603-02020 |
Panel Sub-assy, Quarter Wheel House, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61603-12600 |
Panel Sub-assy, Quarter Wheel House, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61603-12600 |
Panel Sub-assy, Quarter Wheel House, RH
2019-12 → —
|
ZRE182 | — | |
| 61611 — Panel, Quarter, RH | ||||
| 61601-02390 |
Panel, Quarter, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61601-02400 |
Panel, Quarter, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61601-02390 |
Panel, Quarter, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61601-02390 |
Panel, Quarter, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61601-02400 |
Panel, Quarter, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61601-02400 |
Panel, Quarter, RH
2019-12 → —
|
ZRE182 | — | |
| 61621D — Trough, Back Door Opening, RH | ||||
| 61621-02200 |
Trough, Back Door Opening, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61621-02210 |
Trough, Back Door Opening, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61621-02200 |
Trough, Back Door Opening, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61621-02210 |
Trough, Back Door Opening, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61621-02210 |
Trough, Back Door Opening, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61621-02200 |
Trough, Back Door Opening, RH
2019-12 → —
|
ZRE182 | — | |
| 61631A — Panel, Quarter Wheel House, Outer RH | ||||
| 61605-02120 |
Panel, Quarter Wheel House, Outer RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61605-02130 |
Panel, Quarter Wheel House, Outer RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61605-02120 |
Panel, Quarter Wheel House, Outer RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61605-02130 |
Panel, Quarter Wheel House, Outer RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61605-02130 |
Panel, Quarter Wheel House, Outer RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61605-02120 |
Panel, Quarter Wheel House, Outer RH
2019-12 → —
|
ZRE182 | — | |
| 61633A — Panel, Quarter Wheel House, Inner RH | ||||
| 61633-02904 |
Panel, Quarter Wheel House, Inner RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61633-02906 |
Panel, Quarter Wheel House, Inner RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61633-02904 |
Panel, Quarter Wheel House, Inner RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61633-02904 |
Panel, Quarter Wheel House, Inner RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61633-02906 |
Panel, Quarter Wheel House, Inner RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61633-02906 |
Panel, Quarter Wheel House, Inner RH
2019-12 → —
|
ZRE182 G | — | |
| 61633-02907 |
Panel, Quarter Wheel House, Inner RH
2019-12 → —
|
ZRE182 D,N | — | |
| 61633-02907 note |
Panel, Quarter Wheel House, Inner RH
2019-12 → —
|
ZRE182 G | — | |
| 61697D — Housing, Quarter Panel End, RH | ||||
| 61697-02100 |
Housing, Quarter Panel End, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61697-02110 |
Housing, Quarter Panel End, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61697-02100 |
Housing, Quarter Panel End, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61697-02110 |
Housing, Quarter Panel End, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61697-02110 |
Housing, Quarter Panel End, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61697-02100 |
Housing, Quarter Panel End, RH
2019-12 → —
|
ZRE182 | — | |
| 61711 — Panel, Roof Side, Outer RH | ||||
| 61711-02120 |
Panel, Roof Side, Outer RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61711-02120 |
Panel, Roof Side, Outer RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61711-02120 |
Panel, Roof Side, Outer RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61711-02120 |
Panel, Roof Side, Outer RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61711-02120 |
Panel, Roof Side, Outer RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61711-02120 |
Panel, Roof Side, Outer RH
2019-12 → —
|
ZRE182 | — | |
| 61731B — Panel, Roof Side, Inner RH | ||||
| 61731-02270 |
Panel, Roof Side, Inner RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61731-02280 |
Panel, Roof Side, Inner RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61731-02270 |
Panel, Roof Side, Inner RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61731-02280 |
Panel, Roof Side, Inner RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61731-02280 |
Panel, Roof Side, Inner RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61731-02270 |
Panel, Roof Side, Inner RH
2019-12 → —
|
ZRE182 | — | |
| 61735A — Panel, Roof Side, Inner Rear RH | ||||
| 61735-02170 |
Panel, Roof Side, Inner Rear RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61735-02180 |
Panel, Roof Side, Inner Rear RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61735-02170 |
Panel, Roof Side, Inner Rear RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61735-02180 |
Panel, Roof Side, Inner Rear RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61735-02180 |
Panel, Roof Side, Inner Rear RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61735-02170 |
Panel, Roof Side, Inner Rear RH
2019-12 → —
|
ZRE182 | — | |
| 61824 — Plate, Noise Control, NO.1 | ||||
| 61824-02180 note |
Plate, Noise Control, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61824-02180 note |
Plate, Noise Control, NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61824-52030 note |
Plate, Noise Control, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61824-52030 note |
Plate, Noise Control, NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61824-02180 note |
Plate, Noise Control, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61824-02180 note |
Plate, Noise Control, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61824-02180 note |
Plate, Noise Control, NO.1
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61824-12070 note |
Plate, Noise Control, NO.1
2016-07 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61824-12070 note |
Plate, Noise Control, NO.1
2016-07 → 2018-08
ended
|
NRE180 TUP | — | |
| 61824-12070 note |
Plate, Noise Control, NO.1
2016-07 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61824-52030 note |
Plate, Noise Control, NO.1
2016-06 → 2019-01
ended
|
NRE180 SAP;NDE180,ZRE18# | — | |
| 61824-52030 note |
Plate, Noise Control, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61824-02180 note |
Plate, Noise Control, NO.1
2019-12 → —
|
ZRE182 | — | |
| 61824-12070 note |
Plate, Noise Control, NO.1
2019-12 → —
|
ZRE182 | — | |
| 61825A — Plate, Noise Control, NO.2 | ||||
| 61825-02020 |
Plate, Noise Control, NO.2
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61825-02020 |
Plate, Noise Control, NO.2
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61825-02020 |
Plate, Noise Control, NO.2
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61825-02020 |
Plate, Noise Control, NO.2
2016-06 → 2019-01
ended
|
NRE180 SAP;NDE180,ZRE18# | — | |
| 61825-02130 |
Plate, Noise Control, NO.2
2019-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# | — | |
| 61825-02130 |
Plate, Noise Control, NO.2
2019-12 → —
|
ZRE182 | — | |
| 61827A — Plate, Noise Control, NO.4 | ||||
| 61827-02030 |
Plate, Noise Control, NO.4
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61827-02030 |
Plate, Noise Control, NO.4
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61827-02030 |
Plate, Noise Control, NO.4
2016-06 → 2019-01
ended
|
NRE180 SAP;NDE180,ZRE18# | — | |
| 61827-02030 |
Plate, Noise Control, NO.4
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61827-02120 |
Plate, Noise Control, NO.4
2019-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# | — | |
| 61827-02120 |
Plate, Noise Control, NO.4
2019-12 → —
|
ZRE182 | — | |
| 61951 — Bracket, Side Trim, RH | ||||
| 61951-02070 |
Bracket, Side Trim, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 61951-02070 |
Bracket, Side Trim, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61951-02070 |
Bracket, Side Trim, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 61951-02070 |
Bracket, Side Trim, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 61951-02070 |
Bracket, Side Trim, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 61951-02070 |
Bracket, Side Trim, RH
2019-12 → —
|
ZRE182 | — | |
| 62554D — Pad, Front Piller | ||||
| 62554-02190 |
Pad, Front Piller
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 62554-02190 |
Pad, Front Piller
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 62554-02190 |
Pad, Front Piller
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 62554-02190 |
Pad, Front Piller
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 62554-02190 |
Pad, Front Piller
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 62554-02190 |
Pad, Front Piller
2019-12 → —
|
ZRE182 | — | |
| 62623E — Pad, Quarter Wheel House, Inner Rear RH | ||||
| 62623-02030 |
Pad, Quarter Wheel House, Inner Rear RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 62623-02070 |
Pad, Quarter Wheel House, Inner Rear RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 62623-02030 |
Pad, Quarter Wheel House, Inner Rear RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 62623-02070 |
Pad, Quarter Wheel House, Inner Rear RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 62623-02070 |
Pad, Quarter Wheel House, Inner Rear RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 64304B — Reinforce Sub-assy, Package Tray Bracket, RH | ||||
| 64304-02160 |
Reinforce Sub-assy, Package Tray Bracket, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 64304-02170 |
Reinforce Sub-assy, Package Tray Bracket, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 64304-02160 |
Reinforce Sub-assy, Package Tray Bracket, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 64304-02170 |
Reinforce Sub-assy, Package Tray Bracket, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 64304-02170 |
Reinforce Sub-assy, Package Tray Bracket, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 64304-02160 |
Reinforce Sub-assy, Package Tray Bracket, RH
2019-12 → —
|
ZRE182 G | — | |
| 64304-02400 |
Reinforce Sub-assy, Package Tray Bracket, RH
2019-12 → —
|
ZRE182 D,N | — | |
| 64304-02400 note |
Reinforce Sub-assy, Package Tray Bracket, RH
2019-12 → —
|
ZRE182 G | — | |
| 65631C — Plate, Rear Wheel House, Front RH | ||||
| 65631-02240 |
Plate, Rear Wheel House, Front RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 65631-02240 |
Plate, Rear Wheel House, Front RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 65631-02240 |
Plate, Rear Wheel House, Front RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 65631-02240 |
Plate, Rear Wheel House, Front RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 65631-02240 |
Plate, Rear Wheel House, Front RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 65631-02240 |
Plate, Rear Wheel House, Front RH
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
