Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

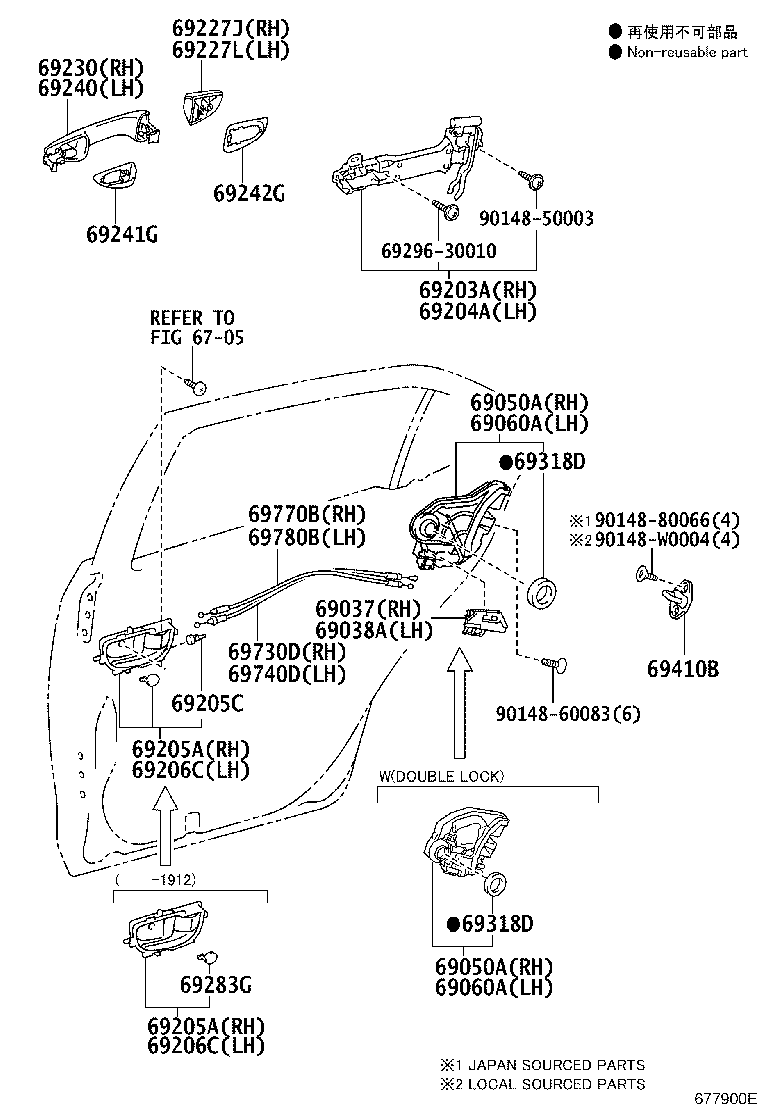

Exploded illustration 677900E 69037 — COVER SUB-ASSY, REAR DOOR LOCK, RH (8 parts) 69038A — COVER SUB-ASSY, REAR DOOR LOCK, LH (8 parts) 69203A — FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH (6 parts) 69204A — FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH (6 parts) 69227J — COVER, REAR DOOR OUTSIDE HANDLE, RH (25 parts) 69227L — COVER, REAR DOOR OUTSIDE HANDLE, LH (25 parts) 69230 — HANDLE ASSY, REAR DOOR OUTSIDE, RH (25 parts) 69240 — HANDLE ASSY, REAR DOOR OUTSIDE, LH (25 parts) 69241G — PAD, REAR DOOR OUTSIDE HANDLE, FRONT (12 parts) 69242G — PAD, REAR DOOR OUTSIDE HANDLE, REAR (12 parts) 69410B — PLATE ASSY, REAR DOOR LOCK STRIKER (7 parts) 69730D — CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH (11 parts) 69740D — CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH (11 parts) 69770B — CABLE ASSY, REAR DOOR INSIDE LOCKING, RH (11 parts) 69780B — CABLE ASSY, REAR DOOR INSIDE LOCKING, LH (11 parts) 9014850003 — not listed in this catalogue 6929630010 — not listed in this catalogue 9014860083 — not listed in this catalogue 6705 — not listed in this catalogue 90148W0004 — not listed in this catalogue 9014880066 — not listed in this catalogue 69050A — LOCK ASSY, REAR DOOR W/MOTOR, RH (23 parts) 69060A — LOCK ASSY, REAR DOOR W/MOTOR, LH (23 parts) 69050A — LOCK ASSY, REAR DOOR W/MOTOR, RH (23 parts) 69060A — LOCK ASSY, REAR DOOR W/MOTOR, LH (23 parts) 69318D — SEAL, DOOR LOCK WIRING HARNESS (6 parts) 69318D — SEAL, DOOR LOCK WIRING HARNESS (6 parts) 69205A — HANDLE SUB-ASSY, REAR DOOR INSIDE, RH (16 parts) 69206C — HANDLE SUB-ASSY, REAR DOOR INSIDE, LH (16 parts) 69283G — PLUG, REAR DOOR INSIDE HANDLE BEZEL (11 parts) 69205A — HANDLE SUB-ASSY, REAR DOOR INSIDE, RH (16 parts) 69206C — HANDLE SUB-ASSY, REAR DOOR INSIDE, LH (16 parts) 69205C — CUSHION(FOR REAR DOOR INSIDE HANDLE) (1 parts)
677900E · 27 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
299 parts on this figure
Part number Description Fitment Price
69037 — Cover Sub-assy, Rear Door Lock, RH
69037-02020 Cover Sub-assy, Rear Door Lock, RH
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
69037-02020 Cover Sub-assy, Rear Door Lock, RH
2013-06 → 2016-05 ended
NDE180 TUP —
69037-02020 note Cover Sub-assy, Rear Door Lock, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
69037-02020 note Cover Sub-assy, Rear Door Lock, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE181 D SA —
69037-02020 Cover Sub-assy, Rear Door Lock, RH
2016-06 → 2018-08 ended
NRE180 TUP —
69037-02020 Cover Sub-assy, Rear Door Lock, RH
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
69037-02020 Cover Sub-assy, Rear Door Lock, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69037-02020 Cover Sub-assy, Rear Door Lock, RH
2019-12 → —
ZRE182 GEN —
69038A — Cover Sub-assy, Rear Door Lock, LH
69038-02020 Cover Sub-assy, Rear Door Lock, LH
2013-06 → 2016-05 ended
NDE180 TUP —
69038-02020 Cover Sub-assy, Rear Door Lock, LH
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
69038-02020 note Cover Sub-assy, Rear Door Lock, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE181 D SA —
69038-02020 note Cover Sub-assy, Rear Door Lock, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
69038-02020 Cover Sub-assy, Rear Door Lock, LH
2016-06 → 2018-08 ended
NRE180 TUP —
69038-02020 Cover Sub-assy, Rear Door Lock, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69038-02020 Cover Sub-assy, Rear Door Lock, LH
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
69038-02020 Cover Sub-assy, Rear Door Lock, LH
2019-12 → —
ZRE182 GEN —
69050A — Lock Assy, Rear Door W/Motor, RH
69050-02240 Lock Assy, Rear Door W/Motor, RH
2014-01 → 2016-04 ended
NDE180,NRE180,ZRE18# SA —
69050-02380 note Lock Assy, Rear Door W/Motor, RH
2013-06 → 2015-01 ended
NDE180 N TUP —
69050-02380 note Lock Assy, Rear Door W/Motor, RH
2014-01 → 2015-01 ended
NDE180,NRE180,ZRE181 D SA —
69050-02380 note Lock Assy, Rear Door W/Motor, RH
2014-01 → 2015-01 ended
NDE180,NRE180,ZRE18# N SA —
69050-02380 note Lock Assy, Rear Door W/Motor, RH
2014-01 → 2015-01 ended
ZRE18# N GEN —
69050-02381 note Lock Assy, Rear Door W/Motor, RH
2015-02 → 2017-01 ended
ZRE18# N GEN SAP —
69050-02381 note Lock Assy, Rear Door W/Motor, RH
2015-02 → 2016-05 ended
NDE180 N TUP —
69050-02381 note Lock Assy, Rear Door W/Motor, RH
2015-02 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
69050-02381 note Lock Assy, Rear Door W/Motor, RH
2015-02 → 2017-01 ended
NDE180,NRE180,ZRE181 D SA —
69050-02390 Lock Assy, Rear Door W/Motor, RH
2013-06 → 2015-01 ended
NDE180,ZRE18# GEN —
69050-02391 Lock Assy, Rear Door W/Motor, RH
2015-02 → 2016-05 ended
NDE180 TUP —
69050-02391 Lock Assy, Rear Door W/Motor, RH
2015-02 → 2017-01 ended
ZRE18# GEN SAP —
69050-12410 Lock Assy, Rear Door W/Motor, RH
2016-05 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
69050-02240 Lock Assy, Rear Door W/Motor, RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
69050-02381 note Lock Assy, Rear Door W/Motor, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69050-02381 note Lock Assy, Rear Door W/Motor, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69050-02381 note Lock Assy, Rear Door W/Motor, RH
2017-01 → 2019-12 ended
ZRE18# N GEN SAP —
69050-02391 Lock Assy, Rear Door W/Motor, RH
2016-06 → 2018-08 ended
NRE180 TUP —
69050-02391 Lock Assy, Rear Door W/Motor, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69050-02391 Lock Assy, Rear Door W/Motor, RH
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
69050-02240 Lock Assy, Rear Door W/Motor, RH
2019-12 → —
ZRE182 SA —
69050-02381 Lock Assy, Rear Door W/Motor, RH
2019-12 → —
ZRE182 G GEN —
69050-02391 Lock Assy, Rear Door W/Motor, RH
2019-12 → —
ZRE182 (D,N) GEN —
69060A — Lock Assy, Rear Door W/Motor, LH
69060-02230 Lock Assy, Rear Door W/Motor, LH
2014-01 → 2016-04 ended
NDE180,NRE180,ZRE18# SA —
69060-02380 note Lock Assy, Rear Door W/Motor, LH
2013-06 → 2015-01 ended
NDE180 N TUP —
69060-02380 note Lock Assy, Rear Door W/Motor, LH
2014-01 → 2015-01 ended
NDE180,NRE180,ZRE181 D SA —
69060-02380 note Lock Assy, Rear Door W/Motor, LH
2014-01 → 2015-01 ended
NDE180,NRE180,ZRE18# N SA —
69060-02380 note Lock Assy, Rear Door W/Motor, LH
2014-01 → 2015-01 ended
ZRE18# N GEN —
69060-02381 note Lock Assy, Rear Door W/Motor, LH
2015-02 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
69060-02381 note Lock Assy, Rear Door W/Motor, LH
2015-02 → 2017-01 ended
ZRE18# N GEN SAP —
69060-02381 note Lock Assy, Rear Door W/Motor, LH
2015-02 → 2017-01 ended
NDE180,NRE180,ZRE181 D SA —
69060-02381 note Lock Assy, Rear Door W/Motor, LH
2015-02 → 2016-05 ended
NDE180 N TUP —
69060-02390 Lock Assy, Rear Door W/Motor, LH
2013-06 → 2015-01 ended
NDE180,ZRE18# GEN —
69060-02391 Lock Assy, Rear Door W/Motor, LH
2015-02 → 2016-05 ended
NDE180 TUP —
69060-02391 Lock Assy, Rear Door W/Motor, LH
2015-02 → 2017-01 ended
ZRE18# GEN SAP —
69060-12410 Lock Assy, Rear Door W/Motor, LH
2016-05 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
69060-02230 Lock Assy, Rear Door W/Motor, LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
69060-02381 note Lock Assy, Rear Door W/Motor, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69060-02381 note Lock Assy, Rear Door W/Motor, LH
2017-01 → 2019-12 ended
ZRE18# N GEN SAP —
69060-02381 note Lock Assy, Rear Door W/Motor, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69060-02391 Lock Assy, Rear Door W/Motor, LH
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
69060-02391 Lock Assy, Rear Door W/Motor, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69060-02391 Lock Assy, Rear Door W/Motor, LH
2016-06 → 2018-08 ended
NRE180 TUP —
69060-02230 Lock Assy, Rear Door W/Motor, LH
2019-12 → —
ZRE182 SA —
69060-02381 Lock Assy, Rear Door W/Motor, LH
2019-12 → —
ZRE182 G GEN —
69060-02391 Lock Assy, Rear Door W/Motor, LH
2019-12 → —
ZRE182 (D,N) GEN —
69203A — Frame Sub-assy, Rear Door Outside Handle, RH
69203-02250 Frame Sub-assy, Rear Door Outside Handle, RH
2013-06 → 2016-05 ended
NDE180 TUP —
69203-02260 Frame Sub-assy, Rear Door Outside Handle, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69203-02250 Frame Sub-assy, Rear Door Outside Handle, RH
2016-06 → 2018-08 ended
NRE180 TUP —
69203-02250 Frame Sub-assy, Rear Door Outside Handle, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69203-02260 Frame Sub-assy, Rear Door Outside Handle, RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69203-02260 Frame Sub-assy, Rear Door Outside Handle, RH
2019-12 → —
ZRE182 —
69204A — Frame Sub-assy, Rear Door Outside Handle, LH
69204-02250 Frame Sub-assy, Rear Door Outside Handle, LH
2013-06 → 2016-05 ended
NDE180 TUP —
69204-02260 Frame Sub-assy, Rear Door Outside Handle, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69204-02250 Frame Sub-assy, Rear Door Outside Handle, LH
2016-06 → 2018-08 ended
NRE180 TUP —
69204-02250 Frame Sub-assy, Rear Door Outside Handle, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69204-02260 Frame Sub-assy, Rear Door Outside Handle, LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69204-02260 Frame Sub-assy, Rear Door Outside Handle, LH
2019-12 → —
ZRE182 —
69205A — Handle Sub-assy, Rear Door Inside, RH
69205-0D200-A0 note Handle Sub-assy, Rear Door Inside, RH
2013-06 → 2014-03 ended
NDE180 TUP —
69205-0D200-C0 note Handle Sub-assy, Rear Door Inside, RH
2013-06 → 2014-03 ended
NDE180,NRE180,ZRE18# —
69205-0D201-A0 note Handle Sub-assy, Rear Door Inside, RH
2014-04 → 2016-05 ended
NDE180 TUP;ZRE181 CVT N +1 —
69205-0D201-A0 note Handle Sub-assy, Rear Door Inside, RH
2016-10 → 2017-01 ended
ZRE181 CVT N GEN +1 —
69205-0D201-C0 note Handle Sub-assy, Rear Door Inside, RH
2014-04 → 2015-05 ended
NDE180,NRE180,ZRE18# —
69205-0D201-C1 note Handle Sub-assy, Rear Door Inside, RH
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69205-0D201-C1 note Handle Sub-assy, Rear Door Inside, RH
2015-05 → 2016-05 ended
NDE180 TUP —
69205-02330-A0 note Handle Sub-assy, Rear Door Inside, RH
2016-06 → 2018-08 ended
NRE180 TUP —
69205-02330-A0 note Handle Sub-assy, Rear Door Inside, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69205-02330-A0 note Handle Sub-assy, Rear Door Inside, RH
2016-06 → 2019-12 ended
ZRE181 CVT N GEN +1 —
69205-02330-C2 note Handle Sub-assy, Rear Door Inside, RH
2016-06 → 2018-08 ended
NRE180 TUP —
69205-02330-C2 note Handle Sub-assy, Rear Door Inside, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69205-02330-C2 note Handle Sub-assy, Rear Door Inside, RH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69205-02280-C0 note Handle Sub-assy, Rear Door Inside, RH
2019-12 → —
ZRE182 G —
69205-02280-C0 note Handle Sub-assy, Rear Door Inside, RH
2019-12 → —
ZRE182 N —
69205-02290-C0 note Handle Sub-assy, Rear Door Inside, RH
2019-12 → —
ZRE182 D —
69205C — Cushion(FOR REAR DOOR INSIDE HANDLE)
90541-04027 Cushion(FOR REAR DOOR INSIDE HANDLE)
2019-12 → —
ZRE182 —
69206C — Handle Sub-assy, Rear Door Inside, LH
69206-0D280-A0 note Handle Sub-assy, Rear Door Inside, LH
2013-06 → 2014-03 ended
NDE180 TUP —
69206-0D280-C0 note Handle Sub-assy, Rear Door Inside, LH
2013-06 → 2014-03 ended
NDE180,NRE180,ZRE18# —
69206-0D281-A0 note Handle Sub-assy, Rear Door Inside, LH
2014-04 → 2016-05 ended
NDE180 TUP;ZRE181 CVT N +1 —
69206-0D281-A0 note Handle Sub-assy, Rear Door Inside, LH
2016-10 → 2017-01 ended
ZRE181 CVT N GEN +1 —
69206-0D281-C0 note Handle Sub-assy, Rear Door Inside, LH
2014-04 → 2015-05 ended
NDE180,NRE180,ZRE18# —
69206-0D281-C1 note Handle Sub-assy, Rear Door Inside, LH
2015-05 → 2016-05 ended
NDE180 TUP —
69206-0D281-C1 note Handle Sub-assy, Rear Door Inside, LH
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69206-02300-A0 note Handle Sub-assy, Rear Door Inside, LH
2016-06 → 2018-08 ended
NRE180 TUP —
69206-02300-A0 note Handle Sub-assy, Rear Door Inside, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69206-02300-A0 note Handle Sub-assy, Rear Door Inside, LH
2016-06 → 2019-12 ended
ZRE181 CVT N GEN +1 —
69206-02300-C2 note Handle Sub-assy, Rear Door Inside, LH
2016-06 → 2018-08 ended
NRE180 TUP —
69206-02300-C2 note Handle Sub-assy, Rear Door Inside, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69206-02300-C2 note Handle Sub-assy, Rear Door Inside, LH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69206-02280-C0 note Handle Sub-assy, Rear Door Inside, LH
2019-12 → —
ZRE182 G —
69206-02280-C0 note Handle Sub-assy, Rear Door Inside, LH
2019-12 → —
ZRE182 N —
69206-02290-C0 note Handle Sub-assy, Rear Door Inside, LH
2019-12 → —
ZRE182 D —
69227J — Cover, Rear Door Outside Handle, RH
69227-02922 note Cover, Rear Door Outside Handle, RH
2013-06 → 2016-05 ended
NDE180 TUP —
69227-02923 note Cover, Rear Door Outside Handle, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69227-02922 note Cover, Rear Door Outside Handle, RH
2016-06 → 2018-08 ended
NRE180 TUP —
69227-02922 note Cover, Rear Door Outside Handle, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69227-02923 note Cover, Rear Door Outside Handle, RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69250-02380-B3 note Cover, Rear Door Outside Handle, RH
2017-11 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02380-B3 note Cover, Rear Door Outside Handle, RH
2017-11 → 2018-08 ended
NRE180 N TUP —
69250-02420-A0 note Cover, Rear Door Outside Handle, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02420-A0 note Cover, Rear Door Outside Handle, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02420-A1 note Cover, Rear Door Outside Handle, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02420-A1 note Cover, Rear Door Outside Handle, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02420-B0 note Cover, Rear Door Outside Handle, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02420-B0 note Cover, Rear Door Outside Handle, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02420-B1 note Cover, Rear Door Outside Handle, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02420-B1 note Cover, Rear Door Outside Handle, RH
2016-06 → 2018-10 ended
NDE180,ZRE18# N TUP —
69250-02420-B2 note Cover, Rear Door Outside Handle, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02420-B2 note Cover, Rear Door Outside Handle, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02420-C0 note Cover, Rear Door Outside Handle, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02420-C0 note Cover, Rear Door Outside Handle, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02420-D0 note Cover, Rear Door Outside Handle, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02420-D0 note Cover, Rear Door Outside Handle, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02420-E0 note Cover, Rear Door Outside Handle, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02420-E0 note Cover, Rear Door Outside Handle, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02420-J0 note Cover, Rear Door Outside Handle, RH
2016-06 → 2018-08 ended
NDE180,NRE180,ZRE18# N TUP —
69227-02923 note Cover, Rear Door Outside Handle, RH
2019-12 → —
ZRE182 —
69227L — Cover, Rear Door Outside Handle, LH
69228-02900 note Cover, Rear Door Outside Handle, LH
2013-06 → 2016-05 ended
NDE180 TUP —
69228-02901 note Cover, Rear Door Outside Handle, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69228-02900 note Cover, Rear Door Outside Handle, LH
2016-06 → 2018-08 ended
NRE180 TUP —
69228-02900 note Cover, Rear Door Outside Handle, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69228-02901 note Cover, Rear Door Outside Handle, LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69250-02390-B3 note Cover, Rear Door Outside Handle, LH
2017-11 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02390-B3 note Cover, Rear Door Outside Handle, LH
2017-11 → 2018-08 ended
NRE180 N TUP —
69250-02430-A0 note Cover, Rear Door Outside Handle, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02430-A0 note Cover, Rear Door Outside Handle, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02430-A1 note Cover, Rear Door Outside Handle, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02430-A1 note Cover, Rear Door Outside Handle, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02430-B0 note Cover, Rear Door Outside Handle, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02430-B0 note Cover, Rear Door Outside Handle, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02430-B1 note Cover, Rear Door Outside Handle, LH
2016-06 → 2018-10 ended
NDE180,ZRE18# N TUP —
69250-02430-B1 note Cover, Rear Door Outside Handle, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02430-B2 note Cover, Rear Door Outside Handle, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02430-B2 note Cover, Rear Door Outside Handle, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02430-C0 note Cover, Rear Door Outside Handle, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02430-C0 note Cover, Rear Door Outside Handle, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02430-D0 note Cover, Rear Door Outside Handle, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02430-D0 note Cover, Rear Door Outside Handle, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02430-E0 note Cover, Rear Door Outside Handle, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69250-02430-E0 note Cover, Rear Door Outside Handle, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69250-02430-J0 note Cover, Rear Door Outside Handle, LH
2016-06 → 2018-08 ended
NDE180,NRE180,ZRE18# N TUP —
69228-02901 note Cover, Rear Door Outside Handle, LH
2019-12 → —
ZRE182 —
69230 — Handle Assy, Rear Door Outside, RH
69211-02925 note Handle Assy, Rear Door Outside, RH
2013-06 → 2016-05 ended
NDE180 TUP —
69211-02926 note Handle Assy, Rear Door Outside, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69210-02310-B3 note Handle Assy, Rear Door Outside, RH
2017-11 → 2019-01 ended
NDE180,ZRE18# N TUP —
69210-02310-B3 note Handle Assy, Rear Door Outside, RH
2017-11 → 2018-08 ended
NRE180 N TUP —
69210-02320-A0 note Handle Assy, Rear Door Outside, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69210-02320-A0 note Handle Assy, Rear Door Outside, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69210-02320-A1 note Handle Assy, Rear Door Outside, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69210-02320-A1 note Handle Assy, Rear Door Outside, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69210-02320-B0 note Handle Assy, Rear Door Outside, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69210-02320-B0 note Handle Assy, Rear Door Outside, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69210-02320-B1 note Handle Assy, Rear Door Outside, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69210-02320-B1 note Handle Assy, Rear Door Outside, RH
2016-06 → 2018-10 ended
NDE180,ZRE18# N TUP —
69210-02320-B2 note Handle Assy, Rear Door Outside, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69210-02320-B2 note Handle Assy, Rear Door Outside, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69210-02320-C0 note Handle Assy, Rear Door Outside, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69210-02320-C0 note Handle Assy, Rear Door Outside, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69210-02320-D0 note Handle Assy, Rear Door Outside, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69210-02320-D0 note Handle Assy, Rear Door Outside, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69210-02320-E0 note Handle Assy, Rear Door Outside, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69210-02320-E0 note Handle Assy, Rear Door Outside, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
69210-02320-J0 note Handle Assy, Rear Door Outside, RH
2016-06 → 2018-08 ended
NDE180,NRE180,ZRE18# N TUP —
69211-02925 note Handle Assy, Rear Door Outside, RH
2016-06 → 2018-08 ended
NRE180 TUP —
69211-02925 note Handle Assy, Rear Door Outside, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69211-02926 note Handle Assy, Rear Door Outside, RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69211-02926 note Handle Assy, Rear Door Outside, RH
2019-12 → —
ZRE182 —
69240 — Handle Assy, Rear Door Outside, LH
69212-02900 note Handle Assy, Rear Door Outside, LH
2013-06 → 2016-05 ended
NDE180 TUP —
69212-02901 note Handle Assy, Rear Door Outside, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69212-02900 note Handle Assy, Rear Door Outside, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69212-02900 note Handle Assy, Rear Door Outside, LH
2016-06 → 2018-08 ended
NRE180 TUP —
69212-02901 note Handle Assy, Rear Door Outside, LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69220-02240-B3 note Handle Assy, Rear Door Outside, LH
2017-11 → 2019-01 ended
NDE180,ZRE18# N TUP —
69220-02240-B3 note Handle Assy, Rear Door Outside, LH
2017-11 → 2018-08 ended
NRE180 N TUP —
69220-02250-A0 note Handle Assy, Rear Door Outside, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69220-02250-A0 note Handle Assy, Rear Door Outside, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69220-02250-A1 note Handle Assy, Rear Door Outside, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69220-02250-A1 note Handle Assy, Rear Door Outside, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69220-02250-B0 note Handle Assy, Rear Door Outside, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69220-02250-B0 note Handle Assy, Rear Door Outside, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69220-02250-B1 note Handle Assy, Rear Door Outside, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69220-02250-B1 note Handle Assy, Rear Door Outside, LH
2016-06 → 2018-10 ended
NDE180,ZRE18# N TUP —
69220-02250-B2 note Handle Assy, Rear Door Outside, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69220-02250-B2 note Handle Assy, Rear Door Outside, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69220-02250-C0 note Handle Assy, Rear Door Outside, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69220-02250-C0 note Handle Assy, Rear Door Outside, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69220-02250-D0 note Handle Assy, Rear Door Outside, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69220-02250-D0 note Handle Assy, Rear Door Outside, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69220-02250-E0 note Handle Assy, Rear Door Outside, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
69220-02250-E0 note Handle Assy, Rear Door Outside, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
69220-02250-J0 note Handle Assy, Rear Door Outside, LH
2016-06 → 2018-08 ended
NDE180,NRE180,ZRE18# N TUP —
69212-02901 note Handle Assy, Rear Door Outside, LH
2019-12 → —
ZRE182 —
69241G — Pad, Rear Door Outside Handle, Front
69241-02160 note Pad, Rear Door Outside Handle, Front
2013-06 → 2016-05 ended
NDE180 TUP —
69241-12120 note Pad, Rear Door Outside Handle, Front
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69242-02150 note Pad, Rear Door Outside Handle, Front
2013-06 → 2016-05 ended
NDE180 TUP —
69242-12080 note Pad, Rear Door Outside Handle, Front
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69241-02160 note Pad, Rear Door Outside Handle, Front
2016-06 → 2018-08 ended
NRE180 TUP —
69241-02160 note Pad, Rear Door Outside Handle, Front
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69241-12120 note Pad, Rear Door Outside Handle, Front
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69242-02150 note Pad, Rear Door Outside Handle, Front
2016-06 → 2018-08 ended
NRE180 TUP —
69242-02150 note Pad, Rear Door Outside Handle, Front
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69242-12080 note Pad, Rear Door Outside Handle, Front
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69241-12120 note Pad, Rear Door Outside Handle, Front
2019-12 → —
ZRE182 —
69242-12080 note Pad, Rear Door Outside Handle, Front
2019-12 → —
ZRE182 —
69242G — Pad, Rear Door Outside Handle, Rear
69241-02170 note Pad, Rear Door Outside Handle, Rear
2013-06 → 2016-05 ended
NDE180 TUP —
69241-12140 note Pad, Rear Door Outside Handle, Rear
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69242-02160 note Pad, Rear Door Outside Handle, Rear
2013-06 → 2016-05 ended
NDE180 TUP —
69242-12090 note Pad, Rear Door Outside Handle, Rear
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69241-02170 note Pad, Rear Door Outside Handle, Rear
2016-06 → 2018-08 ended
NRE180 TUP —
69241-02170 note Pad, Rear Door Outside Handle, Rear
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69241-12140 note Pad, Rear Door Outside Handle, Rear
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69242-02160 note Pad, Rear Door Outside Handle, Rear
2016-06 → 2018-08 ended
NRE180 TUP —
69242-02160 note Pad, Rear Door Outside Handle, Rear
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69242-12090 note Pad, Rear Door Outside Handle, Rear
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69241-12140 note Pad, Rear Door Outside Handle, Rear
2019-12 → —
ZRE182 —
69242-12090 note Pad, Rear Door Outside Handle, Rear
2019-12 → —
ZRE182 —
69283G — Plug, Rear Door Inside Handle Bezel
69283-0D010 Plug, Rear Door Inside Handle Bezel
2013-06 → 2014-04 ended
NDE180,NRE180,ZRE18# —
69283-0D010-A0 note Plug, Rear Door Inside Handle Bezel
2014-04 → 2016-05 ended
NDE180 TUP —
69283-0D010-A0 note Plug, Rear Door Inside Handle Bezel
2014-04 → 2017-01 ended
ZRE181 CVT N GEN +1 —
69283-0D010-C2 note Plug, Rear Door Inside Handle Bezel
2014-04 → 2016-05 ended
NDE180 TUP —
69283-0D010-C2 note Plug, Rear Door Inside Handle Bezel
2014-04 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69283-0D010-A1 note Plug, Rear Door Inside Handle Bezel
2016-06 → 2018-08 ended
NRE180 TUP —
69283-0D010-A1 note Plug, Rear Door Inside Handle Bezel
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69283-0D010-A1 note Plug, Rear Door Inside Handle Bezel
2016-06 → 2019-12 ended
ZRE181 CVT N GEN +1 —
69283-0D010-C2 note Plug, Rear Door Inside Handle Bezel
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69283-0D010-C2 note Plug, Rear Door Inside Handle Bezel
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69283-0D010-C2 note Plug, Rear Door Inside Handle Bezel
2016-06 → 2018-08 ended
NRE180 TUP —
69318D — Seal, Door Lock Wiring Harness
69318-51010 Seal, Door Lock Wiring Harness
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69318-51010 Seal, Door Lock Wiring Harness
2013-06 → 2016-05 ended
NDE180 TUP —
69318-51010 Seal, Door Lock Wiring Harness
2016-06 → 2018-08 ended
NRE180 TUP —
69318-51010 Seal, Door Lock Wiring Harness
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69318-51010 Seal, Door Lock Wiring Harness
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69318-51010 Seal, Door Lock Wiring Harness
2019-12 → —
ZRE182 —
69410B — Plate Assy, Rear Door Lock Striker
69410-20110 Plate Assy, Rear Door Lock Striker
2013-06 → 2016-05 ended
NDE180 TUP —
69410-20110 Plate Assy, Rear Door Lock Striker
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
69410-0K070 Plate Assy, Rear Door Lock Striker
2018-11 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
69410-20110 Plate Assy, Rear Door Lock Striker
2016-06 → 2018-11 ended
NDE180,NRE180,ZRE18# SAP —
69410-20110 Plate Assy, Rear Door Lock Striker
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69410-20110 Plate Assy, Rear Door Lock Striker
2016-06 → 2018-08 ended
NRE180 TUP —
69410-0K070 Plate Assy, Rear Door Lock Striker
2019-12 → —
ZRE182 —
69730D — Cable Assy, Rear Door Lock Remote Control, RH
69730-02210 Cable Assy, Rear Door Lock Remote Control, RH
2013-06 → 2016-05 ended
NDE180 TUP —
69730-02210 Cable Assy, Rear Door Lock Remote Control, RH
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
69730-02210 note Cable Assy, Rear Door Lock Remote Control, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE181 D SA —
69730-02210 note Cable Assy, Rear Door Lock Remote Control, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
69730-02220 Cable Assy, Rear Door Lock Remote Control, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
69730-02210 Cable Assy, Rear Door Lock Remote Control, RH
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
69730-02210 Cable Assy, Rear Door Lock Remote Control, RH
2016-06 → 2018-08 ended
NRE180 TUP —
69730-02210 Cable Assy, Rear Door Lock Remote Control, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69730-02220 Cable Assy, Rear Door Lock Remote Control, RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
69730-02210 Cable Assy, Rear Door Lock Remote Control, RH
2019-12 → —
ZRE182 GEN —
69730-02220 Cable Assy, Rear Door Lock Remote Control, RH
2019-12 → —
ZRE182 SA —
69740D — Cable Assy, Rear Door Lock Remote Control LH
69730-02210 Cable Assy, Rear Door Lock Remote Control LH
2013-06 → 2016-05 ended
NDE180 TUP —
69730-02210 Cable Assy, Rear Door Lock Remote Control LH
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
69730-02210 note Cable Assy, Rear Door Lock Remote Control LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE181 D SA —
69730-02210 note Cable Assy, Rear Door Lock Remote Control LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
69730-02220 Cable Assy, Rear Door Lock Remote Control LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
69730-02210 Cable Assy, Rear Door Lock Remote Control LH
2016-06 → 2018-08 ended
NRE180 TUP —
69730-02210 Cable Assy, Rear Door Lock Remote Control LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69730-02210 Cable Assy, Rear Door Lock Remote Control LH
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
69730-02220 Cable Assy, Rear Door Lock Remote Control LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
69730-02210 Cable Assy, Rear Door Lock Remote Control LH
2019-12 → —
ZRE182 GEN —
69730-02220 Cable Assy, Rear Door Lock Remote Control LH
2019-12 → —
ZRE182 SA —
69770B — Cable Assy, Rear Door Inside Locking, RH
69770-02300 note Cable Assy, Rear Door Inside Locking, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
69770-02300 note Cable Assy, Rear Door Inside Locking, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE181 D SA —
69770-02300 Cable Assy, Rear Door Inside Locking, RH
2013-06 → 2016-05 ended
NDE180 TUP —
69770-02300 Cable Assy, Rear Door Inside Locking, RH
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
69770-02310 Cable Assy, Rear Door Inside Locking, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
69770-02300 Cable Assy, Rear Door Inside Locking, RH
2016-06 → 2018-08 ended
NRE180 TUP —
69770-02300 Cable Assy, Rear Door Inside Locking, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69770-02300 Cable Assy, Rear Door Inside Locking, RH
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
69770-02310 Cable Assy, Rear Door Inside Locking, RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
69770-02300 Cable Assy, Rear Door Inside Locking, RH
2019-12 → —
ZRE182 GEN —
69770-02310 Cable Assy, Rear Door Inside Locking, RH
2019-12 → —
ZRE182 SA —
69780B — Cable Assy, Rear Door Inside Locking, LH
69770-02300 Cable Assy, Rear Door Inside Locking, LH
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
69770-02300 note Cable Assy, Rear Door Inside Locking, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
69770-02300 note Cable Assy, Rear Door Inside Locking, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE181 D SA —
69770-02300 Cable Assy, Rear Door Inside Locking, LH
2013-06 → 2016-05 ended
NDE180 TUP —
69770-02310 Cable Assy, Rear Door Inside Locking, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
69770-02300 Cable Assy, Rear Door Inside Locking, LH
2016-06 → 2018-08 ended
NRE180 TUP —
69770-02300 Cable Assy, Rear Door Inside Locking, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
69770-02300 Cable Assy, Rear Door Inside Locking, LH
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
69770-02310 Cable Assy, Rear Door Inside Locking, LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
69770-02300 Cable Assy, Rear Door Inside Locking, LH
2019-12 → —
ZRE182 GEN —
69770-02310 Cable Assy, Rear Door Inside Locking, LH
2019-12 → —
ZRE182 SA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
