Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

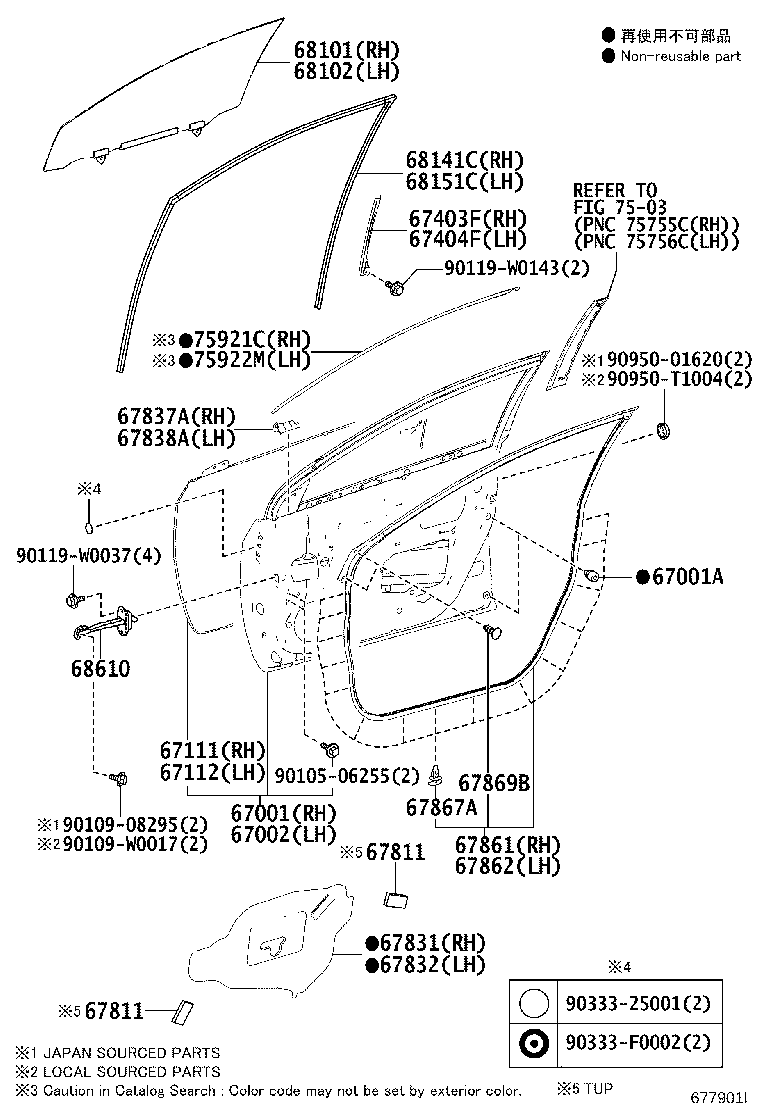

Exploded illustration 677901I 7503 — not listed in this catalogue 67403F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH (7 parts) 67404F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH (7 parts) 68141C — RUN, FRONT DOOR GLASS, RH (6 parts) 68151C — RUN, FRONT DOOR GLASS, LH (6 parts) 75921C — TAPE, BLACK OUT, NO.1 RH (6 parts) 75922M — TAPE, BLACK OUT, NO.1 LH (6 parts) 90950T1004 — not listed in this catalogue 9095001620 — not listed in this catalogue 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (6 parts) 67001A — CUSHION, FRONT DOOR PANEL (6 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (6 parts) 67111 — PANEL, FRONT DOOR, OUTER RH (6 parts) 67112 — PANEL, FRONT DOOR, OUTER LH (6 parts) 67811 — PAD, FRONT DOOR SILENCER (2 parts) 67811 — PAD, FRONT DOOR SILENCER (2 parts) 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (6 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (6 parts) 67837A — SEAL, FRONT DOOR VENT, RH (6 parts) 67838A — SEAL, FRONT DOOR VENT, LH (6 parts) 67861 — WEATHERSTRIP, FRONT DOOR, RH (6 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (6 parts) 67867A — CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) (7 parts) 67869B — CLIP, FRONT DOOR WEATHERSTRIP (7 parts) 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (6 parts) 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (6 parts) 68610 — CHECK ASSY, FRONT DOOR (9 parts) 90119W0037 — not listed in this catalogue 90109W0017 — not listed in this catalogue 9010908295 — not listed in this catalogue 90119W0143 — not listed in this catalogue 9010506255 — not listed in this catalogue 9033325001 — not listed in this catalogue 90333F0002 — not listed in this catalogue
677901I · 24 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
141 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-02390 Panel Sub-assy, Front Door, RH
2013-06 → 2016-05 ended
NDE180 TUP —
67001-02400 Panel Sub-assy, Front Door, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67001-02390 Panel Sub-assy, Front Door, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67001-02390 Panel Sub-assy, Front Door, RH
2016-06 → 2018-08 ended
NRE180 TUP —
67001-02400 Panel Sub-assy, Front Door, RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67001-02400 Panel Sub-assy, Front Door, RH
2019-12 → —
ZRE182 —
67001A — Cushion, Front Door Panel
90541-09124 Cushion, Front Door Panel
2013-06 → 2016-05 ended
NDE180 TUP —
90541-09124 Cushion, Front Door Panel
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90541-09124 Cushion, Front Door Panel
2016-06 → 2018-08 ended
NRE180 TUP —
90541-09124 Cushion, Front Door Panel
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90541-09124 Cushion, Front Door Panel
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90541-09124 Cushion, Front Door Panel
2019-12 → —
ZRE182 —
67002 — Panel Sub-assy, Front Door, LH
67002-02390 Panel Sub-assy, Front Door, LH
2013-06 → 2016-05 ended
NDE180 TUP —
67002-02400 Panel Sub-assy, Front Door, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67002-02390 Panel Sub-assy, Front Door, LH
2016-06 → 2018-08 ended
NRE180 TUP —
67002-02390 Panel Sub-assy, Front Door, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67002-02400 Panel Sub-assy, Front Door, LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67002-02400 Panel Sub-assy, Front Door, LH
2019-12 → —
ZRE182 —
67111 — Panel, Front Door, Outer RH
67111-02230 Panel, Front Door, Outer RH
2013-06 → 2016-05 ended
NDE180 TUP —
67111-02240 Panel, Front Door, Outer RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67111-02230 Panel, Front Door, Outer RH
2016-06 → 2018-08 ended
NRE180 TUP —
67111-02230 Panel, Front Door, Outer RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67111-02240 Panel, Front Door, Outer RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67111-02240 Panel, Front Door, Outer RH
2019-12 → —
ZRE182 —
67112 — Panel, Front Door, Outer LH
67112-02230 Panel, Front Door, Outer LH
2013-06 → 2016-05 ended
NDE180 TUP —
67112-02240 Panel, Front Door, Outer LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67112-02230 Panel, Front Door, Outer LH
2016-06 → 2018-08 ended
NRE180 TUP —
67112-02230 Panel, Front Door, Outer LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67112-02240 Panel, Front Door, Outer LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67112-02240 Panel, Front Door, Outer LH
2019-12 → —
ZRE182 —
67403F — Frame Sub-assy, Front Door, Rear Lower RH
67403-12320 Frame Sub-assy, Front Door, Rear Lower RH
2013-06 → 2016-05 ended
NDE180 TUP —
67403-12320 Frame Sub-assy, Front Door, Rear Lower RH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67403-02190 Frame Sub-assy, Front Door, Rear Lower RH
2018-09 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67403-12320 Frame Sub-assy, Front Door, Rear Lower RH
2016-06 → 2018-08 ended
NRE180 TUP —
67403-12320 Frame Sub-assy, Front Door, Rear Lower RH
2016-06 → 2018-09 ended
NDE180,NRE180,ZRE18# SAP —
67403-12320 Frame Sub-assy, Front Door, Rear Lower RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67403-02190 Frame Sub-assy, Front Door, Rear Lower RH
2019-12 → —
ZRE182 —
67404F — Frame Sub-assy, Front Door, Rear Lower LH
67404-12300 Frame Sub-assy, Front Door, Rear Lower LH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67404-12300 Frame Sub-assy, Front Door, Rear Lower LH
2013-06 → 2016-05 ended
NDE180 TUP —
67404-02190 Frame Sub-assy, Front Door, Rear Lower LH
2018-09 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67404-12300 Frame Sub-assy, Front Door, Rear Lower LH
2016-06 → 2018-08 ended
NRE180 TUP —
67404-12300 Frame Sub-assy, Front Door, Rear Lower LH
2016-06 → 2018-09 ended
NDE180,NRE180,ZRE18# SAP —
67404-12300 Frame Sub-assy, Front Door, Rear Lower LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67404-02190 Frame Sub-assy, Front Door, Rear Lower LH
2019-12 → —
ZRE182 —
67811 — Pad, Front Door Silencer
67811-02300 Pad, Front Door Silencer
2013-06 → 2016-05 ended
NDE180 TUP —
67811-02300 Pad, Front Door Silencer
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# TUP —
67831 — Cover, Front Door Service Hole, RH
67831-02330 Cover, Front Door Service Hole, RH
2013-06 → 2016-05 ended
NDE180 TUP —
67831-02340 Cover, Front Door Service Hole, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67831-02330 Cover, Front Door Service Hole, RH
2016-06 → 2018-08 ended
NRE180 TUP —
67831-02330 Cover, Front Door Service Hole, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67831-02340 Cover, Front Door Service Hole, RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67831-02550 Cover, Front Door Service Hole, RH
2019-12 → —
ZRE182 —
67832 — Cover, Front Door Service Hole, LH
67832-02330 Cover, Front Door Service Hole, LH
2013-06 → 2016-05 ended
NDE180 TUP —
67832-02340 Cover, Front Door Service Hole, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67832-02330 Cover, Front Door Service Hole, LH
2016-06 → 2018-08 ended
NRE180 TUP —
67832-02330 Cover, Front Door Service Hole, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67832-02340 Cover, Front Door Service Hole, LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67832-02550 Cover, Front Door Service Hole, LH
2019-12 → —
ZRE182 —
67837A — Seal, Front Door Vent, RH
67837-02050 Seal, Front Door Vent, RH
2013-06 → 2016-05 ended
NDE180 TUP —
67837-02050 Seal, Front Door Vent, RH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67837-02050 Seal, Front Door Vent, RH
2016-06 → 2018-08 ended
NRE180 TUP —
67837-02050 Seal, Front Door Vent, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67837-02050 Seal, Front Door Vent, RH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67837-02050 Seal, Front Door Vent, RH
2019-12 → —
ZRE182 —
67838A — Seal, Front Door Vent, LH
67838-02020 Seal, Front Door Vent, LH
2013-06 → 2016-05 ended
NDE180 TUP —
67838-02020 Seal, Front Door Vent, LH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67838-02020 Seal, Front Door Vent, LH
2016-06 → 2018-08 ended
NRE180 TUP —
67838-02020 Seal, Front Door Vent, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67838-02020 Seal, Front Door Vent, LH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67838-02020 Seal, Front Door Vent, LH
2019-12 → —
ZRE182 —
67861 — Weatherstrip, Front Door, RH
67861-02270 Weatherstrip, Front Door, RH
2013-06 → 2016-05 ended
NDE180 TUP —
67861-02270 Weatherstrip, Front Door, RH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67861-02270 Weatherstrip, Front Door, RH
2016-06 → 2018-08 ended
NRE180 TUP —
67861-02270 Weatherstrip, Front Door, RH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67861-02270 Weatherstrip, Front Door, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67861-02270 Weatherstrip, Front Door, RH
2019-12 → —
ZRE182 —
67862 — Weatherstrip, Front Door, LH
67862-02270 Weatherstrip, Front Door, LH
2013-06 → 2016-05 ended
NDE180 TUP —
67862-02270 Weatherstrip, Front Door, LH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67862-02270 Weatherstrip, Front Door, LH
2016-06 → 2018-08 ended
NRE180 TUP —
67862-02270 Weatherstrip, Front Door, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67862-02270 Weatherstrip, Front Door, LH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67862-02270 Weatherstrip, Front Door, LH
2019-12 → —
ZRE182 —
67867A — Clip, Door Weatherstrip(FOR FRONT DOOR)
67867-12150 Clip, Door Weatherstrip(FOR FRONT DOOR)
2013-06 → 2016-05 ended
NDE180 TUP —
67867-12150 Clip, Door Weatherstrip(FOR FRONT DOOR)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67867-12150 Clip, Door Weatherstrip(FOR FRONT DOOR)
2016-06 → 2018-08 ended
NRE180 TUP —
67867-12150 Clip, Door Weatherstrip(FOR FRONT DOOR)
2016-06 → 2018-10 ended
NDE180,NRE180,ZRE18# SAP —
67867-12150 Clip, Door Weatherstrip(FOR FRONT DOOR)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67867-12150 Clip, Door Weatherstrip(FOR FRONT DOOR)
2018-10 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67867-12150 Clip, Door Weatherstrip(FOR FRONT DOOR)
2019-12 → —
ZRE182 —
67869B — Clip, Front Door Weatherstrip
67869-20030 Clip, Front Door Weatherstrip
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
67869-20030 Clip, Front Door Weatherstrip
2013-06 → 2016-05 ended
NDE180 TUP —
67869-20030 Clip, Front Door Weatherstrip
2016-06 → 2018-08 ended
NRE180 TUP —
67869-20030 Clip, Front Door Weatherstrip
2016-06 → 2018-10 ended
NDE180,NRE180,ZRE18# SAP —
67869-20030 Clip, Front Door Weatherstrip
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
67869-20030 Clip, Front Door Weatherstrip
2018-10 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
67869-20030 Clip, Front Door Weatherstrip
2019-12 → —
ZRE182 —
68101 — Glass Sub-assy, Front Door, RH
68101-02430 Glass Sub-assy, Front Door, RH
2013-06 → 2016-05 ended
NDE180 TUP —
68101-02450 Glass Sub-assy, Front Door, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
68101-02430 Glass Sub-assy, Front Door, RH
2016-06 → 2018-08 ended
NRE180 TUP —
68101-02430 Glass Sub-assy, Front Door, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
68101-02450 Glass Sub-assy, Front Door, RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
68101-02700 Glass Sub-assy, Front Door, RH
2019-12 → —
ZRE182 —
68102 — Glass Sub-assy, Front Door, LH
68102-02430 Glass Sub-assy, Front Door, LH
2013-06 → 2016-05 ended
NDE180 TUP —
68102-02450 Glass Sub-assy, Front Door, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
68102-02430 Glass Sub-assy, Front Door, LH
2016-06 → 2018-08 ended
NRE180 TUP —
68102-02430 Glass Sub-assy, Front Door, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
68102-02450 Glass Sub-assy, Front Door, LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
68102-02700 Glass Sub-assy, Front Door, LH
2019-12 → —
ZRE182 —
68141C — Run, Front Door Glass, RH
68141-02310 Run, Front Door Glass, RH
2013-06 → 2016-05 ended
NDE180 TUP —
68141-02310 Run, Front Door Glass, RH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
68141-02310 Run, Front Door Glass, RH
2016-06 → 2018-08 ended
NRE180 TUP —
68141-02310 Run, Front Door Glass, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
68141-02310 Run, Front Door Glass, RH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
68141-02310 Run, Front Door Glass, RH
2019-12 → —
ZRE182 —
68151C — Run, Front Door Glass, LH
68151-02300 Run, Front Door Glass, LH
2013-06 → 2016-05 ended
NDE180 TUP —
68151-02300 Run, Front Door Glass, LH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
68151-02300 Run, Front Door Glass, LH
2016-06 → 2018-08 ended
NRE180 TUP —
68151-02300 Run, Front Door Glass, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
68151-02300 Run, Front Door Glass, LH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
68151-02300 Run, Front Door Glass, LH
2019-12 → —
ZRE182 —
68610 — Check Assy, Front Door
68610-02240 Check Assy, Front Door
2013-06 → 2016-05 ended
NDE180 TUP —
68610-02240 Check Assy, Front Door
2013-06 → 2016-08 ended
NDE180,NRE180,ZRE18# SAP —
68610-02241 Check Assy, Front Door
2016-09 → 2016-12 ended
NDE180,NRE180,ZRE18# SAP —
68610-02240 Check Assy, Front Door
2016-06 → 2016-08 ended
NDE180,NRE180,ZRE18# TUP —
68610-02241 Check Assy, Front Door
2016-09 → 2017-12 ended
NDE180,NRE180,ZRE18# —
68610-02242 Check Assy, Front Door
2018-01 → 2018-08 ended
NRE180 TUP —
68610-02242 Check Assy, Front Door
2018-01 → 2019-01 ended
NDE180,ZRE18# TUP —
68610-02242 Check Assy, Front Door
2018-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
68610-02242 Check Assy, Front Door
2019-12 → —
ZRE182 —
75921C — Tape, Black Out, NO.1 RH
75921-02160 Tape, Black Out, NO.1 RH
2013-06 → 2016-05 ended
NDE180 TUP —
75921-02210 Tape, Black Out, NO.1 RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
75921-02160 Tape, Black Out, NO.1 RH
2016-06 → 2018-08 ended
NRE180 TUP —
75921-02160 Tape, Black Out, NO.1 RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
75921-02210 Tape, Black Out, NO.1 RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
75921-02210 Tape, Black Out, NO.1 RH
2019-12 → —
ZRE182 —
75922M — Tape, Black Out, NO.1 LH
75922-02160 Tape, Black Out, NO.1 LH
2013-06 → 2016-05 ended
NDE180 TUP —
75922-02210 Tape, Black Out, NO.1 LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
75922-02160 Tape, Black Out, NO.1 LH
2016-06 → 2018-08 ended
NRE180 TUP —
75922-02160 Tape, Black Out, NO.1 LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
75922-02210 Tape, Black Out, NO.1 LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
75922-02210 Tape, Black Out, NO.1 LH
2019-12 → —
ZRE182 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
