Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

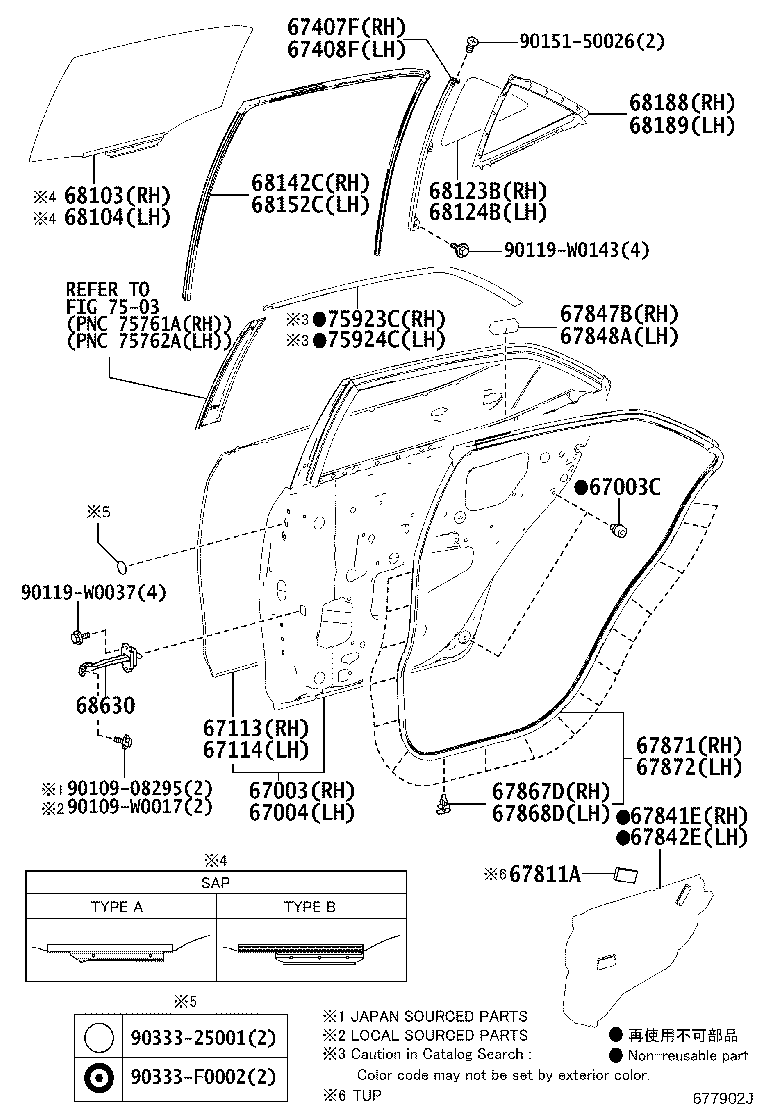

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67003 — Panel Sub-assy, Rear Door, RH | ||||
| 67003-02410 |
Panel Sub-assy, Rear Door, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67003-02420 |
Panel Sub-assy, Rear Door, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67003-02410 |
Panel Sub-assy, Rear Door, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67003-02410 |
Panel Sub-assy, Rear Door, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67003-02420 |
Panel Sub-assy, Rear Door, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67003-02420 |
Panel Sub-assy, Rear Door, RH
2019-12 → —
|
ZRE182 | — | |
| 67003C — Cushion, Rear Door Panel | ||||
| 90541-09124 |
Cushion, Rear Door Panel
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90541-09124 |
Cushion, Rear Door Panel
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90541-09124 |
Cushion, Rear Door Panel
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90541-09124 |
Cushion, Rear Door Panel
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90541-09124 |
Cushion, Rear Door Panel
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90541-09124 |
Cushion, Rear Door Panel
2019-12 → —
|
ZRE182 | — | |
| 67004 — Panel Sub-assy, Rear Door, LH | ||||
| 67004-02410 |
Panel Sub-assy, Rear Door, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67004-02420 |
Panel Sub-assy, Rear Door, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67004-02410 |
Panel Sub-assy, Rear Door, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67004-02410 |
Panel Sub-assy, Rear Door, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67004-02420 |
Panel Sub-assy, Rear Door, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67004-02420 |
Panel Sub-assy, Rear Door, LH
2019-12 → —
|
ZRE182 | — | |
| 67113 — Panel, Rear Door, Outer RH | ||||
| 67113-02200 |
Panel, Rear Door, Outer RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67113-02210 |
Panel, Rear Door, Outer RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67113-02200 |
Panel, Rear Door, Outer RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67113-02200 |
Panel, Rear Door, Outer RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67113-02210 |
Panel, Rear Door, Outer RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67113-02210 |
Panel, Rear Door, Outer RH
2019-12 → —
|
ZRE182 | — | |
| 67114 — Panel, Rear Door, Outer LH | ||||
| 67114-02200 |
Panel, Rear Door, Outer LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67114-02210 |
Panel, Rear Door, Outer LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67114-02200 |
Panel, Rear Door, Outer LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67114-02200 |
Panel, Rear Door, Outer LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67114-02210 |
Panel, Rear Door, Outer LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67114-02210 |
Panel, Rear Door, Outer LH
2019-12 → —
|
ZRE182 | — | |
| 67407F — Frame Sub-assy, Rear Door Window, Rear Lower RH | ||||
| 67407-12340 |
Frame Sub-assy, Rear Door Window, Rear Lower RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67407-12340 |
Frame Sub-assy, Rear Door Window, Rear Lower RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67407-02140 |
Frame Sub-assy, Rear Door Window, Rear Lower RH
2018-09 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67407-12340 |
Frame Sub-assy, Rear Door Window, Rear Lower RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67407-12340 |
Frame Sub-assy, Rear Door Window, Rear Lower RH
2016-06 → 2018-09
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67407-12340 |
Frame Sub-assy, Rear Door Window, Rear Lower RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67407-02140 |
Frame Sub-assy, Rear Door Window, Rear Lower RH
2019-12 → —
|
ZRE182 | — | |
| 67408F — Frame Sub-assy, Rear Door Window, Rear Lower LH | ||||
| 67408-12340 |
Frame Sub-assy, Rear Door Window, Rear Lower LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67408-12340 |
Frame Sub-assy, Rear Door Window, Rear Lower LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67408-02140 |
Frame Sub-assy, Rear Door Window, Rear Lower LH
2018-09 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67408-12340 |
Frame Sub-assy, Rear Door Window, Rear Lower LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67408-12340 |
Frame Sub-assy, Rear Door Window, Rear Lower LH
2016-06 → 2018-09
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67408-12340 |
Frame Sub-assy, Rear Door Window, Rear Lower LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67408-02140 |
Frame Sub-assy, Rear Door Window, Rear Lower LH
2019-12 → —
|
ZRE182 | — | |
| 67811A — Pad, Rear Door Silencer | ||||
| 67811-02300 |
Pad, Rear Door Silencer
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67811-02300 |
Pad, Rear Door Silencer
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# TUP | — | |
| 67841E — Cover, Rear Door Service Hole, RH | ||||
| 67841-02270 |
Cover, Rear Door Service Hole, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67841-02280 |
Cover, Rear Door Service Hole, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67841-02270 |
Cover, Rear Door Service Hole, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67841-02270 |
Cover, Rear Door Service Hole, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67841-02280 |
Cover, Rear Door Service Hole, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67841-02280 |
Cover, Rear Door Service Hole, RH
2019-12 → —
|
ZRE182 | — | |
| 67842E — Cover, Rear Door Service Hole, LH | ||||
| 67842-02250 |
Cover, Rear Door Service Hole, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67842-02260 |
Cover, Rear Door Service Hole, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67842-02250 |
Cover, Rear Door Service Hole, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67842-02250 |
Cover, Rear Door Service Hole, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67842-02260 |
Cover, Rear Door Service Hole, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67842-02260 |
Cover, Rear Door Service Hole, LH
2019-12 → —
|
ZRE182 | — | |
| 67847B — Seal, Rear Door Vent, RH NO.1 | ||||
| 67847-02040 |
Seal, Rear Door Vent, RH NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67847-02050 |
Seal, Rear Door Vent, RH NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67847-02040 |
Seal, Rear Door Vent, RH NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67847-02040 |
Seal, Rear Door Vent, RH NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67847-02050 |
Seal, Rear Door Vent, RH NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67847-02050 |
Seal, Rear Door Vent, RH NO.1
2019-12 → —
|
ZRE182 | — | |
| 67848A — Seal, Rear Door Vent, LH NO.1 | ||||
| 67847-02040 |
Seal, Rear Door Vent, LH NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67847-02050 |
Seal, Rear Door Vent, LH NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67847-02040 |
Seal, Rear Door Vent, LH NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67847-02040 |
Seal, Rear Door Vent, LH NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67847-02050 |
Seal, Rear Door Vent, LH NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67847-02050 |
Seal, Rear Door Vent, LH NO.1
2019-12 → —
|
ZRE182 | — | |
| 67867D — Retainer, Rear Door Weatherstrip, RH | ||||
| 67867-12150 |
Retainer, Rear Door Weatherstrip, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, RH
2019-12 → —
|
ZRE182 | — | |
| 67868D — Retainer, Rear Door Weatherstrip, LH | ||||
| 67867-12150 |
Retainer, Rear Door Weatherstrip, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67867-12150 |
Retainer, Rear Door Weatherstrip, LH
2019-12 → —
|
ZRE182 | — | |
| 67871 — Weatherstrip, Rear Door, RH | ||||
| 67871-02240 |
Weatherstrip, Rear Door, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67871-02240 |
Weatherstrip, Rear Door, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67871-02240 |
Weatherstrip, Rear Door, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67871-02240 |
Weatherstrip, Rear Door, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67871-02240 |
Weatherstrip, Rear Door, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67871-02240 |
Weatherstrip, Rear Door, RH
2019-12 → —
|
ZRE182 | — | |
| 67872 — Weatherstrip, Rear Door, LH | ||||
| 67872-02240 |
Weatherstrip, Rear Door, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67872-02240 |
Weatherstrip, Rear Door, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67872-02240 |
Weatherstrip, Rear Door, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67872-02240 |
Weatherstrip, Rear Door, LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67872-02240 |
Weatherstrip, Rear Door, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67872-02240 |
Weatherstrip, Rear Door, LH
2019-12 → —
|
ZRE182 | — | |
| 68103 — Glass Sub-assy, Rear Door, RH | ||||
| 68103-02410 |
Glass Sub-assy, Rear Door, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68103-02430 |
Glass Sub-assy, Rear Door, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68103-02380 note |
Glass Sub-assy, Rear Door, RH
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 68103-02380 note |
Glass Sub-assy, Rear Door, RH
2016-11 → 2019-01
ended
|
NDE180 N TUP | — | |
| 68103-02380 note |
Glass Sub-assy, Rear Door, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 68103-02410 |
Glass Sub-assy, Rear Door, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68103-02410 |
Glass Sub-assy, Rear Door, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68103-02430 note |
Glass Sub-assy, Rear Door, RH
2017-01 → 2017-09
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68103-02670 note |
Glass Sub-assy, Rear Door, RH
2017-09 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68103-02670 |
Glass Sub-assy, Rear Door, RH
2019-12 → —
|
ZRE182 | — | |
| 68104 — Glass Sub-assy, Rear Door, LH | ||||
| 68104-02410 |
Glass Sub-assy, Rear Door, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68104-02430 |
Glass Sub-assy, Rear Door, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68104-02380 note |
Glass Sub-assy, Rear Door, LH
2016-11 → 2019-01
ended
|
NDE180 N TUP | — | |
| 68104-02380 note |
Glass Sub-assy, Rear Door, LH
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 68104-02380 note |
Glass Sub-assy, Rear Door, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 68104-02410 |
Glass Sub-assy, Rear Door, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68104-02410 |
Glass Sub-assy, Rear Door, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68104-02430 note |
Glass Sub-assy, Rear Door, LH
2017-01 → 2017-09
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68104-02670 note |
Glass Sub-assy, Rear Door, LH
2017-09 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68104-02670 |
Glass Sub-assy, Rear Door, LH
2019-12 → —
|
ZRE182 | — | |
| 68123B — Glass, Rear Door Quarter Window, RH | ||||
| 68123-02330 |
Glass, Rear Door Quarter Window, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68123-02350 |
Glass, Rear Door Quarter Window, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68123-02300 note |
Glass, Rear Door Quarter Window, RH
2016-11 → 2019-01
ended
|
NDE180 N TUP | — | |
| 68123-02300 note |
Glass, Rear Door Quarter Window, RH
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 68123-02300 note |
Glass, Rear Door Quarter Window, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 68123-02330 |
Glass, Rear Door Quarter Window, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68123-02330 |
Glass, Rear Door Quarter Window, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68123-02350 |
Glass, Rear Door Quarter Window, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68123-02350 |
Glass, Rear Door Quarter Window, RH
2019-12 → —
|
ZRE182 | — | |
| 68124B — Glass, Rear Door Quarter Window, LH | ||||
| 68124-02330 |
Glass, Rear Door Quarter Window, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68124-02350 |
Glass, Rear Door Quarter Window, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68124-02300 note |
Glass, Rear Door Quarter Window, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 68124-02300 note |
Glass, Rear Door Quarter Window, LH
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 68124-02300 note |
Glass, Rear Door Quarter Window, LH
2016-11 → 2019-01
ended
|
NDE180 N TUP | — | |
| 68124-02330 |
Glass, Rear Door Quarter Window, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68124-02330 |
Glass, Rear Door Quarter Window, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68124-02350 |
Glass, Rear Door Quarter Window, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68124-02350 |
Glass, Rear Door Quarter Window, LH
2019-12 → —
|
ZRE182 | — | |
| 68142C — Run, Rear Door Glass, RH | ||||
| 68142-02300 |
Run, Rear Door Glass, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68142-02300 |
Run, Rear Door Glass, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68142-02300 |
Run, Rear Door Glass, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68142-02300 |
Run, Rear Door Glass, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68142-02300 |
Run, Rear Door Glass, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68142-02300 |
Run, Rear Door Glass, RH
2019-12 → —
|
ZRE182 | — | |
| 68152C — Run, Rear Door Glass, LH | ||||
| 68152-02300 |
Run, Rear Door Glass, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68152-02300 |
Run, Rear Door Glass, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68152-02300 |
Run, Rear Door Glass, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68152-02300 |
Run, Rear Door Glass, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68152-02300 |
Run, Rear Door Glass, LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68152-02300 |
Run, Rear Door Glass, LH
2019-12 → —
|
ZRE182 | — | |
| 68188 — Weatherstrip, Rear Door Quarter Window, RH | ||||
| 68188-02170 |
Weatherstrip, Rear Door Quarter Window, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68188-02170 |
Weatherstrip, Rear Door Quarter Window, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68188-02170 |
Weatherstrip, Rear Door Quarter Window, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68188-02170 |
Weatherstrip, Rear Door Quarter Window, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68188-02170 |
Weatherstrip, Rear Door Quarter Window, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68188-02170 |
Weatherstrip, Rear Door Quarter Window, RH
2019-12 → —
|
ZRE182 | — | |
| 68189 — Weatherstrip, Rear Door Quarter Window, LH | ||||
| 68189-02170 |
Weatherstrip, Rear Door Quarter Window, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68189-02170 |
Weatherstrip, Rear Door Quarter Window, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68189-02170 |
Weatherstrip, Rear Door Quarter Window, LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68189-02170 |
Weatherstrip, Rear Door Quarter Window, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68189-02170 |
Weatherstrip, Rear Door Quarter Window, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68189-02170 |
Weatherstrip, Rear Door Quarter Window, LH
2019-12 → —
|
ZRE182 | — | |
| 68630 — Check Assy, Rear Door | ||||
| 68630-02250 |
Check Assy, Rear Door
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68630-02250 |
Check Assy, Rear Door
2013-06 → 2016-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68630-02250 |
Check Assy, Rear Door
2016-06 → 2017-12
ended
|
NDE180,NRE180,ZRE18# | — | |
| 68630-02251 |
Check Assy, Rear Door
2018-01 → 2018-08
ended
|
NRE180 TUP | — | |
| 68630-02251 |
Check Assy, Rear Door
2018-01 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68630-02251 |
Check Assy, Rear Door
2018-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68630-02251 |
Check Assy, Rear Door
2019-12 → —
|
ZRE182 | — | |
| 75923C — Tape, Black Out, NO.2 RH | ||||
| 75923-02230 |
Tape, Black Out, NO.2 RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 75923-02240 |
Tape, Black Out, NO.2 RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 75923-02230 |
Tape, Black Out, NO.2 RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 75923-02230 |
Tape, Black Out, NO.2 RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 75923-02240 |
Tape, Black Out, NO.2 RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 75923-02240 |
Tape, Black Out, NO.2 RH
2019-12 → —
|
ZRE182 | — | |
| 75924C — Tape, Black Out, NO.2 LH | ||||
| 75924-02230 |
Tape, Black Out, NO.2 LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 75924-02240 |
Tape, Black Out, NO.2 LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 75924-02230 |
Tape, Black Out, NO.2 LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 75924-02230 |
Tape, Black Out, NO.2 LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 75924-02240 |
Tape, Black Out, NO.2 LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 75924-02240 |
Tape, Black Out, NO.2 LH
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
