Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

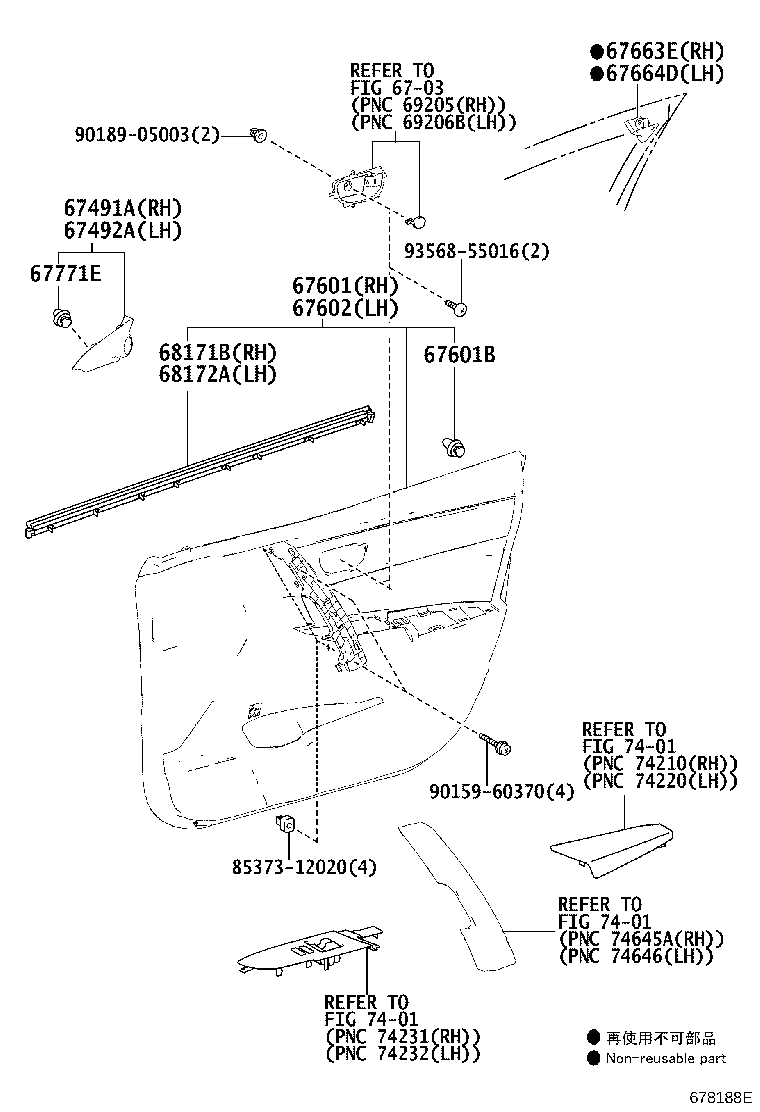

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67491A — Garnish, Front Door Lower Frame Bracket, RH | ||||
| 67491-02420 note |
Garnish, Front Door Lower Frame Bracket, RH
2016-11 → 2017-01
ended
|
ZRE18# D GEN SAP | — | |
| 67491-02420 note |
Garnish, Front Door Lower Frame Bracket, RH
2016-11 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 67491-02420 |
Garnish, Front Door Lower Frame Bracket, RH
2016-11 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 67491-02430 |
Garnish, Front Door Lower Frame Bracket, RH
2013-06 → 2015-05
ended
|
NDE180,NRE180,ZRE18# D | — | |
| 67491-02431 |
Garnish, Front Door Lower Frame Bracket, RH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 67491-02431 |
Garnish, Front Door Lower Frame Bracket, RH
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 67491-02440 |
Garnish, Front Door Lower Frame Bracket, RH
2013-06 → 2015-05
ended
|
NDE180,NRE180,ZRE18# N | — | |
| 67491-02440 note |
Garnish, Front Door Lower Frame Bracket, RH
2014-01 → 2015-05
ended
|
ZRE18# D GEN | — | |
| 67491-02440 note |
Garnish, Front Door Lower Frame Bracket, RH
2014-01 → 2015-05
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 67491-02441 note |
Garnish, Front Door Lower Frame Bracket, RH
2015-05 → 2016-10
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 67491-02441 note |
Garnish, Front Door Lower Frame Bracket, RH
2015-05 → 2016-10
ended
|
ZRE18# D GEN SAP | — | |
| 67491-02441 note |
Garnish, Front Door Lower Frame Bracket, RH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 67491-02441 |
Garnish, Front Door Lower Frame Bracket, RH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 67491-02441 |
Garnish, Front Door Lower Frame Bracket, RH
2015-05 → 2016-10
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 67491-02420 note |
Garnish, Front Door Lower Frame Bracket, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 67491-02420 note |
Garnish, Front Door Lower Frame Bracket, RH
2017-01 → 2019-12
ended
|
ZRE18# D GEN SAP | — | |
| 67491-02420 |
Garnish, Front Door Lower Frame Bracket, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 67491-02431 |
Garnish, Front Door Lower Frame Bracket, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 67491-02431 |
Garnish, Front Door Lower Frame Bracket, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 67491-02431 |
Garnish, Front Door Lower Frame Bracket, RH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 67491-02441 note |
Garnish, Front Door Lower Frame Bracket, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE181 D GEN TUP | — | |
| 67491-02441 |
Garnish, Front Door Lower Frame Bracket, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 67491-02441 |
Garnish, Front Door Lower Frame Bracket, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 67491-02420 |
Garnish, Front Door Lower Frame Bracket, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 67491-02431 |
Garnish, Front Door Lower Frame Bracket, RH
2019-12 → —
|
ZRE182 D | — | |
| 67492A — Garnish, Front Door Lower Frame Bracket, LH | ||||
| 67492-02420 |
Garnish, Front Door Lower Frame Bracket, LH
2016-11 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 67492-02420 note |
Garnish, Front Door Lower Frame Bracket, LH
2016-11 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 67492-02420 note |
Garnish, Front Door Lower Frame Bracket, LH
2016-11 → 2017-01
ended
|
ZRE18# D GEN SAP | — | |
| 67492-02430 |
Garnish, Front Door Lower Frame Bracket, LH
2013-06 → 2015-05
ended
|
NDE180,NRE180,ZRE18# D | — | |
| 67492-02431 |
Garnish, Front Door Lower Frame Bracket, LH
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 67492-02431 |
Garnish, Front Door Lower Frame Bracket, LH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 67492-02440 note |
Garnish, Front Door Lower Frame Bracket, LH
2014-01 → 2015-05
ended
|
ZRE18# D GEN | — | |
| 67492-02440 note |
Garnish, Front Door Lower Frame Bracket, LH
2014-01 → 2015-05
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 67492-02440 |
Garnish, Front Door Lower Frame Bracket, LH
2013-06 → 2015-05
ended
|
NDE180,NRE180,ZRE18# N | — | |
| 67492-02441 note |
Garnish, Front Door Lower Frame Bracket, LH
2015-05 → 2016-10
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 67492-02441 note |
Garnish, Front Door Lower Frame Bracket, LH
2015-05 → 2016-10
ended
|
ZRE18# D GEN SAP | — | |
| 67492-02441 |
Garnish, Front Door Lower Frame Bracket, LH
2015-05 → 2016-10
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 67492-02441 note |
Garnish, Front Door Lower Frame Bracket, LH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 67492-02441 |
Garnish, Front Door Lower Frame Bracket, LH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 67492-02420 |
Garnish, Front Door Lower Frame Bracket, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 67492-02420 note |
Garnish, Front Door Lower Frame Bracket, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 67492-02420 note |
Garnish, Front Door Lower Frame Bracket, LH
2017-01 → 2019-12
ended
|
ZRE18# D GEN SAP | — | |
| 67492-02431 |
Garnish, Front Door Lower Frame Bracket, LH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 67492-02431 |
Garnish, Front Door Lower Frame Bracket, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 67492-02431 |
Garnish, Front Door Lower Frame Bracket, LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 67492-02441 |
Garnish, Front Door Lower Frame Bracket, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 67492-02441 |
Garnish, Front Door Lower Frame Bracket, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 67492-02441 note |
Garnish, Front Door Lower Frame Bracket, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE181 D GEN TUP | — | |
| 67492-02420 |
Garnish, Front Door Lower Frame Bracket, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 67492-02431 |
Garnish, Front Door Lower Frame Bracket, LH
2019-12 → —
|
ZRE182 D | — | |
| 67601 — Board Sub-assy, Front Door Trim, RH | ||||
| 67610-02R50-20 note |
Board Sub-assy, Front Door Trim, RH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 67610-02R50-21 note |
Board Sub-assy, Front Door Trim, RH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 67610-02R50-C6 note |
Board Sub-assy, Front Door Trim, RH
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 67610-02R50-C7 note |
Board Sub-assy, Front Door Trim, RH
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 67610-02R60-24 note |
Board Sub-assy, Front Door Trim, RH
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 67610-02R60-25 note |
Board Sub-assy, Front Door Trim, RH
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 67610-02R60-26 note |
Board Sub-assy, Front Door Trim, RH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 67610-02R60-27 note |
Board Sub-assy, Front Door Trim, RH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 67610-02R70-24 note |
Board Sub-assy, Front Door Trim, RH
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 67610-02R70-25 note |
Board Sub-assy, Front Door Trim, RH
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 67610-02R70-26 note |
Board Sub-assy, Front Door Trim, RH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 67610-02R70-27 note |
Board Sub-assy, Front Door Trim, RH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 67610-02R90-C5 note |
Board Sub-assy, Front Door Trim, RH
2014-01 → 2017-01
ended
|
ZRE18# D GEN SAP | — | |
| 67610-02S00-21 note |
Board Sub-assy, Front Door Trim, RH
2016-10 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 67610-02S00-C3 note |
Board Sub-assy, Front Door Trim, RH
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 67610-02S10-C4 note |
Board Sub-assy, Front Door Trim, RH
2014-01 → 2015-05
ended
|
ZRE18# N GEN | — | |
| 67610-02S10-C4 note |
Board Sub-assy, Front Door Trim, RH
2015-05 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 67610-02S10-C4 note |
Board Sub-assy, Front Door Trim, RH
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 67610-02S20-C5 note |
Board Sub-assy, Front Door Trim, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 67610-02S30-C2 note |
Board Sub-assy, Front Door Trim, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67610-02S40-C3 note |
Board Sub-assy, Front Door Trim, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67610-02S40-C3 note |
Board Sub-assy, Front Door Trim, RH
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67610-02S40-C3 note |
Board Sub-assy, Front Door Trim, RH
2014-01 → 2015-05
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67610-02R50-26 note |
Board Sub-assy, Front Door Trim, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 67610-02R50-26 note |
Board Sub-assy, Front Door Trim, RH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 67610-02R50-27 note |
Board Sub-assy, Front Door Trim, RH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 67610-02R50-27 note |
Board Sub-assy, Front Door Trim, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 67610-02R60-42 note |
Board Sub-assy, Front Door Trim, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 67610-02R60-42 note |
Board Sub-assy, Front Door Trim, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 67610-02R60-43 note |
Board Sub-assy, Front Door Trim, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 67610-02R60-43 note |
Board Sub-assy, Front Door Trim, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 67610-02R70-42 note |
Board Sub-assy, Front Door Trim, RH
2016-08 → 2018-08
ended
|
NRE180 N TUP | — | |
| 67610-02R70-42 note |
Board Sub-assy, Front Door Trim, RH
2016-06 → 2016-08
ended
|
NDE180,NRE180,ZRE18# N TUP | — | |
| 67610-02R70-42 note |
Board Sub-assy, Front Door Trim, RH
2016-08 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 67610-02R70-43 note |
Board Sub-assy, Front Door Trim, RH
2016-08 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 67610-02R70-43 note |
Board Sub-assy, Front Door Trim, RH
2016-08 → 2018-08
ended
|
NRE180 N TUP | — | |
| 67610-02R70-43 note |
Board Sub-assy, Front Door Trim, RH
2016-06 → 2016-08
ended
|
NDE180,NRE180,ZRE18# N TUP | — | |
| 67610-02R90-C9 note |
Board Sub-assy, Front Door Trim, RH
2017-01 → 2019-12
ended
|
ZRE18# D GEN SAP | — | |
| 67610-02S00-20 note |
Board Sub-assy, Front Door Trim, RH
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 67610-02S00-22 note |
Board Sub-assy, Front Door Trim, RH
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 67610-02S10-C8 note |
Board Sub-assy, Front Door Trim, RH
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 67610-02S10-C8 note |
Board Sub-assy, Front Door Trim, RH
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 67610-02S20-C9 note |
Board Sub-assy, Front Door Trim, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 67610-02S30-C9 note |
Board Sub-assy, Front Door Trim, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67610-02S40-C7 note |
Board Sub-assy, Front Door Trim, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67610-02S40-C7 note |
Board Sub-assy, Front Door Trim, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67610-02V30-C0 note |
Board Sub-assy, Front Door Trim, RH
2019-12 → —
|
ZRE182 D GEN | — | |
| 67610-02V30-C1 note |
Board Sub-assy, Front Door Trim, RH
2019-12 → —
|
ZRE182 N GEN | — | |
| 67610-02V30-C2 note |
Board Sub-assy, Front Door Trim, RH
2019-12 → —
|
ZRE182 N GEN | — | |
| 67610-02V40-C0 note |
Board Sub-assy, Front Door Trim, RH
2019-12 → —
|
ZRE182 CVT GEN | — | |
| 67610-02V50-C1 note |
Board Sub-assy, Front Door Trim, RH
2019-12 → —
|
ZRE182 G GEN | — | |
| 67610-02V80-C0 note |
Board Sub-assy, Front Door Trim, RH
2019-12 → —
|
ZRE182 D SA | — | |
| 67610-02V80-C1 note |
Board Sub-assy, Front Door Trim, RH
2019-12 → —
|
ZRE182 N SA | — | |
| 67610-02V80-C2 note |
Board Sub-assy, Front Door Trim, RH
2019-12 → —
|
ZRE182 N SA | — | |
| 67610-02V90-C0 note |
Board Sub-assy, Front Door Trim, RH
2019-12 → —
|
ZRE182 (G,N) SA | — | |
| 67610-0Z670-C1 note |
Board Sub-assy, Front Door Trim, RH
2019-12 → —
|
ZRE182 G SA | — | |
| 67601B — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 67773-0E020 |
Clip(FOR FRONT DOOR TRIM BOARD)
2013-06 → 2015-09
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67773-0E020 |
Clip(FOR FRONT DOOR TRIM BOARD)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90467-09206 |
Clip(FOR FRONT DOOR TRIM BOARD)
2015-10 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67773-0E020 |
Clip(FOR FRONT DOOR TRIM BOARD)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67773-0E020 |
Clip(FOR FRONT DOOR TRIM BOARD)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90467-09206 |
Clip(FOR FRONT DOOR TRIM BOARD)
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90467-09206 |
Clip(FOR FRONT DOOR TRIM BOARD)
2019-12 → —
|
ZRE182 | — | |
| 67602 — Board Sub-assy, Front Door Trim, LH | ||||
| 67620-02R40-20 note |
Board Sub-assy, Front Door Trim, LH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 67620-02R40-21 note |
Board Sub-assy, Front Door Trim, LH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 67620-02R40-C6 note |
Board Sub-assy, Front Door Trim, LH
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 67620-02R40-C7 note |
Board Sub-assy, Front Door Trim, LH
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 67620-02R50-24 note |
Board Sub-assy, Front Door Trim, LH
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 67620-02R50-25 note |
Board Sub-assy, Front Door Trim, LH
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 67620-02R50-26 note |
Board Sub-assy, Front Door Trim, LH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 67620-02R50-27 note |
Board Sub-assy, Front Door Trim, LH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 67620-02R60-24 note |
Board Sub-assy, Front Door Trim, LH
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 67620-02R60-25 note |
Board Sub-assy, Front Door Trim, LH
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 67620-02R60-26 note |
Board Sub-assy, Front Door Trim, LH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 67620-02R60-27 note |
Board Sub-assy, Front Door Trim, LH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 67620-02R80-C5 note |
Board Sub-assy, Front Door Trim, LH
2014-01 → 2017-01
ended
|
ZRE18# D GEN SAP | — | |
| 67620-02R90-21 note |
Board Sub-assy, Front Door Trim, LH
2016-10 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 67620-02R90-C3 note |
Board Sub-assy, Front Door Trim, LH
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 67620-02S00-C4 note |
Board Sub-assy, Front Door Trim, LH
2014-01 → 2015-05
ended
|
ZRE18# N GEN | — | |
| 67620-02S00-C4 note |
Board Sub-assy, Front Door Trim, LH
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 67620-02S00-C4 note |
Board Sub-assy, Front Door Trim, LH
2015-05 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 67620-02S10-C5 note |
Board Sub-assy, Front Door Trim, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 67620-02S20-C2 note |
Board Sub-assy, Front Door Trim, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67620-02S30-C3 note |
Board Sub-assy, Front Door Trim, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67620-02S30-C3 note |
Board Sub-assy, Front Door Trim, LH
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67620-02S30-C3 note |
Board Sub-assy, Front Door Trim, LH
2014-01 → 2015-05
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67620-02R40-26 note |
Board Sub-assy, Front Door Trim, LH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 67620-02R40-26 note |
Board Sub-assy, Front Door Trim, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 67620-02R40-27 note |
Board Sub-assy, Front Door Trim, LH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 67620-02R40-27 note |
Board Sub-assy, Front Door Trim, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 67620-02R50-42 note |
Board Sub-assy, Front Door Trim, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 67620-02R50-42 note |
Board Sub-assy, Front Door Trim, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 67620-02R50-43 note |
Board Sub-assy, Front Door Trim, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 67620-02R50-43 note |
Board Sub-assy, Front Door Trim, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 67620-02R60-42 note |
Board Sub-assy, Front Door Trim, LH
2016-08 → 2018-08
ended
|
NRE180 N TUP | — | |
| 67620-02R60-42 note |
Board Sub-assy, Front Door Trim, LH
2016-06 → 2016-08
ended
|
NDE180,NRE180,ZRE18# N TUP | — | |
| 67620-02R60-42 note |
Board Sub-assy, Front Door Trim, LH
2016-08 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 67620-02R60-43 note |
Board Sub-assy, Front Door Trim, LH
2016-06 → 2016-08
ended
|
NDE180,NRE180,ZRE18# N TUP | — | |
| 67620-02R60-43 note |
Board Sub-assy, Front Door Trim, LH
2016-08 → 2018-08
ended
|
NRE180 N TUP | — | |
| 67620-02R60-43 note |
Board Sub-assy, Front Door Trim, LH
2016-08 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 67620-02R80-C9 note |
Board Sub-assy, Front Door Trim, LH
2017-01 → 2019-12
ended
|
ZRE18# D GEN SAP | — | |
| 67620-02R90-20 note |
Board Sub-assy, Front Door Trim, LH
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 67620-02R90-22 note |
Board Sub-assy, Front Door Trim, LH
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 67620-02S00-C8 note |
Board Sub-assy, Front Door Trim, LH
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 67620-02S00-C8 note |
Board Sub-assy, Front Door Trim, LH
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 67620-02S10-C9 note |
Board Sub-assy, Front Door Trim, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 67620-02S20-C9 note |
Board Sub-assy, Front Door Trim, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67620-02S30-C7 note |
Board Sub-assy, Front Door Trim, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67620-02S30-C7 note |
Board Sub-assy, Front Door Trim, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 67620-02V30-C0 note |
Board Sub-assy, Front Door Trim, LH
2019-12 → —
|
ZRE182 D GEN | — | |
| 67620-02V30-C1 note |
Board Sub-assy, Front Door Trim, LH
2019-12 → —
|
ZRE182 N GEN | — | |
| 67620-02V30-C2 note |
Board Sub-assy, Front Door Trim, LH
2019-12 → —
|
ZRE182 N GEN | — | |
| 67620-02V40-C0 note |
Board Sub-assy, Front Door Trim, LH
2019-12 → —
|
ZRE182 CVT GEN | — | |
| 67620-02V50-C1 note |
Board Sub-assy, Front Door Trim, LH
2019-12 → —
|
ZRE182 G GEN | — | |
| 67620-02V80-C0 note |
Board Sub-assy, Front Door Trim, LH
2019-12 → —
|
ZRE182 D SA | — | |
| 67620-02V80-C1 note |
Board Sub-assy, Front Door Trim, LH
2019-12 → —
|
ZRE182 N SA | — | |
| 67620-02V80-C2 note |
Board Sub-assy, Front Door Trim, LH
2019-12 → —
|
ZRE182 N SA | — | |
| 67620-02V90-C0 note |
Board Sub-assy, Front Door Trim, LH
2019-12 → —
|
ZRE182 (G,N) SA | — | |
| 67620-0Z680-C1 note |
Board Sub-assy, Front Door Trim, LH
2019-12 → —
|
ZRE182 G SA | — | |
| 67663E — Garnish, Door Frame, RH | ||||
| 67663-48010 |
Garnish, Door Frame, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67663-48010 |
Garnish, Door Frame, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67663-48010 |
Garnish, Door Frame, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67663-48010 |
Garnish, Door Frame, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67663-48010 |
Garnish, Door Frame, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67663-48010 |
Garnish, Door Frame, RH
2019-12 → —
|
ZRE182 | — | |
| 67664D — Garnish, Door Frame, LH | ||||
| 67664-48010 |
Garnish, Door Frame, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67664-48010 |
Garnish, Door Frame, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67664-48010 |
Garnish, Door Frame, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67664-48010 |
Garnish, Door Frame, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67664-48010 |
Garnish, Door Frame, LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67664-48010 |
Garnish, Door Frame, LH
2019-12 → —
|
ZRE182 | — | |
| 67771E — Retainer(FOR FRONT DOOR FRAME BRACKET) | ||||
| 67771-12060 |
Retainer(FOR FRONT DOOR FRAME BRACKET)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 67771-12060 |
Retainer(FOR FRONT DOOR FRAME BRACKET)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67771-12060 |
Retainer(FOR FRONT DOOR FRAME BRACKET)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 67771-12060 |
Retainer(FOR FRONT DOOR FRAME BRACKET)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 67771-12060 |
Retainer(FOR FRONT DOOR FRAME BRACKET)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 67771-12060 |
Retainer(FOR FRONT DOOR FRAME BRACKET)
2019-12 → —
|
ZRE182 G,N | — | |
| 67771-12060 |
Retainer(FOR FRONT DOOR FRAME BRACKET)
2019-12 → —
|
ZRE182 D | — | |
| 68171B — Weatherstrip, Front Door Glass, Inner RH | ||||
| 68171-02260 |
Weatherstrip, Front Door Glass, Inner RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68171-02260 |
Weatherstrip, Front Door Glass, Inner RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68171-02260 |
Weatherstrip, Front Door Glass, Inner RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68171-02260 |
Weatherstrip, Front Door Glass, Inner RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68171-02260 |
Weatherstrip, Front Door Glass, Inner RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68171-02260 |
Weatherstrip, Front Door Glass, Inner RH
2019-12 → —
|
ZRE182 | — | |
| 68172A — Weatherstrip, Front Door Glass, Inner LH | ||||
| 68172-02250 |
Weatherstrip, Front Door Glass, Inner LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68172-02250 |
Weatherstrip, Front Door Glass, Inner LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68172-02250 |
Weatherstrip, Front Door Glass, Inner LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68172-02250 |
Weatherstrip, Front Door Glass, Inner LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68172-02250 |
Weatherstrip, Front Door Glass, Inner LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68172-02250 |
Weatherstrip, Front Door Glass, Inner LH
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
