Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

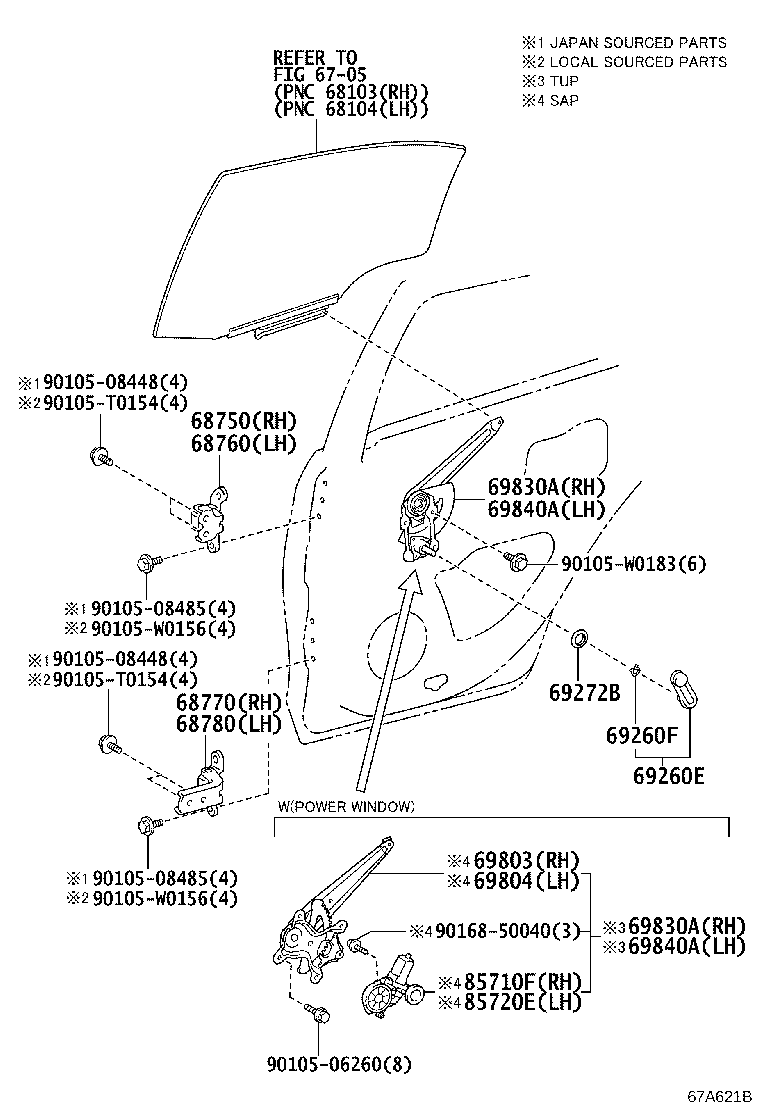

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 68750 — Hinge Assy, Rear Door, Upper RH | ||||
| 68750-02020 |
Hinge Assy, Rear Door, Upper RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68750-0D061 |
Hinge Assy, Rear Door, Upper RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68750-02020 |
Hinge Assy, Rear Door, Upper RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68750-0D061 |
Hinge Assy, Rear Door, Upper RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68750-0D061 |
Hinge Assy, Rear Door, Upper RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68750-02020 |
Hinge Assy, Rear Door, Upper RH
2019-12 → —
|
ZRE182 | — | |
| 68760 — Hinge Assy, Rear Door, Upper LH | ||||
| 68760-02020 |
Hinge Assy, Rear Door, Upper LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68760-0D061 |
Hinge Assy, Rear Door, Upper LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68760-02020 |
Hinge Assy, Rear Door, Upper LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68760-0D061 |
Hinge Assy, Rear Door, Upper LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68760-0D061 |
Hinge Assy, Rear Door, Upper LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68760-02020 |
Hinge Assy, Rear Door, Upper LH
2019-12 → —
|
ZRE182 | — | |
| 68770 — Hinge Assy, Rear Door, Lower RH | ||||
| 68770-02020 |
Hinge Assy, Rear Door, Lower RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68770-0D071 |
Hinge Assy, Rear Door, Lower RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68770-02020 |
Hinge Assy, Rear Door, Lower RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68770-0D071 |
Hinge Assy, Rear Door, Lower RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68770-0D071 |
Hinge Assy, Rear Door, Lower RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68770-02020 |
Hinge Assy, Rear Door, Lower RH
2019-12 → —
|
ZRE182 | — | |
| 68780 — Hinge Assy, Rear Door, Lower LH | ||||
| 68780-02020 |
Hinge Assy, Rear Door, Lower LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68780-0D071 |
Hinge Assy, Rear Door, Lower LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 68780-02020 |
Hinge Assy, Rear Door, Lower LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 68780-0D071 |
Hinge Assy, Rear Door, Lower LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 68780-0D071 |
Hinge Assy, Rear Door, Lower LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 68780-02020 |
Hinge Assy, Rear Door, Lower LH
2019-12 → —
|
ZRE182 | — | |
| 69260E — Handle Assy, Rear Door Window Regulator | ||||
| 69260-02020-C0 note |
Handle Assy, Rear Door Window Regulator
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 69260-02020-C0 note |
Handle Assy, Rear Door Window Regulator
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 69260-02020-C0 note |
Handle Assy, Rear Door Window Regulator
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 69260-02020-C0 note |
Handle Assy, Rear Door Window Regulator
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 69260-02020-C0 note |
Handle Assy, Rear Door Window Regulator
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 69260-02021-C1 note |
Handle Assy, Rear Door Window Regulator
2015-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 69260-02021-C1 note |
Handle Assy, Rear Door Window Regulator
2015-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 69260-02021-C1 note |
Handle Assy, Rear Door Window Regulator
2015-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 69260-02021-C1 note |
Handle Assy, Rear Door Window Regulator
2015-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 69260-02021-C1 note |
Handle Assy, Rear Door Window Regulator
2015-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 69260-02021-C1 note |
Handle Assy, Rear Door Window Regulator
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 69260-02021-C1 note |
Handle Assy, Rear Door Window Regulator
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 69260F — Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90080-52100 |
Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 90080-52100 note |
Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 90080-52100 note |
Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 90080-52100 note |
Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 90080-52100 note |
Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 90080-52100 |
Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 90080-52100 |
Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 69272B — Plate, Rear Door Regulator Inside Handle | ||||
| 69268-02022 note |
Plate, Rear Door Regulator Inside Handle
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 69268-02022 note |
Plate, Rear Door Regulator Inside Handle
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 69268-02022 note |
Plate, Rear Door Regulator Inside Handle
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 69268-02022 |
Plate, Rear Door Regulator Inside Handle
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 69268-02022 note |
Plate, Rear Door Regulator Inside Handle
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 69268-02022 |
Plate, Rear Door Regulator Inside Handle
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 69268-02022 |
Plate, Rear Door Regulator Inside Handle
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 69803 — Regulator Sub-assy, Rear Door Window, RH | ||||
| 69803-0D160 |
Regulator Sub-assy, Rear Door Window, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 69803-02320 |
Regulator Sub-assy, Rear Door Window, RH
2017-09 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 69803-0D160 |
Regulator Sub-assy, Rear Door Window, RH
2017-01 → 2017-09
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 69803-02320 |
Regulator Sub-assy, Rear Door Window, RH
2019-12 → —
|
ZRE182 | — | |
| 69804 — Regulator Sub-assy, Rear Door Window, LH | ||||
| 69804-0D160 |
Regulator Sub-assy, Rear Door Window, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 69804-02320 |
Regulator Sub-assy, Rear Door Window, LH
2017-09 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 69804-0D160 |
Regulator Sub-assy, Rear Door Window, LH
2017-01 → 2017-09
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 69804-02320 |
Regulator Sub-assy, Rear Door Window, LH
2019-12 → —
|
ZRE182 | — | |
| 69830A — Regulator Assy, Rear Door Window, RH | ||||
| 69830-02520 |
Regulator Assy, Rear Door Window, RH
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 69830-02520 note |
Regulator Assy, Rear Door Window, RH
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 69830-02530 |
Regulator Assy, Rear Door Window, RH
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 69830-02530 note |
Regulator Assy, Rear Door Window, RH
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 69830-02640 |
Regulator Assy, Rear Door Window, RH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 69830-02640 note |
Regulator Assy, Rear Door Window, RH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 69830-02520 |
Regulator Assy, Rear Door Window, RH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 69830-02520 |
Regulator Assy, Rear Door Window, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 69830-02640 |
Regulator Assy, Rear Door Window, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 69830-02640 |
Regulator Assy, Rear Door Window, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 69840A — Regulator Assy, Rear Door Window, LH | ||||
| 69840-02520 |
Regulator Assy, Rear Door Window, LH
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 69840-02520 note |
Regulator Assy, Rear Door Window, LH
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 69840-02530 |
Regulator Assy, Rear Door Window, LH
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 69840-02530 note |
Regulator Assy, Rear Door Window, LH
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 69840-02640 |
Regulator Assy, Rear Door Window, LH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 69840-02640 note |
Regulator Assy, Rear Door Window, LH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 69840-02520 |
Regulator Assy, Rear Door Window, LH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 69840-02520 |
Regulator Assy, Rear Door Window, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 69840-02640 |
Regulator Assy, Rear Door Window, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 69840-02640 |
Regulator Assy, Rear Door Window, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 85710F — Motor Assy, Power Window Regulator, RH | ||||
| 85720-0K010 |
Motor Assy, Power Window Regulator, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 85720-0D120 |
Motor Assy, Power Window Regulator, RH
2017-09 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 85720-0K010 |
Motor Assy, Power Window Regulator, RH
2017-01 → 2017-09
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 85720-06120 |
Motor Assy, Power Window Regulator, RH
2020-11 → —
|
ZRE182 | — | |
| 85720-0D120 |
Motor Assy, Power Window Regulator, RH
2019-12 → 2020-10
ended
|
ZRE182 | — | |
| 85720E — Motor Assy, Power Window Regulator, LH | ||||
| 85710-0K010 |
Motor Assy, Power Window Regulator, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 85710-0D100 |
Motor Assy, Power Window Regulator, LH
2017-09 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 85710-0K010 |
Motor Assy, Power Window Regulator, LH
2017-01 → 2017-09
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 85710-06090 |
Motor Assy, Power Window Regulator, LH
2020-11 → —
|
ZRE182 | — | |
| 85710-0D100 |
Motor Assy, Power Window Regulator, LH
2019-12 → 2020-10
ended
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
