Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

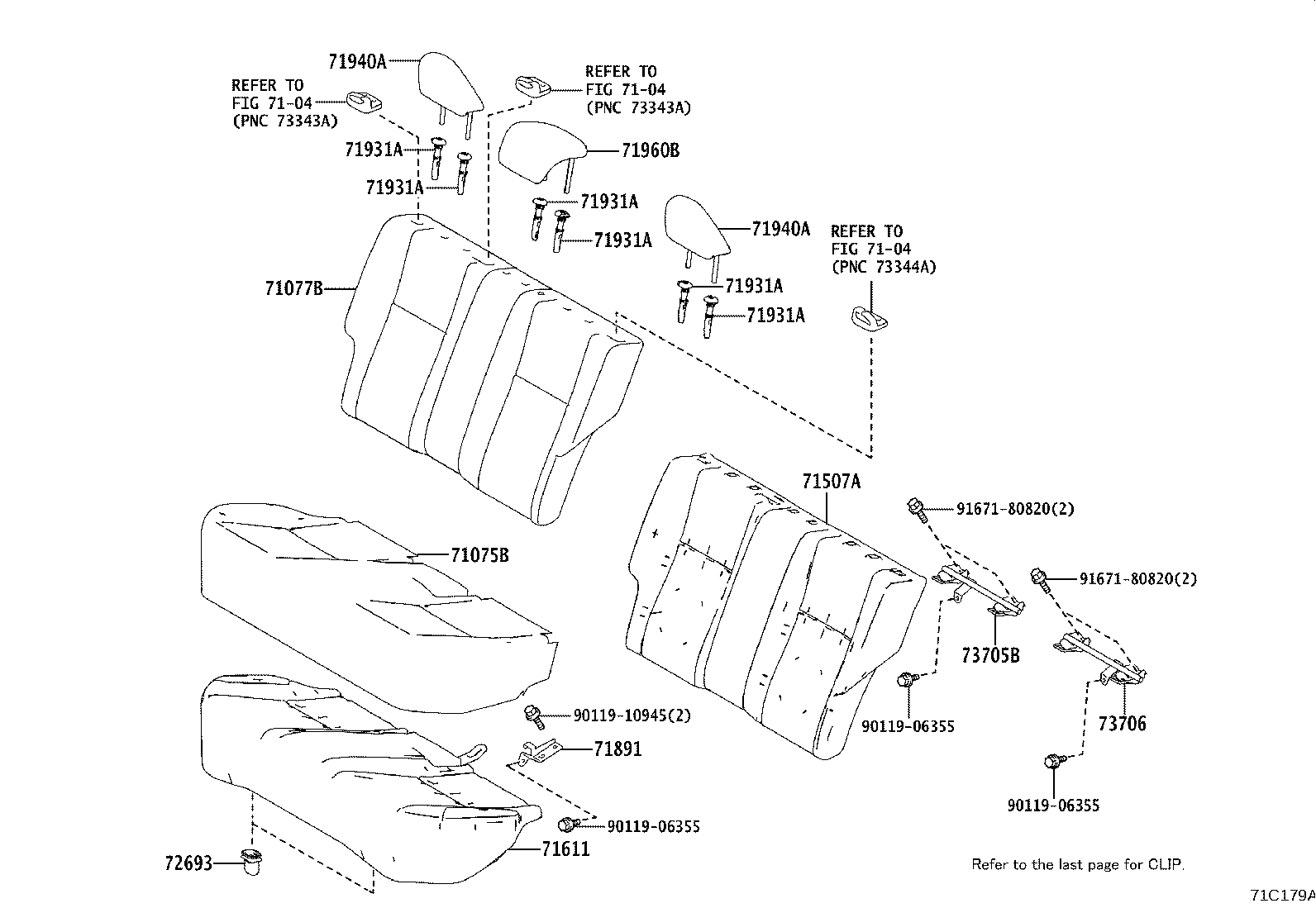

Exploded illustration 71C179A 73705B — BRACKET SUB-ASSY, CROSS ANCHOR (11 parts) 71611 — PAD, REAR SEAT CUSHION (7 parts) 71891 — BRACKET, REAR SEATBACK SET, NO.1 (2 parts) 72693 — HOOK, REAR SEAT CUSHION LOCK (6 parts) 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (65 parts) 71940A — HEADREST ASSY, REAR SEAT (57 parts) 71960B — HEADREST ASSY, REAR SEAT, CENTER (57 parts) 71931A — SUPPORT, REAR SEAT HEADREST (26 parts) 71931A — SUPPORT, REAR SEAT HEADREST (26 parts) 71940A — HEADREST ASSY, REAR SEAT (57 parts) 71931A — SUPPORT, REAR SEAT HEADREST (26 parts) 71931A — SUPPORT, REAR SEAT HEADREST (26 parts) 71931A — SUPPORT, REAR SEAT HEADREST (26 parts) 71931A — SUPPORT, REAR SEAT HEADREST (26 parts) 71507A — PAD SUB-ASSY, REAR SEATBACK (3 parts) 71077B — COVER, REAR SEATBACK (FOR BENCH TYPE) (13 parts) 73706 — BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH (3 parts) 9167180820 — not listed in this catalogue 9011910945 — not listed in this catalogue 9011906355 — not listed in this catalogue 9011906355 — not listed in this catalogue 9011906355 — not listed in this catalogue 9167180820 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue
71C179A · 17 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
250 parts on this figure
Part number Description Fitment Price
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075-02S70-A4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-06 → 2014-01 ended
NDE180 N —
71075-02S70-A5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-01 → 2016-05 ended
NDE180 N TUP —
71075-02S70-B1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-06 → 2014-01 ended
NDE180 N —
71075-02S70-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-01 → 2016-05 ended
NDE180 N TUP —
71075-02S80-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-06 → 2014-01 ended
NDE180 D —
71075-02S80-A4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-01 → 2016-05 ended
NDE180 D TUP —
71075-02S80-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-06 → 2014-01 ended
NDE180 D —
71075-02S80-C2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-01 → 2016-05 ended
NDE180 D TUP —
71075-02T10-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
71075-02T30-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
71075-02T40-C7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# N SAP —
71075-02T50-A6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-06 → 2014-01 ended
NDE180 N —
71075-02T50-A6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-06 → 2014-01 ended
NDE180 N —
71075-02T50-A7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-01 → 2016-05 ended
NDE180 N TUP —
71075-02T50-A7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-01 → 2016-05 ended
NDE180 N TUP —
71075-02T50-B2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-06 → 2014-01 ended
NDE180 N —
71075-02T50-B2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-06 → 2014-01 ended
NDE180 N —
71075-02T50-C4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-01 → 2016-05 ended
NDE180 N TUP —
71075-02T50-C4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-01 → 2016-05 ended
NDE180 N TUP —
71075-02Z20-C0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
71075-0Z410-A1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2017-01 ended
ZRE181 CVT N GEN +1 —
71075-02S70-A6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71075-02S70-A6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2018-08 ended
NRE180 N TUP —
71075-02S70-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71075-02S70-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2018-08 ended
NRE180 N TUP —
71075-02S81-A6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
71075-02S81-A6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2018-08 ended
NRE180 D TUP —
71075-02S81-C4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
71075-02S81-C4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2018-08 ended
NRE180 D TUP —
71075-02T10-C9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
71075-02T30-C6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-01 → 2019-12 ended
ZRE18# N GEN SAP —
71075-02T30-C6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SAP —
71075-02T50-A8 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2017-10 ended
NDE180,NRE180,ZRE18# N TUP —
71075-02T50-A8 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2017-10 ended
NDE180,NRE180,ZRE18# N TUP —
71075-02T50-A8 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2017-10 ended
NDE180,NRE180,ZRE18# N TUP —
71075-02T50-A8 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2017-10 ended
NDE180,NRE180,ZRE18# N TUP —
71075-02T50-A9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2019-01 ended
NDE180,ZRE18# N TUP —
71075-02T50-A9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2019-01 ended
NDE180,ZRE18# N TUP —
71075-02T50-A9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2019-01 ended
NDE180,ZRE18# N TUP —
71075-02T50-A9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2019-01 ended
NDE180,ZRE18# N TUP —
71075-02T50-A9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2018-08 ended
NRE180 N TUP —
71075-02T50-A9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2018-08 ended
NRE180 N TUP —
71075-02T50-A9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2018-08 ended
NRE180 N TUP —
71075-02T50-A9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2018-08 ended
NRE180 N TUP —
71075-02T50-C7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2017-10 ended
NDE180,NRE180,ZRE18# N TUP —
71075-02T50-C7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2017-10 ended
NDE180,NRE180,ZRE18# N TUP —
71075-02T50-C7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2017-10 ended
NDE180,NRE180,ZRE18# N TUP —
71075-02T50-C7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-06 → 2017-10 ended
NDE180,NRE180,ZRE18# N TUP —
71075-02T50-C8 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2018-08 ended
NRE180 N TUP —
71075-02T50-C8 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2019-01 ended
NDE180,ZRE18# N TUP —
71075-02T50-C8 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2019-01 ended
NDE180,ZRE18# N TUP —
71075-02T50-C8 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2019-01 ended
NDE180,ZRE18# N TUP —
71075-02T50-C8 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2019-01 ended
NDE180,ZRE18# N TUP —
71075-02T50-C8 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2018-08 ended
NRE180 N TUP —
71075-02T50-C8 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2018-08 ended
NRE180 N TUP —
71075-02T50-C8 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2018-08 ended
NRE180 N TUP —
71075-02Z20-C2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SAP —
71075-02Z20-C2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-01 → 2019-12 ended
ZRE18# N GEN SAP —
71075-0Z410-A2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
71075-0ZD40-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-12 → —
ZRE182 CVT GEN —
71075-0ZD40-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-12 → —
ZRE182 G,N —
71075-0ZD40-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-12 → —
ZRE182 D —
71075-0ZD50-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-12 → —
ZRE182 G —
71075-0ZD60-C2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-12 → —
ZRE182 N —
71075-0ZD60-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-12 → —
ZRE182 N —
71077B — Cover, Rear Seatback (FOR BENCH TYPE)
71078-0Z780-C2 note Cover, Rear Seatback (FOR BENCH TYPE)
2019-12 → —
ZRE182 D SA —
71078-0Z780-C2 note Cover, Rear Seatback (FOR BENCH TYPE)
2019-12 → —
ZRE182 (G,N) SA —
71078-0Z780-C2 note Cover, Rear Seatback (FOR BENCH TYPE)
2019-12 → —
ZRE182 CVT GEN —
71078-0Z780-C2 note Cover, Rear Seatback (FOR BENCH TYPE)
2019-12 → —
ZRE182 D GEN —
71078-0Z780-C2 note Cover, Rear Seatback (FOR BENCH TYPE)
2019-12 → —
ZRE182 D GEN —
71078-0Z790-C6 note Cover, Rear Seatback (FOR BENCH TYPE)
2019-12 → —
ZRE182 N SA —
71078-0Z790-C6 note Cover, Rear Seatback (FOR BENCH TYPE)
2019-12 → —
ZRE182 N GEN —
71078-0Z790-C7 note Cover, Rear Seatback (FOR BENCH TYPE)
2019-12 → —
ZRE182 N SA —
71078-0Z790-C7 note Cover, Rear Seatback (FOR BENCH TYPE)
2019-12 → —
ZRE182 N GEN —
71078-0Z800-C2 note Cover, Rear Seatback (FOR BENCH TYPE)
2019-12 → —
ZRE182 D GEN —
71078-0Z800-C2 note Cover, Rear Seatback (FOR BENCH TYPE)
2019-12 → —
ZRE182 CVT GEN —
71078-0Z810-C6 note Cover, Rear Seatback (FOR BENCH TYPE)
2019-12 → —
ZRE182 N GEN —
71078-0Z810-C7 note Cover, Rear Seatback (FOR BENCH TYPE)
2019-12 → —
ZRE182 N GEN —
71507A — Pad Sub-assy, Rear Seatback
71507-02540 Pad Sub-assy, Rear Seatback
2019-12 → —
ZRE182 D,N —
71507-02540 note Pad Sub-assy, Rear Seatback
2019-12 → —
ZRE182 G —
71507-02540 note Pad Sub-assy, Rear Seatback
2019-12 → —
ZRE182 G GEN —
71611 — Pad, Rear Seat Cushion
71503-02290 Pad, Rear Seat Cushion
2013-06 → 2016-05 ended
NDE180 TUP —
71503-02290 note Pad, Rear Seat Cushion
2016-10 → 2016-11 ended
ZRE181 CVT N GEN +1 —
71503-02300 Pad, Rear Seat Cushion
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
71503-02290 Pad, Rear Seat Cushion
2016-06 → 2018-08 ended
NRE180 TUP —
71503-02290 Pad, Rear Seat Cushion
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
71503-02300 Pad, Rear Seat Cushion
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
71503-02300 Pad, Rear Seat Cushion
2019-12 → —
ZRE182 —
71891 — Bracket, Rear Seatback Set, NO.1
71891-02130 note Bracket, Rear Seatback Set, NO.1
2019-12 → —
ZRE182 G —
71891-02130 Bracket, Rear Seatback Set, NO.1
2019-12 → —
ZRE182 D,N —
71931A — Support, Rear Seat Headrest
71930-44020-A0 note Support, Rear Seat Headrest
2013-06 → 2016-05 ended
NDE180 TUP —
71930-44020-A0 note Support, Rear Seat Headrest
2016-10 → 2017-01 ended
ZRE181 CVT N GEN +1 —
71930-44020-C0 note Support, Rear Seat Headrest
2013-06 → 2016-05 ended
NDE180 TUP —
71930-44020-C0 note Support, Rear Seat Headrest
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
71931-47010-A0 note Support, Rear Seat Headrest
2013-06 → 2016-05 ended
NDE180 TUP —
71931-47010-A0 note Support, Rear Seat Headrest
2016-10 → 2017-01 ended
ZRE181 CVT N GEN +1 —
71931-47010-C0 note Support, Rear Seat Headrest
2013-06 → 2016-05 ended
NDE180 TUP —
71931-47010-C0 note Support, Rear Seat Headrest
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
71930-44020-21 note Support, Rear Seat Headrest
2017-10 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
71930-44020-21 note Support, Rear Seat Headrest
2017-10 → 2019-01 ended
NDE180,ZRE18# TUP —
71930-44020-21 note Support, Rear Seat Headrest
2017-10 → 2018-08 ended
NRE180 TUP —
71930-44020-A7 note Support, Rear Seat Headrest
2016-06 → 2018-08 ended
NRE180 TUP —
71930-44020-A7 note Support, Rear Seat Headrest
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
71930-44020-A7 note Support, Rear Seat Headrest
2016-06 → 2019-12 ended
ZRE181 CVT N GEN +1 —
71930-44020-C0 note Support, Rear Seat Headrest
2016-06 → 2017-10 ended
NDE180,NRE180,ZRE18# —
71931-47010-02 note Support, Rear Seat Headrest
2016-06 → 2018-08 ended
NRE180 TUP —
71931-47010-02 note Support, Rear Seat Headrest
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
71931-47010-02 note Support, Rear Seat Headrest
2016-06 → 2019-12 ended
ZRE181 CVT N GEN +1 —
71931-47010-C0 note Support, Rear Seat Headrest
2016-06 → 2017-10 ended
NDE180,NRE180,ZRE18# —
71931-47010-C8 note Support, Rear Seat Headrest
2017-10 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
71931-47010-C8 note Support, Rear Seat Headrest
2017-10 → 2018-08 ended
NRE180 TUP —
71931-47010-C8 note Support, Rear Seat Headrest
2017-10 → 2019-01 ended
NDE180,ZRE18# TUP —
71930-44020-21 note Support, Rear Seat Headrest
2019-12 → —
ZRE182 N —
71930-44020-21 note Support, Rear Seat Headrest
2019-12 → —
ZRE182 D,G —
71931-47010-C8 note Support, Rear Seat Headrest
2019-12 → —
ZRE182 N —
71931-47010-C8 note Support, Rear Seat Headrest
2019-12 → —
ZRE182 D,G —
71940A — Headrest Assy, Rear Seat
71940-02J30-A0 note Headrest Assy, Rear Seat
2013-06 → 2016-05 ended
NDE180 D TUP —
71940-02J30-C0 note Headrest Assy, Rear Seat
2013-06 → 2016-05 ended
NDE180 D TUP —
71940-02J60-C2 note Headrest Assy, Rear Seat
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
71940-02J70-A2 note Headrest Assy, Rear Seat
2013-06 → 2014-01 ended
NDE180 N —
71940-02J70-A3 note Headrest Assy, Rear Seat
2016-12 → 2017-01 ended
ZRE181 CVT N GEN +1 —
71940-02J70-A3 note Headrest Assy, Rear Seat
2014-01 → 2016-05 ended
NDE180 N TUP —
71940-02J70-B0 note Headrest Assy, Rear Seat
2013-06 → 2014-01 ended
NDE180 N —
71940-02J70-C2 note Headrest Assy, Rear Seat
2014-01 → 2016-05 ended
NDE180 N TUP —
71940-02J90-C2 note Headrest Assy, Rear Seat
2015-05 → 2015-08 ended
NDE180,NRE180,ZRE18# N SAP —
71940-02J90-C2 note Headrest Assy, Rear Seat
2014-01 → 2015-08 ended
NDE180,NRE180,ZRE18# N SAP —
71940-02J90-C2 note Headrest Assy, Rear Seat
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# N SAP —
71940-02K50-A2 note Headrest Assy, Rear Seat
2013-06 → 2014-01 ended
NDE180 N —
71940-02K50-A2 note Headrest Assy, Rear Seat
2013-06 → 2014-01 ended
NDE180 N —
71940-02K50-A3 note Headrest Assy, Rear Seat
2014-01 → 2016-05 ended
NDE180 N TUP —
71940-02K50-A3 note Headrest Assy, Rear Seat
2014-01 → 2016-05 ended
NDE180 N TUP —
71940-02K50-B0 note Headrest Assy, Rear Seat
2013-06 → 2014-01 ended
NDE180 N —
71940-02K50-B0 note Headrest Assy, Rear Seat
2013-06 → 2014-01 ended
NDE180 N —
71940-02K50-C1 note Headrest Assy, Rear Seat
2014-01 → 2016-05 ended
NDE180 N TUP —
71940-02K50-C1 note Headrest Assy, Rear Seat
2014-01 → 2016-05 ended
NDE180 N TUP —
71940-02N10-C0 note Headrest Assy, Rear Seat
2015-08 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
71940-02N10-C0 note Headrest Assy, Rear Seat
2015-08 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
71940-02Q70-A1 note Headrest Assy, Rear Seat
2016-10 → 2016-12 ended
ZRE181 CVT N GEN +1 —
71940-02J31-A3 note Headrest Assy, Rear Seat
2016-06 → 2018-08 ended
NRE180 D TUP —
71940-02J31-A3 note Headrest Assy, Rear Seat
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
71940-02J31-C3 note Headrest Assy, Rear Seat
2016-06 → 2018-08 ended
NRE180 D TUP —
71940-02J31-C3 note Headrest Assy, Rear Seat
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
71940-02J60-C5 note Headrest Assy, Rear Seat
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
71940-02J70-A4 note Headrest Assy, Rear Seat
2016-06 → 2018-08 ended
NRE180 N TUP —
71940-02J70-A4 note Headrest Assy, Rear Seat
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71940-02J70-C4 note Headrest Assy, Rear Seat
2016-06 → 2018-08 ended
NRE180 N TUP —
71940-02J70-C4 note Headrest Assy, Rear Seat
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71940-02K50-A4 note Headrest Assy, Rear Seat
2016-06 → 2018-08 ended
NRE180 N TUP —
71940-02K50-A4 note Headrest Assy, Rear Seat
2016-06 → 2018-08 ended
NRE180 N TUP —
71940-02K50-A4 note Headrest Assy, Rear Seat
2016-06 → 2018-08 ended
NRE180 N TUP —
71940-02K50-A4 note Headrest Assy, Rear Seat
2016-06 → 2018-08 ended
NRE180 N TUP —
71940-02K50-A4 note Headrest Assy, Rear Seat
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71940-02K50-A4 note Headrest Assy, Rear Seat
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71940-02K50-A4 note Headrest Assy, Rear Seat
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71940-02K50-A4 note Headrest Assy, Rear Seat
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71940-02K50-C3 note Headrest Assy, Rear Seat
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71940-02K50-C3 note Headrest Assy, Rear Seat
2016-06 → 2018-08 ended
NRE180 N TUP —
71940-02K50-C3 note Headrest Assy, Rear Seat
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71940-02K50-C3 note Headrest Assy, Rear Seat
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71940-02K50-C3 note Headrest Assy, Rear Seat
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71940-02K50-C3 note Headrest Assy, Rear Seat
2016-06 → 2018-08 ended
NRE180 N TUP —
71940-02K50-C3 note Headrest Assy, Rear Seat
2016-06 → 2018-08 ended
NRE180 N TUP —
71940-02K50-C3 note Headrest Assy, Rear Seat
2016-06 → 2018-08 ended
NRE180 N TUP —
71940-02N10-C1 note Headrest Assy, Rear Seat
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SAP —
71940-02N10-C1 note Headrest Assy, Rear Seat
2017-01 → 2019-12 ended
ZRE18# N GEN SAP —
71940-02N10-C1 note Headrest Assy, Rear Seat
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SAP —
71940-02N10-C1 note Headrest Assy, Rear Seat
2017-01 → 2019-12 ended
ZRE18# N GEN SAP —
71940-02R00-A1 note Headrest Assy, Rear Seat
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
71940-02J61-C7 note Headrest Assy, Rear Seat
2019-12 → —
ZRE182 D —
71940-02J61-C7 note Headrest Assy, Rear Seat
2019-12 → —
ZRE182 G,N —
71940-02J61-C7 note Headrest Assy, Rear Seat
2019-12 → —
ZRE182 CVT GEN —
71940-02N10-C1 note Headrest Assy, Rear Seat
2019-12 → —
ZRE182 G,N —
71940-02N10-C3 note Headrest Assy, Rear Seat
2019-12 → —
ZRE182 N —
71960B — Headrest Assy, Rear Seat, Center
71960-02B90-A0 note Headrest Assy, Rear Seat, Center
2013-06 → 2016-05 ended
NDE180 D TUP —
71960-02B90-C0 note Headrest Assy, Rear Seat, Center
2013-06 → 2016-05 ended
NDE180 D TUP —
71960-02C30-C2 note Headrest Assy, Rear Seat, Center
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
71960-02C40-A2 note Headrest Assy, Rear Seat, Center
2013-06 → 2014-01 ended
NDE180 N —
71960-02C40-A3 note Headrest Assy, Rear Seat, Center
2016-12 → 2017-01 ended
ZRE181 CVT N GEN +1 —
71960-02C40-A3 note Headrest Assy, Rear Seat, Center
2014-01 → 2016-05 ended
NDE180 N TUP —
71960-02C40-B0 note Headrest Assy, Rear Seat, Center
2013-06 → 2014-01 ended
NDE180 N —
71960-02C40-C2 note Headrest Assy, Rear Seat, Center
2014-01 → 2016-05 ended
NDE180 N TUP —
71960-02C70-C2 note Headrest Assy, Rear Seat, Center
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# N SAP —
71960-02C70-C2 note Headrest Assy, Rear Seat, Center
2014-01 → 2015-08 ended
NDE180,NRE180,ZRE18# N SAP —
71960-02C70-C2 note Headrest Assy, Rear Seat, Center
2015-05 → 2015-08 ended
NDE180,NRE180,ZRE18# N SAP —
71960-02D30-A2 note Headrest Assy, Rear Seat, Center
2013-06 → 2014-01 ended
NDE180 N —
71960-02D30-A2 note Headrest Assy, Rear Seat, Center
2013-06 → 2014-01 ended
NDE180 N —
71960-02D30-A3 note Headrest Assy, Rear Seat, Center
2014-01 → 2016-05 ended
NDE180 N TUP —
71960-02D30-A3 note Headrest Assy, Rear Seat, Center
2014-01 → 2016-05 ended
NDE180 N TUP —
71960-02D30-B0 note Headrest Assy, Rear Seat, Center
2013-06 → 2014-01 ended
NDE180 N —
71960-02D30-B0 note Headrest Assy, Rear Seat, Center
2013-06 → 2014-01 ended
NDE180 N —
71960-02D30-C1 note Headrest Assy, Rear Seat, Center
2014-01 → 2016-05 ended
NDE180 N TUP —
71960-02D30-C1 note Headrest Assy, Rear Seat, Center
2014-01 → 2016-05 ended
NDE180 N TUP —
71960-02F10-C0 note Headrest Assy, Rear Seat, Center
2015-08 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
71960-02F10-C0 note Headrest Assy, Rear Seat, Center
2015-08 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
71960-02J70-A1 note Headrest Assy, Rear Seat, Center
2016-10 → 2016-12 ended
ZRE181 CVT N GEN +1 —
71960-02B91-A3 note Headrest Assy, Rear Seat, Center
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
71960-02B91-A3 note Headrest Assy, Rear Seat, Center
2016-06 → 2018-08 ended
NRE180 D TUP —
71960-02B91-C3 note Headrest Assy, Rear Seat, Center
2016-06 → 2018-08 ended
NRE180 D TUP —
71960-02B91-C3 note Headrest Assy, Rear Seat, Center
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
71960-02C30-C5 note Headrest Assy, Rear Seat, Center
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
71960-02C40-A4 note Headrest Assy, Rear Seat, Center
2016-06 → 2018-08 ended
NRE180 N TUP —
71960-02C40-A4 note Headrest Assy, Rear Seat, Center
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71960-02C40-C4 note Headrest Assy, Rear Seat, Center
2016-06 → 2018-08 ended
NRE180 N TUP —
71960-02C40-C4 note Headrest Assy, Rear Seat, Center
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71960-02D30-A4 note Headrest Assy, Rear Seat, Center
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71960-02D30-A4 note Headrest Assy, Rear Seat, Center
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71960-02D30-A4 note Headrest Assy, Rear Seat, Center
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71960-02D30-A4 note Headrest Assy, Rear Seat, Center
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71960-02D30-A4 note Headrest Assy, Rear Seat, Center
2016-06 → 2018-08 ended
NRE180 N TUP —
71960-02D30-A4 note Headrest Assy, Rear Seat, Center
2016-06 → 2018-08 ended
NRE180 N TUP —
71960-02D30-A4 note Headrest Assy, Rear Seat, Center
2016-06 → 2018-08 ended
NRE180 N TUP —
71960-02D30-A4 note Headrest Assy, Rear Seat, Center
2016-06 → 2018-08 ended
NRE180 N TUP —
71960-02D30-C3 note Headrest Assy, Rear Seat, Center
2016-06 → 2018-08 ended
NRE180 N TUP —
71960-02D30-C3 note Headrest Assy, Rear Seat, Center
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71960-02D30-C3 note Headrest Assy, Rear Seat, Center
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71960-02D30-C3 note Headrest Assy, Rear Seat, Center
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71960-02D30-C3 note Headrest Assy, Rear Seat, Center
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
71960-02D30-C3 note Headrest Assy, Rear Seat, Center
2016-06 → 2018-08 ended
NRE180 N TUP —
71960-02D30-C3 note Headrest Assy, Rear Seat, Center
2016-06 → 2018-08 ended
NRE180 N TUP —
71960-02D30-C3 note Headrest Assy, Rear Seat, Center
2016-06 → 2018-08 ended
NRE180 N TUP —
71960-02F10-C1 note Headrest Assy, Rear Seat, Center
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SAP —
71960-02F10-C1 note Headrest Assy, Rear Seat, Center
2017-01 → 2019-12 ended
ZRE18# N GEN SAP —
71960-02F10-C1 note Headrest Assy, Rear Seat, Center
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SAP —
71960-02F10-C1 note Headrest Assy, Rear Seat, Center
2017-01 → 2019-12 ended
ZRE18# N GEN SAP —
71960-02J80-A1 note Headrest Assy, Rear Seat, Center
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
71960-02C31-C7 note Headrest Assy, Rear Seat, Center
2019-12 → —
ZRE182 D —
71960-02C31-C7 note Headrest Assy, Rear Seat, Center
2019-12 → —
ZRE182 G,N —
71960-02C31-C7 note Headrest Assy, Rear Seat, Center
2019-12 → —
ZRE182 CVT GEN —
71960-02F10-C1 note Headrest Assy, Rear Seat, Center
2019-12 → —
ZRE182 G,N —
71960-02F10-C3 note Headrest Assy, Rear Seat, Center
2019-12 → —
ZRE182 N —
72693 — Hook, Rear Seat Cushion Lock
72693-12080 Hook, Rear Seat Cushion Lock
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
72693-12080 Hook, Rear Seat Cushion Lock
2013-06 → 2016-05 ended
NDE180 TUP —
72693-12080 Hook, Rear Seat Cushion Lock
2016-06 → 2018-08 ended
NRE180 TUP —
72693-12080 Hook, Rear Seat Cushion Lock
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
72693-12080 Hook, Rear Seat Cushion Lock
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
72693-12080 Hook, Rear Seat Cushion Lock
2019-12 → —
ZRE182 —
73705B — Bracket Sub-assy, Cross Anchor
73705-02160 Bracket Sub-assy, Cross Anchor
2013-06 → 2016-05 ended
NDE180 TUP —
73705-02160 Bracket Sub-assy, Cross Anchor
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
73705-02160 note Bracket Sub-assy, Cross Anchor
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
73705-02160 Bracket Sub-assy, Cross Anchor
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
73705-02160 note Bracket Sub-assy, Cross Anchor
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
73705-02160 note Bracket Sub-assy, Cross Anchor
2016-06 → 2018-08 ended
NRE180 TUP —
73705-02160 Bracket Sub-assy, Cross Anchor
2019-12 → —
ZRE182 G SA —
73705-02160 note Bracket Sub-assy, Cross Anchor
2019-12 → —
ZRE182 G GEN —
73705-02580 Bracket Sub-assy, Cross Anchor
2019-12 → —
ZRE182 D,N —
73705-02580 note Bracket Sub-assy, Cross Anchor
2019-12 → —
ZRE182 G —
73705-02580 note Bracket Sub-assy, Cross Anchor
2019-12 → —
ZRE182 G GEN —
73706 — Bracket Sub-assy, Child Restraint Seat Anchor, LH
73706-02160 Bracket Sub-assy, Child Restraint Seat Anchor, LH
2019-12 → —
ZRE182 D,N —
73706-02160 note Bracket Sub-assy, Child Restraint Seat Anchor, LH
2019-12 → —
ZRE182 G —
73706-02160 note Bracket Sub-assy, Child Restraint Seat Anchor, LH
2019-12 → —
ZRE182 G GEN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
