Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

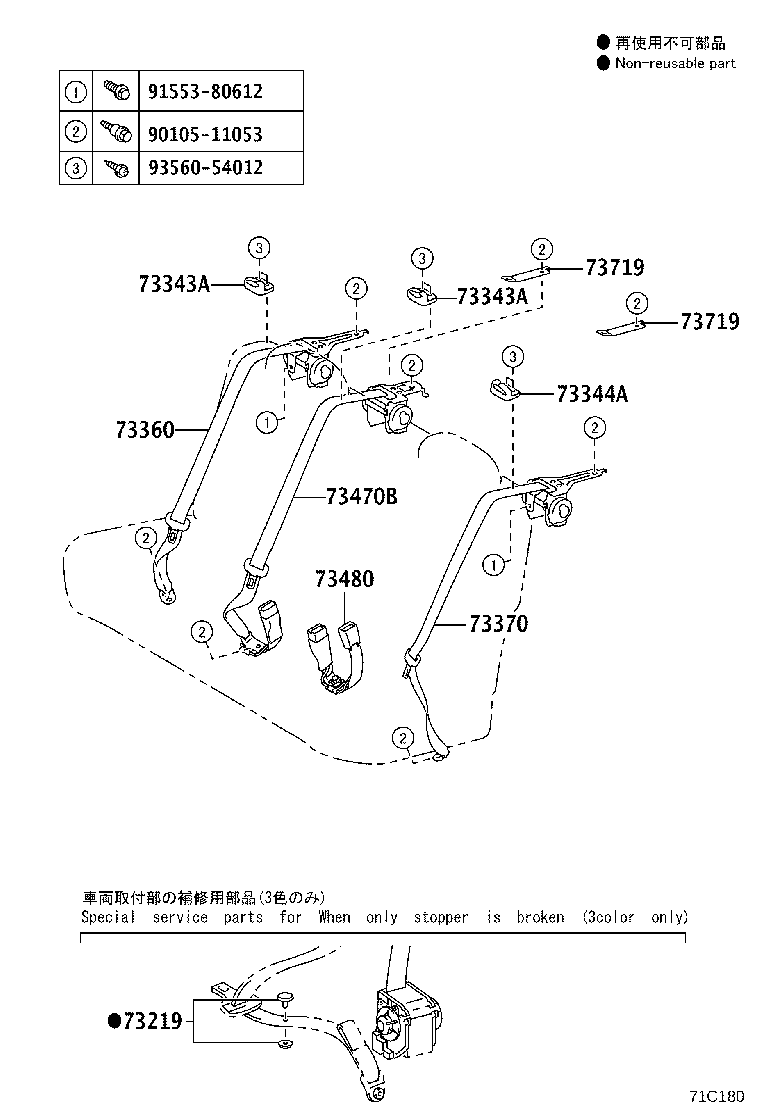

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73219 — Stopper, Tongue Plate | ||||
| 73219-33010 note |
Stopper, Tongue Plate
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2019-12 → —
|
ZRE182 | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2019-12 → —
|
ZRE182 | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2019-12 → —
|
ZRE182 | — | |
| 73343A — Guide, Rear Seat Shoulder Belt, RH | ||||
| 73343-02080-A0 note |
Guide, Rear Seat Shoulder Belt, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73343-02080-A0 note |
Guide, Rear Seat Shoulder Belt, RH
2016-10 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 73343-02080-C0 note |
Guide, Rear Seat Shoulder Belt, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73343-02080-C0 note |
Guide, Rear Seat Shoulder Belt, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73343-02080-A1 note |
Guide, Rear Seat Shoulder Belt, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73343-02080-A1 note |
Guide, Rear Seat Shoulder Belt, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73343-02080-A1 note |
Guide, Rear Seat Shoulder Belt, RH
2016-06 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 73343-02080-C0 note |
Guide, Rear Seat Shoulder Belt, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73343-02080-C0 note |
Guide, Rear Seat Shoulder Belt, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73343-02080-C0 note |
Guide, Rear Seat Shoulder Belt, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73343-02080-C0 note |
Guide, Rear Seat Shoulder Belt, RH
2019-12 → —
|
ZRE182 G | — | |
| 73343-33020-C0 note |
Guide, Rear Seat Shoulder Belt, RH
2019-12 → —
|
ZRE182 D | — | |
| 73343-33020-C0 note |
Guide, Rear Seat Shoulder Belt, RH
2019-12 → —
|
ZRE182 N | — | |
| 73343-33020-C0 note |
Guide, Rear Seat Shoulder Belt, RH
2019-12 → —
|
ZRE182 G | — | |
| 73344A — Guide, Rear Seat Shoulder Belt, LH | ||||
| 73344-02040-A0 note |
Guide, Rear Seat Shoulder Belt, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73344-02040-A0 note |
Guide, Rear Seat Shoulder Belt, LH
2016-10 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 73344-02040-C0 note |
Guide, Rear Seat Shoulder Belt, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73344-02040-C0 note |
Guide, Rear Seat Shoulder Belt, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73344-02040-A1 note |
Guide, Rear Seat Shoulder Belt, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73344-02040-A1 note |
Guide, Rear Seat Shoulder Belt, LH
2016-06 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 73344-02040-A1 note |
Guide, Rear Seat Shoulder Belt, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73344-02040-C0 note |
Guide, Rear Seat Shoulder Belt, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73344-02040-C0 note |
Guide, Rear Seat Shoulder Belt, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73344-02040-C0 note |
Guide, Rear Seat Shoulder Belt, LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73344-02040-C0 note |
Guide, Rear Seat Shoulder Belt, LH
2019-12 → —
|
ZRE182 G | — | |
| 73344-33020-C0 note |
Guide, Rear Seat Shoulder Belt, LH
2019-12 → —
|
ZRE182 D | — | |
| 73344-33020-C0 note |
Guide, Rear Seat Shoulder Belt, LH
2019-12 → —
|
ZRE182 N | — | |
| 73344-33020-C0 note |
Guide, Rear Seat Shoulder Belt, LH
2019-12 → —
|
ZRE182 G | — | |
| 73360 — Belt Assy, Rear Seat 3 Point Type, Outer RH | ||||
| 73360-02570-A0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73360-02570-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73360-02580-A0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2016-10 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 73360-02580-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73360-02570-A1 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73360-02570-A1 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73360-02570-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73360-02570-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73360-02580-A1 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 73360-02580-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73360-02580-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2019-12 → —
|
ZRE182 N | — | |
| 73360-02580-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2019-12 → —
|
ZRE182 D,G | — | |
| 73370 — Belt Assy, Rear Seat 3 Point Type, Outer LH | ||||
| 73370-02150-A0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73370-02150-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73370-02160-A0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2016-10 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 73370-02160-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73370-02150-A1 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73370-02150-A1 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73370-02150-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73370-02150-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73370-02160-A1 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 73370-02160-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73370-02160-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2019-12 → —
|
ZRE182 N | — | |
| 73370-02160-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2019-12 → —
|
ZRE182 D,G | — | |
| 73470B — Belt Assy, Rear Seat Inner W/Center, RH | ||||
| 73470-02400-A1 note |
Belt Assy, Rear Seat Inner W/Center, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73470-02400-C1 note |
Belt Assy, Rear Seat Inner W/Center, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73470-02410-A0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2016-10 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 73470-02410-C1 note |
Belt Assy, Rear Seat Inner W/Center, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73470-02401-A2 note |
Belt Assy, Rear Seat Inner W/Center, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73470-02401-A2 note |
Belt Assy, Rear Seat Inner W/Center, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73470-02401-C1 note |
Belt Assy, Rear Seat Inner W/Center, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73470-02401-C1 note |
Belt Assy, Rear Seat Inner W/Center, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73470-02411-A1 note |
Belt Assy, Rear Seat Inner W/Center, RH
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 73470-02411-C1 note |
Belt Assy, Rear Seat Inner W/Center, RH
2017-01 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 73470-02491-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 73470-02491-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2019-12 → —
|
ZRE182 N | — | |
| 73470-02491-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2019-12 → —
|
ZRE182 D,G | — | |
| 73480 — Belt Assy, Rear Seat Inner W/Center, LH | ||||
| 73480-02570-A1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73480-02570-C1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73480-02580-A0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2016-10 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 73480-02580-C1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73480-02521-C0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 73480-02571-A2 note |
Belt Assy, Rear Seat Inner W/Center, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73480-02571-A2 note |
Belt Assy, Rear Seat Inner W/Center, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73480-02571-C1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73480-02571-C1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73480-02581-A1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 73480-02581-C1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2017-01 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 73480-02521-C0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2019-12 → —
|
ZRE182 N | — | |
| 73480-02521-C0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2019-12 → —
|
ZRE182 D,G | — | |
| 73719 — Bracket, Child Restraint Seat Tether Anchor | ||||
| 73719-02050 |
Bracket, Child Restraint Seat Tether Anchor
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 73719-02060 |
Bracket, Child Restraint Seat Tether Anchor
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 73719-02050 |
Bracket, Child Restraint Seat Tether Anchor
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 73719-02050 note |
Bracket, Child Restraint Seat Tether Anchor
2017-01 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 73719-02060 note |
Bracket, Child Restraint Seat Tether Anchor
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 73719-02060 note |
Bracket, Child Restraint Seat Tether Anchor
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 73719-02050 |
Bracket, Child Restraint Seat Tether Anchor
2019-12 → —
|
ZRE182 SA | — | |
| 73719-02050 note |
Bracket, Child Restraint Seat Tether Anchor
2019-12 → —
|
ZRE182 GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
