Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

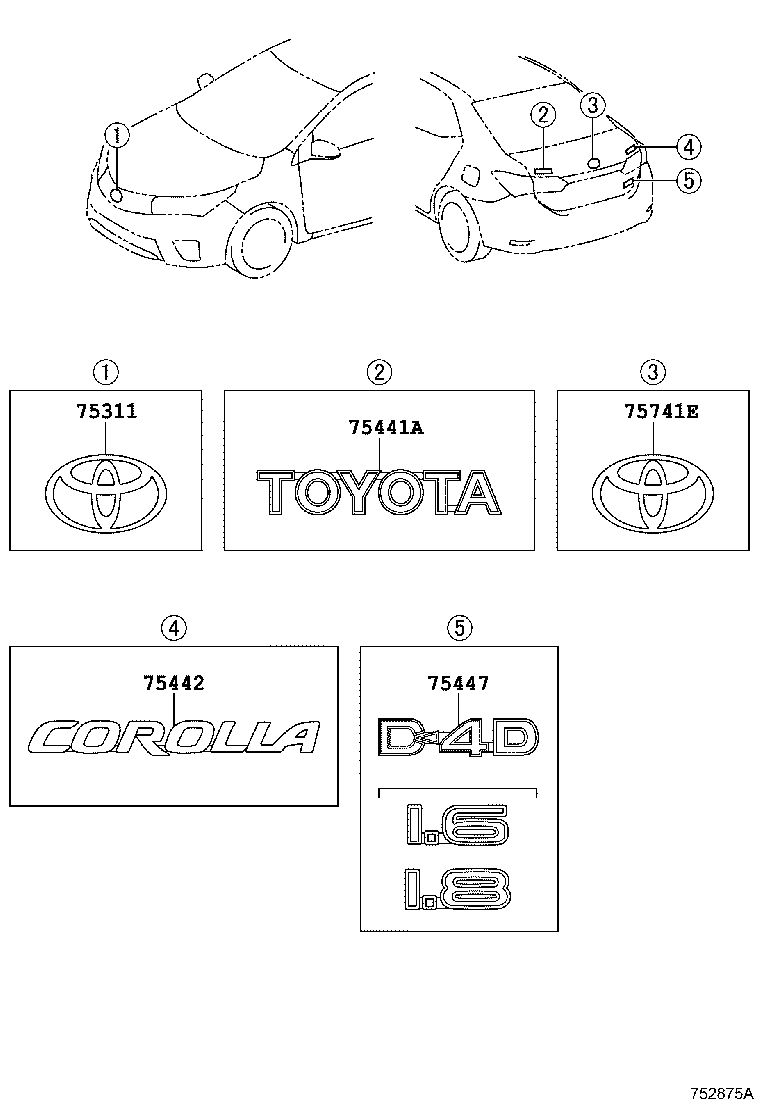

Exploded illustration 752875A 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (6 parts) 75441A — PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1 (6 parts) 75442 — PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2 (6 parts) 75447 — PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.7 (11 parts) 75741E — EMBLEM, SYMBOL (7 parts)
752875A · 5 callouts Full size ↗
36 parts on this figure
Part number Description Fitment Price
75311 — Emblem, Radiator Grille (OR FRONT PANEL)
75311-05040 Emblem, Radiator Grille (OR FRONT PANEL)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
75311-05040 Emblem, Radiator Grille (OR FRONT PANEL)
2013-06 → 2016-05 ended
NDE180 TUP —
75311-05040 Emblem, Radiator Grille (OR FRONT PANEL)
2016-06 → 2018-08 ended
NRE180 TUP —
75311-05040 Emblem, Radiator Grille (OR FRONT PANEL)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
75311-05040 Emblem, Radiator Grille (OR FRONT PANEL)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
75311-05040 Emblem, Radiator Grille (OR FRONT PANEL)
2019-12 → —
ZRE182 —
75441A — Plate, Luggage Compartment Door Name, NO.1
75441-02280 note Plate, Luggage Compartment Door Name, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
75441-02280 note Plate, Luggage Compartment Door Name, NO.1
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
75441-02280 note Plate, Luggage Compartment Door Name, NO.1
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
75441-02280 note Plate, Luggage Compartment Door Name, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
75441-02280 note Plate, Luggage Compartment Door Name, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
75441-02280 note Plate, Luggage Compartment Door Name, NO.1
2019-12 → —
ZRE182 GEN —
75442 — Plate, Luggage Compartment Door Name, NO.2
75442-02300 note Plate, Luggage Compartment Door Name, NO.2
2013-06 → 2016-05 ended
NDE180 TUP —
75442-02300 note Plate, Luggage Compartment Door Name, NO.2
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
75442-02300 note Plate, Luggage Compartment Door Name, NO.2
2016-06 → 2018-08 ended
NRE180 TUP —
75442-02300 note Plate, Luggage Compartment Door Name, NO.2
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
75442-02300 note Plate, Luggage Compartment Door Name, NO.2
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
75442-02300 note Plate, Luggage Compartment Door Name, NO.2
2019-12 → —
ZRE182 —
75447 — Plate, Luggage Compartment Door Name, NO.7
75447-02220 note Plate, Luggage Compartment Door Name, NO.7
2014-01 → 2017-01 ended
ZRE181 SAP —
75447-02230 note Plate, Luggage Compartment Door Name, NO.7
2013-06 → 2016-05 ended
NDE180 TUP —
75447-02230 note Plate, Luggage Compartment Door Name, NO.7
2013-06 → 2017-01 ended
NDE180 SAP —
75447-02240 note Plate, Luggage Compartment Door Name, NO.7
2014-01 → 2017-01 ended
ZRE182 SAP —
75447-02220 note Plate, Luggage Compartment Door Name, NO.7
2016-06 → 2019-01 ended
ZRE181 TUP —
75447-02220 note Plate, Luggage Compartment Door Name, NO.7
2017-01 → 2019-12 ended
ZRE181 SAP —
75447-02230 note Plate, Luggage Compartment Door Name, NO.7
2016-06 → 2019-01 ended
NDE180 TUP —
75447-02230 note Plate, Luggage Compartment Door Name, NO.7
2016-06 → 2019-12 ended
NDE180 SAP —
75447-02240 note Plate, Luggage Compartment Door Name, NO.7
2016-06 → 2019-01 ended
ZRE182 TUP —
75447-02240 note Plate, Luggage Compartment Door Name, NO.7
2017-01 → 2019-12 ended
ZRE182 SAP —
75447-02240 note Plate, Luggage Compartment Door Name, NO.7
2019-12 → —
ZRE182 —
75741E — Emblem, Symbol
75431-02040 Emblem, Symbol
2015-08 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90975-W2007 Emblem, Symbol
2013-06 → 2015-08 ended
NDE180,NRE180,ZRE18# SAP —
90975-W2007 Emblem, Symbol
2013-06 → 2016-05 ended
NDE180 TUP —
75431-02040 Emblem, Symbol
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90975-W2007 Emblem, Symbol
2016-06 → 2018-08 ended
NRE180 TUP —
90975-W2007 Emblem, Symbol
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
75431-02040 Emblem, Symbol
2019-12 → —
ZRE182 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
