Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

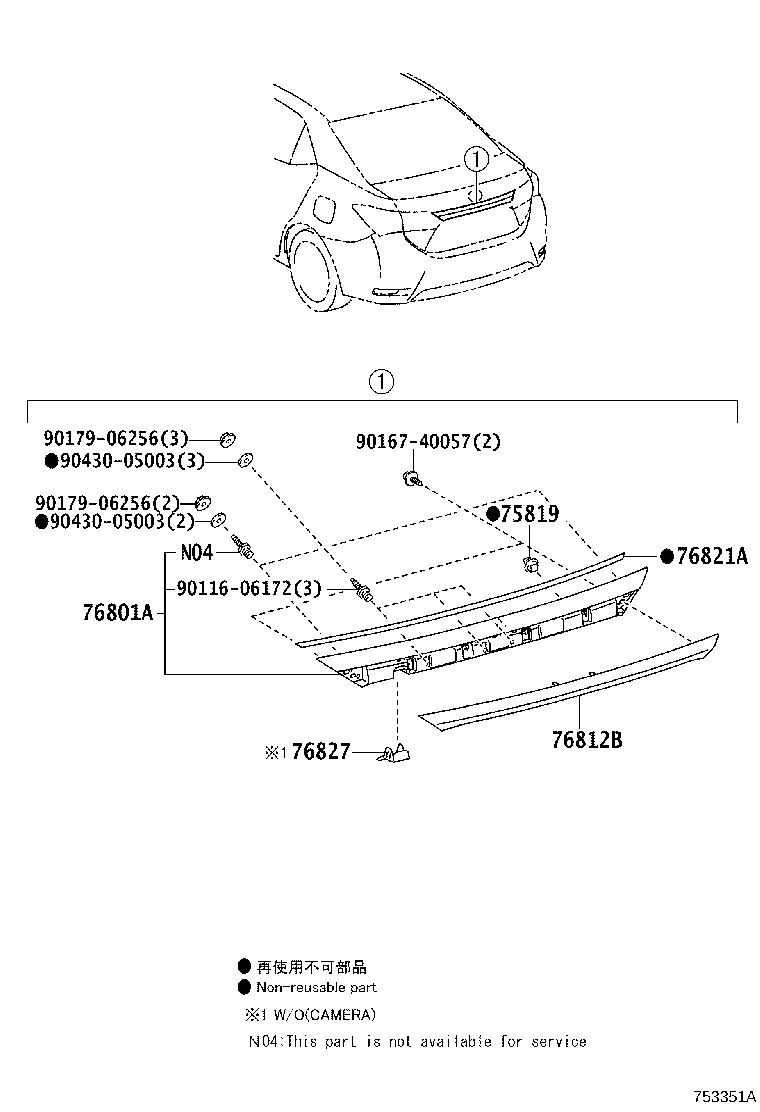

Exploded illustration 753351A 75819 — CLIP, LUGGAGE COMPARTMENT DOOR MOULDING (6 parts) 76801A — GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE (35 parts) 76812B — GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE NO.2 (3 parts) 76821A — PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH (9 parts) 76827 — RETAINER, BACK DOOR GARNISH, NO.2 (3 parts) 9011606172 — not listed in this catalogue 9016740057 — not listed in this catalogue 9017906256 — not listed in this catalogue 9043005003 — not listed in this catalogue 9017906256 — not listed in this catalogue 9043005003 — not listed in this catalogue
753351A · 5 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
75819 — Clip, Luggage Compartment Door Moulding
75819-33010 Clip, Luggage Compartment Door Moulding
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
75819-33010 Clip, Luggage Compartment Door Moulding
2013-06 → 2016-05 ended
NDE180 TUP —
75819-33010 Clip, Luggage Compartment Door Moulding
2016-06 → 2018-08 ended
NRE180 TUP —
75819-33010 Clip, Luggage Compartment Door Moulding
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
75819-33010 Clip, Luggage Compartment Door Moulding
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
75819-33010 Clip, Luggage Compartment Door Moulding
2019-12 → —
ZRE182 —
76801A — Garnish Sub-assy, Luggage Compartment Door, Outside
76801-02A80 note Garnish Sub-assy, Luggage Compartment Door, Outside
2013-06 → 2014-10 ended
NDE180 TUP —
76801-02A80 note Garnish Sub-assy, Luggage Compartment Door, Outside
2014-01 → 2014-10 ended
NDE180,NRE180,ZRE18# N SA —
76801-02A80 note Garnish Sub-assy, Luggage Compartment Door, Outside
2014-01 → 2014-10 ended
ZRE18# N GEN —
76801-02A82 note Garnish Sub-assy, Luggage Compartment Door, Outside
2014-10 → 2017-01 ended
ZRE18# N GEN SAP —
76801-02A82 note Garnish Sub-assy, Luggage Compartment Door, Outside
2014-10 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
76801-02A82 note Garnish Sub-assy, Luggage Compartment Door, Outside
2014-10 → 2016-05 ended
NDE180 TUP —
76801-02A90 note Garnish Sub-assy, Luggage Compartment Door, Outside
2014-06 → 2014-10 ended
NDE180 N TUP —
76801-02A90 note Garnish Sub-assy, Luggage Compartment Door, Outside
2014-01 → 2014-10 ended
NDE180,NRE180,ZRE18# N SA —
76801-02A90 note Garnish Sub-assy, Luggage Compartment Door, Outside
2014-01 → 2014-10 ended
ZRE18# N GEN —
76801-02A90 note Garnish Sub-assy, Luggage Compartment Door, Outside
2013-06 → 2014-06 ended
NDE180 N TUP —
76801-02A92 note Garnish Sub-assy, Luggage Compartment Door, Outside
2014-10 → 2016-05 ended
NDE180 N TUP —
76801-02A92 note Garnish Sub-assy, Luggage Compartment Door, Outside
2014-10 → 2017-01 ended
ZRE18# N GEN SAP —
76801-02A92 note Garnish Sub-assy, Luggage Compartment Door, Outside
2014-10 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
76801-02B40 note Garnish Sub-assy, Luggage Compartment Door, Outside
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
76801-02B50 note Garnish Sub-assy, Luggage Compartment Door, Outside
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
76801-02905 note Garnish Sub-assy, Luggage Compartment Door, Outside
2017-01 → 2019-12 ended
ZRE182 N SAP —
76801-02906 note Garnish Sub-assy, Luggage Compartment Door, Outside
2017-01 → 2019-12 ended
ZRE182 N GEN SAP —
76801-02906 note Garnish Sub-assy, Luggage Compartment Door, Outside
2017-01 → 2019-12 ended
ZRE182 SA —
76801-02A82 note Garnish Sub-assy, Luggage Compartment Door, Outside
2016-06 → 2016-08 ended
NDE180,NRE180,ZRE18# D TUP —
76801-02A83 note Garnish Sub-assy, Luggage Compartment Door, Outside
2016-08 → 2019-01 ended
NDE180,ZRE18# D TUP —
76801-02A83 note Garnish Sub-assy, Luggage Compartment Door, Outside
2016-08 → 2018-08 ended
NRE180 D TUP —
76801-02A93 note Garnish Sub-assy, Luggage Compartment Door, Outside
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE181 N SA —
76801-02A93 note Garnish Sub-assy, Luggage Compartment Door, Outside
2017-01 → 2019-12 ended
ZRE181 N GEN SAP —
76801-02B40 note Garnish Sub-assy, Luggage Compartment Door, Outside
2017-01 → 2019-12 ended
ZRE182 D SAP;NDE180,NRE180,ZRE181 SAP —
76801-02B50 note Garnish Sub-assy, Luggage Compartment Door, Outside
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE181 N SA —
76811-02954 note Garnish Sub-assy, Luggage Compartment Door, Outside
2016-06 → 2018-08 ended
NRE180 N TUP —
76811-02954 note Garnish Sub-assy, Luggage Compartment Door, Outside
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
76801-02935 note Garnish Sub-assy, Luggage Compartment Door, Outside
2019-12 → 2022-07 ended
ZRE182 N —
76801-02935 note Garnish Sub-assy, Luggage Compartment Door, Outside
2019-12 → —
ZRE182 D —
76801-02936 note Garnish Sub-assy, Luggage Compartment Door, Outside
2021-01 → —
ZRE182 N SA —
76801-02936 note Garnish Sub-assy, Luggage Compartment Door, Outside
2019-12 → —
ZRE182 G —
76801-02937 note Garnish Sub-assy, Luggage Compartment Door, Outside
2019-12 → —
ZRE182 N —
76801-02938 note Garnish Sub-assy, Luggage Compartment Door, Outside
2021-01 → —
ZRE182 D SA —
76801-02938 note Garnish Sub-assy, Luggage Compartment Door, Outside
2019-12 → 2022-07 ended
ZRE182 G —
76801-02938 note Garnish Sub-assy, Luggage Compartment Door, Outside
2021-01 → 2022-07 ended
ZRE182 N SA —
76812B — Garnish, Luggage Compartment Door, Outside NO.2
76812-02090 Garnish, Luggage Compartment Door, Outside NO.2
2016-06 → 2018-08 ended
NRE180 N TUP —
76812-02090 Garnish, Luggage Compartment Door, Outside NO.2
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
76812-02120 Garnish, Luggage Compartment Door, Outside NO.2
2017-01 → 2019-12 ended
ZRE182 N SAP —
76821A — Protector, Luggage Compartment Door Outside Garnish
76825-02160 Protector, Luggage Compartment Door Outside Garnish
2013-06 → 2016-05 ended
NDE180 TUP —
76825-02160 Protector, Luggage Compartment Door Outside Garnish
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
76825-02160 Protector, Luggage Compartment Door Outside Garnish
2016-06 → 2018-08 ended
NRE180 D TUP —
76825-02160 Protector, Luggage Compartment Door Outside Garnish
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
76825-02160 Protector, Luggage Compartment Door Outside Garnish
2016-06 → 2019-12 ended
ZRE182 D SAP;NDE180,NRE180,ZRE181 SAP —
76825-02200 Protector, Luggage Compartment Door Outside Garnish
2017-01 → 2019-12 ended
ZRE182 N SAP —
76825-02290 Protector, Luggage Compartment Door Outside Garnish
2016-06 → 2018-08 ended
NRE180 N TUP —
76825-02290 Protector, Luggage Compartment Door Outside Garnish
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
76825-02200 Protector, Luggage Compartment Door Outside Garnish
2019-12 → —
ZRE182 —
76827 — Retainer, Back Door Garnish, NO.2
76827-02010 Retainer, Back Door Garnish, NO.2
2016-06 → 2018-08 ended
NRE180 N TUP —
76827-02010 Retainer, Back Door Garnish, NO.2
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
76827-02040 Retainer, Back Door Garnish, NO.2
2017-01 → 2019-12 ended
ZRE182 N SAP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
