Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

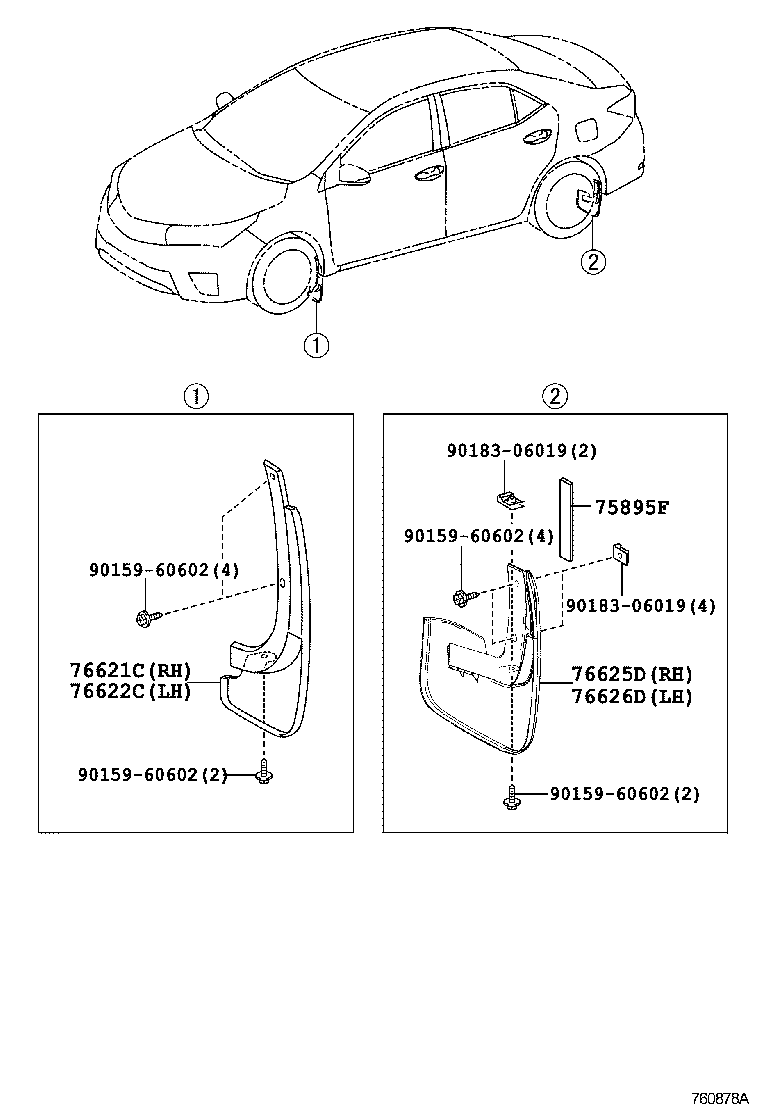

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 75895F — Tape, Moulding, NO.1 | ||||
| 75895-02110 note |
Tape, Moulding, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 75895-12090 note |
Tape, Moulding, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 75895-02110 note |
Tape, Moulding, NO.1
2016-06 → 2016-08
ended
|
ZRE18# N GCC | — | |
| 75895-02110 note |
Tape, Moulding, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 75895-02110 note |
Tape, Moulding, NO.1
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 75895-02110 note |
Tape, Moulding, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 75895-02110 note |
Tape, Moulding, NO.1
2016-06 → 2019-01
ended
|
ZRE18# CVT N GEN +1 | — | |
| 75895-02110 note |
Tape, Moulding, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 75895-12090 note |
Tape, Moulding, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 75895-12090 |
Tape, Moulding, NO.1
2019-12 → —
|
ZRE182 G,N | — | |
| 76621C — Mudguad, Front Fender, RH | ||||
| 76621-02190 note |
Mudguad, Front Fender, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 76621-02220 note |
Mudguad, Front Fender, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 76621-02190 note |
Mudguad, Front Fender, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 76621-02220 note |
Mudguad, Front Fender, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 76621-02220 note |
Mudguad, Front Fender, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 76621-02190 note |
Mudguad, Front Fender, RH
2019-12 → 2024-11
ended
|
ZRE182 G,N | — | |
| 76621-02190 |
Mudguad, Front Fender, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 76622C — Mudguard, Front Fender, LH | ||||
| 76622-02190 note |
Mudguard, Front Fender, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 76622-02220 note |
Mudguard, Front Fender, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 76622-02190 note |
Mudguard, Front Fender, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 76622-02220 note |
Mudguard, Front Fender, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 76622-02220 note |
Mudguard, Front Fender, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 76622-02190 note |
Mudguard, Front Fender, LH
2019-12 → 2024-11
ended
|
ZRE182 G,N | — | |
| 76622-02190 |
Mudguard, Front Fender, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 76625D — Mudguard, Quarter Panel, Rear RH | ||||
| 76625-02350 note |
Mudguard, Quarter Panel, Rear RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 76625-02360 note |
Mudguard, Quarter Panel, Rear RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 76625-02350 note |
Mudguard, Quarter Panel, Rear RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 76625-02360 note |
Mudguard, Quarter Panel, Rear RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 76625-02360 note |
Mudguard, Quarter Panel, Rear RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 76625-02350 note |
Mudguard, Quarter Panel, Rear RH
2019-12 → 2024-11
ended
|
ZRE182 G,N | — | |
| 76625-02350 |
Mudguard, Quarter Panel, Rear RH
2019-12 → —
|
ZRE182 G,N | — | |
| 76626D — Mudguard, Quarter Panel, Rear LH | ||||
| 76626-02350 note |
Mudguard, Quarter Panel, Rear LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 76626-02360 note |
Mudguard, Quarter Panel, Rear LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 76626-02350 note |
Mudguard, Quarter Panel, Rear LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 76626-02360 note |
Mudguard, Quarter Panel, Rear LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 76626-02360 note |
Mudguard, Quarter Panel, Rear LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 76626-02350 note |
Mudguard, Quarter Panel, Rear LH
2019-12 → 2024-11
ended
|
ZRE182 G,N | — | |
| 76626-02350 |
Mudguard, Quarter Panel, Rear LH
2019-12 → —
|
ZRE182 G,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
