Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

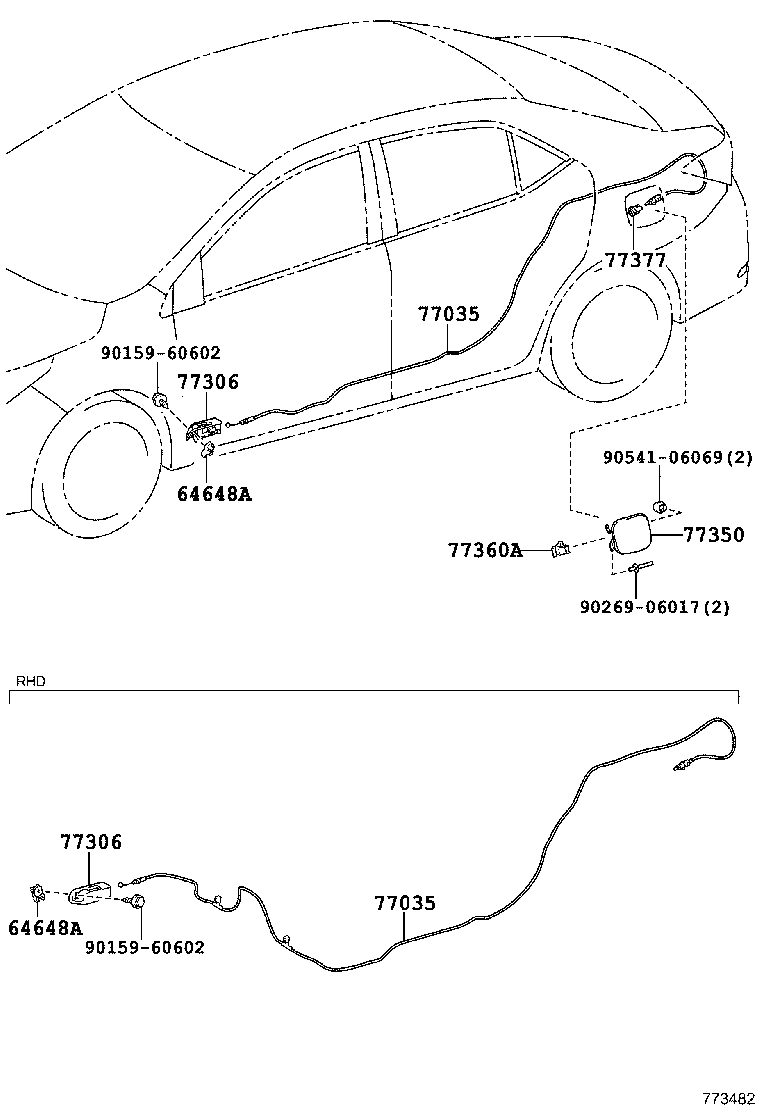

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64648A — Grommet, Luggage Door Lock Opener | ||||
| 64648-12020 |
Grommet, Luggage Door Lock Opener
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 64648-12020 |
Grommet, Luggage Door Lock Opener
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 64648-12020 |
Grommet, Luggage Door Lock Opener
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 64648-12020 |
Grommet, Luggage Door Lock Opener
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 64648-12020 |
Grommet, Luggage Door Lock Opener
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 64648-12020 |
Grommet, Luggage Door Lock Opener
2019-12 → —
|
ZRE182 | — | |
| 77035 — Cable Sub-assy, Fuel Lid Lock Control | ||||
| 77035-02392 |
Cable Sub-assy, Fuel Lid Lock Control
2014-01 → 2015-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 77035-02393 |
Cable Sub-assy, Fuel Lid Lock Control
2016-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 77035-02401 |
Cable Sub-assy, Fuel Lid Lock Control
2013-06 → 2013-09
ended
|
NDE180 | — | |
| 77035-02402 |
Cable Sub-assy, Fuel Lid Lock Control
2013-10 → 2014-09
ended
|
NDE180,ZRE18# GEN | — | |
| 77035-02403 |
Cable Sub-assy, Fuel Lid Lock Control
2014-10 → 2015-12
ended
|
NDE180,ZRE18# GEN | — | |
| 77035-02404 |
Cable Sub-assy, Fuel Lid Lock Control
2016-01 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 77035-02404 |
Cable Sub-assy, Fuel Lid Lock Control
2016-01 → 2016-05
ended
|
NDE180 TUP | — | |
| 77035-02393 |
Cable Sub-assy, Fuel Lid Lock Control
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 77035-02404 |
Cable Sub-assy, Fuel Lid Lock Control
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77035-02404 |
Cable Sub-assy, Fuel Lid Lock Control
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77035-02404 |
Cable Sub-assy, Fuel Lid Lock Control
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 77035-02393 |
Cable Sub-assy, Fuel Lid Lock Control
2019-12 → —
|
ZRE182 SA | — | |
| 77035-02404 |
Cable Sub-assy, Fuel Lid Lock Control
2019-12 → —
|
ZRE182 GEN | — | |
| 77306 — Lever Sub-assy, Fuel Lid Lock Open | ||||
| 64606-02130 |
Lever Sub-assy, Fuel Lid Lock Open
2014-10 → 2016-05
ended
|
NDE180 TUP | — | |
| 64606-02130 |
Lever Sub-assy, Fuel Lid Lock Open
2014-10 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 64606-33020 |
Lever Sub-assy, Fuel Lid Lock Open
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 64606-33030 |
Lever Sub-assy, Fuel Lid Lock Open
2013-06 → 2014-10
ended
|
NDE180,ZRE18# GEN | — | |
| 64606-02130 |
Lever Sub-assy, Fuel Lid Lock Open
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 64606-02130 |
Lever Sub-assy, Fuel Lid Lock Open
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 64606-02130 |
Lever Sub-assy, Fuel Lid Lock Open
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 64606-33020 |
Lever Sub-assy, Fuel Lid Lock Open
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 64606-02130 |
Lever Sub-assy, Fuel Lid Lock Open
2019-12 → —
|
ZRE182 GEN | — | |
| 64606-33020 |
Lever Sub-assy, Fuel Lid Lock Open
2019-12 → —
|
ZRE182 SA | — | |
| 77350 — Lid Assy, Fuel Filler Opening | ||||
| 77350-12560 |
Lid Assy, Fuel Filler Opening
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77350-12560 |
Lid Assy, Fuel Filler Opening
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77350-12560 |
Lid Assy, Fuel Filler Opening
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77350-12560 |
Lid Assy, Fuel Filler Opening
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77350-12560 |
Lid Assy, Fuel Filler Opening
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77350-12560 |
Lid Assy, Fuel Filler Opening
2019-12 → —
|
ZRE182 | — | |
| 77360A — Spring Assy, Fuel Filler Opening Lid | ||||
| 77360-02010 |
Spring Assy, Fuel Filler Opening Lid
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77360-02010 |
Spring Assy, Fuel Filler Opening Lid
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77360-02010 |
Spring Assy, Fuel Filler Opening Lid
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77360-02010 |
Spring Assy, Fuel Filler Opening Lid
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77360-02010 |
Spring Assy, Fuel Filler Opening Lid
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77360-02010 |
Spring Assy, Fuel Filler Opening Lid
2019-12 → —
|
ZRE182 | — | |
| 77377 — Retainer, Fuel Filler Opening Lid Lock | ||||
| 77377-0D060 |
Retainer, Fuel Filler Opening Lid Lock
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77377-0D060 |
Retainer, Fuel Filler Opening Lid Lock
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77377-0D060 |
Retainer, Fuel Filler Opening Lid Lock
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77377-0D060 |
Retainer, Fuel Filler Opening Lid Lock
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77377-0D060 |
Retainer, Fuel Filler Opening Lid Lock
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77377-0D060 |
Retainer, Fuel Filler Opening Lid Lock
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
