Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

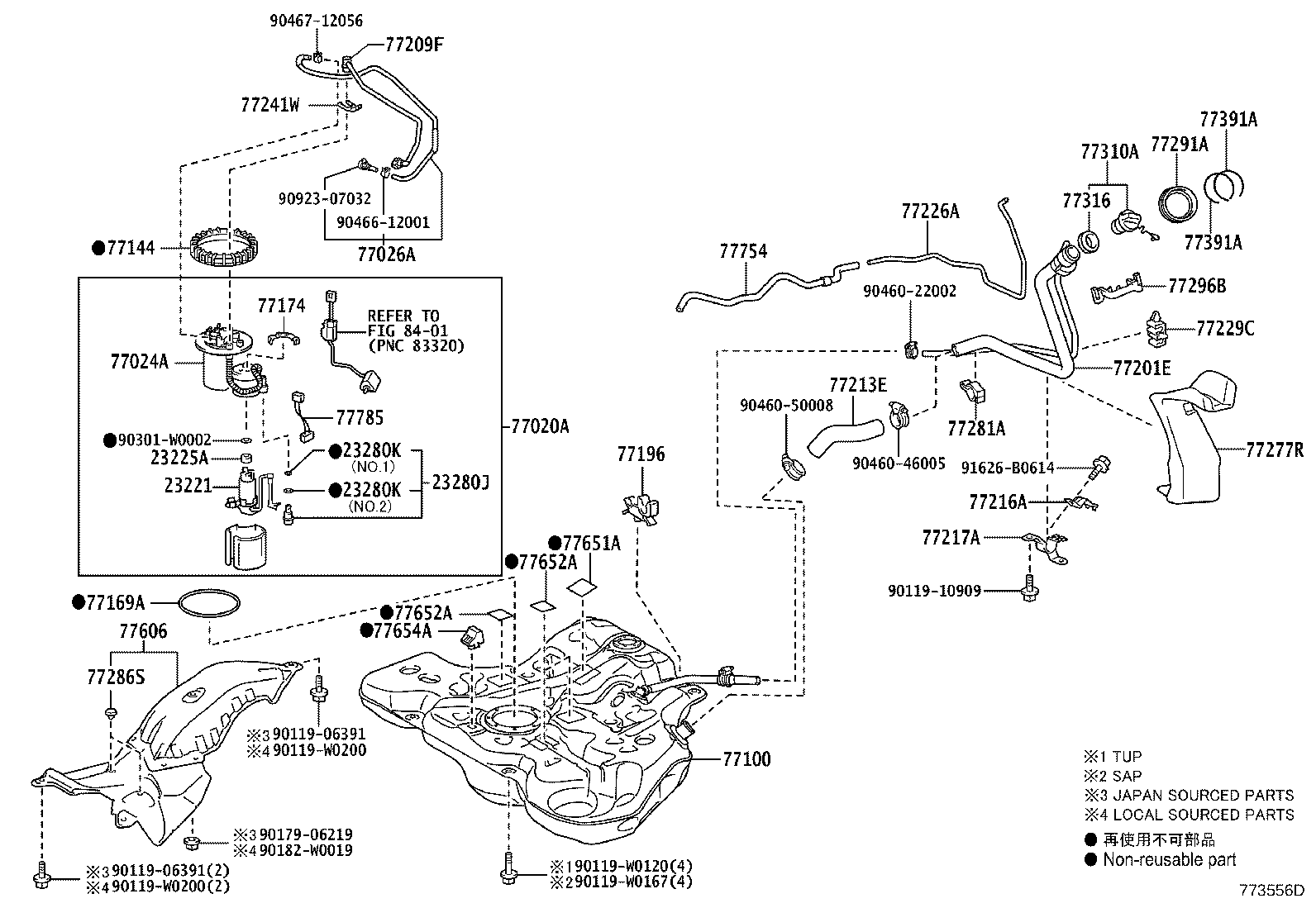

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23221 — Pump, Fuel | ||||
| 23220-0Q041 |
Pump, Fuel
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 23220-0T071 |
Pump, Fuel
2014-01 → 2017-01
ended
|
2ZRFE ZRE182 SAP | — | |
| 23220-0T131 |
Pump, Fuel
2014-01 → 2017-01
ended
|
1ZRFE ZRE181 SAP | — | |
| 23220-0Q041 |
Pump, Fuel
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 23220-0Q041 |
Pump, Fuel
2016-06 → 2019-12
ended
|
1NRFE NRE180 SAP | — | |
| 23220-0T071 |
Pump, Fuel
2016-06 → 2019-01
ended
|
2ZRFE ZRE182 TUP | — | |
| 23220-0T071 |
Pump, Fuel
2016-06 → 2019-12
ended
|
2ZRFE ZRE182 SAP | — | |
| 23220-0T131 |
Pump, Fuel
2016-06 → 2019-12
ended
|
1ZRFE ZRE181 SAP | — | |
| 23220-0T131 |
Pump, Fuel
2016-06 → 2019-01
ended
|
1ZRFE ZRE181 TUP | — | |
| 23220-0T071 |
Pump, Fuel
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23225A — Spacer, Fuel Pump | ||||
| 23225-0T010 |
Spacer, Fuel Pump
2014-01 → 2017-01
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 23225-0T010 |
Spacer, Fuel Pump
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 23225-0T010 |
Spacer, Fuel Pump
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 23225-0T010 |
Spacer, Fuel Pump
2016-06 → 2019-12
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 23225-0T010 |
Spacer, Fuel Pump
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23280J — Regulator Assy, Fuel Pressure | ||||
| 23280-21010 |
Regulator Assy, Fuel Pressure
2014-01 → 2017-01
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 23280-21010 |
Regulator Assy, Fuel Pressure
2016-06 → 2019-12
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 23280-21010 |
Regulator Assy, Fuel Pressure
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 23280-21010 |
Regulator Assy, Fuel Pressure
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 23280-21010 |
Regulator Assy, Fuel Pressure
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23280K — Ring, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2014-01 → 2017-01
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2014-01 → 2017-01
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2016-06 → 2019-12
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2016-06 → 2019-12
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 77020A — Tube Assy, Fuel Suction W/Pump & Gage | ||||
| 77020-02550 |
Tube Assy, Fuel Suction W/Pump & Gage
2014-01 → 2014-09
ended
|
NRE180 | — | |
| 77020-02551 |
Tube Assy, Fuel Suction W/Pump & Gage
2014-10 → 2015-03
ended
|
NRE180 | — | |
| 77020-02552 |
Tube Assy, Fuel Suction W/Pump & Gage
2015-04 → 2017-01
ended
|
NRE180 SAP | — | |
| 77020-02560 |
Tube Assy, Fuel Suction W/Pump & Gage
2014-01 → 2014-09
ended
|
ZRE181 | — | |
| 77020-02561 |
Tube Assy, Fuel Suction W/Pump & Gage
2014-10 → 2015-03
ended
|
ZRE181 | — | |
| 77020-02562 |
Tube Assy, Fuel Suction W/Pump & Gage
2015-04 → 2017-01
ended
|
ZRE181 SAP | — | |
| 77020-02570 |
Tube Assy, Fuel Suction W/Pump & Gage
2014-01 → 2014-09
ended
|
ZRE182 | — | |
| 77020-02571 |
Tube Assy, Fuel Suction W/Pump & Gage
2014-10 → 2015-03
ended
|
ZRE182 | — | |
| 77020-02572 |
Tube Assy, Fuel Suction W/Pump & Gage
2015-04 → 2017-01
ended
|
ZRE182 SAP | — | |
| 77020-02552 |
Tube Assy, Fuel Suction W/Pump & Gage
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77020-02552 |
Tube Assy, Fuel Suction W/Pump & Gage
2016-06 → 2019-12
ended
|
NRE180 SAP | — | |
| 77020-02562 |
Tube Assy, Fuel Suction W/Pump & Gage
2016-06 → 2019-01
ended
|
ZRE181 TUP | — | |
| 77020-02562 |
Tube Assy, Fuel Suction W/Pump & Gage
2016-06 → 2019-12
ended
|
ZRE181 SAP | — | |
| 77020-02572 |
Tube Assy, Fuel Suction W/Pump & Gage
2016-06 → 2019-01
ended
|
ZRE182 TUP | — | |
| 77020-02572 |
Tube Assy, Fuel Suction W/Pump & Gage
2016-06 → 2019-12
ended
|
ZRE182 SAP | — | |
| 77020-02572 |
Tube Assy, Fuel Suction W/Pump & Gage
2019-12 → —
|
ZRE182 | — | |
| 77024A — Plate Sub-assy, Fuel Suction | ||||
| 77024-02320 |
Plate Sub-assy, Fuel Suction
2015-04 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 77024-05010 |
Plate Sub-assy, Fuel Suction
2014-01 → 2015-03
ended
|
NRE180,ZRE18# | — | |
| 77024-02320 |
Plate Sub-assy, Fuel Suction
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77024-02320 |
Plate Sub-assy, Fuel Suction
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 77024-02320 |
Plate Sub-assy, Fuel Suction
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 77024-02320 |
Plate Sub-assy, Fuel Suction
2019-12 → —
|
ZRE182 | — | |
| 77026A — Tube Sub-assy, Fuel Evaporation, NO.1 | ||||
| 77026-02050 |
Tube Sub-assy, Fuel Evaporation, NO.1
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 77026-02030 |
Tube Sub-assy, Fuel Evaporation, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77026-02030 |
Tube Sub-assy, Fuel Evaporation, NO.1
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 77026-02050 |
Tube Sub-assy, Fuel Evaporation, NO.1
2017-01 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 77026-02050 |
Tube Sub-assy, Fuel Evaporation, NO.1
2019-12 → —
|
ZRE182 | — | |
| 77100 — Tank Assy, Fuel | ||||
| 77001-02291 |
Tank Assy, Fuel
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 77001-02301 |
Tank Assy, Fuel
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 77001-02680 |
Tank Assy, Fuel
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77001-02250 |
Tank Assy, Fuel
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77001-02250 |
Tank Assy, Fuel
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 77001-02291 |
Tank Assy, Fuel
2017-01 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 77001-02301 |
Tank Assy, Fuel
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 77001-02680 |
Tank Assy, Fuel
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 77001-02291 |
Tank Assy, Fuel
2019-12 → —
|
ZRE182 | — | |
| 77144 — Retainer, Fuel Pump Gauge | ||||
| 77144-02080 |
Retainer, Fuel Pump Gauge
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77144-0H010 |
Retainer, Fuel Pump Gauge
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77144-02080 |
Retainer, Fuel Pump Gauge
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77144-0H010 |
Retainer, Fuel Pump Gauge
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77144-0H010 |
Retainer, Fuel Pump Gauge
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77144-02080 |
Retainer, Fuel Pump Gauge
2019-12 → —
|
ZRE182 | — | |
| 77169A — Gasket, Fuel Suction Tube Set | ||||
| 77169-02070 |
Gasket, Fuel Suction Tube Set
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77169-0D030 |
Gasket, Fuel Suction Tube Set
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77169-02070 |
Gasket, Fuel Suction Tube Set
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77169-0D030 |
Gasket, Fuel Suction Tube Set
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77169-0D030 |
Gasket, Fuel Suction Tube Set
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77169-02070 |
Gasket, Fuel Suction Tube Set
2019-12 → —
|
ZRE182 | — | |
| 77174 — Support, Fuel Suction, NO.1 | ||||
| 77174-05010 |
Support, Fuel Suction, NO.1
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 77174-05010 |
Support, Fuel Suction, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77174-05010 |
Support, Fuel Suction, NO.1
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 77174-05010 |
Support, Fuel Suction, NO.1
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 77174-05010 |
Support, Fuel Suction, NO.1
2019-12 → —
|
ZRE182 | — | |
| 77196 — Clamp, Evaporation Vent Tube, NO.1 | ||||
| 77196-02050 |
Clamp, Evaporation Vent Tube, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77196-12080 |
Clamp, Evaporation Vent Tube, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77196-02050 |
Clamp, Evaporation Vent Tube, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77196-02050 |
Clamp, Evaporation Vent Tube, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77196-12080 |
Clamp, Evaporation Vent Tube, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77196-12080 |
Clamp, Evaporation Vent Tube, NO.1
2019-12 → —
|
ZRE182 | — | |
| 77201E — Pipe Sub-assy, Fuel Tank Filler | ||||
| 77201-02480 |
Pipe Sub-assy, Fuel Tank Filler
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77201-12A10 |
Pipe Sub-assy, Fuel Tank Filler
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 77201-12A20 |
Pipe Sub-assy, Fuel Tank Filler
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 77201-02470 |
Pipe Sub-assy, Fuel Tank Filler
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77201-02470 |
Pipe Sub-assy, Fuel Tank Filler
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 77201-02480 |
Pipe Sub-assy, Fuel Tank Filler
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 77201-12A10 |
Pipe Sub-assy, Fuel Tank Filler
2017-01 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 77201-12A20 |
Pipe Sub-assy, Fuel Tank Filler
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 77201-12A10 |
Pipe Sub-assy, Fuel Tank Filler
2019-12 → —
|
ZRE182 | — | |
| 77209F — Tube Sub-assy, Fuel Tank Main | ||||
| 77209-02090 |
Tube Sub-assy, Fuel Tank Main
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77209-02140 |
Tube Sub-assy, Fuel Tank Main
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77209-02090 |
Tube Sub-assy, Fuel Tank Main
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77209-02090 |
Tube Sub-assy, Fuel Tank Main
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77209-02140 |
Tube Sub-assy, Fuel Tank Main
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77209-02140 |
Tube Sub-assy, Fuel Tank Main
2019-12 → —
|
ZRE182 | — | |
| 77213E — Hose, Fuel Tank TO Filler Pipe | ||||
| 77213-02170 |
Hose, Fuel Tank TO Filler Pipe
2013-06 → 2015-07
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77213-02170 |
Hose, Fuel Tank TO Filler Pipe
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77213-02170 note |
Hose, Fuel Tank TO Filler Pipe
2015-07 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77213-12300 note |
Hose, Fuel Tank TO Filler Pipe
2015-07 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77213-02170 |
Hose, Fuel Tank TO Filler Pipe
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77213-02170 |
Hose, Fuel Tank TO Filler Pipe
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77213-02170 |
Hose, Fuel Tank TO Filler Pipe
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77213-02170 note |
Hose, Fuel Tank TO Filler Pipe
2019-12 → —
|
ZRE182 | — | |
| 77213-12300 note |
Hose, Fuel Tank TO Filler Pipe
2019-12 → —
|
ZRE182 | — | |
| 77216A — Support, Fuel Tank Filler Pipe, NO.1 | ||||
| 77216-02170 |
Support, Fuel Tank Filler Pipe, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77216-12190 |
Support, Fuel Tank Filler Pipe, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77216-02170 |
Support, Fuel Tank Filler Pipe, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77216-02170 |
Support, Fuel Tank Filler Pipe, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77216-12190 |
Support, Fuel Tank Filler Pipe, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77216-12190 |
Support, Fuel Tank Filler Pipe, NO.1
2019-12 → —
|
ZRE182 | — | |
| 77217A — Support, Fuel Tank Filler Pipe, NO.2 | ||||
| 77217-02140 |
Support, Fuel Tank Filler Pipe, NO.2
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77217-47080 |
Support, Fuel Tank Filler Pipe, NO.2
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77217-02140 |
Support, Fuel Tank Filler Pipe, NO.2
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77217-02140 |
Support, Fuel Tank Filler Pipe, NO.2
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77217-47080 |
Support, Fuel Tank Filler Pipe, NO.2
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77217-47080 |
Support, Fuel Tank Filler Pipe, NO.2
2019-12 → —
|
ZRE182 | — | |
| 77226A — Tube, Fuel Tank Breather, NO.6 | ||||
| 77226-12060 |
Tube, Fuel Tank Breather, NO.6
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 77226-02060 |
Tube, Fuel Tank Breather, NO.6
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77226-02060 |
Tube, Fuel Tank Breather, NO.6
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 77226-12060 |
Tube, Fuel Tank Breather, NO.6
2017-01 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 77226-12060 |
Tube, Fuel Tank Breather, NO.6
2019-12 → —
|
ZRE182 | — | |
| 77229C — Clamp, Breather Tube | ||||
| 77229-12070 |
Clamp, Breather Tube
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77229-12070 |
Clamp, Breather Tube
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77229-12070 |
Clamp, Breather Tube
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77229-12070 |
Clamp, Breather Tube
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77229-12070 |
Clamp, Breather Tube
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77229-12070 |
Clamp, Breather Tube
2019-12 → —
|
ZRE182 | — | |
| 77241W — Clip, Tube Joint | ||||
| 77241-32060 |
Clip, Tube Joint
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77241-32060 |
Clip, Tube Joint
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 77241-32060 |
Clip, Tube Joint
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 77241-32060 |
Clip, Tube Joint
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77241-32060 |
Clip, Tube Joint
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 77241-32060 |
Clip, Tube Joint
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 77241-32060 |
Clip, Tube Joint
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 77241-32060 |
Clip, Tube Joint
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
| 77241-32060 |
Clip, Tube Joint
2019-12 → —
|
ZRE182 | — | |
| 77277R — Protector, Fuel Tank Filler Pipe | ||||
| 77277-02160 |
Protector, Fuel Tank Filler Pipe
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77277-02160 |
Protector, Fuel Tank Filler Pipe
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77277-02160 |
Protector, Fuel Tank Filler Pipe
2016-06 → 2018-08
ended
|
NRE180;NDE180,ZRE18# SAP | — | |
| 77277-02160 |
Protector, Fuel Tank Filler Pipe
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77277-02160 |
Protector, Fuel Tank Filler Pipe
2018-08 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77277-02160 |
Protector, Fuel Tank Filler Pipe
2019-12 → —
|
ZRE182 GEN | — | |
| 77277-02280 |
Protector, Fuel Tank Filler Pipe
2019-12 → —
|
ZRE182 SA | — | |
| 77281A — Clamp, Fuel Filler Pipe | ||||
| 77281-12100 |
Clamp, Fuel Filler Pipe
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 77281-12100 |
Clamp, Fuel Filler Pipe
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77281-12100 |
Clamp, Fuel Filler Pipe
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 77281-12100 |
Clamp, Fuel Filler Pipe
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 77281-12100 |
Clamp, Fuel Filler Pipe
2019-12 → —
|
ZRE182 | — | |
| 77286S — Cushion, Fuel Tank Protector | ||||
| 77286-02070 |
Cushion, Fuel Tank Protector
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77286-02070 |
Cushion, Fuel Tank Protector
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77286-02070 |
Cushion, Fuel Tank Protector
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77286-02070 |
Cushion, Fuel Tank Protector
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77286-02070 |
Cushion, Fuel Tank Protector
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77286-02070 |
Cushion, Fuel Tank Protector
2019-12 → —
|
ZRE182 | — | |
| 77291A — Shield, Fuel Tank Filler Pipe | ||||
| 77291-02240 |
Shield, Fuel Tank Filler Pipe
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77291-02240 |
Shield, Fuel Tank Filler Pipe
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77291-02240 |
Shield, Fuel Tank Filler Pipe
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77291-02240 |
Shield, Fuel Tank Filler Pipe
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77291-02240 |
Shield, Fuel Tank Filler Pipe
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77291-02240 |
Shield, Fuel Tank Filler Pipe
2019-12 → —
|
ZRE182 | — | |
| 77296B — Support, Fuel Tube Protector, NO.1 | ||||
| 77296-52030 |
Support, Fuel Tube Protector, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77296-52030 |
Support, Fuel Tube Protector, NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77296-52030 |
Support, Fuel Tube Protector, NO.1
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77296-52030 |
Support, Fuel Tube Protector, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77296-52030 |
Support, Fuel Tube Protector, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77296-52030 |
Support, Fuel Tube Protector, NO.1
2019-12 → —
|
ZRE182 | — | |
| 77310A — Cap Assy, Fuel Tank | ||||
| 77300-12030 |
Cap Assy, Fuel Tank
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77300-20020 |
Cap Assy, Fuel Tank
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 77300-52030 |
Cap Assy, Fuel Tank
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 77300-12020 |
Cap Assy, Fuel Tank
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77300-12020 |
Cap Assy, Fuel Tank
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 77300-12030 |
Cap Assy, Fuel Tank
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 77300-20020 |
Cap Assy, Fuel Tank
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 77300-52030 |
Cap Assy, Fuel Tank
2017-01 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 77300-52030 |
Cap Assy, Fuel Tank
2019-12 → —
|
ZRE182 | — | |
| 77316 — Gasket, Fuel Tank Cap | ||||
| 77316-52040 |
Gasket, Fuel Tank Cap
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77316-52040 |
Gasket, Fuel Tank Cap
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77316-52040 |
Gasket, Fuel Tank Cap
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77316-52040 |
Gasket, Fuel Tank Cap
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77316-52040 |
Gasket, Fuel Tank Cap
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77316-52040 |
Gasket, Fuel Tank Cap
2019-12 → —
|
ZRE182 | — | |
| 77391A — Ring, Fuel Inlet Box | ||||
| 77391-12020 |
Ring, Fuel Inlet Box
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77391-12020 |
Ring, Fuel Inlet Box
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77391-12020 |
Ring, Fuel Inlet Box
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77391-12020 |
Ring, Fuel Inlet Box
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77391-12020 |
Ring, Fuel Inlet Box
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77391-12020 |
Ring, Fuel Inlet Box
2019-12 → —
|
ZRE182 | — | |
| 77606 — Protector Sub-assy, Fuel Tank, NO.1 | ||||
| 77606-02021 |
Protector Sub-assy, Fuel Tank, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77606-02040 |
Protector Sub-assy, Fuel Tank, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77606-02021 |
Protector Sub-assy, Fuel Tank, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77606-02021 |
Protector Sub-assy, Fuel Tank, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77606-02040 |
Protector Sub-assy, Fuel Tank, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77606-02040 |
Protector Sub-assy, Fuel Tank, NO.1
2019-12 → —
|
ZRE182 | — | |
| 77651A — Cushion, Fuel Tank, NO.1 | ||||
| 77651-12070 |
Cushion, Fuel Tank, NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77651-12070 |
Cushion, Fuel Tank, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77651-12070 |
Cushion, Fuel Tank, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77651-12070 |
Cushion, Fuel Tank, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 77651-12070 |
Cushion, Fuel Tank, NO.1
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 77651-12070 |
Cushion, Fuel Tank, NO.1
2019-12 → —
|
ZRE182 | — | |
| 77652A — Cushion, Fuel Tank, NO.2 | ||||
| 77652-45020 |
Cushion, Fuel Tank, NO.2
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 77652-45020 |
Cushion, Fuel Tank, NO.2
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 77652-45020 |
Cushion, Fuel Tank, NO.2
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77652-45020 |
Cushion, Fuel Tank, NO.2
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 77652-45020 |
Cushion, Fuel Tank, NO.2
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 77652-45020 |
Cushion, Fuel Tank, NO.2
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 77652-45020 |
Cushion, Fuel Tank, NO.2
2019-12 → —
|
ZRE182 | — | |
| 77654A — Cushion, Fuel Tank, NO.4 | ||||
| 77654-12090 |
Cushion, Fuel Tank, NO.4
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 77654-02020 |
Cushion, Fuel Tank, NO.4
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77654-02020 |
Cushion, Fuel Tank, NO.4
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 77654-12090 |
Cushion, Fuel Tank, NO.4
2017-01 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 77654-12090 |
Cushion, Fuel Tank, NO.4
2019-12 → —
|
ZRE182 | — | |
| 77754 — Hose, Charcoal Canister Outlet, NO.1 | ||||
| 77754-02080 note |
Hose, Charcoal Canister Outlet, NO.1
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 77754-02060 |
Hose, Charcoal Canister Outlet, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77754-02060 |
Hose, Charcoal Canister Outlet, NO.1
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 77754-02080 note |
Hose, Charcoal Canister Outlet, NO.1
2017-01 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 77754-02080 note |
Hose, Charcoal Canister Outlet, NO.1
2019-12 → —
|
ZRE182 | — | |
| 77785 — Harness, Fuel Pump | ||||
| 77785-02081 |
Harness, Fuel Pump
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 77785-02081 |
Harness, Fuel Pump
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 77785-02081 |
Harness, Fuel Pump
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 77785-02081 |
Harness, Fuel Pump
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 77785-02081 |
Harness, Fuel Pump
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
