Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

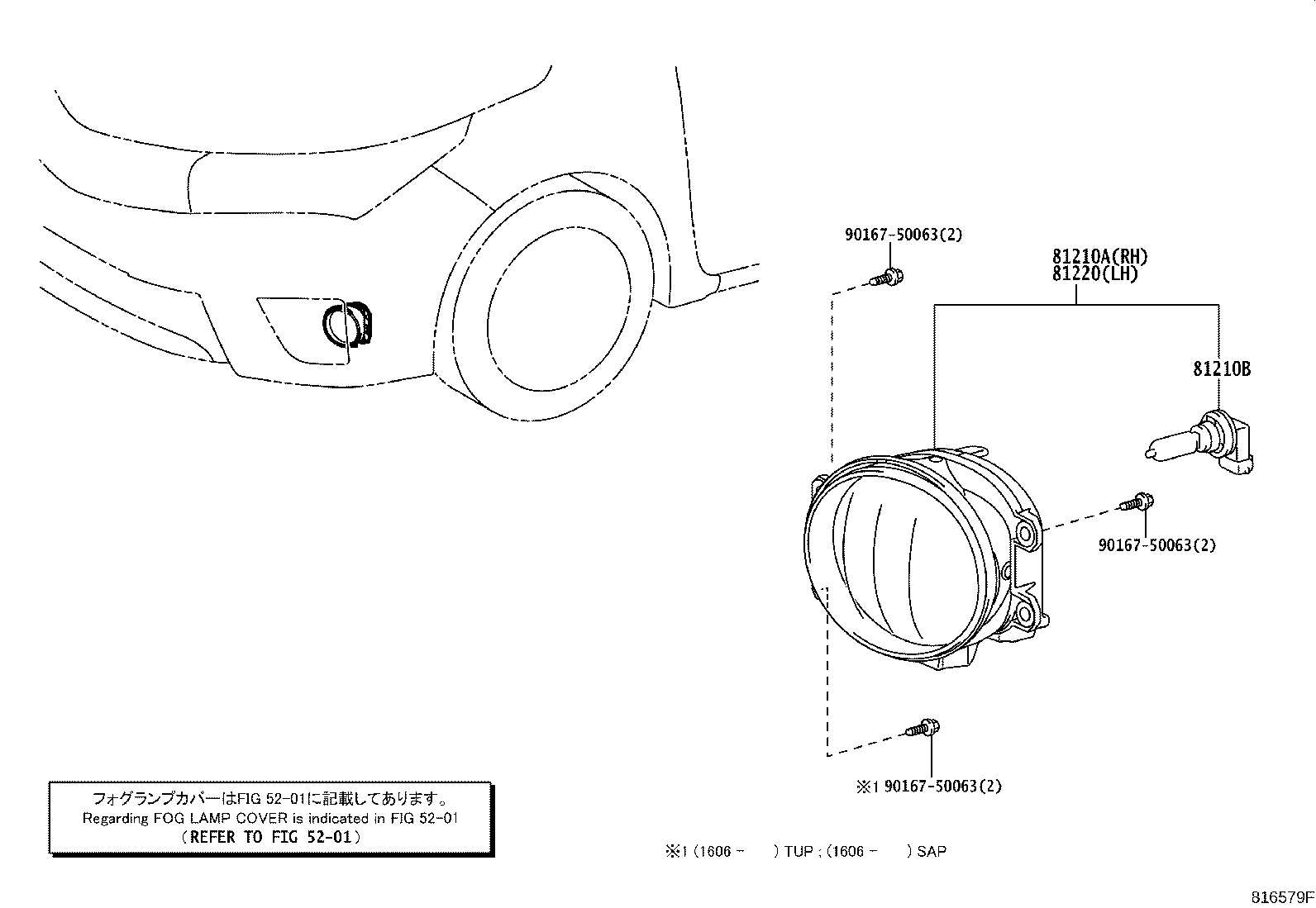

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81210A — Lamp Assy, Fog, RH | ||||
| 81210-02110 note |
Lamp Assy, Fog, RH
2013-06 → 2017-01
ended
|
NDE180 N;NRE180,ZRE18# N SAP | — | |
| 81210-02110 note |
Lamp Assy, Fog, RH
2015-05 → 2017-01
ended
|
NDE180 D TUP | — | |
| 81210-02110 note |
Lamp Assy, Fog, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81210-02110 note |
Lamp Assy, Fog, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81210-02110 note |
Lamp Assy, Fog, RH
2016-06 → —
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 81210B — Bulb, Fog Lamp | ||||
| 90981-WD016 note |
Bulb, Fog Lamp
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 90981-WD016 note |
Bulb, Fog Lamp
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 90981-WD016 note |
Bulb, Fog Lamp
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 90981-WD016 note |
Bulb, Fog Lamp
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 90981-WD016 note |
Bulb, Fog Lamp
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 90981-WD016 note |
Bulb, Fog Lamp
2016-06 → —
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 81220 — Lamp Assy, Fog, LH | ||||
| 81220-02110 note |
Lamp Assy, Fog, LH
2013-06 → 2017-01
ended
|
NDE180 N;NRE180,ZRE18# N SAP | — | |
| 81220-02110 note |
Lamp Assy, Fog, LH
2015-05 → 2017-01
ended
|
NDE180 D TUP | — | |
| 81220-02110 note |
Lamp Assy, Fog, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81220-02110 note |
Lamp Assy, Fog, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81220-02110 note |
Lamp Assy, Fog, LH
2016-06 → —
|
NDE180,NRE180,ZRE18# N SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
