Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

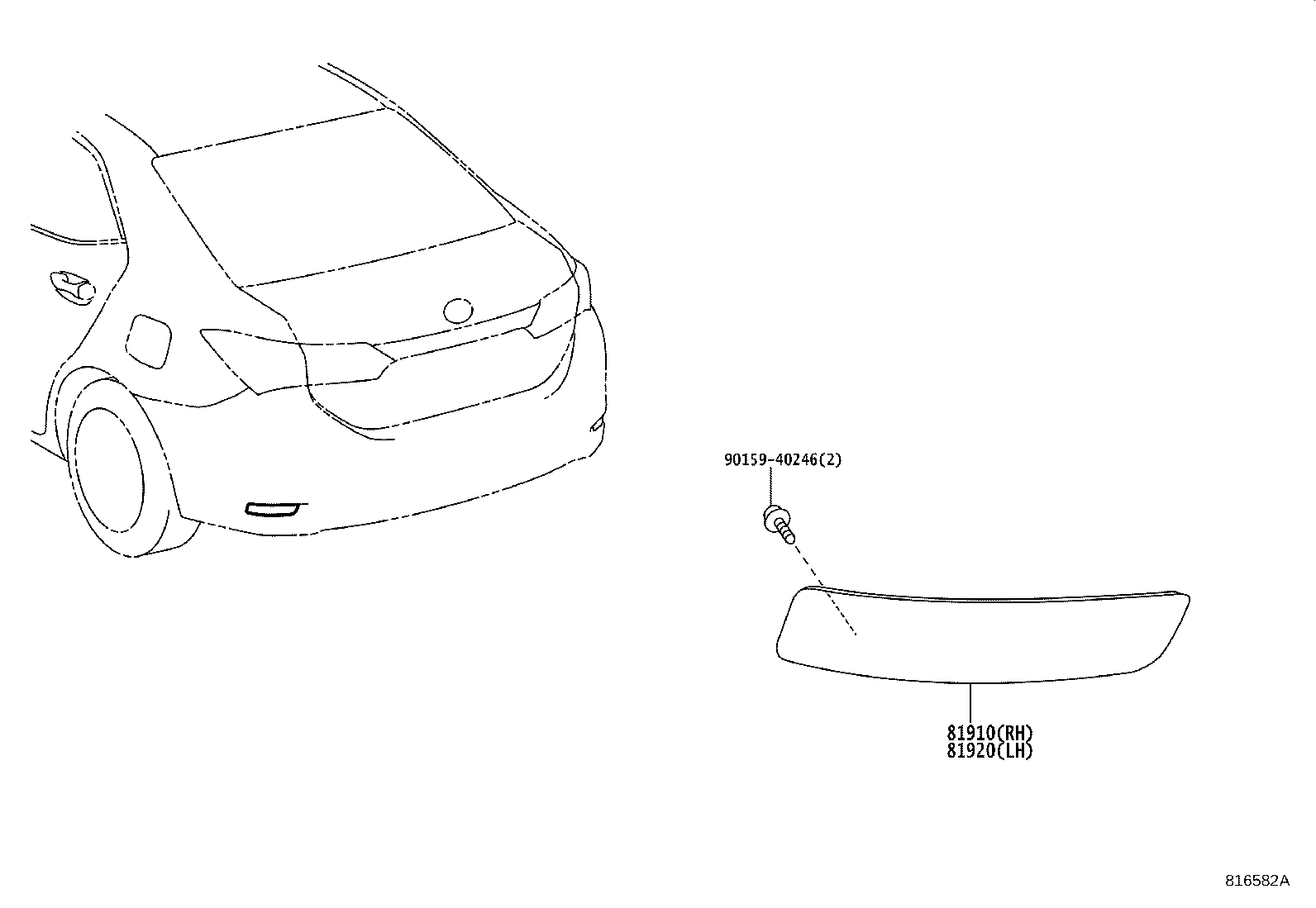

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81910 — Reflector Assy, Reflex, RH | ||||
| 81910-02250 |
Reflector Assy, Reflex, RH
2014-07 → 2015-03
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81910-02250 |
Reflector Assy, Reflex, RH
2014-07 → 2016-05
ended
|
NDE180 TUP | — | |
| 81910-30040 |
Reflector Assy, Reflex, RH
2013-06 → 2014-06
ended
|
NDE180,NRE180,ZRE18# | — | |
| 81910-30040 |
Reflector Assy, Reflex, RH
2015-03 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81910-02250 |
Reflector Assy, Reflex, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81910-02250 |
Reflector Assy, Reflex, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81910-30040 |
Reflector Assy, Reflex, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81910-30040 |
Reflector Assy, Reflex, RH
2019-12 → —
|
ZRE182 | — | |
| 81920 — Reflector Assy, Reflex, LH | ||||
| 81920-02250 |
Reflector Assy, Reflex, LH
2014-07 → 2015-03
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81920-02250 |
Reflector Assy, Reflex, LH
2014-07 → 2016-05
ended
|
NDE180 TUP | — | |
| 81920-30040 |
Reflector Assy, Reflex, LH
2013-06 → 2014-06
ended
|
NDE180,NRE180,ZRE18# | — | |
| 81920-30040 |
Reflector Assy, Reflex, LH
2015-03 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81920-02250 |
Reflector Assy, Reflex, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81920-02250 |
Reflector Assy, Reflex, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81920-30040 |
Reflector Assy, Reflex, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81920-30040 |
Reflector Assy, Reflex, LH
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
