Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

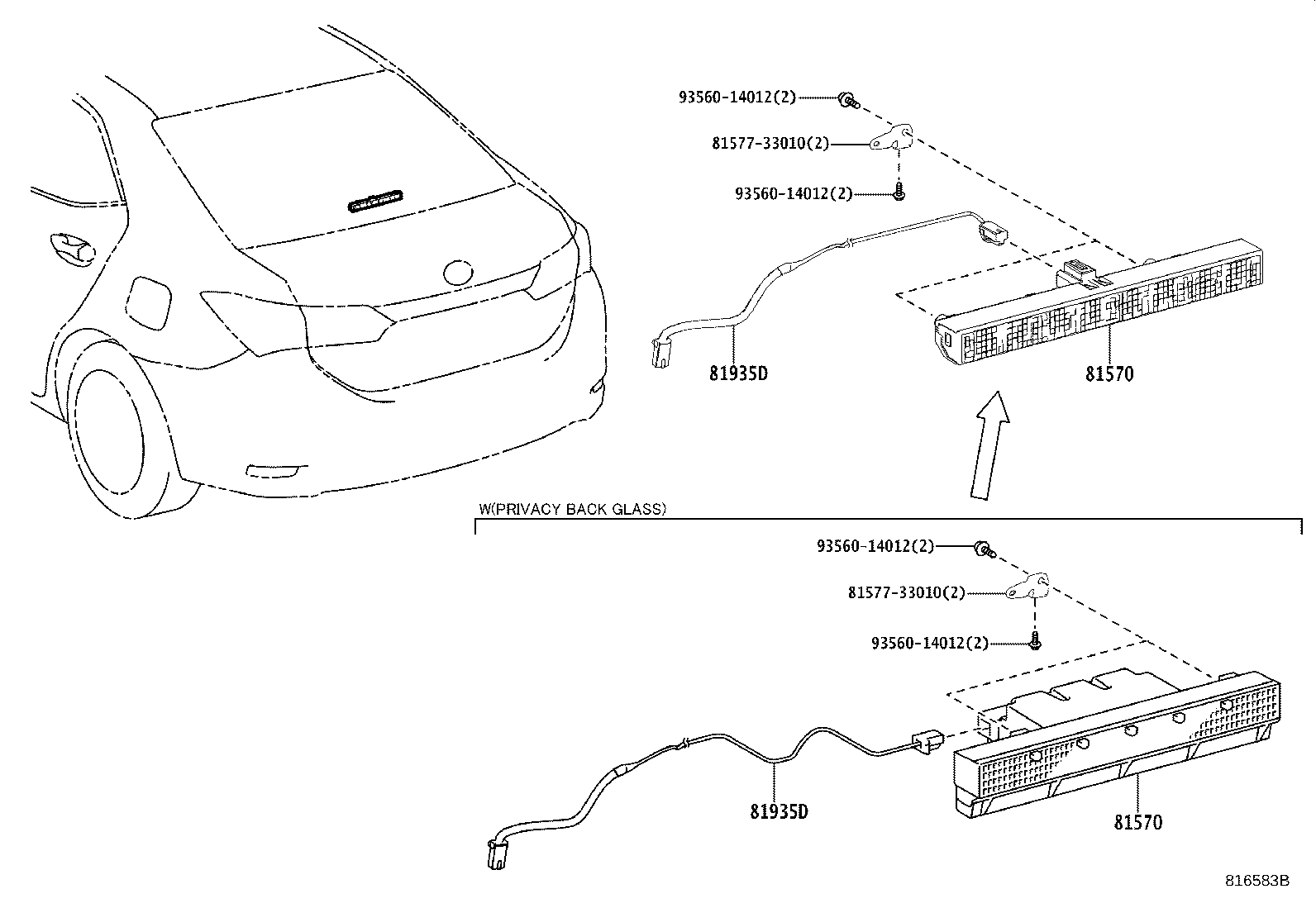

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81570 — Lamp Assy, Center Stop | ||||
| 81570-05100 |
Lamp Assy, Center Stop
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81570-05100 |
Lamp Assy, Center Stop
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81570-05100 |
Lamp Assy, Center Stop
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81570-05100 |
Lamp Assy, Center Stop
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81570-05100 |
Lamp Assy, Center Stop
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81570-12410 note |
Lamp Assy, Center Stop
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81570-12410 note |
Lamp Assy, Center Stop
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 81570-12410 note |
Lamp Assy, Center Stop
2016-11 → 2019-01
ended
|
NDE180 N TUP | — | |
| 81570-05100 |
Lamp Assy, Center Stop
2019-12 → —
|
ZRE182 | — | |
| 81935D — Cord Assy, Center Stop Lamp | ||||
| 81935-02160 |
Cord Assy, Center Stop Lamp
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81935-02170 |
Cord Assy, Center Stop Lamp
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81935-02160 |
Cord Assy, Center Stop Lamp
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81935-02170 |
Cord Assy, Center Stop Lamp
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81935-02170 |
Cord Assy, Center Stop Lamp
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81935-02160 |
Cord Assy, Center Stop Lamp
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
