Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

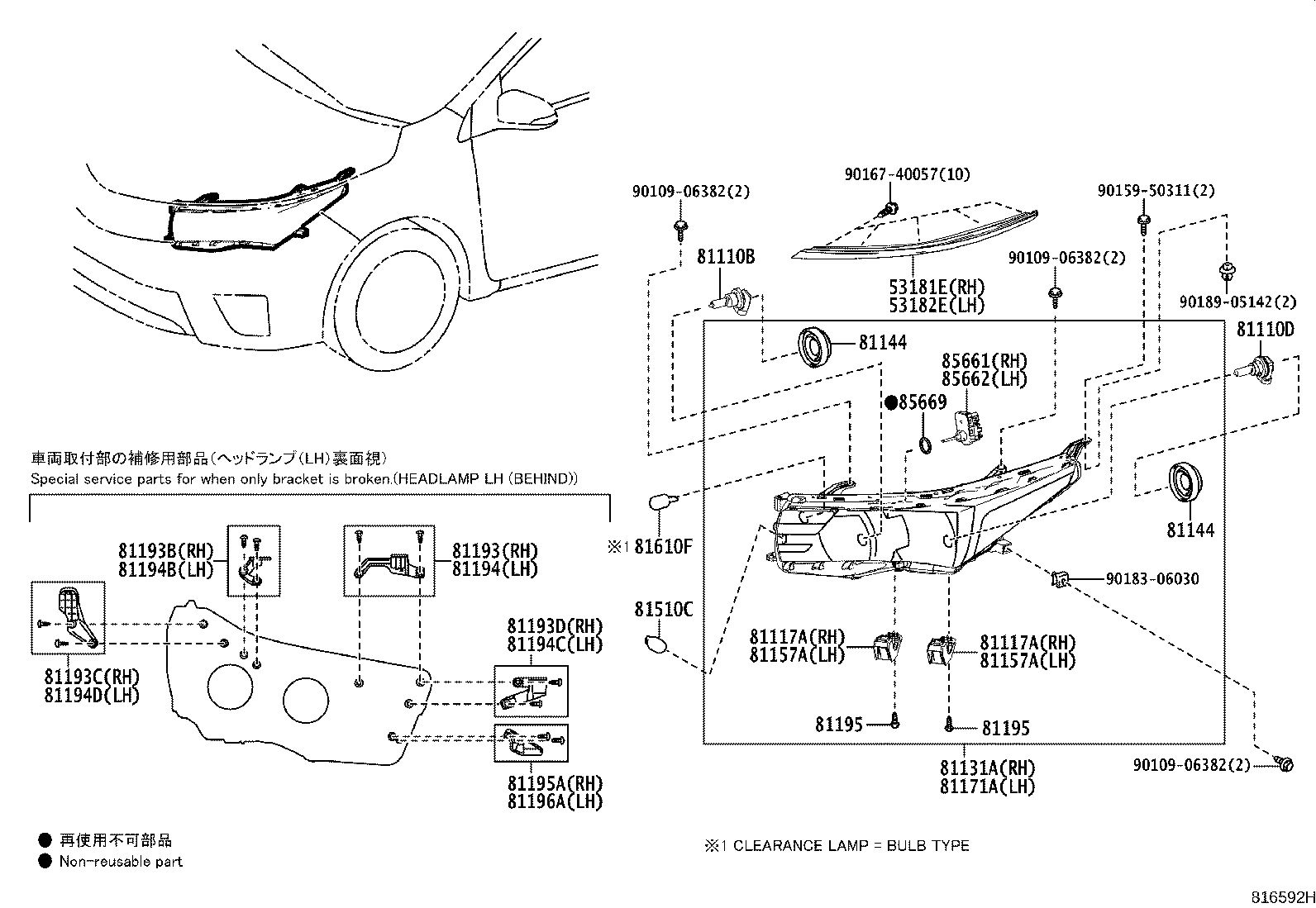

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53181E — Cover, Headlamp, RH | ||||
| 53181-02010 |
Cover, Headlamp, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53181-02010 |
Cover, Headlamp, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53181-02010 |
Cover, Headlamp, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53181-02010 |
Cover, Headlamp, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53181-02010 |
Cover, Headlamp, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53181-02130-A0 note |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 53181-02130-B0 note |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 53181-02130-B1 note |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 53181-02130-C0 note |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 53181-02130-D0 note |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 53181-02130-G0 note |
Cover, Headlamp, RH
2021-01 → —
|
ZRE182 G,N | — | |
| 53181-02130-J0 note |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 53181-02150 |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 D | — | |
| 53182E — Cover, Headlamp, LH | ||||
| 53182-02010 |
Cover, Headlamp, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53182-02010 |
Cover, Headlamp, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53182-02010 |
Cover, Headlamp, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53182-02010 |
Cover, Headlamp, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53182-02010 |
Cover, Headlamp, LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53182-02130-A0 note |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 53182-02130-B0 note |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 53182-02130-B1 note |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 53182-02130-C0 note |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 53182-02130-D0 note |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 53182-02130-G0 note |
Cover, Headlamp, LH
2021-01 → —
|
ZRE182 G,N | — | |
| 53182-02130-J0 note |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 53182-02150 |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 D | — | |
| 81110B — Bulb(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 note |
Bulb(FOR HEADLAMP, NO.1)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90981-13046 note |
Bulb(FOR HEADLAMP, NO.1)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-13046 note |
Bulb(FOR HEADLAMP, NO.1)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90981-13046 note |
Bulb(FOR HEADLAMP, NO.1)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90981-13046 note |
Bulb(FOR HEADLAMP, NO.1)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-13046 note |
Bulb(FOR HEADLAMP, NO.1)
2019-12 → —
|
ZRE182 D,N | — | |
| 81110D — Bulb(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 note |
Bulb(FOR HEADLAMP, NO.2)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90981-13075 note |
Bulb(FOR HEADLAMP, NO.2)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-13075 note |
Bulb(FOR HEADLAMP, NO.2)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-13075 note |
Bulb(FOR HEADLAMP, NO.2)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90981-13075 note |
Bulb(FOR HEADLAMP, NO.2)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90981-13075 note |
Bulb(FOR HEADLAMP, NO.2)
2019-12 → —
|
ZRE182 D,N | — | |
| 81117A — Bracket, Headlamp, RH | ||||
| 81117-02E90 |
Bracket, Headlamp, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81117-02E90 |
Bracket, Headlamp, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81131A — Unit, Headlamp, RH | ||||
| 81130-02E70 |
Unit, Headlamp, RH
2013-06 → 2014-10
ended
|
NDE180 TUP | — | |
| 81130-02E71 |
Unit, Headlamp, RH
2014-10 → 2016-05
ended
|
NDE180 TUP | — | |
| 81130-02E71 note |
Unit, Headlamp, RH
2015-05 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 81130-02E81 note |
Unit, Headlamp, RH
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 81130-02E90 |
Unit, Headlamp, RH
2014-01 → 2014-10
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 81130-02E91 |
Unit, Headlamp, RH
2014-10 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 81130-02F00 |
Unit, Headlamp, RH
2014-01 → 2014-10
ended
|
ZRE18# GEN | — | |
| 81130-02F01 |
Unit, Headlamp, RH
2014-10 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 81144 — Cover, Headlamp, NO.1 | ||||
| 90075-65006 |
Cover, Headlamp, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90075-65006 |
Cover, Headlamp, NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90075-65006 |
Cover, Headlamp, NO.1
2016-06 → 2019-11
ended
|
NDE180,NRE180,ZRE18# | — | |
| 90075-65006 |
Cover, Headlamp, NO.1
2019-12 → —
|
ZRE182 D,N | — | |
| 81157A — Bracket, Headlamp, LH | ||||
| 81117-02E90 |
Bracket, Headlamp, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81117-02E90 |
Bracket, Headlamp, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81171A — Unit, Headlamp, LH | ||||
| 81170-02E70 |
Unit, Headlamp, LH
2013-06 → 2014-10
ended
|
NDE180 TUP | — | |
| 81170-02E71 |
Unit, Headlamp, LH
2014-10 → 2016-05
ended
|
NDE180 TUP | — | |
| 81170-02E71 note |
Unit, Headlamp, LH
2015-05 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 81170-02E81 note |
Unit, Headlamp, LH
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 81170-02E90 |
Unit, Headlamp, LH
2014-01 → 2014-10
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 81170-02E91 |
Unit, Headlamp, LH
2014-10 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 81170-02F00 |
Unit, Headlamp, LH
2014-01 → 2014-10
ended
|
ZRE18# GEN | — | |
| 81170-02F01 |
Unit, Headlamp, LH
2014-10 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 81193 — Retainer, Headlamp Protector, Upper RH | ||||
| 81193-02110 |
Retainer, Headlamp Protector, Upper RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81193-02110 |
Retainer, Headlamp Protector, Upper RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02270 |
Retainer, Headlamp Protector, Upper RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81193-02270 |
Retainer, Headlamp Protector, Upper RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81193-02270 |
Retainer, Headlamp Protector, Upper RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02270 |
Retainer, Headlamp Protector, Upper RH
2019-12 → —
|
ZRE182 | — | |
| 81193B — Retainer, Headlamp Protector, Upper RH NO.2 | ||||
| 81193-02100 |
Retainer, Headlamp Protector, Upper RH NO.2
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81193-02100 |
Retainer, Headlamp Protector, Upper RH NO.2
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02260 |
Retainer, Headlamp Protector, Upper RH NO.2
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81193-02260 |
Retainer, Headlamp Protector, Upper RH NO.2
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02260 |
Retainer, Headlamp Protector, Upper RH NO.2
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81193-02260 |
Retainer, Headlamp Protector, Upper RH NO.2
2019-12 → —
|
ZRE182 | — | |
| 81193C — Retainer, RH Headlamp Protector, Upper RH | ||||
| 81193-02090 |
Retainer, RH Headlamp Protector, Upper RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81193-02090 |
Retainer, RH Headlamp Protector, Upper RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02250 |
Retainer, RH Headlamp Protector, Upper RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81193-02250 |
Retainer, RH Headlamp Protector, Upper RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81193-02250 |
Retainer, RH Headlamp Protector, Upper RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02250 |
Retainer, RH Headlamp Protector, Upper RH
2019-12 → —
|
ZRE182 | — | |
| 81193D — Retainer, RH Headlamp Protector, Upper LH | ||||
| 81193-02120 |
Retainer, RH Headlamp Protector, Upper LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02120 |
Retainer, RH Headlamp Protector, Upper LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81193-02280 |
Retainer, RH Headlamp Protector, Upper LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81193-02280 |
Retainer, RH Headlamp Protector, Upper LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81193-02280 |
Retainer, RH Headlamp Protector, Upper LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02280 |
Retainer, RH Headlamp Protector, Upper LH
2019-12 → —
|
ZRE182 | — | |
| 81194 — Retainer, Headlamp Protector, Upper LH | ||||
| 81194-02110 |
Retainer, Headlamp Protector, Upper LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81194-02110 |
Retainer, Headlamp Protector, Upper LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02270 |
Retainer, Headlamp Protector, Upper LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81194-02270 |
Retainer, Headlamp Protector, Upper LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02270 |
Retainer, Headlamp Protector, Upper LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81194-02270 |
Retainer, Headlamp Protector, Upper LH
2019-12 → —
|
ZRE182 | — | |
| 81194B — Retainer, Headlamp Protector, Upper LH NO.2 | ||||
| 81194-02100 |
Retainer, Headlamp Protector, Upper LH NO.2
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81194-02100 |
Retainer, Headlamp Protector, Upper LH NO.2
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02260 |
Retainer, Headlamp Protector, Upper LH NO.2
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81194-02260 |
Retainer, Headlamp Protector, Upper LH NO.2
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81194-02260 |
Retainer, Headlamp Protector, Upper LH NO.2
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02260 |
Retainer, Headlamp Protector, Upper LH NO.2
2019-12 → —
|
ZRE182 | — | |
| 81194C — Retainer, LH Headlamp Protector, Upper RH | ||||
| 81194-02120 |
Retainer, LH Headlamp Protector, Upper RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81194-02120 |
Retainer, LH Headlamp Protector, Upper RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02280 |
Retainer, LH Headlamp Protector, Upper RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81194-02280 |
Retainer, LH Headlamp Protector, Upper RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81194-02280 |
Retainer, LH Headlamp Protector, Upper RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02280 |
Retainer, LH Headlamp Protector, Upper RH
2019-12 → —
|
ZRE182 | — | |
| 81194D — Retainer, LH Headlamp Protector, Upper LH | ||||
| 81194-02090 |
Retainer, LH Headlamp Protector, Upper LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02090 |
Retainer, LH Headlamp Protector, Upper LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81194-02250 |
Retainer, LH Headlamp Protector, Upper LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81194-02250 |
Retainer, LH Headlamp Protector, Upper LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81194-02250 |
Retainer, LH Headlamp Protector, Upper LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02250 |
Retainer, LH Headlamp Protector, Upper LH
2019-12 → —
|
ZRE182 | — | |
| 81195 — Screw, Headlamp | ||||
| 90075-02056 |
Screw, Headlamp
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90075-02056 |
Screw, Headlamp
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81195A — Retainer, Headlamp Protector, Lower RH | ||||
| 81193-02130 |
Retainer, Headlamp Protector, Lower RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02130 |
Retainer, Headlamp Protector, Lower RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81193-02290 |
Retainer, Headlamp Protector, Lower RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81193-02290 |
Retainer, Headlamp Protector, Lower RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81193-02290 |
Retainer, Headlamp Protector, Lower RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02290 |
Retainer, Headlamp Protector, Lower RH
2019-12 → —
|
ZRE182 | — | |
| 81196A — Retainer, Headlamp Protector, Lower LH | ||||
| 81194-02130 |
Retainer, Headlamp Protector, Lower LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81194-02130 |
Retainer, Headlamp Protector, Lower LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02290 |
Retainer, Headlamp Protector, Lower LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81194-02290 |
Retainer, Headlamp Protector, Lower LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02290 |
Retainer, Headlamp Protector, Lower LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81194-02290 |
Retainer, Headlamp Protector, Lower LH
2019-12 → —
|
ZRE182 | — | |
| 81510C — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2019-12 → —
|
ZRE182 | — | |
| 81610F — Bulb(FOR CLEARANCE LAMP) | ||||
| 90981-WB015 note |
Bulb(FOR CLEARANCE LAMP)
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 85661 — Motor, Headlamp Leveling, RH | ||||
| 85661-12010 |
Motor, Headlamp Leveling, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 85661-12010 |
Motor, Headlamp Leveling, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 85662 — Motor, Headlamp Leveling, LH | ||||
| 85661-12010 |
Motor, Headlamp Leveling, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 85661-12010 |
Motor, Headlamp Leveling, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 85669 — Packing, Headlamp Leveling Motor Base | ||||
| 90075-99120 |
Packing, Headlamp Leveling Motor Base
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90075-99120 |
Packing, Headlamp Leveling Motor Base
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
