Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

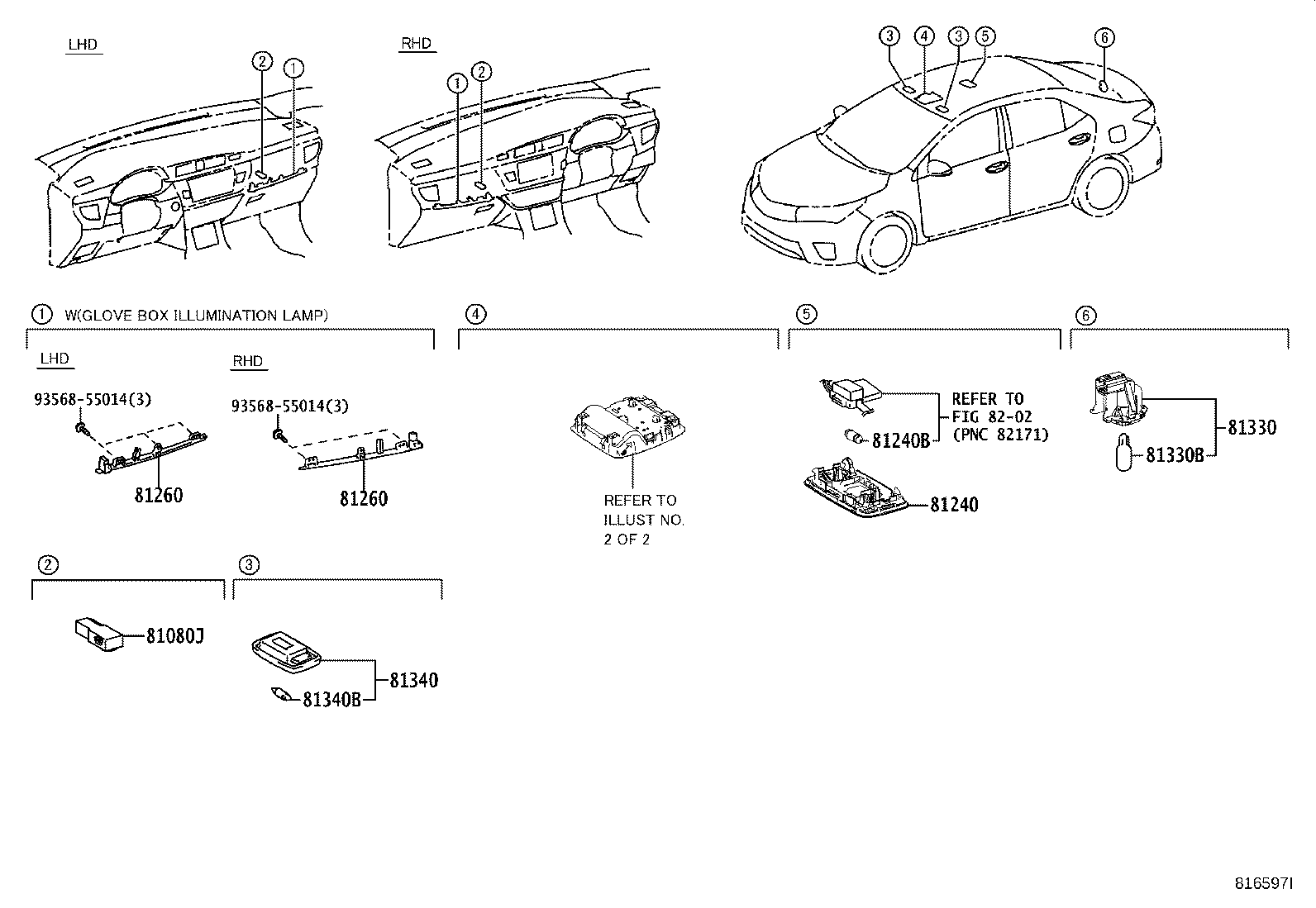

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81080J — Lamp Assy, Interior Illumination, NO.1 | ||||
| 81080-0D010 |
Lamp Assy, Interior Illumination, NO.1
2015-11 → 2016-05
ended
|
NDE180 TUP | — | |
| 81080-48010 |
Lamp Assy, Interior Illumination, NO.1
2015-05 → 2015-10
ended
|
NDE180 TUP | — | |
| 81080-0D010 |
Lamp Assy, Interior Illumination, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81080-0D010 |
Lamp Assy, Interior Illumination, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81240 — Lamp Assy, Room, NO.1 | ||||
| 81240-02080-A0 note |
Lamp Assy, Room, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81240-02080-A0 note |
Lamp Assy, Room, NO.1
2016-10 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 81240-02080-B0 note |
Lamp Assy, Room, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81240-02080-B0 note |
Lamp Assy, Room, NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81240-02080-A1 note |
Lamp Assy, Room, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81240-02080-A1 note |
Lamp Assy, Room, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81240-02080-A1 note |
Lamp Assy, Room, NO.1
2016-06 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 81240-02080-B0 note |
Lamp Assy, Room, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81240-02080-B0 note |
Lamp Assy, Room, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81240-02080-B0 note |
Lamp Assy, Room, NO.1
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81240-02080-B0 note |
Lamp Assy, Room, NO.1
2019-12 → —
|
ZRE182 D,G | — | |
| 81240-02080-B0 note |
Lamp Assy, Room, NO.1
2019-12 → —
|
ZRE182 N | — | |
| 81240B — Bulb, Room Lamp, NO.1 | ||||
| 90981-14011 note |
Bulb, Room Lamp, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90981-14011 note |
Bulb, Room Lamp, NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-14011 note |
Bulb, Room Lamp, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90981-14011 note |
Bulb, Room Lamp, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90981-14011 note |
Bulb, Room Lamp, NO.1
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-14011 note |
Bulb, Room Lamp, NO.1
2019-12 → —
|
ZRE182 | — | |
| 81260 — Lamp Assy, Glove Box | ||||
| 81260-12580 note |
Lamp Assy, Glove Box
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 81260-12580 note |
Lamp Assy, Glove Box
2013-06 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 81260-12590 note |
Lamp Assy, Glove Box
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 81330 — Lamp Assy, Luggage Compartment, NO.1 | ||||
| 81330-02041 |
Lamp Assy, Luggage Compartment, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81330-02041 |
Lamp Assy, Luggage Compartment, NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81330-02041 |
Lamp Assy, Luggage Compartment, NO.1
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81330-02041 |
Lamp Assy, Luggage Compartment, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81330-02041 |
Lamp Assy, Luggage Compartment, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81330-02041 |
Lamp Assy, Luggage Compartment, NO.1
2019-12 → —
|
ZRE182 | — | |
| 81330B — Bulb, Luggage Compartment Lamp | ||||
| 90981-11020 note |
Bulb, Luggage Compartment Lamp
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90981-11020 note |
Bulb, Luggage Compartment Lamp
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-11020 note |
Bulb, Luggage Compartment Lamp
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90981-11020 note |
Bulb, Luggage Compartment Lamp
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90981-11020 note |
Bulb, Luggage Compartment Lamp
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-11020 note |
Bulb, Luggage Compartment Lamp
2019-12 → —
|
ZRE182 | — | |
| 81340 — Lamp Assy, Vanity | ||||
| 81340-02030-A0 note |
Lamp Assy, Vanity
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 81340-02030-A0 note |
Lamp Assy, Vanity
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 81340-02030-A0 note |
Lamp Assy, Vanity
2016-10 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 81340-02030-B0 note |
Lamp Assy, Vanity
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 81340-02030-B0 note |
Lamp Assy, Vanity
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 81340-02030-B0 note |
Lamp Assy, Vanity
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81340-02030-A1 note |
Lamp Assy, Vanity
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81340-02030-A1 note |
Lamp Assy, Vanity
2016-06 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 81340-02030-A1 note |
Lamp Assy, Vanity
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81340-02030-B0 note |
Lamp Assy, Vanity
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81340-02030-B0 note |
Lamp Assy, Vanity
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81340-02030-B0 note |
Lamp Assy, Vanity
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81340-02030-B0 note |
Lamp Assy, Vanity
2019-12 → —
|
ZRE182 G | — | |
| 81340B — Bulb (FOR VANITY LAMP) | ||||
| 90981-WE003 note |
Bulb (FOR VANITY LAMP)
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 90981-WE003 note |
Bulb (FOR VANITY LAMP)
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 90981-WE003 note |
Bulb (FOR VANITY LAMP)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-WE003 note |
Bulb (FOR VANITY LAMP)
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 90981-WE003 note |
Bulb (FOR VANITY LAMP)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 90981-WE003 note |
Bulb (FOR VANITY LAMP)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-WE003 note |
Bulb (FOR VANITY LAMP)
2019-12 → —
|
ZRE182 G | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
