Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

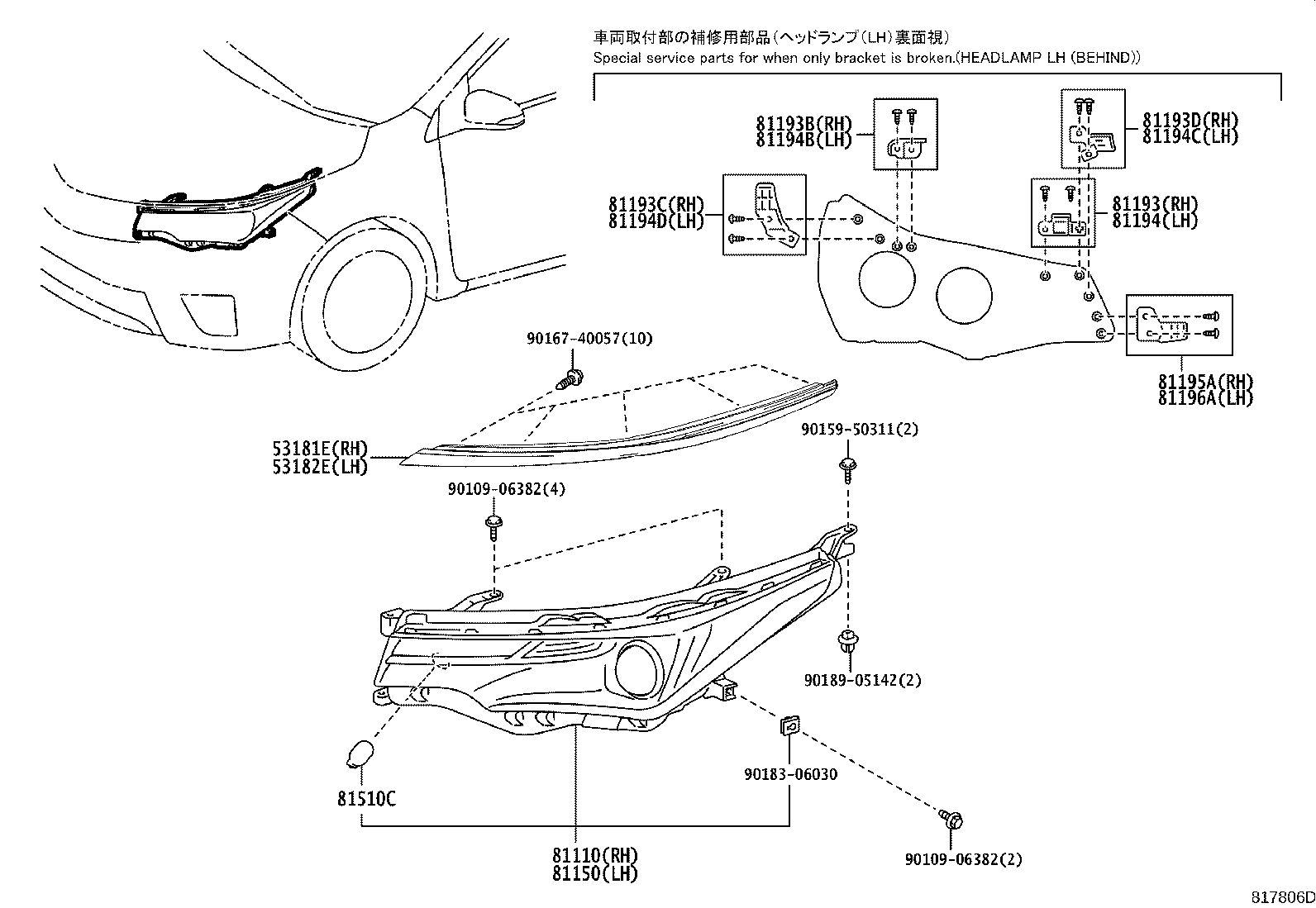

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53181E — Cover, Headlamp, RH | ||||
| 53181-02010 |
Cover, Headlamp, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53181-02010 |
Cover, Headlamp, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53181-02010 |
Cover, Headlamp, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53181-02010 |
Cover, Headlamp, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53181-02010 |
Cover, Headlamp, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53181-02130-A0 note |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 53181-02130-B0 note |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 53181-02130-B1 note |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 53181-02130-C0 note |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 53181-02130-D0 note |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 53181-02130-G0 note |
Cover, Headlamp, RH
2021-01 → —
|
ZRE182 G,N | — | |
| 53181-02130-J0 note |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 53181-02150 |
Cover, Headlamp, RH
2019-12 → —
|
ZRE182 D | — | |
| 53182E — Cover, Headlamp, LH | ||||
| 53182-02010 |
Cover, Headlamp, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53182-02010 |
Cover, Headlamp, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53182-02010 |
Cover, Headlamp, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53182-02010 |
Cover, Headlamp, LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53182-02010 |
Cover, Headlamp, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53182-02130-A0 note |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 53182-02130-B0 note |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 53182-02130-B1 note |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 53182-02130-C0 note |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 53182-02130-D0 note |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 53182-02130-G0 note |
Cover, Headlamp, LH
2021-01 → —
|
ZRE182 G,N | — | |
| 53182-02130-J0 note |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 53182-02150 |
Cover, Headlamp, LH
2019-12 → —
|
ZRE182 D | — | |
| 81110 — Headlamp Assy, RH | ||||
| 81110-02L60 note |
Headlamp Assy, RH
2017-01 → 2019-12
ended
|
ZRE182 SA | — | |
| 81110-02L70 note |
Headlamp Assy, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81110-02L70 note |
Headlamp Assy, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81110-02L60 |
Headlamp Assy, RH
2019-12 → —
|
ZRE182 G SA | — | |
| 81110-02L70 |
Headlamp Assy, RH
2019-12 → —
|
ZRE182 G GEN | — | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-02L60 note |
Headlamp Assy, LH
2017-01 → 2019-12
ended
|
ZRE182 SA | — | |
| 81150-02L70 note |
Headlamp Assy, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81150-02L70 note |
Headlamp Assy, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81150-02L60 |
Headlamp Assy, LH
2019-12 → —
|
ZRE182 G SA | — | |
| 81150-02L70 |
Headlamp Assy, LH
2019-12 → —
|
ZRE182 G GEN | — | |
| 81193 — Retainer, Headlamp Protector, Upper RH | ||||
| 81193-02110 |
Retainer, Headlamp Protector, Upper RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81193-02110 |
Retainer, Headlamp Protector, Upper RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02270 |
Retainer, Headlamp Protector, Upper RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02270 |
Retainer, Headlamp Protector, Upper RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81193-02270 |
Retainer, Headlamp Protector, Upper RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81193-02270 |
Retainer, Headlamp Protector, Upper RH
2019-12 → —
|
ZRE182 | — | |
| 81193B — Retainer, Headlamp Protector, Upper RH NO.2 | ||||
| 81193-02100 |
Retainer, Headlamp Protector, Upper RH NO.2
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81193-02100 |
Retainer, Headlamp Protector, Upper RH NO.2
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02260 |
Retainer, Headlamp Protector, Upper RH NO.2
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81193-02260 |
Retainer, Headlamp Protector, Upper RH NO.2
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81193-02260 |
Retainer, Headlamp Protector, Upper RH NO.2
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02260 |
Retainer, Headlamp Protector, Upper RH NO.2
2019-12 → —
|
ZRE182 | — | |
| 81193C — Retainer, RH Headlamp Protector, Upper RH | ||||
| 81193-02090 |
Retainer, RH Headlamp Protector, Upper RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81193-02090 |
Retainer, RH Headlamp Protector, Upper RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02250 |
Retainer, RH Headlamp Protector, Upper RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02250 |
Retainer, RH Headlamp Protector, Upper RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81193-02250 |
Retainer, RH Headlamp Protector, Upper RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81193-02250 |
Retainer, RH Headlamp Protector, Upper RH
2019-12 → —
|
ZRE182 | — | |
| 81193D — Retainer, RH Headlamp Protector, Upper LH | ||||
| 81193-02120 |
Retainer, RH Headlamp Protector, Upper LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02120 |
Retainer, RH Headlamp Protector, Upper LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81193-02280 |
Retainer, RH Headlamp Protector, Upper LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81193-02280 |
Retainer, RH Headlamp Protector, Upper LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81193-02280 |
Retainer, RH Headlamp Protector, Upper LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02280 |
Retainer, RH Headlamp Protector, Upper LH
2019-12 → —
|
ZRE182 | — | |
| 81194 — Retainer, Headlamp Protector, Upper LH | ||||
| 81194-02110 |
Retainer, Headlamp Protector, Upper LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81194-02110 |
Retainer, Headlamp Protector, Upper LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02270 |
Retainer, Headlamp Protector, Upper LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81194-02270 |
Retainer, Headlamp Protector, Upper LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81194-02270 |
Retainer, Headlamp Protector, Upper LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02270 |
Retainer, Headlamp Protector, Upper LH
2019-12 → —
|
ZRE182 | — | |
| 81194B — Retainer, Headlamp Protector, Upper LH NO.2 | ||||
| 81194-02100 |
Retainer, Headlamp Protector, Upper LH NO.2
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81194-02100 |
Retainer, Headlamp Protector, Upper LH NO.2
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02260 |
Retainer, Headlamp Protector, Upper LH NO.2
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81194-02260 |
Retainer, Headlamp Protector, Upper LH NO.2
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81194-02260 |
Retainer, Headlamp Protector, Upper LH NO.2
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02260 |
Retainer, Headlamp Protector, Upper LH NO.2
2019-12 → —
|
ZRE182 | — | |
| 81194C — Retainer, LH Headlamp Protector, Upper RH | ||||
| 81194-02120 |
Retainer, LH Headlamp Protector, Upper RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81194-02120 |
Retainer, LH Headlamp Protector, Upper RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02280 |
Retainer, LH Headlamp Protector, Upper RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81194-02280 |
Retainer, LH Headlamp Protector, Upper RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81194-02280 |
Retainer, LH Headlamp Protector, Upper RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02280 |
Retainer, LH Headlamp Protector, Upper RH
2019-12 → —
|
ZRE182 | — | |
| 81194D — Retainer, LH Headlamp Protector, Upper LH | ||||
| 81194-02090 |
Retainer, LH Headlamp Protector, Upper LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02090 |
Retainer, LH Headlamp Protector, Upper LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81194-02250 |
Retainer, LH Headlamp Protector, Upper LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81194-02250 |
Retainer, LH Headlamp Protector, Upper LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81194-02250 |
Retainer, LH Headlamp Protector, Upper LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02250 |
Retainer, LH Headlamp Protector, Upper LH
2019-12 → —
|
ZRE182 | — | |
| 81195A — Retainer, Headlamp Protector, Lower RH | ||||
| 81193-02130 |
Retainer, Headlamp Protector, Lower RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81193-02130 |
Retainer, Headlamp Protector, Lower RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02290 |
Retainer, Headlamp Protector, Lower RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81193-02290 |
Retainer, Headlamp Protector, Lower RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81193-02290 |
Retainer, Headlamp Protector, Lower RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81193-02290 |
Retainer, Headlamp Protector, Lower RH
2019-12 → —
|
ZRE182 | — | |
| 81196A — Retainer, Headlamp Protector, Lower LH | ||||
| 81194-02130 |
Retainer, Headlamp Protector, Lower LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 81194-02130 |
Retainer, Headlamp Protector, Lower LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02290 |
Retainer, Headlamp Protector, Lower LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 81194-02290 |
Retainer, Headlamp Protector, Lower LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 81194-02290 |
Retainer, Headlamp Protector, Lower LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 81194-02290 |
Retainer, Headlamp Protector, Lower LH
2019-12 → —
|
ZRE182 | — | |
| 81510C — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
