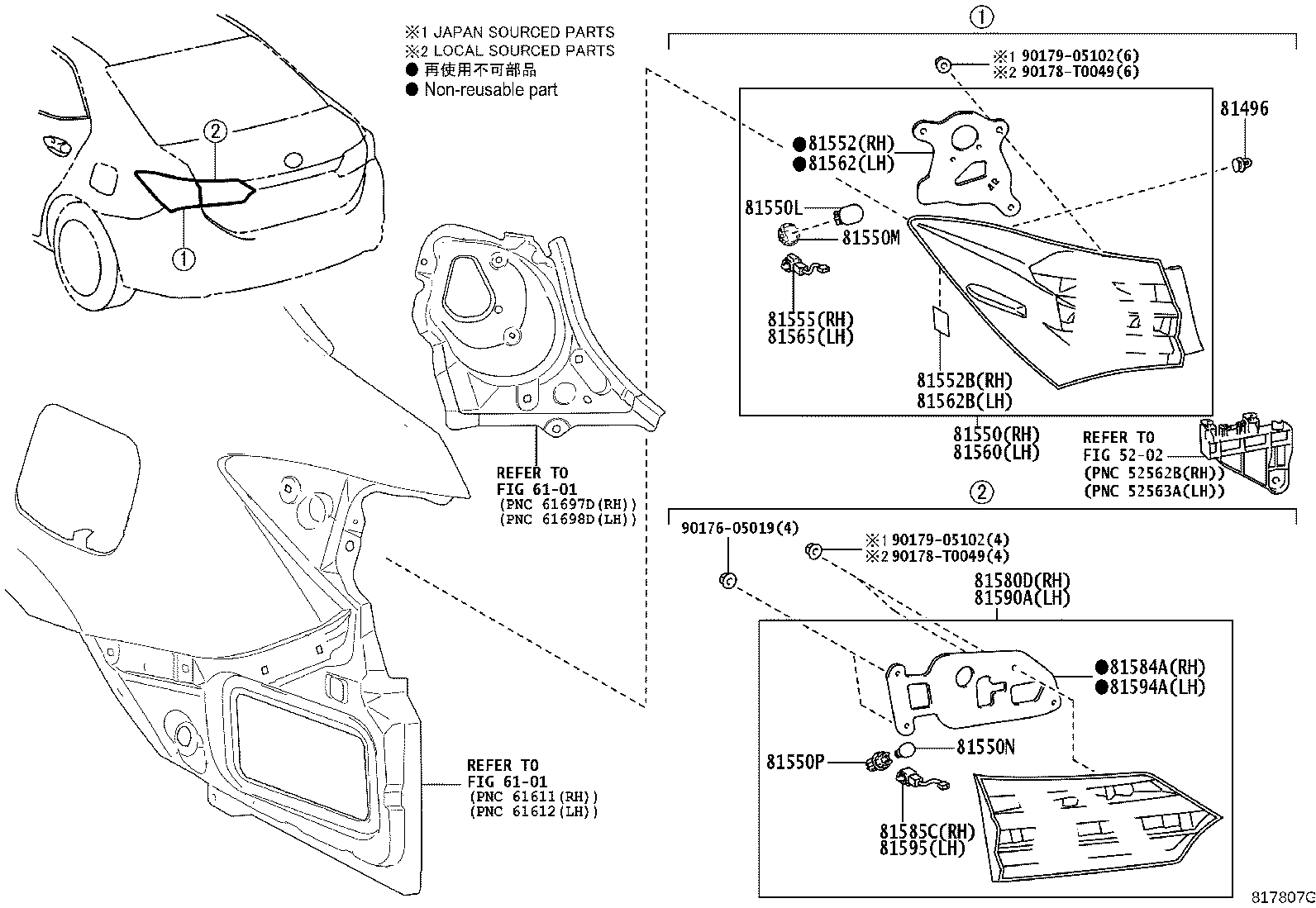

Exploded illustration 817807G 81584A — GASKET, REAR LAMP RH (9 parts) 81594A — GASKET, REAR LAMP LH (9 parts) 9017605019 — not listed in this catalogue 9017905102 — not listed in this catalogue 90178T0049 — not listed in this catalogue 9017905102 — not listed in this catalogue 90178T0049 — not listed in this catalogue 81550M — SOCKET, REAR TURN SIGNAL LAMP (6 parts) 81550L — BULB, REAR TURN SIGNAL LAMP (6 parts) 5202 — not listed in this catalogue 81552B — PACKING, REAR COMBINATION LAMP BODY, RH (6 parts) 81562B — PACKING, REAR COMBINATION LAMP BODY, LH (6 parts) 81552 — GASKET, REAR COMBINATION LAMP LENS, RH (9 parts) 81562 — GASKET, REAR COMBINATION LAMP LENS, LH (9 parts) 6101 — not listed in this catalogue 6101 — not listed in this catalogue 81555 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH (3 parts) 81565 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH (3 parts) 81550P — SOCKET, BACK UP LAMP (6 parts) 81550N — BULB, BACK UP LAMP (16 parts) 81585C — SOCKET & WIRE, REAR LAMP, RH (4 parts) 81595 — SOCKET & WIRE, REAR LAMP, LH (5 parts) 81580D — LAMP ASSY, REAR, RH (4 parts) 81590A — LAMP ASSY, REAR, LH (5 parts) 81496 — GUIDE, REAR COMBINATION LAMP (6 parts) 81550 — LAMP ASSY, REAR COMBINATION, RH (3 parts) 81560 — LAMP ASSY, REAR COMBINATION, LH (3 parts)
817807G · 19 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
118 parts on this figure
Part number Description Fitment Price
81496 — Guide, Rear Combination Lamp
81496-60010 Guide, Rear Combination Lamp
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
81496-60010 Guide, Rear Combination Lamp
2013-06 → 2016-05 ended
NDE180 TUP —
81496-60010 Guide, Rear Combination Lamp
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
81496-60010 Guide, Rear Combination Lamp
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
81496-60010 Guide, Rear Combination Lamp
2016-06 → 2018-08 ended
NRE180 TUP —
81496-60010 Guide, Rear Combination Lamp
2019-12 → —
ZRE182 —
81550 — Lamp Assy, Rear Combination, RH
81550-02A80 Lamp Assy, Rear Combination, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
81550-02A80 Lamp Assy, Rear Combination, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81550-02A80 Lamp Assy, Rear Combination, RH
2016-06 → 2019-12 ended
ZRE182 N SAP —
81550L — Bulb, Rear Turn Signal Lamp
90981-15021 note Bulb, Rear Turn Signal Lamp
2013-06 → 2016-05 ended
NDE180 TUP —
90981-15021 note Bulb, Rear Turn Signal Lamp
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90981-15021 note Bulb, Rear Turn Signal Lamp
2016-06 → 2018-08 ended
NRE180 TUP —
90981-15021 note Bulb, Rear Turn Signal Lamp
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90981-15021 note Bulb, Rear Turn Signal Lamp
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90981-15021 note Bulb, Rear Turn Signal Lamp
2019-12 → —
ZRE182 —
81550M — Socket, Rear Turn Signal Lamp
90075-60026 Socket, Rear Turn Signal Lamp
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90075-60026 Socket, Rear Turn Signal Lamp
2013-06 → 2016-05 ended
NDE180 TUP —
90075-60026 Socket, Rear Turn Signal Lamp
2016-06 → 2018-08 ended
NRE180 TUP —
90075-60026 Socket, Rear Turn Signal Lamp
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90075-60026 Socket, Rear Turn Signal Lamp
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90075-60026 Socket, Rear Turn Signal Lamp
2019-12 → —
ZRE182 —
81550N — Bulb, Back UP Lamp
90981-11059 note Bulb, Back UP Lamp
2013-06 → 2015-11 ended
NDE180,NRE180,ZRE18# —
90981-11059 note Bulb, Back UP Lamp
2015-11 → 2016-05 ended
NDE180 TUP —
90981-11059 note Bulb, Back UP Lamp
2015-11 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90981-WB019 note Bulb, Back UP Lamp
2015-11 → 2016-05 ended
NDE180 TUP —
90981-WB019 note Bulb, Back UP Lamp
2015-11 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90981-11059 note Bulb, Back UP Lamp
2016-06 → 2018-08 ended
NRE180 TUP —
90981-11059 note Bulb, Back UP Lamp
2019-09 → 2019-12 ended
NDE180,NRE180,ZRE18# —
90981-11059 note Bulb, Back UP Lamp
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90981-11059 note Bulb, Back UP Lamp
2016-06 → 2019-09 ended
NDE180,NRE180,ZRE18# SAP —
90981-WB019 note Bulb, Back UP Lamp
2016-06 → 2019-09 ended
NDE180,NRE180,ZRE18# SAP —
90981-WB019 note Bulb, Back UP Lamp
2016-06 → 2018-08 ended
NRE180 TUP —
90981-WB019 note Bulb, Back UP Lamp
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90981-11059 note Bulb, Back UP Lamp
2019-12 → —
ZRE182 SA —
90981-11059 note Bulb, Back UP Lamp
2019-12 → —
ZRE182 GEN —
90981-11059 note Bulb, Back UP Lamp
2019-12 → —
ZRE182 GEN —
90981-WB019 note Bulb, Back UP Lamp
2019-12 → —
ZRE182 GEN —
81550P — Socket, Back UP Lamp
90075-60001 Socket, Back UP Lamp
2013-06 → 2016-05 ended
NDE180 TUP —
90075-60001 Socket, Back UP Lamp
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90075-60001 Socket, Back UP Lamp
2016-06 → 2018-08 ended
NRE180 TUP —
90075-60001 Socket, Back UP Lamp
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90075-60001 Socket, Back UP Lamp
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90075-60001 Socket, Back UP Lamp
2019-12 → —
ZRE182 —
81552 — Gasket, Rear Combination Lamp Lens, RH
81552-02760 Gasket, Rear Combination Lamp Lens, RH
2013-06 → 2016-05 ended
NDE180 TUP —
81552-02760 Gasket, Rear Combination Lamp Lens, RH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
81552-02760 Gasket, Rear Combination Lamp Lens, RH
2016-06 → 2018-08 ended
NRE180 D TUP —
81552-02760 Gasket, Rear Combination Lamp Lens, RH
2016-06 → 2019-12 ended
ZRE182 D SAP;NDE180,NRE180,ZRE181 SAP —
81552-02760 Gasket, Rear Combination Lamp Lens, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
81552-02A80 Gasket, Rear Combination Lamp Lens, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81552-02A80 Gasket, Rear Combination Lamp Lens, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
81552-02A80 Gasket, Rear Combination Lamp Lens, RH
2016-06 → 2019-12 ended
ZRE182 N SAP —
81552-02760 Gasket, Rear Combination Lamp Lens, RH
2019-12 → —
ZRE182 —
81552B — Packing, Rear Combination Lamp Body, RH
81554-02760 Packing, Rear Combination Lamp Body, RH
2013-06 → 2016-05 ended
NDE180 TUP —
81554-02760 Packing, Rear Combination Lamp Body, RH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
81554-02760 Packing, Rear Combination Lamp Body, RH
2016-06 → 2018-08 ended
NRE180 TUP —
81554-02760 Packing, Rear Combination Lamp Body, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
81554-02760 Packing, Rear Combination Lamp Body, RH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
81554-02760 Packing, Rear Combination Lamp Body, RH
2019-12 → —
ZRE182 —
81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555-02A80 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2016-06 → 2019-12 ended
ZRE182 N SAP —
81555-02A80 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81555-02A80 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
81560 — Lamp Assy, Rear Combination, LH
81560-02A80 Lamp Assy, Rear Combination, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
81560-02A80 Lamp Assy, Rear Combination, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81560-02A80 Lamp Assy, Rear Combination, LH
2016-06 → 2019-12 ended
ZRE182 N SAP —
81562 — Gasket, Rear Combination Lamp Lens, LH
81562-02760 Gasket, Rear Combination Lamp Lens, LH
2013-06 → 2016-05 ended
NDE180 TUP —
81562-02760 Gasket, Rear Combination Lamp Lens, LH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
81552-02A80 Gasket, Rear Combination Lamp Lens, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81552-02A80 Gasket, Rear Combination Lamp Lens, LH
2016-06 → 2019-12 ended
ZRE182 N SAP —
81552-02A80 Gasket, Rear Combination Lamp Lens, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
81562-02760 Gasket, Rear Combination Lamp Lens, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
81562-02760 Gasket, Rear Combination Lamp Lens, LH
2016-06 → 2018-08 ended
NRE180 D TUP —
81562-02760 Gasket, Rear Combination Lamp Lens, LH
2016-06 → 2019-12 ended
ZRE182 D SAP;NDE180,NRE180,ZRE181 SAP —
81562-02760 Gasket, Rear Combination Lamp Lens, LH
2019-12 → —
ZRE182 —
81562B — Packing, Rear Combination Lamp Body, LH
81554-02760 Packing, Rear Combination Lamp Body, LH
2013-06 → 2016-05 ended
NDE180 TUP —
81554-02760 Packing, Rear Combination Lamp Body, LH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
81554-02760 Packing, Rear Combination Lamp Body, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
81554-02760 Packing, Rear Combination Lamp Body, LH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
81554-02760 Packing, Rear Combination Lamp Body, LH
2016-06 → 2018-08 ended
NRE180 TUP —
81554-02760 Packing, Rear Combination Lamp Body, LH
2019-12 → —
ZRE182 —
81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH
81565-02A80 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
81565-02A80 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81565-02A80 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2016-06 → 2019-12 ended
ZRE182 N SAP —
81580D — Lamp Assy, Rear, RH
81580-02A20 note Lamp Assy, Rear, RH
2017-01 → 2019-12 ended
ZRE182 SA —
81580-02A30 Lamp Assy, Rear, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
81580-02A30 Lamp Assy, Rear, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81580-02A30 Lamp Assy, Rear, RH
2016-06 → 2019-12 ended
ZRE182 N SAP —
81584A — Gasket, Rear Lamp RH
81584-02520 Gasket, Rear Lamp RH
2013-06 → 2016-05 ended
NDE180 TUP —
81584-02520 Gasket, Rear Lamp RH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
81584-02520 Gasket, Rear Lamp RH
2016-06 → 2018-08 ended
NRE180 D TUP —
81584-02520 Gasket, Rear Lamp RH
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
81584-02520 Gasket, Rear Lamp RH
2016-06 → 2019-12 ended
ZRE182 D SAP;NDE180,NRE180,ZRE181 SAP —
81584-02A20 Gasket, Rear Lamp RH
2016-06 → 2018-08 ended
NRE180 N TUP —
81584-02A20 Gasket, Rear Lamp RH
2016-06 → 2019-12 ended
ZRE182 N SAP —
81584-02A20 Gasket, Rear Lamp RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81584-02520 Gasket, Rear Lamp RH
2019-12 → —
ZRE182 —
81585C — Socket & Wire, Rear Lamp, RH
81585-02A20 note Socket & Wire, Rear Lamp, RH
2017-01 → 2019-12 ended
ZRE182 SA —
81585-02A30 Socket & Wire, Rear Lamp, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
81585-02A30 Socket & Wire, Rear Lamp, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81585-02A30 Socket & Wire, Rear Lamp, RH
2016-06 → 2019-12 ended
ZRE182 N SAP —
81590A — Lamp Assy, Rear, LH
81590-02A20 Lamp Assy, Rear, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
81590-02A20 Lamp Assy, Rear, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81590-02A30 note Lamp Assy, Rear, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
81590-02A30 note Lamp Assy, Rear, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81590-02A30 Lamp Assy, Rear, LH
2017-01 → 2019-12 ended
ZRE182 N SAP —
81594A — Gasket, Rear Lamp LH
81594-02520 Gasket, Rear Lamp LH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
81594-02520 Gasket, Rear Lamp LH
2013-06 → 2016-05 ended
NDE180 TUP —
81584-02A20 Gasket, Rear Lamp LH
2016-06 → 2018-08 ended
NRE180 N TUP —
81584-02A20 Gasket, Rear Lamp LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81584-02A20 Gasket, Rear Lamp LH
2016-06 → 2019-12 ended
ZRE182 N SAP —
81594-02520 Gasket, Rear Lamp LH
2016-06 → 2018-08 ended
NRE180 D TUP —
81594-02520 Gasket, Rear Lamp LH
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
81594-02520 Gasket, Rear Lamp LH
2016-06 → 2019-12 ended
ZRE182 D SAP;NDE180,NRE180,ZRE181 SAP —
81594-02520 Gasket, Rear Lamp LH
2019-12 → —
ZRE182 —
81595 — Socket & Wire, Rear Lamp, LH
81595-02A20 Socket & Wire, Rear Lamp, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
81595-02A20 Socket & Wire, Rear Lamp, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81595-02A30 note Socket & Wire, Rear Lamp, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
81595-02A30 note Socket & Wire, Rear Lamp, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81595-02A30 Socket & Wire, Rear Lamp, LH
2017-01 → 2019-12 ended
ZRE182 N SAP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
