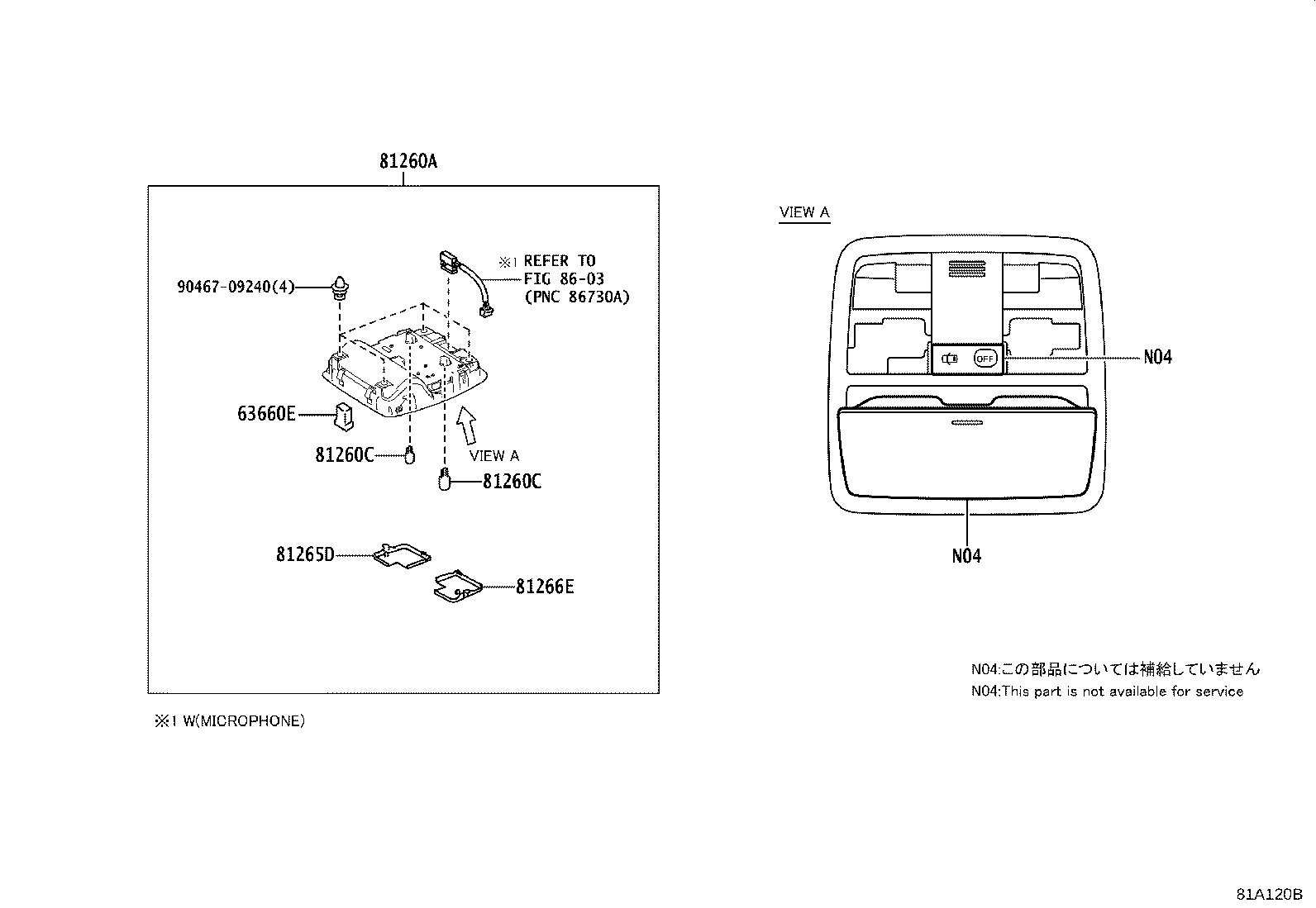

Exploded illustration 81A120B 9046709240 — not listed in this catalogue 81260C — BULB(FOR MAP LAMP) (6 parts) 81260C — BULB(FOR MAP LAMP) (6 parts) 8603 — not listed in this catalogue 81266E — LENS, MAP LAMP, LH (16 parts) 81265D — LENS, MAP LAMP, RH (16 parts) 63660E — LOCK ASSY, ROOF CONSOLE (4 parts) 81260A — LAMP ASSY, MAP (47 parts)
81A120B · 6 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
89 parts on this figure
Part number Description Fitment Price
63660E — Lock Assy, Roof Console
63660-02010 Lock Assy, Roof Console
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
63660-02010 Lock Assy, Roof Console
2016-06 → 2018-08 ended
NRE180 TUP —
63660-02010 Lock Assy, Roof Console
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
63660-02010 Lock Assy, Roof Console
2019-12 → —
ZRE182 G —
81260A — Lamp Assy, Map
81260-02460-A0 note Lamp Assy, Map
2013-06 → 2015-05 ended
NDE180 N TUP —
81260-02460-A0 note Lamp Assy, Map
2013-06 → 2016-05 ended
NDE180 D TUP —
81260-02460-A0 note Lamp Assy, Map
2015-05 → 2016-05 ended
NDE180 N TUP —
81260-02460-A0 note Lamp Assy, Map
2015-05 → 2016-05 ended
NDE180 N TUP —
81260-02460-A0 note Lamp Assy, Map
2016-10 → 2017-01 ended
ZRE181 CVT N GEN +1 —
81260-02460-B0 note Lamp Assy, Map
2013-06 → 2015-05 ended
NDE180 N TUP —
81260-02460-B0 note Lamp Assy, Map
2013-06 → 2016-05 ended
NDE180 D TUP —
81260-02460-B0 note Lamp Assy, Map
2015-05 → 2016-05 ended
NDE180 N TUP —
81260-02460-B0 note Lamp Assy, Map
2015-05 → 2016-05 ended
NDE180 N TUP —
81260-02460-B0 note Lamp Assy, Map
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
81260-02460-B0 note Lamp Assy, Map
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
81260-02460-B0 note Lamp Assy, Map
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# D SAP —
81260-02480-A0 note Lamp Assy, Map
2015-05 → 2016-05 ended
NDE180 D TUP —
81260-02480-A0 note Lamp Assy, Map
2016-10 → 2017-01 ended
ZRE181 CVT N GEN +1 —
81260-02480-A0 note Lamp Assy, Map
2013-06 → 2016-05 ended
NDE180 N TUP —
81260-02480-B0 note Lamp Assy, Map
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
81260-02480-B0 note Lamp Assy, Map
2015-05 → 2016-05 ended
NDE180 D TUP —
81260-02480-B0 note Lamp Assy, Map
2013-06 → 2016-05 ended
NDE180 N TUP —
81260-02490-B0 note Lamp Assy, Map
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
81260-02460-A1 note Lamp Assy, Map
2016-06 → 2018-08 ended
NRE180 D TUP —
81260-02460-A1 note Lamp Assy, Map
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81260-02460-A1 note Lamp Assy, Map
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81260-02460-A1 note Lamp Assy, Map
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
81260-02460-A1 note Lamp Assy, Map
2016-06 → 2018-08 ended
NRE180 N TUP —
81260-02460-A1 note Lamp Assy, Map
2016-06 → 2018-08 ended
NRE180 N TUP —
81260-02460-B0 note Lamp Assy, Map
2016-06 → 2018-08 ended
NRE180 N TUP —
81260-02460-B0 note Lamp Assy, Map
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
81260-02460-B0 note Lamp Assy, Map
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81260-02460-B0 note Lamp Assy, Map
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81260-02460-B0 note Lamp Assy, Map
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
81260-02460-B0 note Lamp Assy, Map
2016-06 → 2018-08 ended
NRE180 D TUP —
81260-02460-B0 note Lamp Assy, Map
2016-06 → 2018-08 ended
NRE180 N TUP —
81260-02480-A1 note Lamp Assy, Map
2016-06 → 2019-12 ended
ZRE181 CVT N GEN +1 —
81260-02480-A1 note Lamp Assy, Map
2016-06 → 2018-08 ended
NRE180 D TUP —
81260-02480-A1 note Lamp Assy, Map
2016-06 → 2018-08 ended
NRE180 N TUP —
81260-02480-A1 note Lamp Assy, Map
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81260-02480-A1 note Lamp Assy, Map
2016-06 → 2019-01 ended
ZRE18# D GEN TUP —
81260-02480-A1 note Lamp Assy, Map
2016-06 → 2019-01 ended
NDE180,ZRE181 D GEN TUP —
81260-02480-B0 note Lamp Assy, Map
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
81260-02480-B0 note Lamp Assy, Map
2016-06 → 2019-01 ended
NDE180,ZRE181 D GEN TUP —
81260-02480-B0 note Lamp Assy, Map
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
81260-02480-B0 note Lamp Assy, Map
2016-06 → 2018-08 ended
NRE180 D TUP —
81260-02480-B0 note Lamp Assy, Map
2016-06 → 2018-08 ended
NRE180 N TUP —
81260-02480-B0 note Lamp Assy, Map
2016-06 → 2019-01 ended
ZRE18# D GEN TUP —
81260-02490-B0 note Lamp Assy, Map
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
81260-02480-B0 note Lamp Assy, Map
2019-12 → —
ZRE182 G GEN —
81260-02490-B0 note Lamp Assy, Map
2019-12 → —
ZRE182 G SA —
81260C — Bulb(FOR MAP LAMP)
90981-11062 note Bulb(FOR MAP LAMP)
2013-06 → 2016-05 ended
NDE180 TUP —
90981-11062 note Bulb(FOR MAP LAMP)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90981-11062 note Bulb(FOR MAP LAMP)
2016-06 → 2018-08 ended
NRE180 TUP —
90981-11062 note Bulb(FOR MAP LAMP)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90981-11062 note Bulb(FOR MAP LAMP)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90981-11062 note Bulb(FOR MAP LAMP)
2019-12 → —
ZRE182 G —
81265D — Lens, Map Lamp, RH
81265-02460 note Lens, Map Lamp, RH
2013-06 → 2015-05 ended
NDE180 N TUP —
81265-02460 Lens, Map Lamp, RH
2013-06 → 2016-05 ended
NDE180 D TUP —
81265-02460 note Lens, Map Lamp, RH
2015-05 → 2016-05 ended
NDE180 N TUP —
81265-02460 note Lens, Map Lamp, RH
2015-05 → 2016-05 ended
NDE180 N TUP —
81265-02460 note Lens, Map Lamp, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# D SAP —
81265-02460 note Lens, Map Lamp, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
81265-02460 note Lens, Map Lamp, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
81265-02480 note Lens, Map Lamp, RH
2015-05 → 2016-05 ended
NDE180 D TUP —
81265-02480 Lens, Map Lamp, RH
2013-06 → 2017-01 ended
NDE180 N;NDE180 D SAP;NRE180,ZRE18# +1 —
81265-02460 Lens, Map Lamp, RH
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# D TUP —
81265-02460 note Lens, Map Lamp, RH
2016-06 → 2019-12 ended
NDE180 ;NRE180,ZRE181 N;NDE180 N +9 —
81265-02460 note Lens, Map Lamp, RH
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# N TUP —
81265-02480 note Lens, Map Lamp, RH
2016-06 → 2019-01 ended
NDE180,ZRE181 D GEN TUP —
81265-02480 Lens, Map Lamp, RH
2016-06 → 2019-12 ended
NDE180,ZRE182 N;NRE180,ZRE181 SAP;NDE180,ZRE182 D +3 —
81265-02480 note Lens, Map Lamp, RH
2016-06 → 2019-01 ended
NRE180,ZRE18# D GEN TUP —
81266-02480 Lens, Map Lamp, RH
2019-12 → —
ZRE182 G —
81266E — Lens, Map Lamp, LH
81266-02460 note Lens, Map Lamp, LH
2013-06 → 2015-05 ended
NDE180 N TUP —
81266-02460 Lens, Map Lamp, LH
2013-06 → 2016-05 ended
NDE180 D TUP —
81266-02460 note Lens, Map Lamp, LH
2015-05 → 2016-05 ended
NDE180 N TUP —
81266-02460 note Lens, Map Lamp, LH
2015-05 → 2016-05 ended
NDE180 N TUP —
81266-02460 note Lens, Map Lamp, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
81266-02460 note Lens, Map Lamp, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# D SAP —
81266-02460 note Lens, Map Lamp, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
81266-02480 Lens, Map Lamp, LH
2013-06 → 2017-01 ended
NDE180 N;NDE180 D SAP;NRE180,ZRE18# +1 —
81266-02480 note Lens, Map Lamp, LH
2015-05 → 2016-05 ended
NDE180 D TUP —
81266-02460 Lens, Map Lamp, LH
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# D TUP —
81266-02460 note Lens, Map Lamp, LH
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# N TUP —
81266-02460 note Lens, Map Lamp, LH
2016-06 → 2019-12 ended
NDE180 ;NRE180,ZRE181 N;NDE180 N +9 —
81266-02480 note Lens, Map Lamp, LH
2016-06 → 2019-01 ended
NRE180,ZRE18# D GEN TUP —
81266-02480 note Lens, Map Lamp, LH
2016-06 → 2019-01 ended
NDE180,ZRE181 D GEN TUP —
81266-02480 Lens, Map Lamp, LH
2016-06 → 2019-12 ended
NDE180,ZRE182 N;NRE180,ZRE181 SAP;NDE180,ZRE182 D +3 —
81265-02480 Lens, Map Lamp, LH
2019-12 → —
ZRE182 G —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
