Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

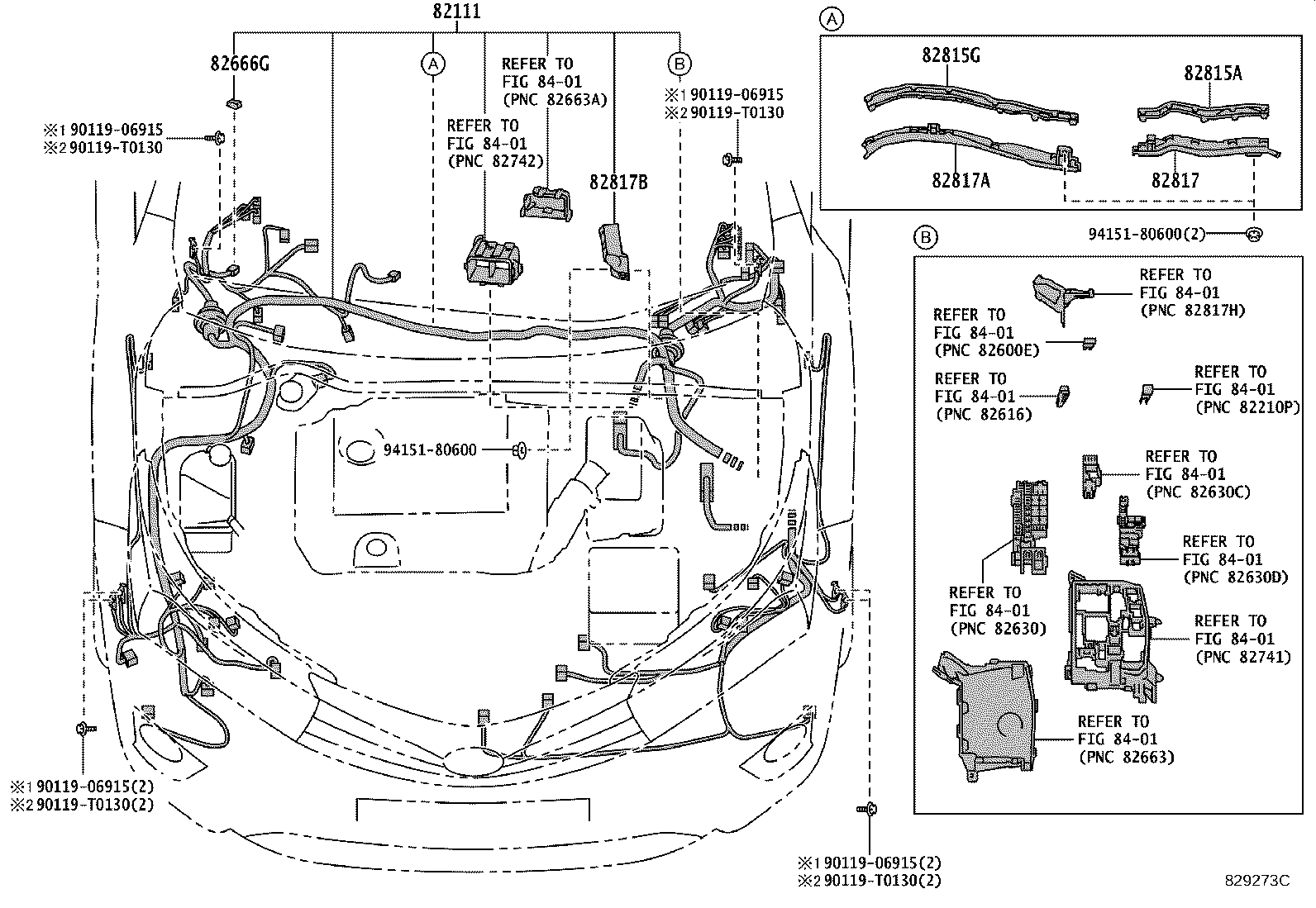

Exploded illustration 829273C 9415180600 — not listed in this catalogue 9415180600 — not listed in this catalogue 82815G — COVER, WIRING HARNESS PROTECTOR NO.5 (10 parts) 82815A — COVER, WIRING HARNESS PROTECTOR (10 parts) 82817A — PROTECTOR, WIRING HARNESS, NO.2 (11 parts) 82817B — PROTECTOR, WIRING HARNESS, NO.3 (3 parts) 82817 — PROTECTOR, WIRING HARNESS, NO.1 (10 parts) 82111 — WIRE, ENGINE ROOM MAIN (96 parts) 9011906915 — not listed in this catalogue 9011906915 — not listed in this catalogue 9011906915 — not listed in this catalogue 9011906915 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 82666G — HOLDER, CONNECTOR NO.8 (4 parts) 90119T0130 — not listed in this catalogue 90119T0130 — not listed in this catalogue 90119T0130 — not listed in this catalogue 90119T0130 — not listed in this catalogue
829273C · 7 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
144 parts on this figure
Part number Description Fitment Price
82111 — Wire, Engine Room Main
82115-0ZD30 Wire, Engine Room Main
2013-06 → 2015-05 ended
NDE180 TUP —
82115-0ZD31 Wire, Engine Room Main
2015-05 → 2016-05 ended
NDE180 TUP —
82115-0ZG10 note Wire, Engine Room Main
2014-01 → 2015-04 ended
ZRE18# 6F N GEN —
82115-0ZG11 note Wire, Engine Room Main
2015-05 → 2017-01 ended
ZRE18# 6F N GEN +1 —
82115-0ZG20 note Wire, Engine Room Main
2014-01 → 2015-04 ended
ZRE18# CVT N GEN —
82115-0ZG21 note Wire, Engine Room Main
2015-05 → 2017-01 ended
ZRE18# CVT N GEN +1 —
82115-0ZL00 note Wire, Engine Room Main
2014-01 → 2015-04 ended
NRE180 N —
82115-0ZL01 note Wire, Engine Room Main
2015-05 → 2017-01 ended
NRE180 N SAP —
82115-0ZL10 note Wire, Engine Room Main
2014-01 → 2015-04 ended
NDE180 N SAP —
82115-0ZL11 note Wire, Engine Room Main
2015-05 → 2017-01 ended
NDE180 N SAP —
82115-0ZL20 note Wire, Engine Room Main
2014-01 → 2015-04 ended
ZRE18# 6F N SA —
82115-0ZL21 note Wire, Engine Room Main
2015-05 → 2017-01 ended
ZRE18# 6F N SA —
82115-0ZL30 note Wire, Engine Room Main
2014-01 → 2015-04 ended
ZRE18# 6F N SA —
82115-0ZL31 note Wire, Engine Room Main
2015-05 → 2017-01 ended
ZRE18# 6F N SA —
82115-0ZL40 note Wire, Engine Room Main
2014-01 → 2015-04 ended
ZRE18# CVT SA —
82115-0ZL41 note Wire, Engine Room Main
2015-05 → 2017-01 ended
ZRE18# CVT SA —
82115-0ZL50 note Wire, Engine Room Main
2014-01 → 2015-04 ended
ZRE18# CVT SA —
82115-0ZL51 note Wire, Engine Room Main
2015-05 → 2017-01 ended
ZRE18# CVT SA —
82115-0ZW80 Wire, Engine Room Main
2014-01 → 2015-04 ended
ZRE18# 6F GEN —
82115-0ZW81 Wire, Engine Room Main
2015-05 → 2017-01 ended
ZRE18# 6F GEN SAP —
82115-0ZW90 Wire, Engine Room Main
2014-01 → 2015-04 ended
ZRE18# CVT GEN —
82115-0ZW91 Wire, Engine Room Main
2015-05 → 2017-01 ended
ZRE18# CVT GEN SAP —
82115-0ZX00 Wire, Engine Room Main
2014-01 → 2015-04 ended
NRE180 —
82115-0ZX01 Wire, Engine Room Main
2015-05 → 2017-01 ended
NRE180 SAP —
82115-0ZX10 Wire, Engine Room Main
2014-01 → 2015-04 ended
NDE180 SAP —
82115-0ZX11 Wire, Engine Room Main
2015-05 → 2017-01 ended
NDE180 SAP —
82115-0ZX20 Wire, Engine Room Main
2014-01 → 2015-04 ended
ZRE18# 6F SA —
82115-0ZX21 Wire, Engine Room Main
2015-05 → 2017-01 ended
ZRE18# 6F SA —
82115-0ZX30 note Wire, Engine Room Main
2014-01 → 2015-04 ended
ZRE18# 6F N SA —
82115-0ZX31 note Wire, Engine Room Main
2015-05 → 2017-01 ended
ZRE18# 6F N SA —
82115-0ZX40 Wire, Engine Room Main
2014-01 → 2015-04 ended
ZRE18# CVT SA —
82115-0ZX41 Wire, Engine Room Main
2015-05 → 2017-01 ended
ZRE18# CVT SA —
82115-0ZX50 note Wire, Engine Room Main
2014-01 → 2015-04 ended
ZRE18# CVT SA —
82115-0ZX51 note Wire, Engine Room Main
2015-05 → 2017-01 ended
ZRE18# CVT SA —
82111-F2271 note Wire, Engine Room Main
2017-01 → 2019-12 ended
ZRE182 CVT SA —
82111-F2331 note Wire, Engine Room Main
2016-06 → 2019-01 ended
NDE180 N TUP —
82111-F2E60 note Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE181 6F GEN TUP —
82111-F2E61 note Wire, Engine Room Main
2016-11 → 2017-11 ended
ZRE181 6F GEN TUP —
82111-F2E62 note Wire, Engine Room Main
2017-11 → 2019-01 ended
ZRE181 6F GEN TUP —
82111-F2E70 note Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE182 N GEN TUP;ZRE181 +3 —
82111-F2E71 note Wire, Engine Room Main
2016-11 → 2017-11 ended
ZRE182 N GEN TUP;ZRE181 +3 —
82111-F2E72 note Wire, Engine Room Main
2017-11 → 2019-01 ended
ZRE182 N GEN TUP;ZRE181 +3 —
82111-F2E90 Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE18# CVT GCC —
82111-F2E91 Wire, Engine Room Main
2016-11 → 2019-01 ended
ZRE18# CVT GCC —
82115-0ZC43 Wire, Engine Room Main
2016-06 → 2018-08 ended
NRE180 TUP —
82115-0ZC63 note Wire, Engine Room Main
2016-06 → 2018-08 ended
NRE180 TUP —
82115-0ZD33 Wire, Engine Room Main
2016-06 → 2019-01 ended
NDE180 TUP —
82115-0ZE14 note Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE181 6F N TUP —
82115-0ZE15 note Wire, Engine Room Main
2016-11 → 2019-01 ended
ZRE181 6F N TUP —
82115-0ZE34 note Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE18# CVT N GEN +1 —
82115-0ZE35 note Wire, Engine Room Main
2016-11 → 2019-01 ended
ZRE18# CVT N GEN +1 —
82115-0ZE53 Wire, Engine Room Main
2016-06 → 2019-01 ended
ZRE181 6F GEN TUP —
82115-0ZE64 Wire, Engine Room Main
2016-06 → 2019-01 ended
ZRE181 6F GCC —
82115-0ZF33 Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE18# CVT GEN TUP —
82115-0ZF34 Wire, Engine Room Main
2016-11 → 2019-01 ended
ZRE18# CVT GEN TUP —
82115-0ZF43 note Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE18# CVT GCC —
82115-0ZF44 note Wire, Engine Room Main
2016-11 → 2019-01 ended
ZRE18# CVT GCC —
82115-0ZW83 Wire, Engine Room Main
2017-01 → 2019-12 ended
ZRE18# 6F GEN SAP —
82115-0ZW93 Wire, Engine Room Main
2017-01 → 2019-12 ended
ZRE18# CVT GEN SAP —
82115-0ZX03 Wire, Engine Room Main
2017-01 → 2019-12 ended
NRE180 SAP —
82115-0ZX13 Wire, Engine Room Main
2017-01 → 2019-12 ended
NDE180 SAP —
82115-0ZX23 Wire, Engine Room Main
2017-01 → 2019-12 ended
ZRE18# 6F SA —
82115-0ZX33 note Wire, Engine Room Main
2017-01 → 2019-12 ended
ZRE18# 6F SA —
82115-0ZX43 Wire, Engine Room Main
2017-01 → 2019-12 ended
ZRE18# CVT SA —
82115-0ZX53 note Wire, Engine Room Main
2017-01 → 2019-12 ended
ZRE18# CVT SA —
82115-F2A20 note Wire, Engine Room Main
2017-11 → 2019-01 ended
ZRE18# CVT N GEN +1 —
82115-F2A20 note Wire, Engine Room Main
2017-11 → 2019-01 ended
ZRE18# CVT N GEN +1 —
82116-0ZF51 note Wire, Engine Room Main
2016-06 → 2018-08 ended
NRE180 N TUP —
82116-0ZF61 note Wire, Engine Room Main
2016-06 → 2018-08 ended
NRE180 N TUP —
82116-0ZF91 note Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE181 6F N TUP —
82116-0ZF91 note Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE181 6F N TUP —
82116-0ZF92 note Wire, Engine Room Main
2016-11 → 2017-11 ended
ZRE181 6F N TUP —
82116-0ZF92 note Wire, Engine Room Main
2016-11 → 2017-11 ended
ZRE181 6F N TUP —
82116-0ZF93 note Wire, Engine Room Main
2017-11 → 2019-01 ended
ZRE181 6F N TUP —
82116-0ZF93 note Wire, Engine Room Main
2017-11 → 2019-01 ended
ZRE181 6F N TUP —
82116-0ZG01 note Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE18# CVT N GEN +1 —
82116-0ZG01 note Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE18# CVT N GEN +1 —
82116-0ZG02 note Wire, Engine Room Main
2016-11 → 2017-11 ended
ZRE18# CVT N GEN +1 —
82116-0ZG02 note Wire, Engine Room Main
2016-11 → 2017-11 ended
ZRE18# CVT N GEN +1 —
82116-0ZG41 note Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE18# CVT N GEN +1 —
82116-0ZG42 note Wire, Engine Room Main
2016-11 → 2019-01 ended
ZRE18# CVT N GEN +1 —
82116-0ZG51 note Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE18# N GCC —
82116-0ZG51 note Wire, Engine Room Main
2016-06 → 2016-11 ended
ZRE18# N GCC —
82116-0ZG52 note Wire, Engine Room Main
2016-11 → 2019-01 ended
ZRE18# N GCC —
82116-0ZG52 note Wire, Engine Room Main
2016-11 → 2019-01 ended
ZRE18# N GCC —
82116-0ZJ31 note Wire, Engine Room Main
2016-06 → 2019-01 ended
ZRE181 6F N TUP —
82116-0ZK01 note Wire, Engine Room Main
2017-01 → 2019-12 ended
ZRE182 6F SA —
82111-F2040 Wire, Engine Room Main
2019-12 → —
ZRE182 D GEN —
82111-F2050 Wire, Engine Room Main
2019-12 → —
ZRE182 N GEN —
82111-F2060 Wire, Engine Room Main
2019-12 → —
ZRE182 G GEN —
82111-F2070 Wire, Engine Room Main
2019-12 → —
ZRE182 6F (D,N) SA —
82111-F2080 Wire, Engine Room Main
2019-12 → —
ZRE182 CVT (D,N) SA —
82111-F2090 Wire, Engine Room Main
2019-12 → —
ZRE182 6F G —
82111-F2100 Wire, Engine Room Main
2019-12 → —
ZRE182 CVT G SA —
82116-0ZY20 note Wire, Engine Room Main
2021-01 → —
ZRE182 6F (D,N) SA —
82116-0ZY30 note Wire, Engine Room Main
2021-01 → —
ZRE182 CVT (D,N) SA —
82666G — Holder, Connector NO.8
82666-26080 Holder, Connector NO.8
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
82666-26080 Holder, Connector NO.8
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
82666-26080 Holder, Connector NO.8
2016-06 → 2018-08 ended
NRE180 TUP —
82666-26080 Holder, Connector NO.8
2019-12 → —
ZRE182 —
82815A — Cover, Wiring Harness Protector
82815-02130 Cover, Wiring Harness Protector
2013-06 → 2016-05 ended
NDE180 TUP —
82815-02130 Cover, Wiring Harness Protector
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
82815-12160 Cover, Wiring Harness Protector
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
82815-02130 Cover, Wiring Harness Protector
2016-06 → 2018-08 ended
NRE180 TUP —
82815-02130 Cover, Wiring Harness Protector
2016-06 → 2019-01 ended
NDE180,ZRE18# GEN TUP —
82815-02130 Cover, Wiring Harness Protector
2017-11 → 2019-01 ended
ZRE18# GCC —
82815-02130 Cover, Wiring Harness Protector
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
82815-12160 Cover, Wiring Harness Protector
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
82815-02130 Cover, Wiring Harness Protector
2019-12 → —
ZRE182 GEN —
82815-12160 Cover, Wiring Harness Protector
2019-12 → —
ZRE182 SA —
82815G — Cover, Wiring Harness Protector NO.5
82815-02140 Cover, Wiring Harness Protector NO.5
2013-06 → 2016-05 ended
NDE180 TUP —
82815-02140 Cover, Wiring Harness Protector NO.5
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
82815-12150 Cover, Wiring Harness Protector NO.5
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
82815-02140 Cover, Wiring Harness Protector NO.5
2016-06 → 2018-08 ended
NRE180 TUP —
82815-02140 Cover, Wiring Harness Protector NO.5
2016-06 → 2019-01 ended
NDE180,ZRE18# GEN TUP —
82815-02140 Cover, Wiring Harness Protector NO.5
2017-11 → 2019-01 ended
ZRE18# GCC —
82815-02140 Cover, Wiring Harness Protector NO.5
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
82815-12150 Cover, Wiring Harness Protector NO.5
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
82815-02140 Cover, Wiring Harness Protector NO.5
2019-12 → —
ZRE182 GEN —
82815-12150 Cover, Wiring Harness Protector NO.5
2019-12 → —
ZRE182 SA —
82817 — Protector, Wiring Harness, NO.1
82817-02A80 Protector, Wiring Harness, NO.1
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
82817-02A80 Protector, Wiring Harness, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
82817-12B20 Protector, Wiring Harness, NO.1
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
82817-02A80 Protector, Wiring Harness, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
82817-02A80 Protector, Wiring Harness, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# GEN TUP —
82817-02A80 Protector, Wiring Harness, NO.1
2017-11 → 2019-01 ended
ZRE18# GCC —
82817-02A80 Protector, Wiring Harness, NO.1
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
82817-12B20 Protector, Wiring Harness, NO.1
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
82817-02A80 Protector, Wiring Harness, NO.1
2019-12 → —
ZRE182 GEN —
82817-12B20 Protector, Wiring Harness, NO.1
2019-12 → —
ZRE182 SA —
82817A — Protector, Wiring Harness, NO.2
82817-02500 Protector, Wiring Harness, NO.2
2014-01 → 2017-01 ended
ZRE18# GEN SAP —
82817-02640 Protector, Wiring Harness, NO.2
2013-06 → 2016-05 ended
NDE180 TUP —
82817-12B10 Protector, Wiring Harness, NO.2
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
82817-02500 Protector, Wiring Harness, NO.2
2016-06 → 2018-08 ended
NRE180 TUP —
82817-02500 Protector, Wiring Harness, NO.2
2016-06 → 2019-01 ended
ZRE18# GEN TUP —
82817-02500 Protector, Wiring Harness, NO.2
2017-11 → 2019-01 ended
ZRE18# GCC —
82817-02500 Protector, Wiring Harness, NO.2
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
82817-02640 Protector, Wiring Harness, NO.2
2016-06 → 2019-01 ended
NDE180 TUP —
82817-12B10 Protector, Wiring Harness, NO.2
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
82817-02500 Protector, Wiring Harness, NO.2
2019-12 → —
ZRE182 GEN —
82817-12B10 Protector, Wiring Harness, NO.2
2019-12 → —
ZRE182 SA —
82817B — Protector, Wiring Harness, NO.3
82817-12J30 Protector, Wiring Harness, NO.3
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
82817-12J30 Protector, Wiring Harness, NO.3
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
82817-12J30 Protector, Wiring Harness, NO.3
2019-12 → —
ZRE182 SA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
