Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

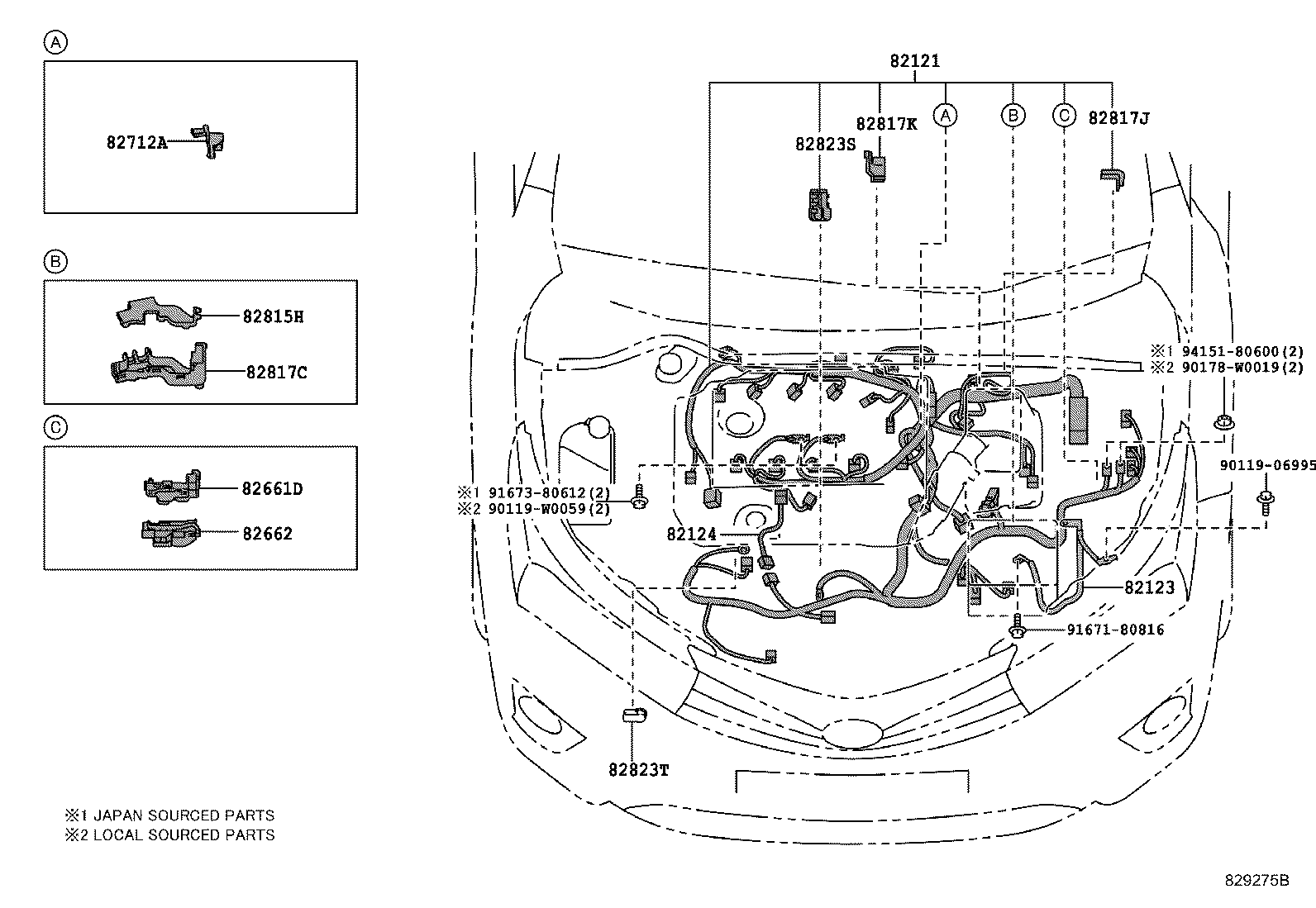

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-0Z470 |
Wire, Engine
2014-01 → 2015-05
ended
|
NRE180 | — | |
| 82121-0Z471 |
Wire, Engine
2015-05 → 2017-01
ended
|
NRE180 SAP | — | |
| 82121-0Z500 |
Wire, Engine
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 82121-0Z510 |
Wire, Engine
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 82121-0Z580 |
Wire, Engine
2014-01 → 2017-01
ended
|
ZRE181 6F SAP | — | |
| 82121-0Z600 |
Wire, Engine
2014-01 → 2017-01
ended
|
ZRE181 CVT SAP | — | |
| 82121-0Z610 |
Wire, Engine
2014-01 → 2017-01
ended
|
ZRE182 6F | — | |
| 82121-0Z630 |
Wire, Engine
2014-01 → 2017-01
ended
|
ZRE182 CVT SAP | — | |
| 82121-0Z462 |
Wire, Engine
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 82121-0Z472 |
Wire, Engine
2017-01 → 2019-12
ended
|
NRE180 SAP | — | |
| 82121-0Z501 |
Wire, Engine
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 82121-0Z510 |
Wire, Engine
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 82121-0Z571 |
Wire, Engine
2016-06 → 2019-01
ended
|
ZRE181 6F TUP | — | |
| 82121-0Z581 |
Wire, Engine
2017-01 → 2019-12
ended
|
ZRE181 6F SAP | — | |
| 82121-0Z591 |
Wire, Engine
2016-06 → 2019-01
ended
|
ZRE181 CVT TUP | — | |
| 82121-0Z601 |
Wire, Engine
2017-01 → 2019-12
ended
|
ZRE181 CVT SAP | — | |
| 82121-0Z611 |
Wire, Engine
2017-01 → 2019-12
ended
|
ZRE182 6F | — | |
| 82121-0Z621 |
Wire, Engine
2016-06 → 2019-01
ended
|
ZRE182 TUP | — | |
| 82121-0Z631 |
Wire, Engine
2017-01 → 2019-12
ended
|
ZRE182 CVT SAP | — | |
| 82121-0Z611 |
Wire, Engine
2019-12 → —
|
ZRE182 6F | — | |
| 82121-0Z631 |
Wire, Engine
2019-12 → —
|
ZRE182 CVT | — | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-02620 |
Wire, Engine, NO.3
2014-01 → 2017-01
ended
|
NRE180,ZRE18# 6F SAP | — | |
| 82123-02640 |
Wire, Engine, NO.3
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 82123-02650 |
Wire, Engine, NO.3
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 82123-02660 |
Wire, Engine, NO.3
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 82123-02550 |
Wire, Engine, NO.3
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 82123-02550 |
Wire, Engine, NO.3
2016-06 → 2019-01
ended
|
ZRE181 6F TUP | — | |
| 82123-02560 |
Wire, Engine, NO.3
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 82123-02620 |
Wire, Engine, NO.3
2017-01 → 2019-12
ended
|
NRE180,ZRE18# 6F SAP | — | |
| 82123-02640 |
Wire, Engine, NO.3
2017-01 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 82123-02650 |
Wire, Engine, NO.3
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 82123-02660 |
Wire, Engine, NO.3
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 82123-02620 |
Wire, Engine, NO.3
2019-12 → —
|
ZRE182 6F | — | |
| 82123-02640 |
Wire, Engine, NO.3
2019-12 → —
|
ZRE182 CVT | — | |
| 82124 — Wire, Engine, NO.4 | ||||
| 82124-02090 |
Wire, Engine, NO.4
2014-01 → 2017-01
ended
|
ZRE18# SAP | — | |
| 82124-12150 |
Wire, Engine, NO.4
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 82124-02090 |
Wire, Engine, NO.4
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 82124-02090 |
Wire, Engine, NO.4
2016-06 → 2019-12
ended
|
ZRE18# SAP | — | |
| 82124-12150 |
Wire, Engine, NO.4
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 82124-12150 |
Wire, Engine, NO.4
2016-06 → 2019-12
ended
|
NRE180 SAP | — | |
| 82124-02090 |
Wire, Engine, NO.4
2019-12 → —
|
ZRE182 | — | |
| 82661D — Cover, Relay Block, Side NO.1 | ||||
| 82661-12300 |
Cover, Relay Block, Side NO.1
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 82661-12320 |
Cover, Relay Block, Side NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 82661-12320 |
Cover, Relay Block, Side NO.1
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 82661-12300 |
Cover, Relay Block, Side NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 82661-12300 |
Cover, Relay Block, Side NO.1
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 82661-12300 |
Cover, Relay Block, Side NO.1
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 82661-12320 |
Cover, Relay Block, Side NO.1
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 82661-12320 |
Cover, Relay Block, Side NO.1
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
| 82661-12300 |
Cover, Relay Block, Side NO.1
2019-12 → —
|
ZRE182 | — | |
| 82662 — Cover, Relay Block, Upper | ||||
| 82662-12260 |
Cover, Relay Block, Upper
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 82662-12C00 |
Cover, Relay Block, Upper
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 82662-12C00 |
Cover, Relay Block, Upper
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 82662-12260 |
Cover, Relay Block, Upper
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 82662-12260 |
Cover, Relay Block, Upper
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 82662-12260 |
Cover, Relay Block, Upper
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 82662-12C00 |
Cover, Relay Block, Upper
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 82662-12C00 |
Cover, Relay Block, Upper
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
| 82662-12260 |
Cover, Relay Block, Upper
2019-12 → —
|
ZRE182 | — | |
| 82712A — Support, Wiring Harness | ||||
| 82712-12070 |
Support, Wiring Harness
2014-01 → 2017-01
ended
|
ZRE181 SAP | — | |
| 82712-12070 |
Support, Wiring Harness
2016-06 → 2019-01
ended
|
ZRE181 TUP | — | |
| 82712-12070 |
Support, Wiring Harness
2016-06 → 2019-12
ended
|
ZRE181 SAP | — | |
| 82815H — Cover, Wiring Harness Protector NO.6 | ||||
| 82815-02370 |
Cover, Wiring Harness Protector NO.6
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 82815-02370 |
Cover, Wiring Harness Protector NO.6
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 82815-02390 |
Cover, Wiring Harness Protector NO.6
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 82815-02370 |
Cover, Wiring Harness Protector NO.6
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 82815-02370 |
Cover, Wiring Harness Protector NO.6
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
| 82815-02390 |
Cover, Wiring Harness Protector NO.6
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 82815-02390 |
Cover, Wiring Harness Protector NO.6
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 82815-02390 |
Cover, Wiring Harness Protector NO.6
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 82815-02390 |
Cover, Wiring Harness Protector NO.6
2019-12 → —
|
ZRE182 | — | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-02B00 |
Protector, Wiring Harness, NO.4
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 82817-02B00 |
Protector, Wiring Harness, NO.4
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 82817-02B30 |
Protector, Wiring Harness, NO.4
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 82817-02B00 |
Protector, Wiring Harness, NO.4
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 82817-02B00 |
Protector, Wiring Harness, NO.4
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
| 82817-02B30 |
Protector, Wiring Harness, NO.4
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 82817-02B30 |
Protector, Wiring Harness, NO.4
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 82817-02B30 |
Protector, Wiring Harness, NO.4
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 82817-02B30 |
Protector, Wiring Harness, NO.4
2019-12 → —
|
ZRE182 | — | |
| 82817J — Protector, Wiring Harness, NO.9 | ||||
| 82817-0D190 |
Protector, Wiring Harness, NO.9
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 82817-0D190 |
Protector, Wiring Harness, NO.9
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.9
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 82817-0D190 |
Protector, Wiring Harness, NO.9
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
| 82817-0D190 |
Protector, Wiring Harness, NO.9
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.9
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.9
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.9
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.9
2019-12 → —
|
ZRE182 | — | |
| 82817K — Protector, Wiring Harness, NO.10 | ||||
| 82817-0D200 |
Protector, Wiring Harness, NO.10
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 82817-0D200 |
Protector, Wiring Harness, NO.10
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 82817-12J10 |
Protector, Wiring Harness, NO.10
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 82817-0D200 |
Protector, Wiring Harness, NO.10
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 82817-0D200 |
Protector, Wiring Harness, NO.10
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
| 82817-12J10 |
Protector, Wiring Harness, NO.10
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 82817-12J10 |
Protector, Wiring Harness, NO.10
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 82817-12J10 |
Protector, Wiring Harness, NO.10
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 82817-12J10 |
Protector, Wiring Harness, NO.10
2019-12 → —
|
ZRE182 | — | |
| 82823S — Cap, Starter Terminal | ||||
| 82823-12110 |
Cap, Starter Terminal
2014-01 → 2017-01
ended
|
ZRE18# SAP | — | |
| 82823-12120 |
Cap, Starter Terminal
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 82823-12110 |
Cap, Starter Terminal
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 82823-12110 |
Cap, Starter Terminal
2016-06 → 2019-12
ended
|
ZRE18# SAP | — | |
| 82823-12120 |
Cap, Starter Terminal
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 82823-12120 |
Cap, Starter Terminal
2016-06 → 2019-12
ended
|
NRE180 SAP | — | |
| 82823-12110 |
Cap, Starter Terminal
2019-12 → —
|
ZRE182 | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-22050 |
Cap, Alternator Terminal
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 82823-22050 |
Cap, Alternator Terminal
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 82823-22050 |
Cap, Alternator Terminal
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 82823-22050 |
Cap, Alternator Terminal
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 82823-22050 |
Cap, Alternator Terminal
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 82823-22050 |
Cap, Alternator Terminal
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
