Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

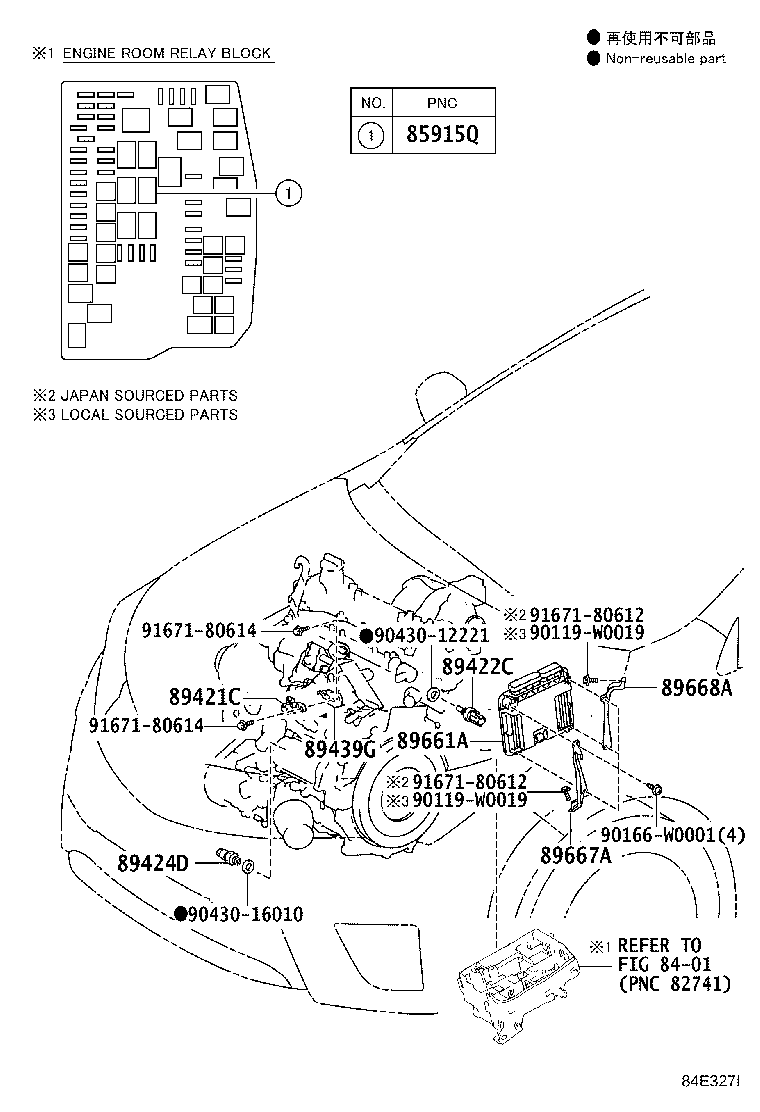

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85915Q — Relay, Computer (FOR DIESEL) | ||||
| 90080-87021 |
Relay, Computer (FOR DIESEL)
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 90080-87021 |
Relay, Computer (FOR DIESEL)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90080-87021 |
Relay, Computer (FOR DIESEL)
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 90080-87021 |
Relay, Computer (FOR DIESEL)
2016-06 → —
|
NDE180 SAP | — | |
| 89421C — Sensor, Turbo Pressure (FOR DIESEL TURBO) | ||||
| 89421-20200 |
Sensor, Turbo Pressure (FOR DIESEL TURBO)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89421-20200 |
Sensor, Turbo Pressure (FOR DIESEL TURBO)
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 89421-20200 |
Sensor, Turbo Pressure (FOR DIESEL TURBO)
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 89421-20200 |
Sensor, Turbo Pressure (FOR DIESEL TURBO)
2016-06 → —
|
NDE180 SAP | — | |
| 89422C — Sensor, Diesel Engine Water Temperature | ||||
| 89422-33030 |
Sensor, Diesel Engine Water Temperature
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89422-33030 |
Sensor, Diesel Engine Water Temperature
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 89422-33030 |
Sensor, Diesel Engine Water Temperature
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 89422-33030 |
Sensor, Diesel Engine Water Temperature
2016-06 → —
|
NDE180 SAP | — | |
| 89424D — Sensor, Inlet Air Temperature | ||||
| 89424-60010 |
Sensor, Inlet Air Temperature
2013-06 → 2017-01
ended
|
NDE180 | — | |
| 89424-60010 |
Sensor, Inlet Air Temperature
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 89424-60010 |
Sensor, Inlet Air Temperature
2016-06 → —
|
NDE180 SAP | — | |
| 89439G — Bracket, Sensor | ||||
| 89431-12010 |
Bracket, Sensor
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89431-12010 |
Bracket, Sensor
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 89431-12010 |
Bracket, Sensor
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 89431-12010 |
Bracket, Sensor
2016-06 → —
|
NDE180 SAP | — | |
| 89661A — Computer, Engine Control | ||||
| 89661-0ZD00 |
Computer, Engine Control
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89661-0ZD00 |
Computer, Engine Control
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 89661-0ZD50 note |
Computer, Engine Control
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89661-0ZD00 |
Computer, Engine Control
2016-06 → 2019-12
ended
|
NDE180 | — | |
| 89667A — Bracket, Engine Control Computer, NO.1 | ||||
| 89667-12320 |
Bracket, Engine Control Computer, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89667-12320 |
Bracket, Engine Control Computer, NO.1
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 89667-12320 |
Bracket, Engine Control Computer, NO.1
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 89667-12320 |
Bracket, Engine Control Computer, NO.1
2016-06 → —
|
NDE180 SAP | — | |
| 89668A — Bracket, Engine Control Computer, NO.2 | ||||
| 89668-12250 |
Bracket, Engine Control Computer, NO.2
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89668-12250 |
Bracket, Engine Control Computer, NO.2
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 89668-12250 |
Bracket, Engine Control Computer, NO.2
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 89668-12250 |
Bracket, Engine Control Computer, NO.2
2016-06 → —
|
NDE180 SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
