Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

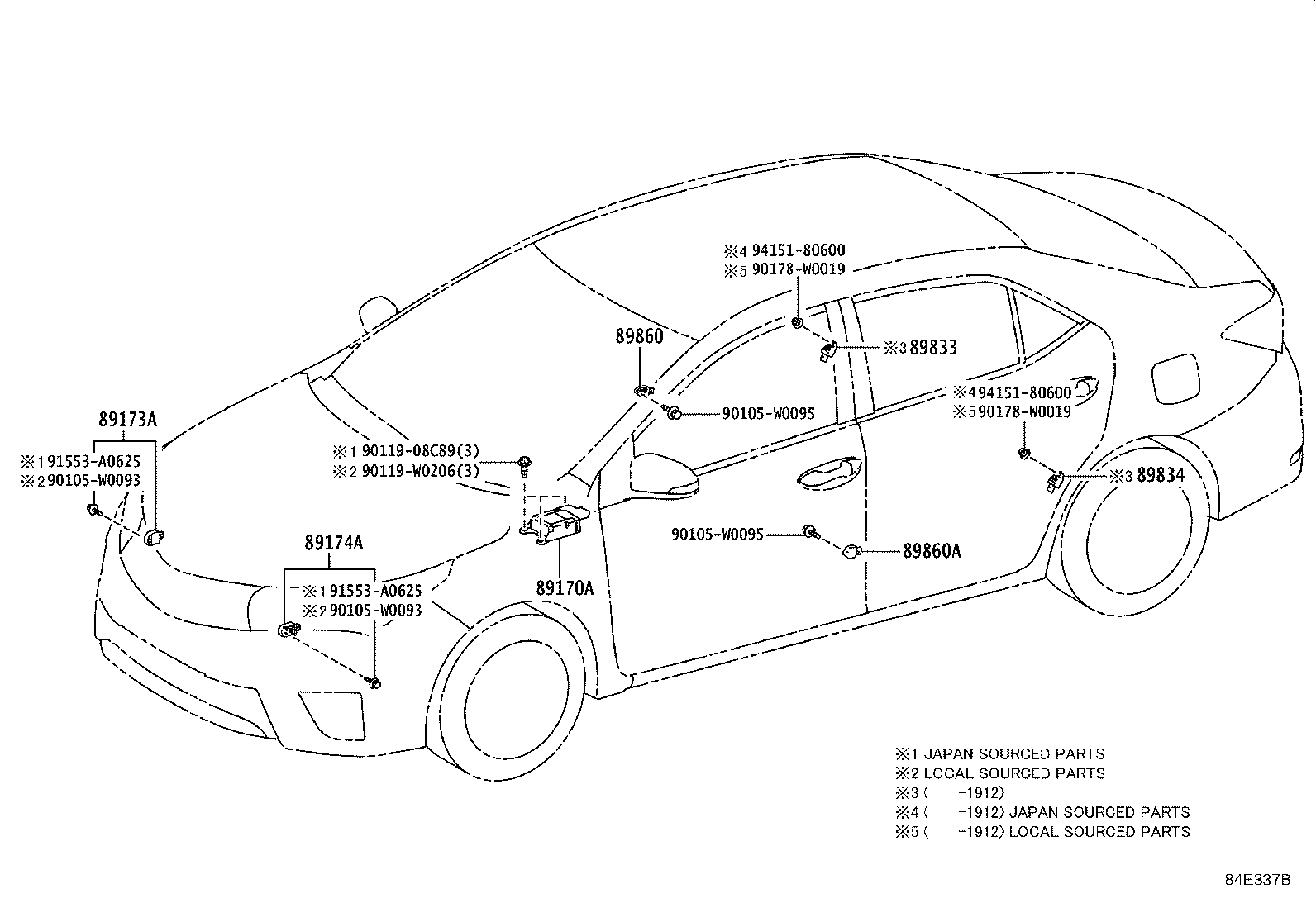

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89170A — Computer Assy, Airbag | ||||
| 89170-02C70 note |
Computer Assy, Airbag
2014-01 → 2017-01
ended
|
ZRE18# CVT N GEN +1 | — | |
| 89170-02C70 note |
Computer Assy, Airbag
2014-01 → 2017-01
ended
|
ZRE18# 6F N SA | — | |
| 89170-02C70 note |
Computer Assy, Airbag
2014-01 → 2017-01
ended
|
ZRE18# CVT SA | — | |
| 89170-02C80 |
Computer Assy, Airbag
2014-01 → 2017-01
ended
|
ZRE18# CVT N SAP | — | |
| 89170-02C80 note |
Computer Assy, Airbag
2014-01 → 2017-01
ended
|
ZRE18# 6F N SA | — | |
| 89170-02C80 note |
Computer Assy, Airbag
2014-01 → 2017-01
ended
|
ZRE18# CVT D SAP | — | |
| 89170-02C90 |
Computer Assy, Airbag
2014-01 → 2017-01
ended
|
ZRE18# CVT D SAP | — | |
| 89170-02D00 note |
Computer Assy, Airbag
2014-01 → 2017-01
ended
|
ZRE18# 6F N GEN +1 | — | |
| 89170-02D00 note |
Computer Assy, Airbag
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# 6F SA | — | |
| 89170-02D10 |
Computer Assy, Airbag
2013-06 → 2017-01
ended
|
NDE180 D TUP;NDE180,ZRE182 6F +4 | — | |
| 89170-02D10 note |
Computer Assy, Airbag
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 6F D SAP | — | |
| 89170-02D20 note |
Computer Assy, Airbag
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89170-02D20 |
Computer Assy, Airbag
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 6F D SAP | — | |
| 89170-02E30 note |
Computer Assy, Airbag
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89170-02K10 note |
Computer Assy, Airbag
2017-01 → 2019-12
ended
|
ZRE18# CVT SA | — | |
| 89170-02K10 note |
Computer Assy, Airbag
2017-01 → 2019-12
ended
|
ZRE18# 6F SA | — | |
| 89170-02K20 note |
Computer Assy, Airbag
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# 6F SA | — | |
| 89170-02K30 note |
Computer Assy, Airbag
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 89170-02K30 note |
Computer Assy, Airbag
2017-01 → 2019-12
ended
|
ZRE18# CVT N GEN +1 | — | |
| 89170-02K30 note |
Computer Assy, Airbag
2016-06 → 2019-01
ended
|
NRE180,ZRE181 6F GEN TUP | — | |
| 89170-02K40 note |
Computer Assy, Airbag
2017-01 → 2019-12
ended
|
ZRE18# 6F N GEN +1 | — | |
| 89170-02K40 note |
Computer Assy, Airbag
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 6F TUP | — | |
| 89170-02K50 |
Computer Assy, Airbag
2016-06 → 2019-12
ended
|
ZRE18# CVT N | — | |
| 89170-02K50 note |
Computer Assy, Airbag
2016-06 → 2019-12
ended
|
ZRE18# 6F SA;NRE180,ZRE181 6F +2 | — | |
| 89170-02K50 note |
Computer Assy, Airbag
2016-06 → 2019-01
ended
|
NRE180,ZRE181 6F D GEN +1 | — | |
| 89170-02K50 note |
Computer Assy, Airbag
2016-06 → 2019-01
ended
|
ZRE18# CVT D TUP | — | |
| 89170-02K60 note |
Computer Assy, Airbag
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 6F D TUP | — | |
| 89170-02K60 |
Computer Assy, Airbag
2016-06 → 2019-12
ended
|
NRE180 SAP;NRE180 N TUP;NDE180,ZRE18# +4 | — | |
| 89170-02K70 note |
Computer Assy, Airbag
2016-06 → 2019-01
ended
|
NRE180,ZRE181 6F D GEN +1 | — | |
| 89170-02K70 |
Computer Assy, Airbag
2016-06 → 2019-12
ended
|
ZRE18# CVT D | — | |
| 89170-02K70 note |
Computer Assy, Airbag
2016-06 → 2019-01
ended
|
ZRE18# CVT N TUP | — | |
| 89170-02K70 note |
Computer Assy, Airbag
2016-06 → 2019-01
ended
|
NRE180,ZRE181 6F N TUP | — | |
| 89170-02K80 note |
Computer Assy, Airbag
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 6F N TUP | — | |
| 89170-02K80 |
Computer Assy, Airbag
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE181 LHD 6F D | — | |
| 89170-02M30 |
Computer Assy, Airbag
2019-12 → —
|
ZRE182 D | — | |
| 89170-02M40 |
Computer Assy, Airbag
2019-12 → —
|
ZRE182 G,N | — | |
| 89170-02M40 note |
Computer Assy, Airbag
2019-12 → —
|
ZRE182 D | — | |
| 89173A — Sensor, Airbag, Front RH | ||||
| 89173-09A10 |
Sensor, Airbag, Front RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89173-09A10 |
Sensor, Airbag, Front RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 89173-09A10 |
Sensor, Airbag, Front RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 89173-09A10 |
Sensor, Airbag, Front RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 89173-09A10 |
Sensor, Airbag, Front RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 89173-09A10 |
Sensor, Airbag, Front RH
2019-12 → —
|
ZRE182 | — | |
| 89174A — Sensor, Airbag, Front LH | ||||
| 89173-09A10 |
Sensor, Airbag, Front LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89173-09A10 |
Sensor, Airbag, Front LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 89173-09A10 |
Sensor, Airbag, Front LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 89173-09A10 |
Sensor, Airbag, Front LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 89173-09A10 |
Sensor, Airbag, Front LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 89173-09A10 |
Sensor, Airbag, Front LH
2019-12 → —
|
ZRE182 | — | |
| 89833 — Sensor, Airbag, Rear RH | ||||
| 89831-02150 note |
Sensor, Airbag, Rear RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89831-02150 note |
Sensor, Airbag, Rear RH
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 89831-02150 note |
Sensor, Airbag, Rear RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 89831-02150 note |
Sensor, Airbag, Rear RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 89831-02150 note |
Sensor, Airbag, Rear RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 89831-02150 note |
Sensor, Airbag, Rear RH
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 89831-02150 note |
Sensor, Airbag, Rear RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 89834 — Sensor, Airbag, Rear LH | ||||
| 89831-02150 note |
Sensor, Airbag, Rear LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89831-02150 note |
Sensor, Airbag, Rear LH
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 89831-02150 note |
Sensor, Airbag, Rear LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 89831-02150 note |
Sensor, Airbag, Rear LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 89831-02150 note |
Sensor, Airbag, Rear LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 89831-02150 note |
Sensor, Airbag, Rear LH
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 89831-02150 note |
Sensor, Airbag, Rear LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 89860 — Sensor Assy, Side Airbag, RH | ||||
| 89831-02130 |
Sensor Assy, Side Airbag, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89831-02130 |
Sensor Assy, Side Airbag, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 89831-02130 |
Sensor Assy, Side Airbag, RH
2016-06 → 2019-12
ended
|
ZRE181 D SA;ZRE18# N +2 | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, RH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, RH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 89831-02130 |
Sensor Assy, Side Airbag, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 89831-02130 |
Sensor Assy, Side Airbag, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 89831-02130 |
Sensor Assy, Side Airbag, RH
2019-12 → —
|
ZRE182 G,N | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, RH
2019-12 → —
|
ZRE182 D | — | |
| 89860A — Sensor Assy, Side Airbag, LH | ||||
| 89831-02130 |
Sensor Assy, Side Airbag, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89831-02130 |
Sensor Assy, Side Airbag, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 89831-02130 |
Sensor Assy, Side Airbag, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 89831-02130 |
Sensor Assy, Side Airbag, LH
2016-06 → 2019-12
ended
|
ZRE181 D SA;ZRE18# N +2 | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 89831-02130 |
Sensor Assy, Side Airbag, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, LH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, LH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 89831-02130 |
Sensor Assy, Side Airbag, LH
2019-12 → —
|
ZRE182 G,N | — | |
| 89831-02130 note |
Sensor Assy, Side Airbag, LH
2019-12 → —
|
ZRE182 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
