Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

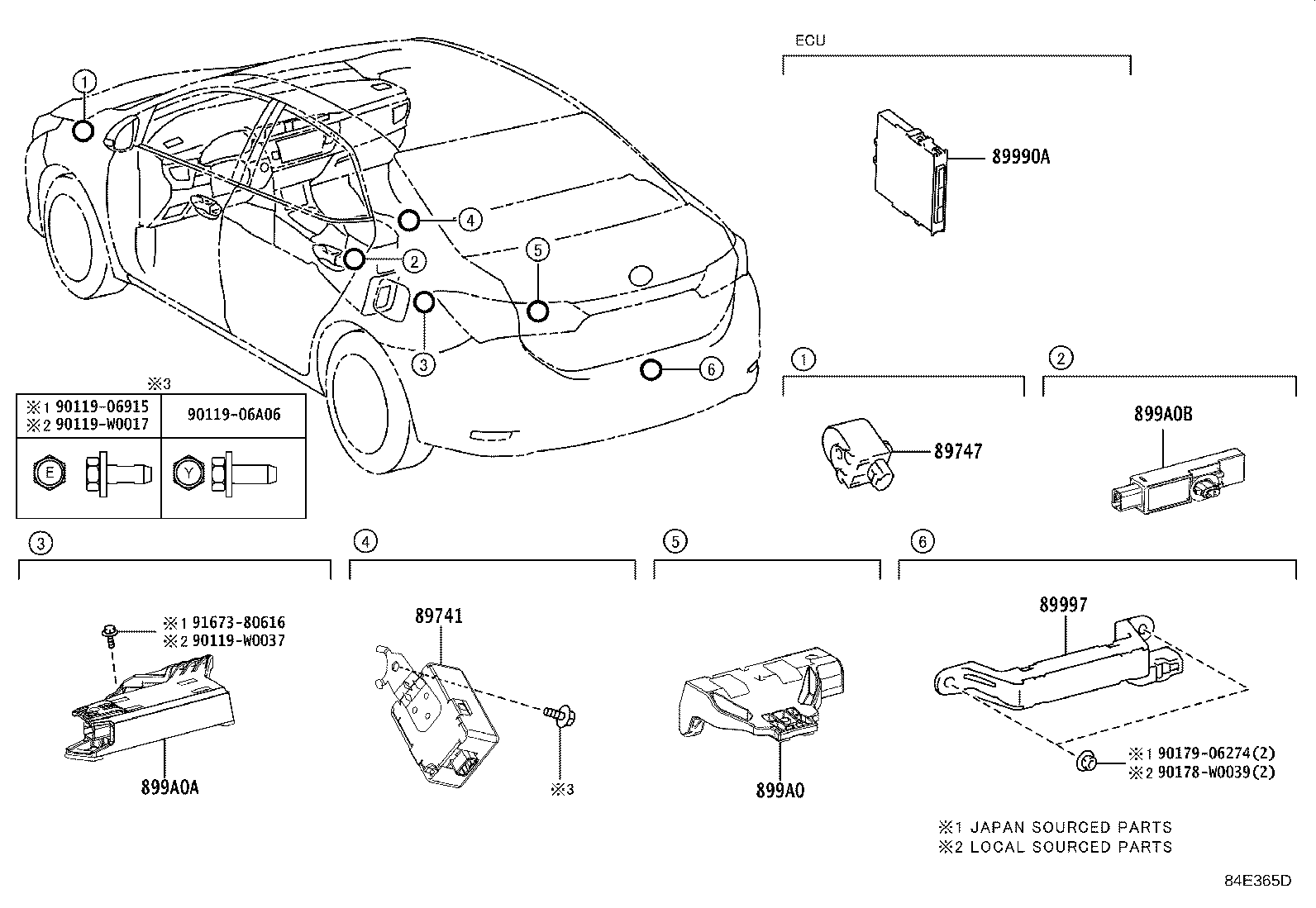

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89741 — Receiver, Door Control | ||||
| 89740-02130 note |
Receiver, Door Control
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 89740-02130 note |
Receiver, Door Control
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89740-02130 note |
Receiver, Door Control
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 89741-02260 |
Receiver, Door Control
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89741-02260 note |
Receiver, Door Control
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 89741-02260 note |
Receiver, Door Control
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 89741-02260 |
Receiver, Door Control
2013-06 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 89741-02260 note |
Receiver, Door Control
2013-06 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 89741-02260 note |
Receiver, Door Control
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 89741-02260 note |
Receiver, Door Control
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 89741-02270 |
Receiver, Door Control
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 89741-02270 note |
Receiver, Door Control
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89741-02270 note |
Receiver, Door Control
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89741-02270 note |
Receiver, Door Control
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89741-02270 note |
Receiver, Door Control
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89741-02270 note |
Receiver, Door Control
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89741-02270 note |
Receiver, Door Control
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89740-02130 note |
Receiver, Door Control
2016-06 → 2019-01
ended
|
ZRE18# N GCC | — | |
| 89740-02130 note |
Receiver, Door Control
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# N TUP | — | |
| 89740-02130 note |
Receiver, Door Control
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 89740-02130 note |
Receiver, Door Control
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89741-02260 note |
Receiver, Door Control
2016-06 → 2019-12
ended
|
ZRE182 LHD N;NDE180,NRE180,ZRE181 N +1 | — | |
| 89741-02260 note |
Receiver, Door Control
2017-01 → 2019-12
ended
|
ZRE181 N GEN SAP | — | |
| 89741-02260 note |
Receiver, Door Control
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 89741-02260 |
Receiver, Door Control
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# LHD | — | |
| 89741-02260 note |
Receiver, Door Control
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# N TUP | — | |
| 89741-02260 note |
Receiver, Door Control
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# N TUP | — | |
| 89741-02260 note |
Receiver, Door Control
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# N TUP | — | |
| 89741-02270 note |
Receiver, Door Control
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# TUP | — | |
| 89741-02270 |
Receiver, Door Control
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 89741-02270 note |
Receiver, Door Control
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89741-02270 note |
Receiver, Door Control
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89741-02270 note |
Receiver, Door Control
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89741-02270 note |
Receiver, Door Control
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# TUP | — | |
| 89740-02130 |
Receiver, Door Control
2019-12 → 2023-04
ended
|
ZRE182 G | — | |
| 89740-02130 note |
Receiver, Door Control
2021-01 → 2023-04
ended
|
ZRE182 (D,N) SA | — | |
| 89740-02131 |
Receiver, Door Control
2023-05 → —
|
ZRE182 G | — | |
| 89740-02131 note |
Receiver, Door Control
2023-05 → —
|
ZRE182 (D,N) SA | — | |
| 89741-02270 |
Receiver, Door Control
2019-12 → —
|
ZRE182 D,N | — | |
| 89741-02270 note |
Receiver, Door Control
2019-12 → 2024-11
ended
|
ZRE182 (D,N) SA | — | |
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-05010 note |
Buzzer, Wireless Door Lock
2013-06 → 2014-01
ended
|
NDE180 N | — | |
| 89747-05010 note |
Buzzer, Wireless Door Lock
2014-01 → 2016-05
ended
|
NDE180 N TUP | — | |
| 89747-05010 note |
Buzzer, Wireless Door Lock
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89747-05010 note |
Buzzer, Wireless Door Lock
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2014-01 → 2016-05
ended
|
NDE180 N TUP | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 89747-05010 note |
Buzzer, Wireless Door Lock
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 89747-05010 note |
Buzzer, Wireless Door Lock
2017-01 → 2019-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89747-05010 note |
Buzzer, Wireless Door Lock
2017-01 → 2019-01
ended
|
ZRE18# N GEN SAP | — | |
| 89747-05010 note |
Buzzer, Wireless Door Lock
2016-06 → 2019-01
ended
|
ZRE18# N GCC | — | |
| 89747-05010 note |
Buzzer, Wireless Door Lock
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2019-12 → —
|
ZRE182 G | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2021-01 → —
|
ZRE182 (D,N) SA | — | |
| 89990A — Computer Assy, Smart Key | ||||
| 89990-02240 note |
Computer Assy, Smart Key
2013-06 → 2014-01
ended
|
NDE180 N | — | |
| 89990-02240 note |
Computer Assy, Smart Key
2014-01 → 2014-02
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89990-02240 note |
Computer Assy, Smart Key
2014-01 → 2014-02
ended
|
ZRE18# N GEN | — | |
| 89990-02241 note |
Computer Assy, Smart Key
2014-02 → 2016-05
ended
|
NDE180 N TUP | — | |
| 89990-02241 note |
Computer Assy, Smart Key
2014-02 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89990-02241 note |
Computer Assy, Smart Key
2014-02 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 89990-02410 note |
Computer Assy, Smart Key
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89990-02410 note |
Computer Assy, Smart Key
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 89990-02410 note |
Computer Assy, Smart Key
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 89990-02410 note |
Computer Assy, Smart Key
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 89990-02410 |
Computer Assy, Smart Key
2019-12 → —
|
ZRE182 G | — | |
| 89990-02410 note |
Computer Assy, Smart Key
2021-01 → —
|
ZRE182 (D,N) SA | — | |
| 89997 — Antenna, Electrical Key | ||||
| 89997-30070 note |
Antenna, Electrical Key
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 89997-30070 note |
Antenna, Electrical Key
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89997-30070 note |
Antenna, Electrical Key
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 89997-30070 note |
Antenna, Electrical Key
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 89997-30070 note |
Antenna, Electrical Key
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 89997-30070 note |
Antenna, Electrical Key
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 89997-30070 note |
Antenna, Electrical Key
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 89997-30070 note |
Antenna, Electrical Key
2021-01 → —
|
ZRE182 (D,N) SA | — | |
| 89997-30070 |
Antenna, Electrical Key
2019-12 → —
|
ZRE182 G | — | |
| 899A0 — Antenna Assy, Indoor Electrical Key, NO.1 | ||||
| 899A0-02030 note |
Antenna Assy, Indoor Electrical Key, NO.1
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 899A0-02030 note |
Antenna Assy, Indoor Electrical Key, NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 899A0-02030 note |
Antenna Assy, Indoor Electrical Key, NO.1
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 899A0-02030 note |
Antenna Assy, Indoor Electrical Key, NO.1
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 899A0-02030 note |
Antenna Assy, Indoor Electrical Key, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 899A0-02030 note |
Antenna Assy, Indoor Electrical Key, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 899A0-02030 note |
Antenna Assy, Indoor Electrical Key, NO.1
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 899A0-02030 |
Antenna Assy, Indoor Electrical Key, NO.1
2019-12 → —
|
ZRE182 G | — | |
| 899A0-02030 note |
Antenna Assy, Indoor Electrical Key, NO.1
2021-01 → —
|
ZRE182 (D,N) SA | — | |
| 899A0A — Antenna Assy, Indoor Electrical Key, NO.2 | ||||
| 899A0-02020 note |
Antenna Assy, Indoor Electrical Key, NO.2
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 899A0-02020 note |
Antenna Assy, Indoor Electrical Key, NO.2
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 899A0-02020 note |
Antenna Assy, Indoor Electrical Key, NO.2
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 899A0-02020 note |
Antenna Assy, Indoor Electrical Key, NO.2
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 899A0-02020 note |
Antenna Assy, Indoor Electrical Key, NO.2
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 899A0-02020 note |
Antenna Assy, Indoor Electrical Key, NO.2
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 899A0-02020 note |
Antenna Assy, Indoor Electrical Key, NO.2
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 899A0-02020 |
Antenna Assy, Indoor Electrical Key, NO.2
2019-12 → —
|
ZRE182 G | — | |
| 899A0-02020 note |
Antenna Assy, Indoor Electrical Key, NO.2
2021-01 → —
|
ZRE182 (D,N) SA | — | |
| 899A0B — Antenna Assy, Indoor Electrical Key, NO.3 | ||||
| 899A0-0F040 note |
Antenna Assy, Indoor Electrical Key, NO.3
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 899A0-0F040 note |
Antenna Assy, Indoor Electrical Key, NO.3
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 899A0-0F040 note |
Antenna Assy, Indoor Electrical Key, NO.3
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 899A0-0F040 note |
Antenna Assy, Indoor Electrical Key, NO.3
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 899A0-0F040 note |
Antenna Assy, Indoor Electrical Key, NO.3
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 899A0-0F040 note |
Antenna Assy, Indoor Electrical Key, NO.3
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 899A0-0F040 note |
Antenna Assy, Indoor Electrical Key, NO.3
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 899A0-0F040 |
Antenna Assy, Indoor Electrical Key, NO.3
2019-12 → —
|
ZRE182 G | — | |
| 899A0-0F040 note |
Antenna Assy, Indoor Electrical Key, NO.3
2021-01 → —
|
ZRE182 (D,N) SA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
