Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

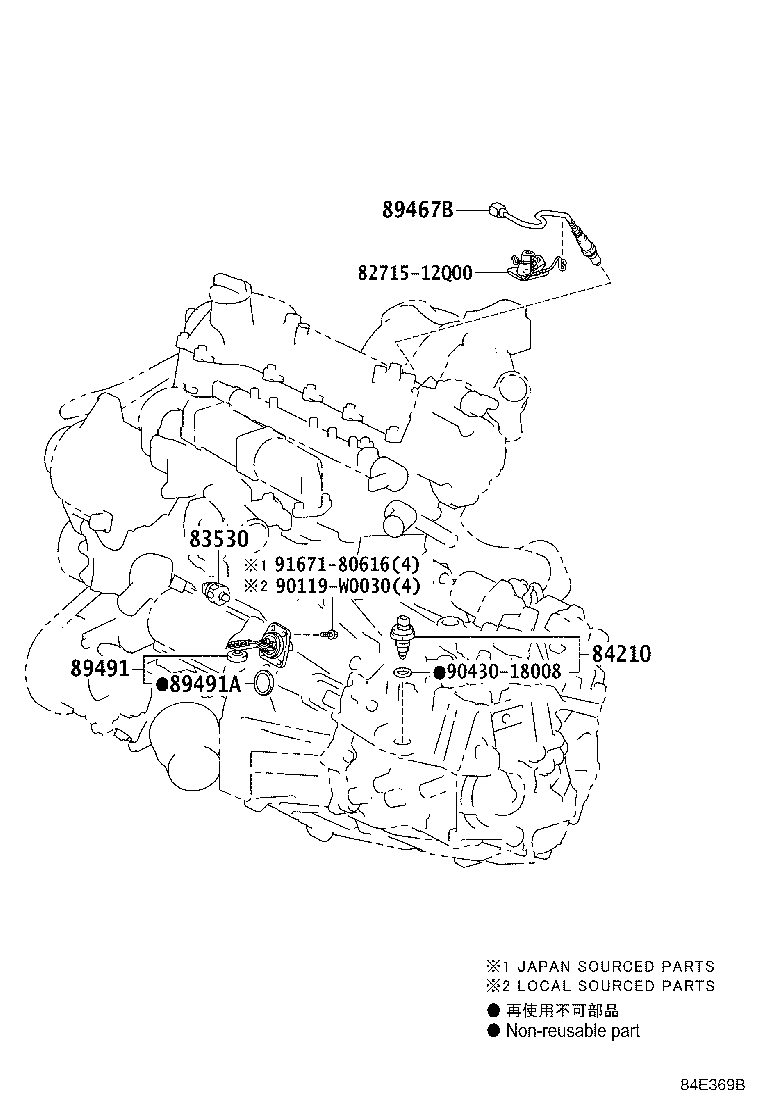

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-05010 |
Switch Assy, Oil Pressure (FOR ENGINE)
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 83530-05010 |
Switch Assy, Oil Pressure (FOR ENGINE)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 83530-05010 |
Switch Assy, Oil Pressure (FOR ENGINE)
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 83530-05010 |
Switch Assy, Oil Pressure (FOR ENGINE)
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 83530-05010 |
Switch Assy, Oil Pressure (FOR ENGINE)
2019-12 → —
|
ZRE182 | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-52050 |
Switch Assy, Back-up Lamp
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 84210-52050 |
Switch Assy, Back-up Lamp
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# 6F SAP | — | |
| 84210-52050 |
Switch Assy, Back-up Lamp
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 84210-52050 |
Switch Assy, Back-up Lamp
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F TUP | — | |
| 84210-52050 |
Switch Assy, Back-up Lamp
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# 6F SAP | — | |
| 84210-52050 |
Switch Assy, Back-up Lamp
2019-12 → —
|
ZRE182 6F | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-02080 note |
Sensor, Air Fuel Ratio
2013-06 → 2015-05
ended
|
NDE180 | — | |
| 89467-02080 |
Sensor, Air Fuel Ratio
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 89467-02080 |
Sensor, Air Fuel Ratio
2015-05 → 2017-01
ended
|
NDE180 SAP | — | |
| 89467-12130 note |
Sensor, Air Fuel Ratio
2013-06 → 2015-05
ended
|
NDE180 | — | |
| 89467-52060 |
Sensor, Air Fuel Ratio
2014-01 → 2017-01
ended
|
ZRE18# SAP | — | |
| 89467-52110 |
Sensor, Air Fuel Ratio
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 89467-02080 |
Sensor, Air Fuel Ratio
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 89467-02080 |
Sensor, Air Fuel Ratio
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
| 89467-52060 |
Sensor, Air Fuel Ratio
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 89467-52060 |
Sensor, Air Fuel Ratio
2016-06 → 2019-12
ended
|
ZRE18# SAP | — | |
| 89467-52110 |
Sensor, Air Fuel Ratio
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 89467-52110 |
Sensor, Air Fuel Ratio
2016-06 → 2019-12
ended
|
NRE180 SAP | — | |
| 89467-52060 |
Sensor, Air Fuel Ratio
2019-12 → —
|
ZRE182 | — | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-52031 |
Sensor, Engine Oil Level
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 89491-52031 |
Sensor, Engine Oil Level
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 89491-52031 |
Sensor, Engine Oil Level
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 89491-52031 |
Sensor, Engine Oil Level
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
| 89491A — Gasket, Engine Oil Level Sensor | ||||
| 90430-36005 |
Gasket, Engine Oil Level Sensor
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90430-36005 |
Gasket, Engine Oil Level Sensor
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 90430-36005 |
Gasket, Engine Oil Level Sensor
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 90430-36005 |
Gasket, Engine Oil Level Sensor
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
