Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

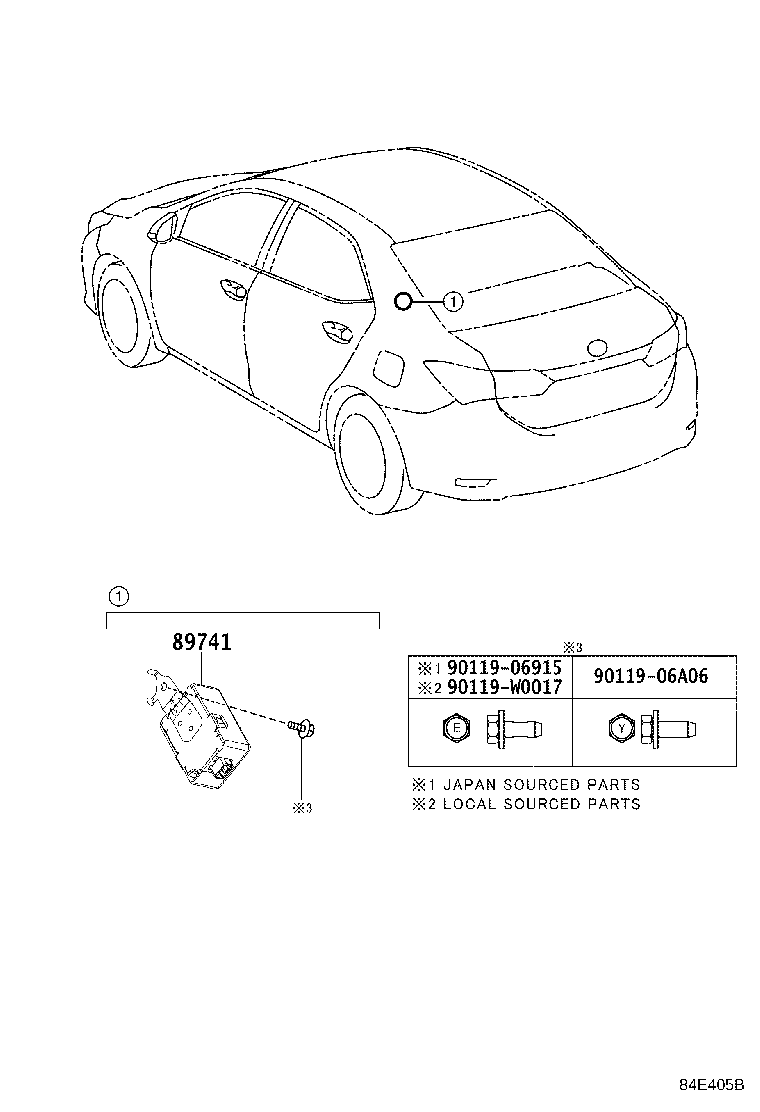

Exploded illustration 84E405B 9011906915 — not listed in this catalogue 90119W0017 — not listed in this catalogue 89741 — RECEIVER, DOOR CONTROL (40 parts) 9011906A06 — not listed in this catalogue
84E405B · 1 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
89741 — Receiver, Door Control
89740-02130 note Receiver, Door Control
2013-06 → 2016-05 ended
NDE180 N TUP —
89740-02130 note Receiver, Door Control
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
89740-02130 note Receiver, Door Control
2014-01 → 2017-01 ended
ZRE18# N GEN SAP —
89741-02260 Receiver, Door Control
2013-06 → 2016-05 ended
NDE180 TUP —
89741-02260 note Receiver, Door Control
2013-06 → 2016-05 ended
NDE180 N TUP —
89741-02260 note Receiver, Door Control
2013-06 → 2016-05 ended
NDE180 N TUP —
89741-02260 Receiver, Door Control
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
89741-02260 note Receiver, Door Control
2013-06 → 2017-01 ended
ZRE18# N GEN SAP —
89741-02260 note Receiver, Door Control
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE181 D SA —
89741-02260 note Receiver, Door Control
2014-01 → 2017-01 ended
ZRE18# N GEN SAP —
89741-02270 Receiver, Door Control
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
89741-02270 note Receiver, Door Control
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
89741-02270 note Receiver, Door Control
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
89741-02270 note Receiver, Door Control
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
89741-02270 note Receiver, Door Control
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
89741-02270 note Receiver, Door Control
2013-06 → 2016-05 ended
NDE180 TUP —
89741-02270 note Receiver, Door Control
2013-06 → 2016-05 ended
NDE180 TUP —
89740-02130 note Receiver, Door Control
2016-06 → 2019-01 ended
ZRE18# N GCC —
89740-02130 note Receiver, Door Control
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# N TUP —
89740-02130 note Receiver, Door Control
2017-01 → 2019-12 ended
ZRE18# N GEN SAP —
89740-02130 note Receiver, Door Control
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SA —
89741-02260 note Receiver, Door Control
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# N TUP —
89741-02260 note Receiver, Door Control
2017-01 → 2019-12 ended
ZRE181 N GEN SAP —
89741-02260 note Receiver, Door Control
2017-01 → 2019-12 ended
ZRE18# N GEN SAP —
89741-02260 note Receiver, Door Control
2016-06 → 2019-12 ended
ZRE182 LHD N;NDE180,NRE180,ZRE181 N +1 —
89741-02260 Receiver, Door Control
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# LHD —
89741-02260 note Receiver, Door Control
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# N TUP —
89741-02260 note Receiver, Door Control
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# N TUP —
89741-02270 note Receiver, Door Control
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# TUP —
89741-02270 note Receiver, Door Control
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# TUP —
89741-02270 Receiver, Door Control
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
89741-02270 note Receiver, Door Control
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SA —
89741-02270 note Receiver, Door Control
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SA —
89741-02270 note Receiver, Door Control
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SA —
89740-02130 Receiver, Door Control
2019-12 → 2023-04 ended
ZRE182 G —
89740-02130 note Receiver, Door Control
2021-01 → 2023-04 ended
ZRE182 (D,N) SA —
89740-02131 Receiver, Door Control
2023-05 → —
ZRE182 G —
89740-02131 note Receiver, Door Control
2023-05 → —
ZRE182 (D,N) SA —
89741-02270 note Receiver, Door Control
2019-12 → 2024-11 ended
ZRE182 (D,N) SA —
89741-02270 Receiver, Door Control
2019-12 → —
ZRE182 D,N —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
