Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

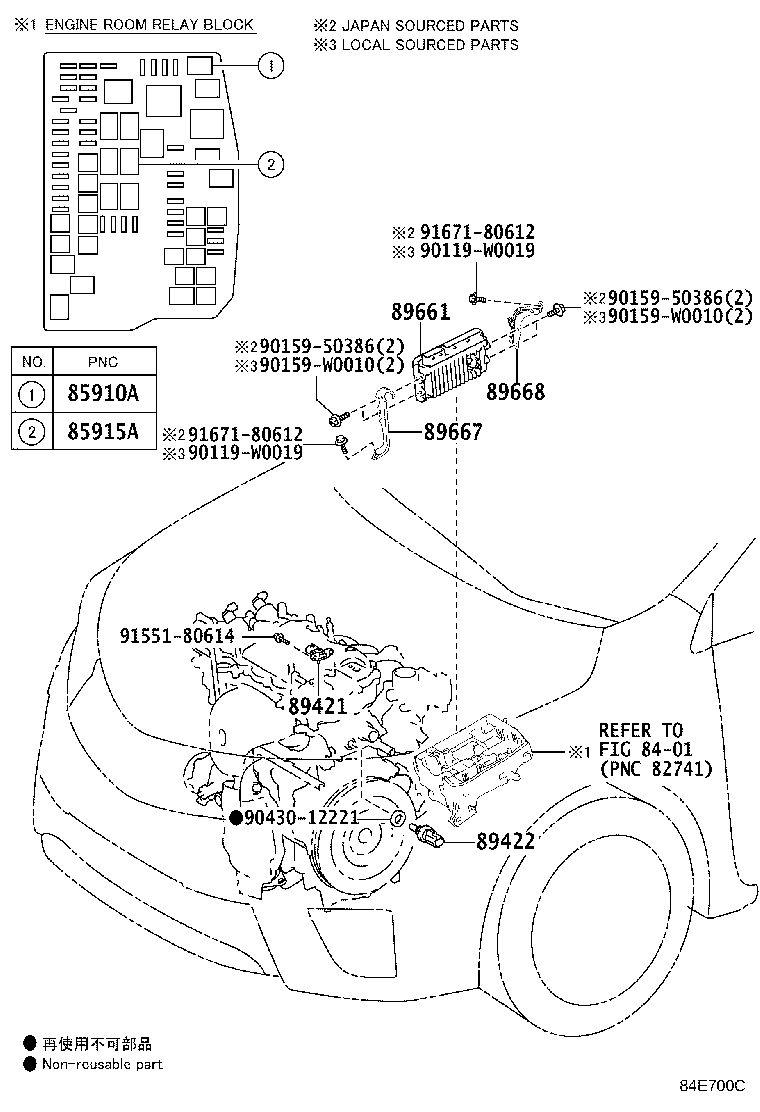

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85910A — Relay Assy, Circuit Opening (FOR EFI) | ||||
| 90080-87021 |
Relay Assy, Circuit Opening (FOR EFI)
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 90080-87021 |
Relay Assy, Circuit Opening (FOR EFI)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90080-87021 |
Relay Assy, Circuit Opening (FOR EFI)
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 90080-87021 |
Relay Assy, Circuit Opening (FOR EFI)
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 90080-87021 |
Relay Assy, Circuit Opening (FOR EFI)
2019-12 → 2021-08
ended
|
ZRE182 | — | |
| 90987-02027 |
Relay Assy, Circuit Opening (FOR EFI)
2021-08 → —
|
ZRE182 | — | |
| 85915A — Relay, Main | ||||
| 90080-87021 |
Relay, Main
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 90080-87021 |
Relay, Main
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90080-87021 |
Relay, Main
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 90080-87021 |
Relay, Main
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 90080-87021 |
Relay, Main
2019-12 → 2021-08
ended
|
ZRE182 | — | |
| 90987-02027 |
Relay, Main
2021-08 → —
|
ZRE182 | — | |
| 89421 — Sensor Assy, Vacuum (FOR E.F.I.) | ||||
| 89421-26030 |
Sensor Assy, Vacuum (FOR E.F.I.)
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 89421-26030 |
Sensor Assy, Vacuum (FOR E.F.I.)
2016-06 → 2019-12
ended
|
NRE180 SAP | — | |
| 89421-26030 |
Sensor Assy, Vacuum (FOR E.F.I.)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 89422 — Sensor, Water Temperature (FOR E.F.I.) | ||||
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2019-12 → —
|
ZRE182 | — | |
| 89661 — Computer, Engine Control | ||||
| 89661-0ZC10 |
Computer, Engine Control
2014-01 → 2017-01
ended
|
ZRE181 6F SAP | — | |
| 89661-0ZC40 |
Computer, Engine Control
2014-01 → 2014-05
ended
|
ZRE181 CVT | — | |
| 89661-0ZC41 |
Computer, Engine Control
2014-06 → 2017-01
ended
|
ZRE181 CVT SAP | — | |
| 89661-0ZC60 |
Computer, Engine Control
2014-01 → 2015-06
ended
|
ZRE182 6F | — | |
| 89661-0ZC61 |
Computer, Engine Control
2015-07 → 2017-01
ended
|
ZRE182 6F | — | |
| 89661-0ZC80 |
Computer, Engine Control
2014-01 → 2014-05
ended
|
ZRE182 CVT | — | |
| 89661-0ZC81 |
Computer, Engine Control
2014-06 → 2015-06
ended
|
ZRE182 CVT | — | |
| 89661-0ZC82 |
Computer, Engine Control
2015-07 → 2017-01
ended
|
ZRE182 CVT SAP | — | |
| 89661-0ZD10 |
Computer, Engine Control
2014-01 → 2015-05
ended
|
NRE180 | — | |
| 89661-0ZN80 |
Computer, Engine Control
2015-05 → 2017-01
ended
|
NRE180 SAP | — | |
| 89661-0ZC41 |
Computer, Engine Control
2017-01 → 2019-12
ended
|
ZRE181 CVT SAP | — | |
| 89661-0ZC82 |
Computer, Engine Control
2017-01 → 2019-12
ended
|
ZRE182 CVT SAP | — | |
| 89661-0ZM50 note |
Computer, Engine Control
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 89661-0ZM60 |
Computer, Engine Control
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 89661-0ZN80 |
Computer, Engine Control
2017-01 → 2019-12
ended
|
NRE180 SAP | — | |
| 89661-0ZP80 note |
Computer, Engine Control
2016-06 → 2019-01
ended
|
ZRE181 6F GEN TUP | — | |
| 89661-0ZP90 |
Computer, Engine Control
2016-06 → 2019-01
ended
|
ZRE181 6F TUP | — | |
| 89661-0ZQ00 note |
Computer, Engine Control
2016-06 → 2019-01
ended
|
ZRE181 CVT GEN TUP | — | |
| 89661-0ZQ10 |
Computer, Engine Control
2016-06 → 2019-01
ended
|
ZRE181 CVT TUP | — | |
| 89661-0ZQ20 note |
Computer, Engine Control
2016-06 → 2019-01
ended
|
ZRE182 N GEN TUP | — | |
| 89661-0ZQ30 |
Computer, Engine Control
2016-06 → 2019-01
ended
|
ZRE182 TUP | — | |
| 89661-0ZW30 |
Computer, Engine Control
2017-01 → 2019-12
ended
|
ZRE181 6F SAP | — | |
| 89661-0ZW40 |
Computer, Engine Control
2017-01 → 2019-12
ended
|
ZRE182 6F | — | |
| 89661-0ZC82 note |
Computer, Engine Control
2019-12 → 2020-06
ended
|
ZRE182 CVT | — | |
| 89661-0ZW40 note |
Computer, Engine Control
2019-12 → 2020-06
ended
|
ZRE182 6F | — | |
| 89661-0ZZ90 note |
Computer, Engine Control
2020-07 → —
|
ZRE182 6F | — | |
| 89666-02370 note |
Computer, Engine Control
2020-07 → —
|
ZRE182 CVT | — | |
| 89666-02380 note |
Computer, Engine Control
2020-07 → —
|
ZRE182 6F | — | |
| 89666-02390 note |
Computer, Engine Control
2020-07 → —
|
ZRE182 CVT | — | |
| 89667 — Bracket, Engine Control Computer | ||||
| 89667-02300 |
Bracket, Engine Control Computer
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 89667-02300 |
Bracket, Engine Control Computer
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 89667-02300 |
Bracket, Engine Control Computer
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 89667-02300 |
Bracket, Engine Control Computer
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 89667-02300 |
Bracket, Engine Control Computer
2019-12 → —
|
ZRE182 | — | |
| 89668 — Bracket, Engine Control Computer, NO.2 | ||||
| 89668-02280 |
Bracket, Engine Control Computer, NO.2
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 89668-02280 |
Bracket, Engine Control Computer, NO.2
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 89668-02280 |
Bracket, Engine Control Computer, NO.2
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 89668-02280 |
Bracket, Engine Control Computer, NO.2
2016-06 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 89668-02280 |
Bracket, Engine Control Computer, NO.2
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
