Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

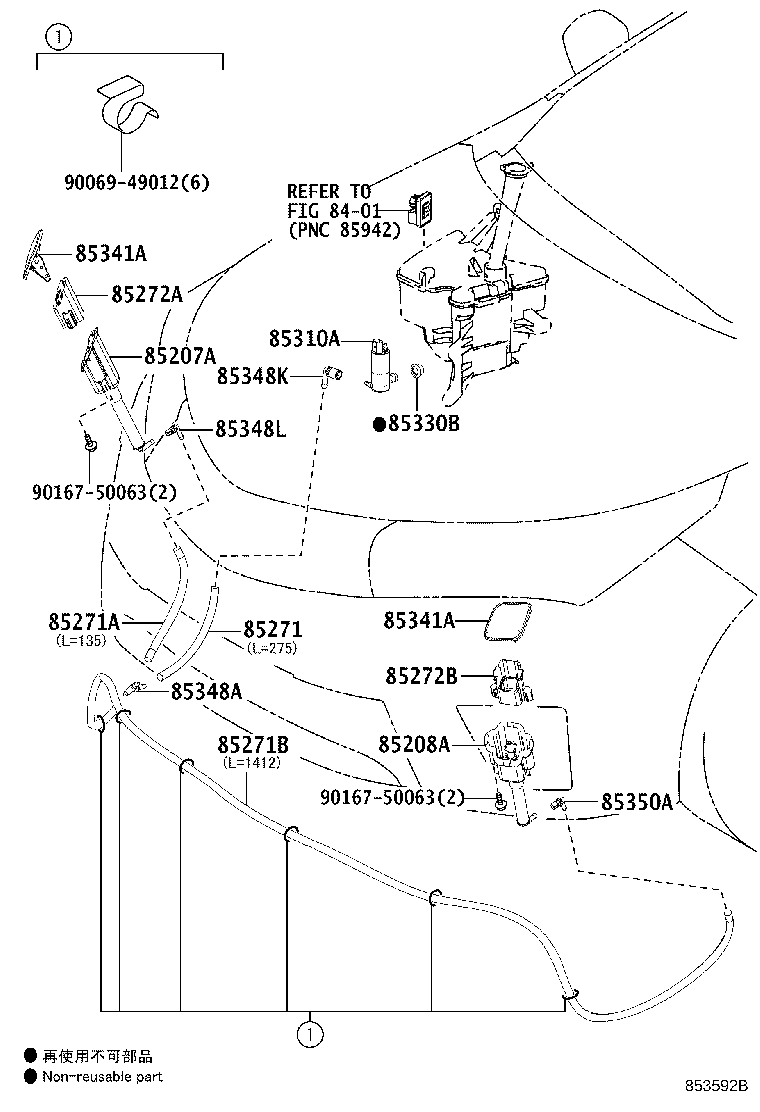

Exploded illustration 853592B 85341A — COVER,HEADLAMP CLEANER WASHER NOZZLE (8 parts) 85341A — COVER,HEADLAMP CLEANER WASHER NOZZLE (8 parts) 85207A — ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH (4 parts) 85208A — ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH (4 parts) 85272A — CLAMP, HEADLAMP CLEANER, NO.1 (4 parts) 85271B — HOSE, HEADLAMP CLEANER, NO.3 (4 parts) 85271A — HOSE, HEADLAMP CLEANER, NO.2 (4 parts) 85271 — HOSE, HEADLAMP CLEANER, NO.1 (4 parts) 85272B — CLAMP, HEADLAMP CLEANER, NO.2 (4 parts) 85310A — MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER (13 parts) 85348K — JOINT, HEADLAMP CLEANER ELBOW, NO.1 (4 parts) 85348L — JOINT, HEADLAMP CLEANER ELBOW, NO.2 (4 parts) 85348A — JOINT, HEADLAMP CLEANER HOSE, NO.1 (4 parts) 85350A — JOINT, HEADLAMP CLEANER ELBOW, NO.3 (4 parts) 85330B — BUSH, HEADLAMP CLEANER WASHER JAR (13 parts) 9016750063 — not listed in this catalogue 9006949012 — not listed in this catalogue 8401 — not listed in this catalogue 9016750063 — not listed in this catalogue
853592B · 15 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
78 parts on this figure
Part number Description Fitment Price
85207A — Actuator Sub-assy, Headlamp Washer, RH
85207-02140 note Actuator Sub-assy, Headlamp Washer, RH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85207-02140 note Actuator Sub-assy, Headlamp Washer, RH
2013-06 → 2016-05 ended
NDE180 TUP —
85207-02180 note Actuator Sub-assy, Headlamp Washer, RH
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85207-02180 note Actuator Sub-assy, Headlamp Washer, RH
2016-06 → 2018-08 ended
NRE180 N TUP —
85208A — Actuator Sub-assy, Headlamp Washer, LH
85208-02140 note Actuator Sub-assy, Headlamp Washer, LH
2013-06 → 2016-05 ended
NDE180 TUP —
85208-02140 note Actuator Sub-assy, Headlamp Washer, LH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85208-02180 note Actuator Sub-assy, Headlamp Washer, LH
2016-06 → 2018-08 ended
NRE180 N TUP —
85208-02180 note Actuator Sub-assy, Headlamp Washer, LH
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85271 — Hose, Headlamp Cleaner, NO.1
85271-0W050 note Hose, Headlamp Cleaner, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
85271-0W050 note Hose, Headlamp Cleaner, NO.1
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85271-0W050 note Hose, Headlamp Cleaner, NO.1
2016-06 → 2018-08 ended
NRE180 N TUP —
85271-0W050 note Hose, Headlamp Cleaner, NO.1
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85271A — Hose, Headlamp Cleaner, NO.2
85271-0W050 note Hose, Headlamp Cleaner, NO.2
2013-06 → 2016-05 ended
NDE180 TUP —
85271-0W050 note Hose, Headlamp Cleaner, NO.2
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85271-0W050 note Hose, Headlamp Cleaner, NO.2
2016-06 → 2018-08 ended
NRE180 N TUP —
85271-0W050 note Hose, Headlamp Cleaner, NO.2
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85271B — Hose, Headlamp Cleaner, NO.3
85271-0W060 note Hose, Headlamp Cleaner, NO.3
2013-06 → 2016-05 ended
NDE180 TUP —
85271-0W060 note Hose, Headlamp Cleaner, NO.3
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85271-0W060 note Hose, Headlamp Cleaner, NO.3
2016-06 → 2018-08 ended
NRE180 N TUP —
85271-0W060 note Hose, Headlamp Cleaner, NO.3
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85272A — Clamp, Headlamp Cleaner, NO.1
85272-02080 note Clamp, Headlamp Cleaner, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
85272-02080 note Clamp, Headlamp Cleaner, NO.1
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85272-02100 note Clamp, Headlamp Cleaner, NO.1
2016-06 → 2018-08 ended
NRE180 N TUP —
85272-02100 note Clamp, Headlamp Cleaner, NO.1
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85272B — Clamp, Headlamp Cleaner, NO.2
85273-02080 note Clamp, Headlamp Cleaner, NO.2
2013-06 → 2016-05 ended
NDE180 TUP —
85273-02080 note Clamp, Headlamp Cleaner, NO.2
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85273-02100 note Clamp, Headlamp Cleaner, NO.2
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85273-02100 note Clamp, Headlamp Cleaner, NO.2
2016-06 → 2018-08 ended
NRE180 N TUP —
85310A — Motor And Pump Assy, Headlamp Cleaner Washer
85280-05050 note Motor And Pump Assy, Headlamp Cleaner Washer
2013-06 → 2016-05 ended
NDE180 TUP —
85280-05050 note Motor And Pump Assy, Headlamp Cleaner Washer
2013-06 → 2016-05 ended
NDE180 TUP —
85280-05050 note Motor And Pump Assy, Headlamp Cleaner Washer
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85280-05050 note Motor And Pump Assy, Headlamp Cleaner Washer
2016-11 → 2019-01 ended
NDE180 TUP —
85280-05050 note Motor And Pump Assy, Headlamp Cleaner Washer
2016-11 → 2019-01 ended
NDE180 TUP —
85280-05050 note Motor And Pump Assy, Headlamp Cleaner Washer
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85280-05050 note Motor And Pump Assy, Headlamp Cleaner Washer
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85280-05050 note Motor And Pump Assy, Headlamp Cleaner Washer
2016-06 → 2019-01 ended
ZRE18# N GEN TUP —
85280-05050 note Motor And Pump Assy, Headlamp Cleaner Washer
2016-06 → 2018-08 ended
NRE180 N TUP —
85280-05050 note Motor And Pump Assy, Headlamp Cleaner Washer
2016-06 → 2019-01 ended
ZRE18# N GEN TUP —
85280-05050 note Motor And Pump Assy, Headlamp Cleaner Washer
2016-06 → 2018-08 ended
NRE180 N TUP —
85280-05050 note Motor And Pump Assy, Headlamp Cleaner Washer
2016-06 → 2018-08 ended
NRE180 N TUP —
85280-05050 note Motor And Pump Assy, Headlamp Cleaner Washer
2016-06 → 2018-08 ended
NRE180 N TUP —
85330B — Bush, Headlamp Cleaner Washer Jar
90069-20005 note Bush, Headlamp Cleaner Washer Jar
2013-06 → 2016-05 ended
NDE180 TUP —
90069-20005 note Bush, Headlamp Cleaner Washer Jar
2013-06 → 2016-05 ended
NDE180 TUP —
90069-20005 note Bush, Headlamp Cleaner Washer Jar
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
90069-20005 note Bush, Headlamp Cleaner Washer Jar
2016-06 → 2019-01 ended
ZRE18# N GEN TUP —
90069-20005 note Bush, Headlamp Cleaner Washer Jar
2016-11 → 2019-01 ended
NDE180 TUP —
90069-20005 note Bush, Headlamp Cleaner Washer Jar
2016-11 → 2019-01 ended
NDE180 TUP —
90069-20005 note Bush, Headlamp Cleaner Washer Jar
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
90069-20005 note Bush, Headlamp Cleaner Washer Jar
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
90069-20005 note Bush, Headlamp Cleaner Washer Jar
2016-06 → 2019-01 ended
ZRE18# N GEN TUP —
90069-20005 note Bush, Headlamp Cleaner Washer Jar
2016-06 → 2018-08 ended
NRE180 N TUP —
90069-20005 note Bush, Headlamp Cleaner Washer Jar
2016-06 → 2018-08 ended
NRE180 N TUP —
90069-20005 note Bush, Headlamp Cleaner Washer Jar
2016-06 → 2018-08 ended
NRE180 N TUP —
90069-20005 note Bush, Headlamp Cleaner Washer Jar
2016-06 → 2018-08 ended
NRE180 N TUP —
85341A — Cover,Headlamp Cleaner Washer Nozzle
85353-02904 note Cover,Headlamp Cleaner Washer Nozzle
2013-06 → 2016-05 ended
NDE180 TUP —
85353-02905 note Cover,Headlamp Cleaner Washer Nozzle
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85354-02904 note Cover,Headlamp Cleaner Washer Nozzle
2013-06 → 2016-05 ended
NDE180 TUP —
85354-02905 note Cover,Headlamp Cleaner Washer Nozzle
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85353-02906 note Cover,Headlamp Cleaner Washer Nozzle
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85353-02906 note Cover,Headlamp Cleaner Washer Nozzle
2016-06 → 2018-08 ended
NRE180 N TUP —
85354-02906 note Cover,Headlamp Cleaner Washer Nozzle
2016-06 → 2018-08 ended
NRE180 N TUP —
85354-02906 note Cover,Headlamp Cleaner Washer Nozzle
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85348A — Joint, Headlamp Cleaner Hose, NO.1
85287-05110 note Joint, Headlamp Cleaner Hose, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
85287-05110 note Joint, Headlamp Cleaner Hose, NO.1
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85378-0H110 note Joint, Headlamp Cleaner Hose, NO.1
2016-06 → 2018-08 ended
NRE180 N TUP —
85378-0H110 note Joint, Headlamp Cleaner Hose, NO.1
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85348K — Joint, Headlamp Cleaner Elbow, NO.1
85278-05110 note Joint, Headlamp Cleaner Elbow, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
85278-05110 note Joint, Headlamp Cleaner Elbow, NO.1
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85279-05110 note Joint, Headlamp Cleaner Elbow, NO.1
2016-06 → 2018-08 ended
NRE180 N TUP —
85279-05110 note Joint, Headlamp Cleaner Elbow, NO.1
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85348L — Joint, Headlamp Cleaner Elbow, NO.2
85278-05110 note Joint, Headlamp Cleaner Elbow, NO.2
2013-06 → 2016-05 ended
NDE180 TUP —
85278-05110 note Joint, Headlamp Cleaner Elbow, NO.2
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85278-05110 note Joint, Headlamp Cleaner Elbow, NO.2
2016-06 → 2018-08 ended
NRE180 N TUP —
85278-05110 note Joint, Headlamp Cleaner Elbow, NO.2
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
85350A — Joint, Headlamp Cleaner Elbow, NO.3
85278-05110 note Joint, Headlamp Cleaner Elbow, NO.3
2013-06 → 2016-05 ended
NDE180 TUP —
85278-05110 note Joint, Headlamp Cleaner Elbow, NO.3
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
85278-05110 note Joint, Headlamp Cleaner Elbow, NO.3
2016-06 → 2018-08 ended
NRE180 N TUP —
85278-05110 note Joint, Headlamp Cleaner Elbow, NO.3
2016-06 → 2019-01 ended
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
