Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

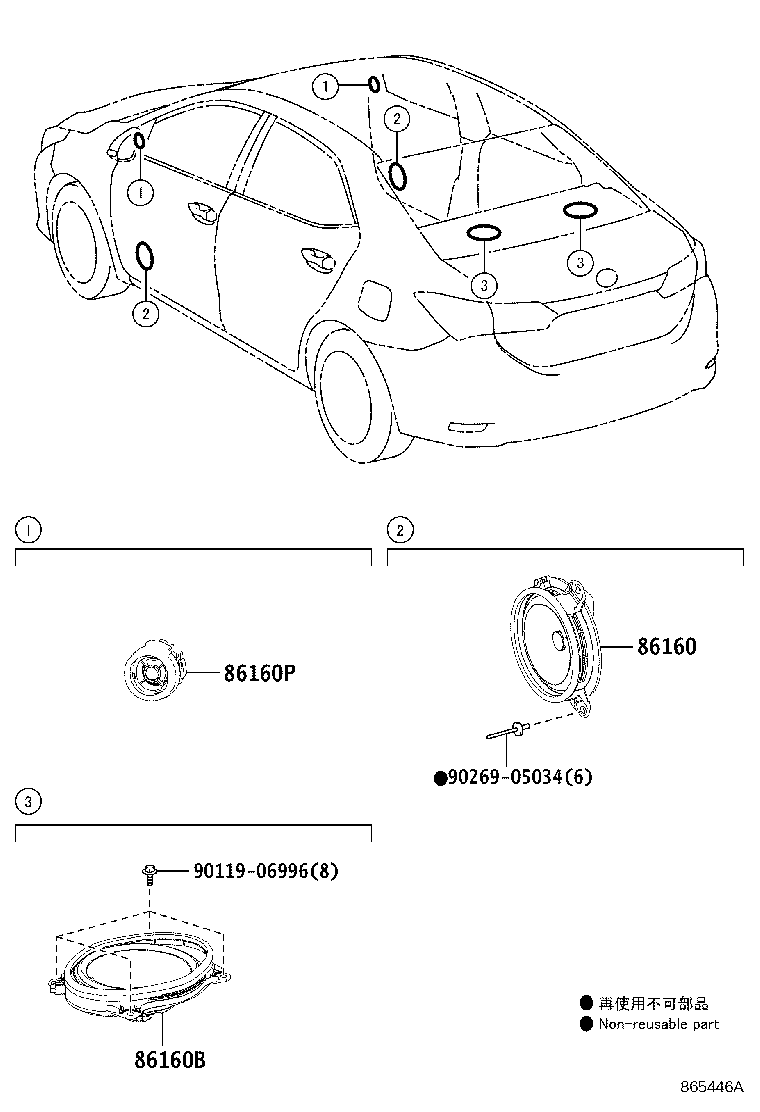

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-0D370 |
Speaker Assy, Front NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 86160-0D370 |
Speaker Assy, Front NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 86160-0D370 |
Speaker Assy, Front NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 86160-0D370 |
Speaker Assy, Front NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 86160-0D370 |
Speaker Assy, Front NO.1
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 86160-0D370 |
Speaker Assy, Front NO.1
2019-12 → —
|
ZRE182 | — | |
| 86160B — Speaker Assy, Rear | ||||
| 86160-02A60 |
Speaker Assy, Rear
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 86160-02A60 note |
Speaker Assy, Rear
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 86160-02A60 |
Speaker Assy, Rear
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 86160-02A60 |
Speaker Assy, Rear
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 86160-02A60 |
Speaker Assy, Rear
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 86160-02A60 |
Speaker Assy, Rear
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 86160-02C80 |
Speaker Assy, Rear
2019-12 → —
|
ZRE182 | — | |
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86160-02A40 |
Speaker Assy, Front NO.2
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 86160-02A40 note |
Speaker Assy, Front NO.2
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 86160-02A40 |
Speaker Assy, Front NO.2
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 86160-02A40 note |
Speaker Assy, Front NO.2
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 86160-02A40 note |
Speaker Assy, Front NO.2
2014-01 → 2017-01
ended
|
ZRE18# D GEN SAP | — | |
| 86160-02A40 |
Speaker Assy, Front NO.2
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 86160-02A40 |
Speaker Assy, Front NO.2
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 86160-02A40 note |
Speaker Assy, Front NO.2
2016-06 → 2019-01
ended
|
NDE180,ZRE181 D GEN TUP | — | |
| 86160-02A40 |
Speaker Assy, Front NO.2
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 86160-02A40 note |
Speaker Assy, Front NO.2
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 86160-02A40 note |
Speaker Assy, Front NO.2
2017-01 → 2019-12
ended
|
ZRE18# D GEN SAP | — | |
| 86160-02A40 |
Speaker Assy, Front NO.2
2019-12 → —
|
ZRE182 G,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
