Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

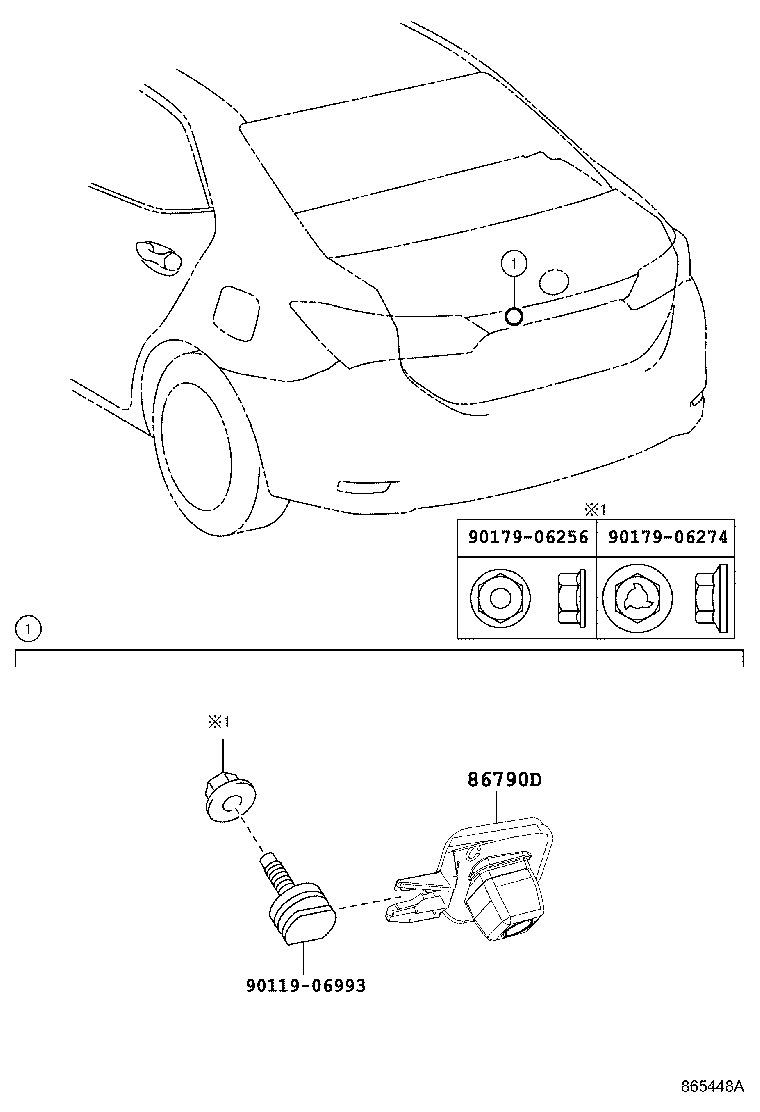

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86790D — Camera Assy, Television, RR | ||||
| 86790-02070 note |
Camera Assy, Television, RR
2013-06 → 2014-06
ended
|
NDE180 N TUP | — | |
| 86790-02070 note |
Camera Assy, Television, RR
2014-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 86790-12240 note |
Camera Assy, Television, RR
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 86790-02150 note |
Camera Assy, Television, RR
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 86790-02150 note |
Camera Assy, Television, RR
2016-06 → 2019-01
ended
|
ZRE18# N GCC | — | |
| 86790-02150 note |
Camera Assy, Television, RR
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N GEN TUP | — | |
| 86790-12241 note |
Camera Assy, Television, RR
2017-01 → 2019-12
ended
|
ZRE181 N GEN SAP | — | |
| 86790-12241 note |
Camera Assy, Television, RR
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 N SA | — | |
| 86790-12260 note |
Camera Assy, Television, RR
2017-01 → 2019-12
ended
|
ZRE182 N GEN SAP | — | |
| 86790-12260 note |
Camera Assy, Television, RR
2017-01 → 2019-12
ended
|
ZRE182 SA | — | |
| 86790-12241 note |
Camera Assy, Television, RR
2019-12 → 2022-03
ended
|
ZRE182 G,N | — | |
| 86790-12241 |
Camera Assy, Television, RR
2019-12 → —
|
ZRE182 G,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
