Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

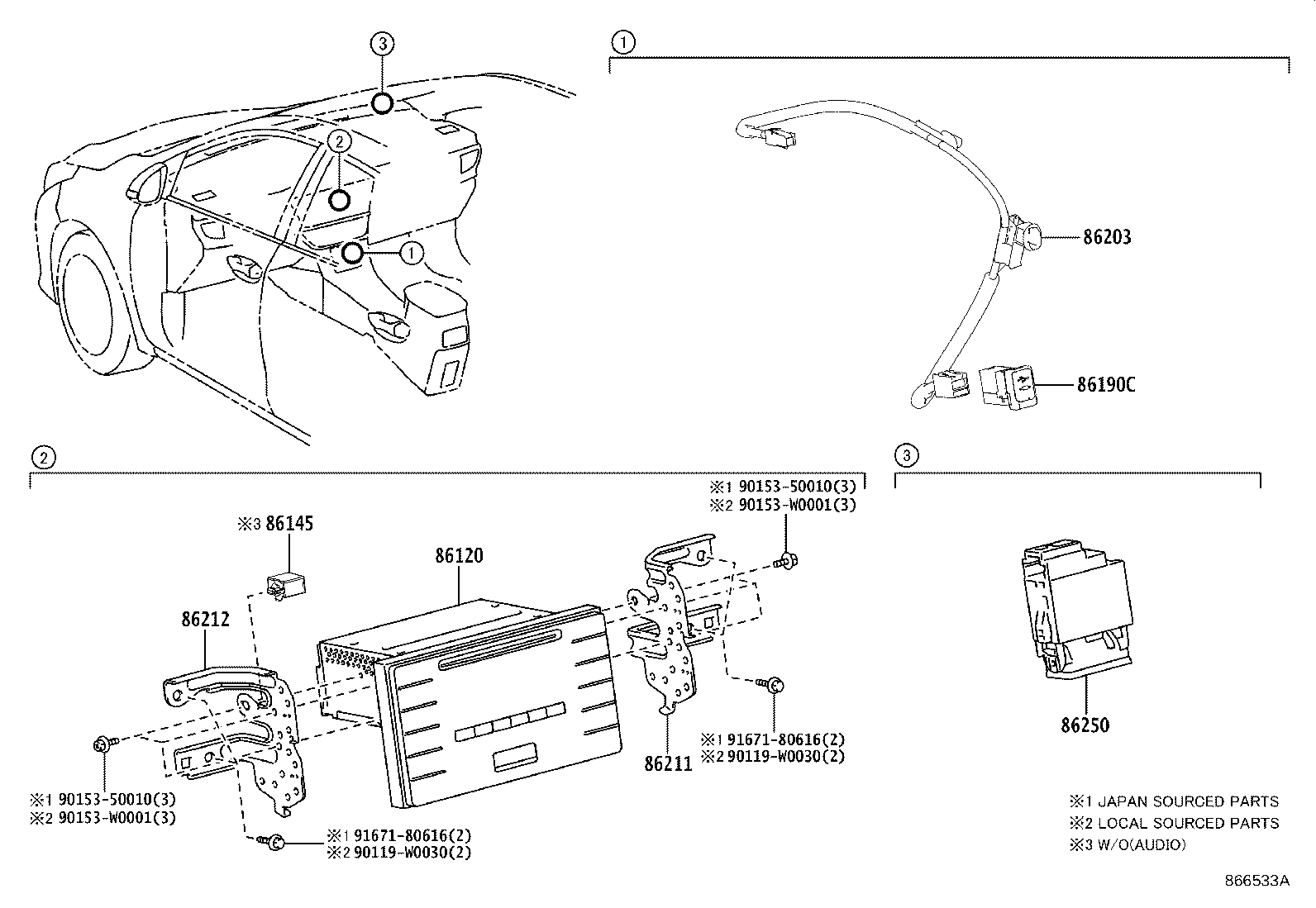

Exploded illustration 866533A 86120 — RECEIVER ASSY, RADIO (69 parts) 86212 — BRACKET, RADIO, NO.2 (6 parts) 86211 — BRACKET, RADIO, NO.1 (6 parts) 86203 — WIRE, RADIO (14 parts) 86190C — ADAPTER ASSY, STEREO JACK, NO.1 (14 parts) 9167180616 — not listed in this catalogue 90119W0030 — not listed in this catalogue 9167180616 — not listed in this catalogue 90119W0030 — not listed in this catalogue 9015350010 — not listed in this catalogue 90153W0001 — not listed in this catalogue 9015350010 — not listed in this catalogue 90153W0001 — not listed in this catalogue 86145 — CONNECTOR, ANTENNA MALE (8 parts) 86250 — MICROPHONE ASSY, AMPLIFIER (2 parts)
866533A · 7 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
119 parts on this figure
Part number Description Fitment Price
86120 — Receiver Assy, Radio
86120-02F70 note Receiver Assy, Radio
2013-06 → 2016-05 ended
NDE180 D TUP —
86120-02F70 note Receiver Assy, Radio
2013-06 → 2016-05 ended
NDE180 D TUP —
86120-02F70 note Receiver Assy, Radio
2013-06 → 2016-05 ended
NDE180 D TUP —
86120-02F70 note Receiver Assy, Radio
2013-06 → 2016-05 ended
NDE180 N TUP —
86120-02F80 note Receiver Assy, Radio
2013-06 → 2016-05 ended
NDE180 N TUP —
86120-02F80 note Receiver Assy, Radio
2013-06 → 2016-05 ended
NDE180 N TUP —
86120-02F80 note Receiver Assy, Radio
2013-06 → 2016-05 ended
NDE180 N TUP —
86120-02F80 note Receiver Assy, Radio
2015-05 → 2016-05 ended
NDE180 D TUP —
86120-02G00 note Receiver Assy, Radio
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
86120-02G00 note Receiver Assy, Radio
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
86120-02G11 note Receiver Assy, Radio
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
86120-02G11 note Receiver Assy, Radio
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE181 D SA —
86120-02G11 note Receiver Assy, Radio
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
86120-02G11 note Receiver Assy, Radio
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE181 D SA —
86120-02G11 note Receiver Assy, Radio
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
86120-02J30 note Receiver Assy, Radio
2014-01 → 2017-01 ended
ZRE18# GEN SAP —
86120-02J30 note Receiver Assy, Radio
2014-01 → 2017-01 ended
ZRE18# D GEN SAP —
86120-02J30 note Receiver Assy, Radio
2014-01 → 2017-01 ended
ZRE18# N GEN SAP —
86120-02J40 note Receiver Assy, Radio
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
86120-02J40 note Receiver Assy, Radio
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# SA —
86120-02J40 note Receiver Assy, Radio
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE181 D SA —
86120-02J40 note Receiver Assy, Radio
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE181 D SA —
86120-02J40 note Receiver Assy, Radio
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# N SA —
86120-02J40 note Receiver Assy, Radio
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# N SA —
86120-02F20 note Receiver Assy, Radio
2016-06 → 2017-04 ended
NDE180,ZRE181 GEN TUP —
86120-02F21 note Receiver Assy, Radio
2017-05 → 2019-01 ended
NDE180,ZRE181 GEN TUP —
86120-02J80 note Receiver Assy, Radio
2016-06 → 2017-04 ended
NDE180,NRE180,ZRE18# D TUP —
86120-02J80 note Receiver Assy, Radio
2016-06 → 2017-04 ended
NDE180,NRE180,ZRE18# D TUP —
86120-02J80 note Receiver Assy, Radio
2016-06 → 2017-04 ended
NDE180 ;NRE180,ZRE181 N;NDE180 N +9 —
86120-02J80 note Receiver Assy, Radio
2017-01 → 2017-04 ended
NDE180,NRE180,ZRE18# SA —
86120-02J81 note Receiver Assy, Radio
2017-05 → 2018-08 ended
NRE180 D TUP —
86120-02J81 note Receiver Assy, Radio
2017-05 → 2018-08 ended
NRE180 D TUP —
86120-02J81 note Receiver Assy, Radio
2017-05 → 2018-08 ended
NRE180 N TUP —
86120-02J81 note Receiver Assy, Radio
2017-05 → 2019-01 ended
NDE180,ZRE18# D TUP —
86120-02J81 note Receiver Assy, Radio
2017-05 → 2019-01 ended
NDE180,ZRE18# D TUP —
86120-02J81 note Receiver Assy, Radio
2017-05 → 2019-01 ended
NDE180,ZRE18# N TUP —
86120-02J81 note Receiver Assy, Radio
2017-05 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
86120-02J81 note Receiver Assy, Radio
2017-05 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
86120-02J90 note Receiver Assy, Radio
2016-06 → 2017-04 ended
NDE180,NRE180 N;ZRE18# N (GCC,SA);ZRE18# +3 —
86120-02J90 note Receiver Assy, Radio
2016-06 → 2017-04 ended
NDE180 ;NRE180,ZRE181 N;NDE180 N +9 —
86120-02J90 note Receiver Assy, Radio
2016-06 → 2017-04 ended
NRE180,ZRE18# D GEN TUP —
86120-02J90 note Receiver Assy, Radio
2017-01 → 2017-04 ended
NDE180,NRE180,ZRE181 D SA —
86120-02J90 note Receiver Assy, Radio
2017-01 → 2017-04 ended
NDE180,NRE180,ZRE181 D SA —
86120-02J90 note Receiver Assy, Radio
2017-01 → 2017-04 ended
NDE180,NRE180,ZRE18# N SA —
86120-02J91 note Receiver Assy, Radio
2017-05 → 2018-08 ended
NRE180 N TUP —
86120-02J91 note Receiver Assy, Radio
2017-05 → 2019-12 ended
NDE180,NRE180,ZRE181 D SA —
86120-02J91 note Receiver Assy, Radio
2017-05 → 2018-08 ended
NRE180 D TUP —
86120-02J91 note Receiver Assy, Radio
2017-05 → 2018-08 ended
NRE180 N TUP —
86120-02J91 note Receiver Assy, Radio
2017-05 → 2019-12 ended
NDE180,NRE180,ZRE18# N SA —
86120-02J91 note Receiver Assy, Radio
2017-05 → 2019-01 ended
NDE180,ZRE18# N TUP —
86120-02J91 note Receiver Assy, Radio
2017-05 → 2019-01 ended
ZRE18# D GEN TUP —
86120-02J91 note Receiver Assy, Radio
2017-05 → 2019-01 ended
NDE180,ZRE18# N TUP —
86120-02J91 note Receiver Assy, Radio
2017-05 → 2019-12 ended
NDE180,NRE180,ZRE18# N SA —
86120-02J91 note Receiver Assy, Radio
2017-05 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
86120-02J91 note Receiver Assy, Radio
2017-05 → 2019-12 ended
NDE180,NRE180,ZRE181 D SA —
86120-02K00 note Receiver Assy, Radio
2017-01 → 2017-04 ended
ZRE18# N GEN SAP —
86120-02K00 note Receiver Assy, Radio
2017-01 → 2017-04 ended
ZRE18# GEN SAP —
86120-02K00 note Receiver Assy, Radio
2017-01 → 2017-04 ended
ZRE18# D GEN SAP —
86120-02K00 note Receiver Assy, Radio
2017-01 → 2017-04 ended
NDE180,NRE180,ZRE18# SA —
86120-02K01 note Receiver Assy, Radio
2017-05 → 2019-12 ended
ZRE18# GEN SAP —
86120-02K01 note Receiver Assy, Radio
2017-05 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
86120-02K01 note Receiver Assy, Radio
2017-05 → 2019-12 ended
ZRE18# D GEN SAP —
86120-02K01 note Receiver Assy, Radio
2017-05 → 2019-12 ended
ZRE18# N GEN SAP —
86120-02J91 note Receiver Assy, Radio
2019-12 → 2022-07 ended
ZRE182 (G,N) SA —
86120-02J91 note Receiver Assy, Radio
2019-12 → 2022-07 ended
ZRE182 D SA —
86120-02K01 note Receiver Assy, Radio
2019-12 → 2022-07 ended
ZRE182 D GEN —
86120-02K01 note Receiver Assy, Radio
2019-12 → 2022-07 ended
ZRE182 D SA —
86120-02K01 note Receiver Assy, Radio
2019-12 → 2022-07 ended
ZRE182 (G,N) SA —
86120-02K01 note Receiver Assy, Radio
2019-12 → 2022-07 ended
ZRE182 CVT GEN —
86145 — Connector, Antenna Male
86145-52010 note Connector, Antenna Male
2013-06 → 2016-05 ended
NDE180 D TUP —
86145-52010 note Connector, Antenna Male
2013-06 → 2016-05 ended
NDE180 N TUP —
86145-52010 note Connector, Antenna Male
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# D SAP —
86145-52010 note Connector, Antenna Male
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
86145-52010 note Connector, Antenna Male
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
86145-52010 note Connector, Antenna Male
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
86145-52010 note Connector, Antenna Male
2016-06 → 2018-08 ended
NRE180 N TUP —
86145-52010 note Connector, Antenna Male
2016-06 → 2018-08 ended
NRE180 D TUP —
86190C — Adapter Assy, Stereo Jack, NO.1
86190-0D030 Adapter Assy, Stereo Jack, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
86190-0D030 note Adapter Assy, Stereo Jack, NO.1
2013-06 → 2016-05 ended
NDE180 D TUP —
86190-0D030 note Adapter Assy, Stereo Jack, NO.1
2013-06 → 2016-05 ended
NDE180 N TUP —
86190-0D030 note Adapter Assy, Stereo Jack, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
86190-0D030 Adapter Assy, Stereo Jack, NO.1
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
86190-0D030 note Adapter Assy, Stereo Jack, NO.1
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# D SAP —
86190-0D030 note Adapter Assy, Stereo Jack, NO.1
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
86190-0D030 note Adapter Assy, Stereo Jack, NO.1
2016-06 → 2018-08 ended
NRE180 N TUP —
86190-0D030 note Adapter Assy, Stereo Jack, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# N GEN TUP —
86190-0D030 note Adapter Assy, Stereo Jack, NO.1
2016-06 → 2019-01 ended
ZRE18# N GCC —
86190-0D030 note Adapter Assy, Stereo Jack, NO.1
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# N SA —
86190-0D030 note Adapter Assy, Stereo Jack, NO.1
2017-01 → 2019-12 ended
ZRE18# N GEN SAP —
86190-0D030 Adapter Assy, Stereo Jack, NO.1
2019-12 → —
ZRE182 G,N —
86190-0D030 note Adapter Assy, Stereo Jack, NO.1
2019-12 → 2022-01 ended
ZRE182 G,N —
86203 — Wire, Radio
86203-12500 Wire, Radio
2013-06 → 2016-05 ended
NDE180 TUP —
86203-12500 note Wire, Radio
2013-06 → 2016-05 ended
NDE180 D TUP —
86203-12500 note Wire, Radio
2013-06 → 2016-05 ended
NDE180 N TUP —
86203-12500 note Wire, Radio
2013-06 → 2016-05 ended
NDE180 TUP —
86203-12500 Wire, Radio
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
86203-12500 note Wire, Radio
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# D SAP —
86203-12500 note Wire, Radio
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
86203-12500 note Wire, Radio
2016-06 → 2018-08 ended
NRE180 N TUP —
86203-12500 note Wire, Radio
2016-06 → 2019-01 ended
NDE180,ZRE18# N GEN TUP —
86203-12500 note Wire, Radio
2016-06 → 2019-01 ended
ZRE18# N GCC —
86203-12500 note Wire, Radio
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# N SA —
86203-12500 note Wire, Radio
2017-01 → 2019-12 ended
ZRE18# N GEN SAP —
86203-12500 Wire, Radio
2019-12 → —
ZRE182 G,N —
86203-12500 note Wire, Radio
2019-12 → 2022-01 ended
ZRE182 G,N —
86211 — Bracket, Radio, NO.1
86211-02300 Bracket, Radio, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
86211-02300 Bracket, Radio, NO.1
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
86211-02440 Bracket, Radio, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
86211-02440 Bracket, Radio, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
86211-02440 Bracket, Radio, NO.1
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
86211-02440 Bracket, Radio, NO.1
2019-12 → —
ZRE182 —
86212 — Bracket, Radio, NO.2
86212-02290 Bracket, Radio, NO.2
2013-06 → 2016-05 ended
NDE180 TUP —
86212-02290 Bracket, Radio, NO.2
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
86212-02430 Bracket, Radio, NO.2
2016-06 → 2018-08 ended
NRE180 TUP —
86212-02430 Bracket, Radio, NO.2
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
86212-02430 Bracket, Radio, NO.2
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
86212-02430 Bracket, Radio, NO.2
2019-12 → —
ZRE182 —
86250 — Microphone Assy, Amplifier
86250-52040 Microphone Assy, Amplifier
2019-12 → —
ZRE182 (D,N) SA —
86250-52050 Microphone Assy, Amplifier
2019-12 → —
ZRE182 (D,N) GEN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
