Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

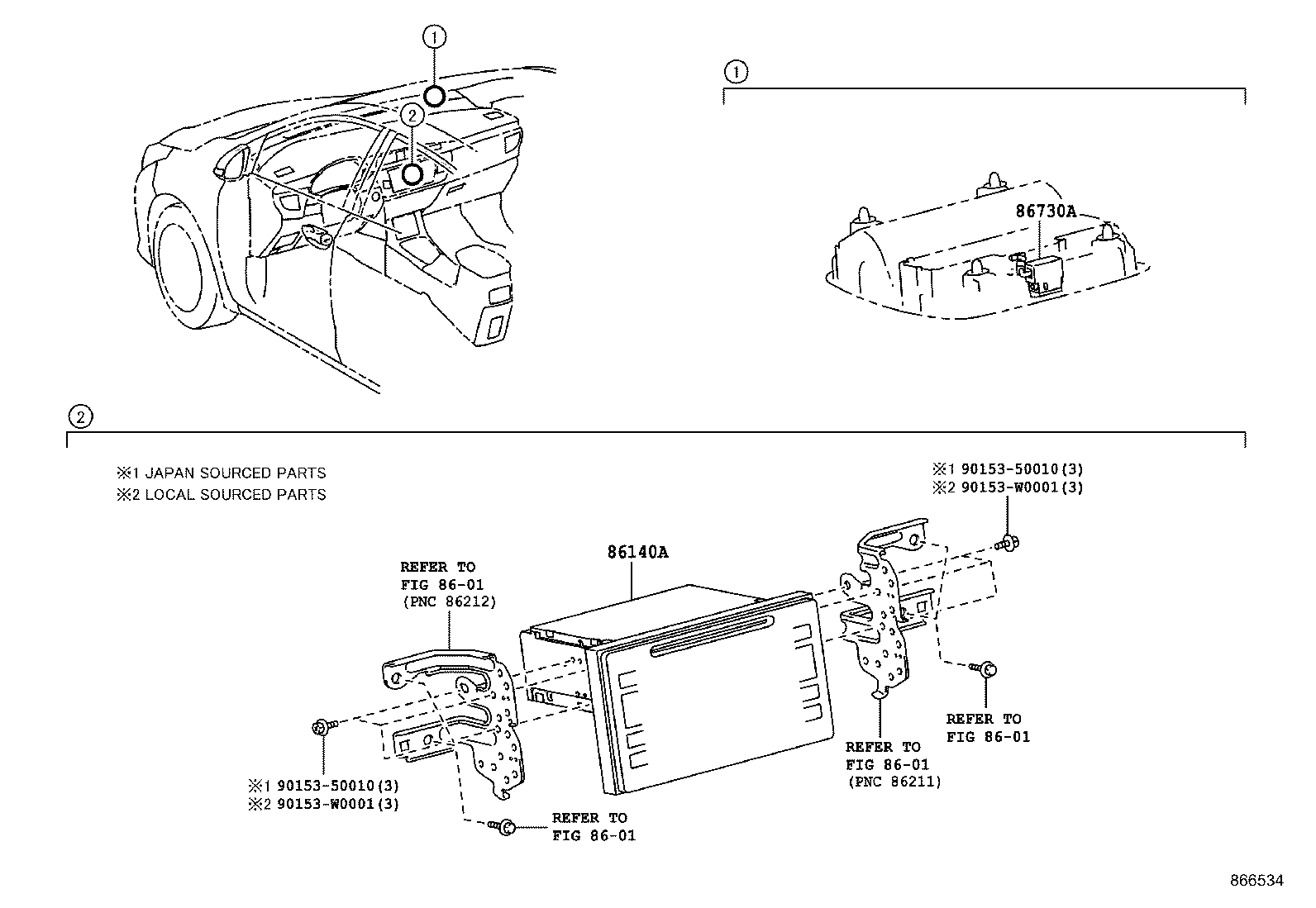

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86140A — Receiver Assy, Radio & Display | ||||
| 86140-02080 note |
Receiver Assy, Radio & Display
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 86140-02220 note |
Receiver Assy, Radio & Display
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 86140-02250 note |
Receiver Assy, Radio & Display
2014-01 → 2015-05
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 86140-02260 note |
Receiver Assy, Radio & Display
2014-01 → 2015-05
ended
|
ZRE18# N GEN | — | |
| 86140-02270 note |
Receiver Assy, Radio & Display
2014-01 → 2015-05
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 86140-02430 note |
Receiver Assy, Radio & Display
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 86140-02440 note |
Receiver Assy, Radio & Display
2015-05 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 86140-02450 note |
Receiver Assy, Radio & Display
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 86140-02480 note |
Receiver Assy, Radio & Display
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 86140-02480 note |
Receiver Assy, Radio & Display
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N GEN TUP | — | |
| 86140-02490 note |
Receiver Assy, Radio & Display
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 86140-02490 note |
Receiver Assy, Radio & Display
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 86140-02500 note |
Receiver Assy, Radio & Display
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 86140-12100 note |
Receiver Assy, Radio & Display
2016-06 → 2019-01
ended
|
ZRE18# N GCC | — | |
| 86140-02490 note |
Receiver Assy, Radio & Display
2019-12 → 2021-10
ended
|
ZRE182 CVT GEN | — | |
| 86140-02490 note |
Receiver Assy, Radio & Display
2019-12 → 2021-10
ended
|
ZRE182 (G,N) SA | — | |
| 86140-02491 note |
Receiver Assy, Radio & Display
2021-11 → 2023-09
ended
|
ZRE182 CVT GEN | — | |
| 86140-02491 note |
Receiver Assy, Radio & Display
2021-11 → 2023-09
ended
|
ZRE182 (G,N) SA | — | |
| 86140-02492 note |
Receiver Assy, Radio & Display
2023-10 → —
|
ZRE182 CVT GEN | — | |
| 86140-02492 note |
Receiver Assy, Radio & Display
2023-10 → —
|
ZRE182 (G,N) SA | — | |
| 86140-02500 note |
Receiver Assy, Radio & Display
2019-12 → —
|
ZRE182 (G,N) SA | — | |
| 86730A — Microphone Assy, Telephone | ||||
| 86730-02010 note |
Microphone Assy, Telephone
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 86730-02010 note |
Microphone Assy, Telephone
2014-01 → 2017-01
ended
|
ZRE18# D GEN SAP | — | |
| 86730-02010 note |
Microphone Assy, Telephone
2013-06 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 86730-02010 |
Microphone Assy, Telephone
2013-06 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 86730-02010 note |
Microphone Assy, Telephone
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 86730-02010 note |
Microphone Assy, Telephone
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 86730-02010 note |
Microphone Assy, Telephone
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 86730-02010 note |
Microphone Assy, Telephone
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 86730-02010 note |
Microphone Assy, Telephone
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 86730-02010 |
Microphone Assy, Telephone
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 86730-02010 note |
Microphone Assy, Telephone
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 86730-02020 |
Microphone Assy, Telephone
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 86730-02020 note |
Microphone Assy, Telephone
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 86730-02020 note |
Microphone Assy, Telephone
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 86730-02020 note |
Microphone Assy, Telephone
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 86730-02010 note |
Microphone Assy, Telephone
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# N TUP | — | |
| 86730-02010 note |
Microphone Assy, Telephone
2017-01 → 2019-12
ended
|
ZRE18# D GEN SAP | — | |
| 86730-02010 note |
Microphone Assy, Telephone
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# LHD N | — | |
| 86730-02010 |
Microphone Assy, Telephone
2016-06 → 2019-12
ended
|
ZRE182 LHD N;ZRE182 D +5 | — | |
| 86730-02010 note |
Microphone Assy, Telephone
2016-06 → 2019-01
ended
|
NDE180,ZRE181 D GEN TUP | — | |
| 86730-02010 note |
Microphone Assy, Telephone
2016-06 → 2019-01
ended
|
NRE180,ZRE18# D GEN TUP | — | |
| 86730-02020 |
Microphone Assy, Telephone
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 86730-02020 note |
Microphone Assy, Telephone
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 86730-02020 note |
Microphone Assy, Telephone
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 86730-02020 note |
Microphone Assy, Telephone
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 86730-02010 |
Microphone Assy, Telephone
2019-12 → —
|
ZRE182 G GEN | — | |
| 86730-02020 |
Microphone Assy, Telephone
2019-12 → —
|
ZRE182 G SA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
