Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

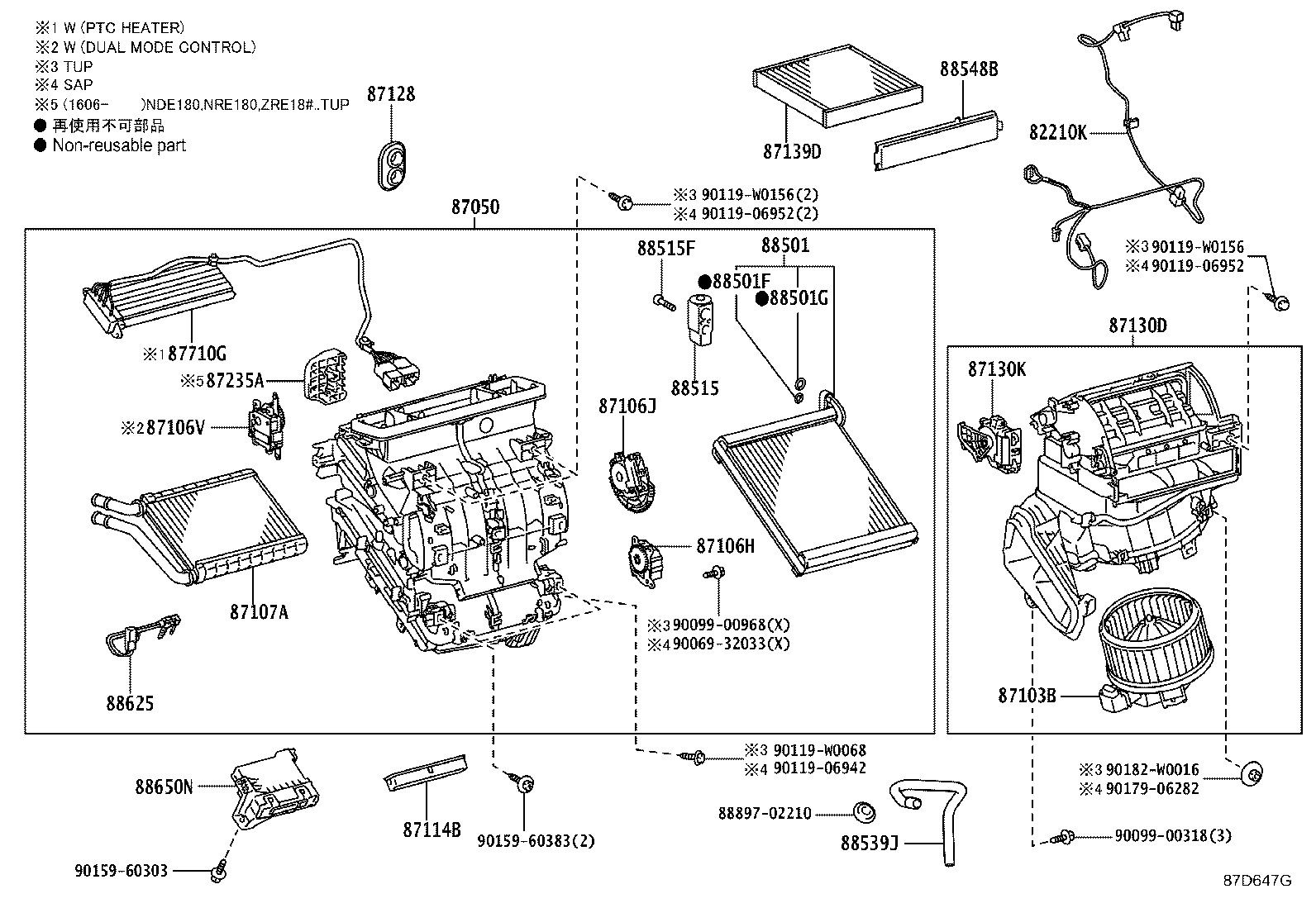

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82210K — Harness Assy, Air Conditioner | ||||
| 82212-02010 note |
Harness Assy, Air Conditioner
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 82212-02010 note |
Harness Assy, Air Conditioner
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 82212-02050 note |
Harness Assy, Air Conditioner
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 82212-02060 note |
Harness Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 82212-02010 note |
Harness Assy, Air Conditioner
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 82212-02010 note |
Harness Assy, Air Conditioner
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 82212-02050 note |
Harness Assy, Air Conditioner
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 82212-02060 note |
Harness Assy, Air Conditioner
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 82212-02050 |
Harness Assy, Air Conditioner
2019-12 → —
|
ZRE182 G GEN | — | |
| 82212-02060 |
Harness Assy, Air Conditioner
2019-12 → —
|
ZRE182 G SA | — | |
| 87050 — Radiator Assy, Air Conditioner | ||||
| 87050-02790 |
Radiator Assy, Air Conditioner
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87050-02800 note |
Radiator Assy, Air Conditioner
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 87050-02800 note |
Radiator Assy, Air Conditioner
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 87050-02A30 |
Radiator Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SA | — | |
| 87050-02A50 note |
Radiator Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NRE180,ZRE18# N SA | — | |
| 87050-02A70 note |
Radiator Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NRE180,ZRE181 D SA | — | |
| 87050-02A90 |
Radiator Assy, Air Conditioner
2014-01 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 87050-02B10 note |
Radiator Assy, Air Conditioner
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 87050-02E00 |
Radiator Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 87050-02E10 note |
Radiator Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NDE180 D SAP | — | |
| 87050-02G70 note |
Radiator Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NDE180 N SAP | — | |
| 87050-02791 |
Radiator Assy, Air Conditioner
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 87050-02791 note |
Radiator Assy, Air Conditioner
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 87050-02791 |
Radiator Assy, Air Conditioner
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 87050-02A11 |
Radiator Assy, Air Conditioner
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 87050-02A30 |
Radiator Assy, Air Conditioner
2017-01 → 2019-12
ended
|
NRE180,ZRE18# SA | — | |
| 87050-02A50 note |
Radiator Assy, Air Conditioner
2017-01 → 2019-12
ended
|
NRE180,ZRE18# N SA | — | |
| 87050-02A90 |
Radiator Assy, Air Conditioner
2017-01 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 87050-02B10 note |
Radiator Assy, Air Conditioner
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 87050-02D91 |
Radiator Assy, Air Conditioner
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 87050-02E00 |
Radiator Assy, Air Conditioner
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 87050-02G70 note |
Radiator Assy, Air Conditioner
2017-01 → 2019-12
ended
|
NDE180 N SAP | — | |
| 87050-05790 note |
Radiator Assy, Air Conditioner
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 87050-05820 note |
Radiator Assy, Air Conditioner
2016-06 → 2019-01
ended
|
NDE180 N TUP | — | |
| 87050-05820 note |
Radiator Assy, Air Conditioner
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 87050-0F330 |
Radiator Assy, Air Conditioner
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 87050-0F330 note |
Radiator Assy, Air Conditioner
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 87050-02A30 |
Radiator Assy, Air Conditioner
2019-12 → —
|
ZRE182 (D,N) SA | — | |
| 87050-02A50 |
Radiator Assy, Air Conditioner
2019-12 → —
|
ZRE182 G SA | — | |
| 87050-02A90 |
Radiator Assy, Air Conditioner
2019-12 → —
|
ZRE182 (D,N) GEN | — | |
| 87050-02B10 |
Radiator Assy, Air Conditioner
2019-12 → —
|
ZRE182 G GEN | — | |
| 87103B — Motor Sub-assy, Blower W/Fan | ||||
| 87103-02140 |
Motor Sub-assy, Blower W/Fan
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87103-02150 note |
Motor Sub-assy, Blower W/Fan
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 87103-02150 note |
Motor Sub-assy, Blower W/Fan
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 87103-02300 note |
Motor Sub-assy, Blower W/Fan
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 87103-02460 |
Motor Sub-assy, Blower W/Fan
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 87103-02470 |
Motor Sub-assy, Blower W/Fan
2014-01 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 87103-02140 |
Motor Sub-assy, Blower W/Fan
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87103-02140 |
Motor Sub-assy, Blower W/Fan
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87103-02150 note |
Motor Sub-assy, Blower W/Fan
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 87103-02150 note |
Motor Sub-assy, Blower W/Fan
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 87103-02300 note |
Motor Sub-assy, Blower W/Fan
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 87103-02310 note |
Motor Sub-assy, Blower W/Fan
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 87103-02460 |
Motor Sub-assy, Blower W/Fan
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 87103-02470 |
Motor Sub-assy, Blower W/Fan
2017-01 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 87103-02300 |
Motor Sub-assy, Blower W/Fan
2019-12 → —
|
ZRE182 G SA | — | |
| 87103-02310 |
Motor Sub-assy, Blower W/Fan
2019-12 → —
|
ZRE182 G GEN | — | |
| 87103-02460 |
Motor Sub-assy, Blower W/Fan
2019-12 → —
|
ZRE182 (D,N) SA | — | |
| 87103-02470 |
Motor Sub-assy, Blower W/Fan
2019-12 → —
|
ZRE182 (D,N) GEN | — | |
| 87106H — Servo Sub-assy, Damper(FOR AIRMIX) | ||||
| 87106-02270 note |
Servo Sub-assy, Damper(FOR AIRMIX)
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 87106-02270 note |
Servo Sub-assy, Damper(FOR AIRMIX)
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 87106-02360 note |
Servo Sub-assy, Damper(FOR AIRMIX)
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 87106-02270 note |
Servo Sub-assy, Damper(FOR AIRMIX)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 87106-02270 note |
Servo Sub-assy, Damper(FOR AIRMIX)
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 87106-02360 note |
Servo Sub-assy, Damper(FOR AIRMIX)
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 87106-02360 |
Servo Sub-assy, Damper(FOR AIRMIX)
2019-12 → —
|
ZRE182 G | — | |
| 87106J — Servo Sub-assy, Damper(FOR MODE) | ||||
| 87106-02140 note |
Servo Sub-assy, Damper(FOR MODE)
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 87106-02140 note |
Servo Sub-assy, Damper(FOR MODE)
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 87106-02140 note |
Servo Sub-assy, Damper(FOR MODE)
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 87106-02140 note |
Servo Sub-assy, Damper(FOR MODE)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 87106-02370 note |
Servo Sub-assy, Damper(FOR MODE)
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 87106-02370 |
Servo Sub-assy, Damper(FOR MODE)
2019-12 → —
|
ZRE182 G | — | |
| 87106V — Servo Sub-assy, Damper(FOR AIRMIX NO.2) | ||||
| 87106-02280 note |
Servo Sub-assy, Damper(FOR AIRMIX NO.2)
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 87106-02280 note |
Servo Sub-assy, Damper(FOR AIRMIX NO.2)
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 87106-02280 note |
Servo Sub-assy, Damper(FOR AIRMIX NO.2)
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 87106-02280 note |
Servo Sub-assy, Damper(FOR AIRMIX NO.2)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 87107A — Unit Sub-assy, Heater Radiator | ||||
| 87107-02150 |
Unit Sub-assy, Heater Radiator
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87107-02210 |
Unit Sub-assy, Heater Radiator
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87107-02150 |
Unit Sub-assy, Heater Radiator
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87107-02150 |
Unit Sub-assy, Heater Radiator
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87107-02210 |
Unit Sub-assy, Heater Radiator
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87107-02210 |
Unit Sub-assy, Heater Radiator
2019-12 → —
|
ZRE182 | — | |
| 87114B — Cover, Heater | ||||
| 87114-02010 |
Cover, Heater
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87114-0K010 |
Cover, Heater
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87114-02010 |
Cover, Heater
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87114-02010 |
Cover, Heater
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87114-0K010 |
Cover, Heater
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87114-0K010 |
Cover, Heater
2019-12 → —
|
ZRE182 | — | |
| 87128 — Grommet, Heater | ||||
| 87128-02010 |
Grommet, Heater
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87128-02140 |
Grommet, Heater
2016-10 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87128-42010 |
Grommet, Heater
2014-01 → 2016-09
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87128-02010 |
Grommet, Heater
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87128-02010 |
Grommet, Heater
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87128-02140 |
Grommet, Heater
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87128-02140 |
Grommet, Heater
2019-12 → —
|
ZRE182 | — | |
| 87130D — Blower Assy | ||||
| 87130-02301 |
Blower Assy
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87130-02321 note |
Blower Assy
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 87130-02321 note |
Blower Assy
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 87130-02392 |
Blower Assy
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SA | — | |
| 87130-02402 |
Blower Assy
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 87130-02411 note |
Blower Assy
2014-01 → 2017-01
ended
|
NRE180,ZRE18# N SA | — | |
| 87130-02421 note |
Blower Assy
2014-01 → 2017-01
ended
|
NDE180 N SAP | — | |
| 87130-02432 |
Blower Assy
2014-01 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 87130-02451 note |
Blower Assy
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 87130-02291 |
Blower Assy
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 87130-02291 note |
Blower Assy
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 87130-02301 |
Blower Assy
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 87130-02301 note |
Blower Assy
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 87130-02301 |
Blower Assy
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 87130-02311 note |
Blower Assy
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 87130-02321 note |
Blower Assy
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 87130-02321 note |
Blower Assy
2016-06 → 2019-01
ended
|
NDE180 N TUP | — | |
| 87130-02392 |
Blower Assy
2017-01 → 2019-12
ended
|
NRE180,ZRE18# SA | — | |
| 87130-02402 |
Blower Assy
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 87130-02411 note |
Blower Assy
2017-01 → 2019-12
ended
|
NRE180,ZRE18# N SA | — | |
| 87130-02421 note |
Blower Assy
2017-01 → 2019-12
ended
|
NDE180 N SAP | — | |
| 87130-02432 |
Blower Assy
2017-01 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 87130-02451 note |
Blower Assy
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 87130-02890 |
Blower Assy
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 87130-02A00 |
Blower Assy
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 87130-02392 |
Blower Assy
2019-12 → —
|
ZRE182 (D,N) SA | — | |
| 87130-02411 |
Blower Assy
2019-12 → —
|
ZRE182 G SA | — | |
| 87130-02432 |
Blower Assy
2019-12 → —
|
ZRE182 (D,N) GEN | — | |
| 87130-02451 |
Blower Assy
2019-12 → —
|
ZRE182 G GEN | — | |
| 87130K — Damper Servo Sub-assy, Blower, NO.1 | ||||
| 87106-02180 note |
Damper Servo Sub-assy, Blower, NO.1
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 87106-02180 note |
Damper Servo Sub-assy, Blower, NO.1
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 87106-02260 |
Damper Servo Sub-assy, Blower, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87106-02350 |
Damper Servo Sub-assy, Blower, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 87106-02380 note |
Damper Servo Sub-assy, Blower, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 87106-02390 |
Damper Servo Sub-assy, Blower, NO.1
2014-01 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 87106-02400 note |
Damper Servo Sub-assy, Blower, NO.1
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 87106-02180 note |
Damper Servo Sub-assy, Blower, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 87106-02180 note |
Damper Servo Sub-assy, Blower, NO.1
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 87106-02260 |
Damper Servo Sub-assy, Blower, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87106-02260 |
Damper Servo Sub-assy, Blower, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87106-02350 |
Damper Servo Sub-assy, Blower, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 87106-02380 note |
Damper Servo Sub-assy, Blower, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 87106-02390 |
Damper Servo Sub-assy, Blower, NO.1
2017-01 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 87106-02400 note |
Damper Servo Sub-assy, Blower, NO.1
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 87106-02350 |
Damper Servo Sub-assy, Blower, NO.1
2019-12 → —
|
ZRE182 (D,N) SA | — | |
| 87106-02380 |
Damper Servo Sub-assy, Blower, NO.1
2019-12 → —
|
ZRE182 G SA | — | |
| 87106-02390 |
Damper Servo Sub-assy, Blower, NO.1
2019-12 → —
|
ZRE182 (D,N) GEN | — | |
| 87106-02400 |
Damper Servo Sub-assy, Blower, NO.1
2019-12 → —
|
ZRE182 G GEN | — | |
| 87139D — Element, Air Refiner | ||||
| 87139-0D070 note |
Element, Air Refiner
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87139-50100 note |
Element, Air Refiner
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87139-50100 note |
Element, Air Refiner
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87139-52040 note |
Element, Air Refiner
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87139-0D070 note |
Element, Air Refiner
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87139-0D070 note |
Element, Air Refiner
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87139-50100 note |
Element, Air Refiner
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87139-50100 note |
Element, Air Refiner
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87139-50100 note |
Element, Air Refiner
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87139-52040 note |
Element, Air Refiner
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87139-50100 note |
Element, Air Refiner
2019-12 → —
|
ZRE182 | — | |
| 87139-52040 note |
Element, Air Refiner
2019-12 → —
|
ZRE182 | — | |
| 87235A — Bracket, Heater Cover | ||||
| 87235-05010 |
Bracket, Heater Cover
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87235-05010 |
Bracket, Heater Cover
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87710G — Quick Heater Assy | ||||
| 87710-02070 |
Quick Heater Assy
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87710-0K040 |
Quick Heater Assy
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 87710-02070 |
Quick Heater Assy
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 87710-02070 |
Quick Heater Assy
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87710-0K040 |
Quick Heater Assy
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-02202 |
Evaporator Sub-assy, Cooler, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88501-12510 |
Evaporator Sub-assy, Cooler, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88501-02202 |
Evaporator Sub-assy, Cooler, NO.1
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88501-02202 note |
Evaporator Sub-assy, Cooler, NO.1
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88501-02202 |
Evaporator Sub-assy, Cooler, NO.1
2016-06 → 2019-01
ended
|
NDE180 TUP;ZRE18# N TUP | — | |
| 88501-02202 note |
Evaporator Sub-assy, Cooler, NO.1
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88501-12510 |
Evaporator Sub-assy, Cooler, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88501-12510 |
Evaporator Sub-assy, Cooler, NO.1
2019-12 → —
|
ZRE182 | — | |
| 88501F — O-ring, Cooler Evaporator NO.1(DISCHARGE) | ||||
| 90068-14022 note |
O-ring, Cooler Evaporator NO.1(DISCHARGE)
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90099-14120 note |
O-ring, Cooler Evaporator NO.1(DISCHARGE)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90068-14022 note |
O-ring, Cooler Evaporator NO.1(DISCHARGE)
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90068-14037 note |
O-ring, Cooler Evaporator NO.1(DISCHARGE)
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 90068-14037 note |
O-ring, Cooler Evaporator NO.1(DISCHARGE)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 90068-14022 note |
O-ring, Cooler Evaporator NO.1(DISCHARGE)
2019-12 → —
|
ZRE182 | — | |
| 88501G — O-ring, Cooler Evaporator NO.1(SUCTION) | ||||
| 90068-14024 note |
O-ring, Cooler Evaporator NO.1(SUCTION)
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90099-14121 note |
O-ring, Cooler Evaporator NO.1(SUCTION)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90068-14024 note |
O-ring, Cooler Evaporator NO.1(SUCTION)
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90068-14038 note |
O-ring, Cooler Evaporator NO.1(SUCTION)
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 90068-14038 note |
O-ring, Cooler Evaporator NO.1(SUCTION)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 90068-14024 note |
O-ring, Cooler Evaporator NO.1(SUCTION)
2019-12 → —
|
ZRE182 | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-02520 |
Valve, Cooler Expansion
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88515-02600 |
Valve, Cooler Expansion
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88515-02600 |
Valve, Cooler Expansion
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88515-68010 |
Valve, Cooler Expansion
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88515-68010 note |
Valve, Cooler Expansion
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88515-68010 |
Valve, Cooler Expansion
2016-06 → 2019-01
ended
|
NDE180 TUP;ZRE18# N TUP | — | |
| 88515-68010 note |
Valve, Cooler Expansion
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88515-02600 |
Valve, Cooler Expansion
2019-12 → —
|
ZRE182 | — | |
| 88515F — Bolt(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
Bolt(FOR COOLER EXPANSION VALVE)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90099-04597 |
Bolt(FOR COOLER EXPANSION VALVE)
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90099-04542 |
Bolt(FOR COOLER EXPANSION VALVE)
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 90099-04542 note |
Bolt(FOR COOLER EXPANSION VALVE)
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 90099-04542 |
Bolt(FOR COOLER EXPANSION VALVE)
2016-06 → 2019-01
ended
|
NDE180 TUP;ZRE18# N TUP | — | |
| 90099-04542 note |
Bolt(FOR COOLER EXPANSION VALVE)
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 90099-04597 |
Bolt(FOR COOLER EXPANSION VALVE)
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90099-04597 |
Bolt(FOR COOLER EXPANSION VALVE)
2019-12 → —
|
ZRE182 | — | |
| 88539J — Hose, Drain Cooler | ||||
| 88539-02260 |
Hose, Drain Cooler
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88539-02280 |
Hose, Drain Cooler
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 88539-02290 |
Hose, Drain Cooler
2014-01 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 88539-02260 |
Hose, Drain Cooler
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 88539-02260 |
Hose, Drain Cooler
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 88539-02280 |
Hose, Drain Cooler
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 88539-02290 |
Hose, Drain Cooler
2017-01 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 88539-02280 |
Hose, Drain Cooler
2019-12 → —
|
ZRE182 SA | — | |
| 88539-02290 |
Hose, Drain Cooler
2019-12 → —
|
ZRE182 GEN | — | |
| 88548B — Case, Air Filter | ||||
| 88548-02070 |
Case, Air Filter
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88548-02080 |
Case, Air Filter
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 88548-02090 |
Case, Air Filter
2014-01 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 88548-02070 |
Case, Air Filter
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 88548-02070 |
Case, Air Filter
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 88548-02080 |
Case, Air Filter
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 88548-02090 |
Case, Air Filter
2017-01 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 88548-02080 |
Case, Air Filter
2019-12 → —
|
ZRE182 SA | — | |
| 88548-02090 |
Case, Air Filter
2019-12 → —
|
ZRE182 GEN | — | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88625-02110 |
Thermistor, Cooler, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88625-02110 |
Thermistor, Cooler, NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88625-02110 |
Thermistor, Cooler, NO.1
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88625-02110 note |
Thermistor, Cooler, NO.1
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88625-02110 |
Thermistor, Cooler, NO.1
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88625-02110 |
Thermistor, Cooler, NO.1
2016-06 → 2019-01
ended
|
NDE180 TUP;ZRE18# N TUP | — | |
| 88625-02110 |
Thermistor, Cooler, NO.1
2019-12 → —
|
ZRE182 | — | |
| 88650N — Amplifier Assy, Air Conditioner | ||||
| 88650-02B50 note |
Amplifier Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NDE180 D SAP | — | |
| 88650-02D70 note |
Amplifier Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 88650-02D80 note |
Amplifier Assy, Air Conditioner
2013-06 → 2014-09
ended
|
NDE180 N TUP | — | |
| 88650-02D81 note |
Amplifier Assy, Air Conditioner
2014-10 → 2016-05
ended
|
NDE180 N TUP | — | |
| 88650-02D81 note |
Amplifier Assy, Air Conditioner
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 88650-02E20 |
Amplifier Assy, Air Conditioner
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88650-02E20 |
Amplifier Assy, Air Conditioner
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 88650-02E30 |
Amplifier Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 88650-0D360 note |
Amplifier Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NRE180,ZRE181 D SA | — | |
| 88650-02B50 |
Amplifier Assy, Air Conditioner
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88650-02F30 note |
Amplifier Assy, Air Conditioner
2017-01 → 2017-11
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 88650-02F31 note |
Amplifier Assy, Air Conditioner
2017-11 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 88650-02F40 |
Amplifier Assy, Air Conditioner
2016-06 → 2017-11
ended
|
NDE180;NRE180 N TUP | — | |
| 88650-02F40 note |
Amplifier Assy, Air Conditioner
2016-06 → 2017-11
ended
|
NRE180 D TUP | — | |
| 88650-02F41 |
Amplifier Assy, Air Conditioner
2017-11 → 2019-12
ended
|
NDE180 SAP | — | |
| 88650-02F41 |
Amplifier Assy, Air Conditioner
2017-11 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88650-02F41 note |
Amplifier Assy, Air Conditioner
2017-11 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88650-02F41 |
Amplifier Assy, Air Conditioner
2017-11 → 2019-01
ended
|
NDE180 TUP | — | |
| 88650-02F50 note |
Amplifier Assy, Air Conditioner
2016-06 → 2017-11
ended
|
ZRE18# D TUP | — | |
| 88650-02F50 |
Amplifier Assy, Air Conditioner
2016-06 → 2017-11
ended
|
ZRE182 N;ZRE181 N TUP;ZRE182 +3 | — | |
| 88650-02F51 |
Amplifier Assy, Air Conditioner
2017-11 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 88650-02F51 note |
Amplifier Assy, Air Conditioner
2017-11 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88650-02F51 |
Amplifier Assy, Air Conditioner
2017-11 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 88650-02F60 note |
Amplifier Assy, Air Conditioner
2016-06 → 2017-11
ended
|
NDE180,NRE180,ZRE18# N TUP | — | |
| 88650-02F61 note |
Amplifier Assy, Air Conditioner
2017-11 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88650-02F61 note |
Amplifier Assy, Air Conditioner
2017-11 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 88650-0D360 |
Amplifier Assy, Air Conditioner
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88650-02F31 |
Amplifier Assy, Air Conditioner
2019-12 → —
|
ZRE182 G | — | |
| 88650-02F51 |
Amplifier Assy, Air Conditioner
2019-12 → —
|
ZRE182 D,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
