Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

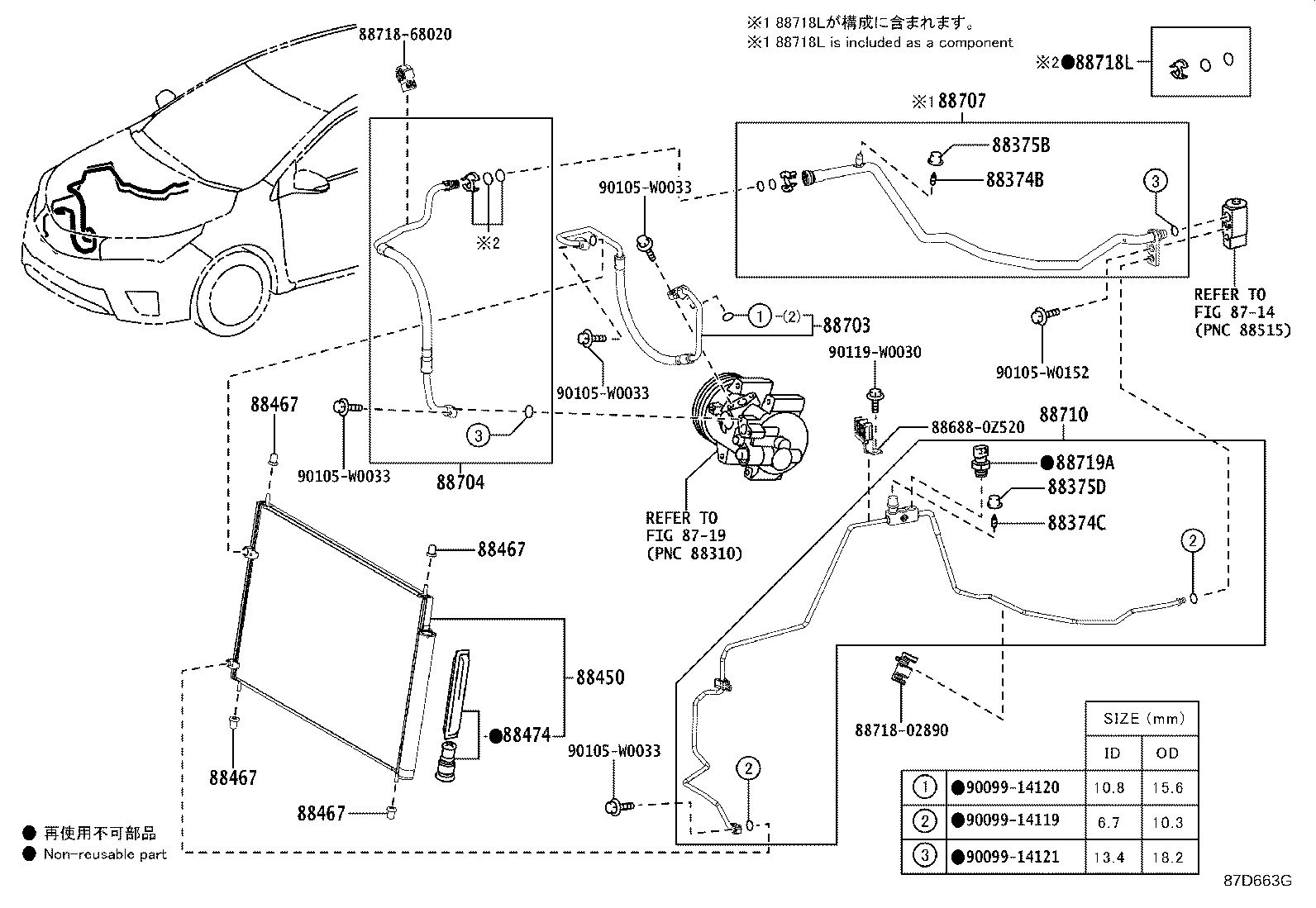

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88374B — Valve, Service, NO.1 | ||||
| 88374-02020 |
Valve, Service, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88374-02020 note |
Valve, Service, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88374-30010 |
Valve, Service, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88374-02020 note |
Valve, Service, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88374-02020 |
Valve, Service, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88374-30010 note |
Valve, Service, NO.1
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88374-30010 |
Valve, Service, NO.1
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88374-30010 |
Valve, Service, NO.1
2016-06 → 2019-01
ended
|
NDE180 TUP;ZRE18# N TUP | — | |
| 88374-30010 note |
Valve, Service, NO.1
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88374-02020 |
Valve, Service, NO.1
2019-12 → —
|
ZRE182 | — | |
| 88374C — Valve, Service, NO.2 | ||||
| 88374-02020 |
Valve, Service, NO.2
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88374-02020 note |
Valve, Service, NO.2
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88374-30010 |
Valve, Service, NO.2
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88374-02020 note |
Valve, Service, NO.2
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88374-02020 |
Valve, Service, NO.2
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88374-30010 note |
Valve, Service, NO.2
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88374-30010 |
Valve, Service, NO.2
2016-06 → 2019-01
ended
|
NDE180 TUP;ZRE18# N TUP | — | |
| 88374-30010 note |
Valve, Service, NO.2
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88374-30010 |
Valve, Service, NO.2
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88374-02020 |
Valve, Service, NO.2
2019-12 → —
|
ZRE182 | — | |
| 88375B — Cap, Service Valve, NO.1 | ||||
| 88375-02140 |
Cap, Service Valve, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88375-02140 note |
Cap, Service Valve, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88375-30290 |
Cap, Service Valve, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88375-02140 note |
Cap, Service Valve, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88375-02140 |
Cap, Service Valve, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88375-30290 note |
Cap, Service Valve, NO.1
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88375-30290 note |
Cap, Service Valve, NO.1
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88375-30290 |
Cap, Service Valve, NO.1
2016-06 → 2019-01
ended
|
NDE180 TUP;ZRE18# N TUP | — | |
| 88375-30290 |
Cap, Service Valve, NO.1
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88375-02140 |
Cap, Service Valve, NO.1
2019-12 → —
|
ZRE182 | — | |
| 88375D — Cap, Service Valve, NO.2 | ||||
| 88375-02150 |
Cap, Service Valve, NO.2
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88375-02150 note |
Cap, Service Valve, NO.2
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88375-30280 |
Cap, Service Valve, NO.2
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88375-02150 |
Cap, Service Valve, NO.2
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88375-02150 note |
Cap, Service Valve, NO.2
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88375-30280 |
Cap, Service Valve, NO.2
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88375-30280 note |
Cap, Service Valve, NO.2
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88375-30280 |
Cap, Service Valve, NO.2
2016-06 → 2019-01
ended
|
NDE180 TUP;ZRE18# N TUP | — | |
| 88375-30280 note |
Cap, Service Valve, NO.2
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88375-02150 |
Cap, Service Valve, NO.2
2019-12 → —
|
ZRE182 | — | |
| 88450 — Condenser Assy, W/Receiver | ||||
| 88450-02280 |
Condenser Assy, W/Receiver
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88450-02300 note |
Condenser Assy, W/Receiver
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88450-02300 |
Condenser Assy, W/Receiver
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88450-02280 |
Condenser Assy, W/Receiver
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 88450-02300 |
Condenser Assy, W/Receiver
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88450-02300 note |
Condenser Assy, W/Receiver
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88450-02520 |
Condenser Assy, W/Receiver
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88450-02520 note |
Condenser Assy, W/Receiver
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88450-02520 |
Condenser Assy, W/Receiver
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 88450-02520 note |
Condenser Assy, W/Receiver
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88450-02300 |
Condenser Assy, W/Receiver
2019-12 → —
|
ZRE182 | — | |
| 88467 — Cushion, Cooler Condenser, NO.1 | ||||
| 16716-28010 |
Cushion, Cooler Condenser, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 16716-28010 |
Cushion, Cooler Condenser, NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 16716-28010 note |
Cushion, Cooler Condenser, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 16716-28010 note |
Cushion, Cooler Condenser, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 16716-28010 |
Cushion, Cooler Condenser, NO.1
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 16716-28010 note |
Cushion, Cooler Condenser, NO.1
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 16716-28010 note |
Cushion, Cooler Condenser, NO.1
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 16716-28010 |
Cushion, Cooler Condenser, NO.1
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 16716-28010 |
Cushion, Cooler Condenser, NO.1
2016-06 → 2019-01
ended
|
NDE180 TUP;ZRE18# N TUP | — | |
| 16716-28010 |
Cushion, Cooler Condenser, NO.1
2019-12 → —
|
ZRE182 | — | |
| 88474 — Dryer, Cooler | ||||
| 88474-02220 |
Dryer, Cooler
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88474-02220 note |
Dryer, Cooler
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88474-17010 |
Dryer, Cooler
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88474-02220 note |
Dryer, Cooler
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88474-02220 |
Dryer, Cooler
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88474-12010 note |
Dryer, Cooler
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88474-12010 |
Dryer, Cooler
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 88474-12010 note |
Dryer, Cooler
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88474-12010 |
Dryer, Cooler
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88474-17010 |
Dryer, Cooler
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 88474-02220 |
Dryer, Cooler
2019-12 → —
|
ZRE182 | — | |
| 88703 — Hose Sub-assy, Discharge | ||||
| 88703-02870 |
Hose Sub-assy, Discharge
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88703-02880 |
Hose Sub-assy, Discharge
2014-01 → 2017-01
ended
|
ZRE18# SAP | — | |
| 88703-02880 note |
Hose Sub-assy, Discharge
2014-01 → 2017-01
ended
|
ZRE181 D SA | — | |
| 88703-02890 |
Hose Sub-assy, Discharge
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 88703-02890 note |
Hose Sub-assy, Discharge
2014-01 → 2017-01
ended
|
NRE180 D SAP | — | |
| 88703-0Z010 |
Hose Sub-assy, Discharge
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 88703-0Z010 note |
Hose Sub-assy, Discharge
2014-01 → 2017-01
ended
|
NDE180 D SAP | — | |
| 88703-02870 |
Hose Sub-assy, Discharge
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 88703-02880 note |
Hose Sub-assy, Discharge
2017-01 → 2019-12
ended
|
ZRE181 D SA | — | |
| 88703-02880 |
Hose Sub-assy, Discharge
2017-01 → 2019-12
ended
|
ZRE18# SAP | — | |
| 88703-02890 note |
Hose Sub-assy, Discharge
2017-01 → 2019-12
ended
|
NRE180 D SAP | — | |
| 88703-02890 |
Hose Sub-assy, Discharge
2017-01 → 2019-12
ended
|
NRE180 SAP | — | |
| 88703-02C40 note |
Hose Sub-assy, Discharge
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88703-02C40 |
Hose Sub-assy, Discharge
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 88703-02C50 note |
Hose Sub-assy, Discharge
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88703-02C50 |
Hose Sub-assy, Discharge
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88703-0Z010 |
Hose Sub-assy, Discharge
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 88703-0Z010 note |
Hose Sub-assy, Discharge
2017-01 → 2019-12
ended
|
NDE180 D SAP | — | |
| 88703-02880 |
Hose Sub-assy, Discharge
2019-12 → —
|
ZRE182 | — | |
| 88704 — Hose Sub-assy, Suction | ||||
| 88704-0Z150 |
Hose Sub-assy, Suction
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88704-0Z190 |
Hose Sub-assy, Suction
2014-01 → 2017-01
ended
|
ZRE18# SAP | — | |
| 88704-0Z190 note |
Hose Sub-assy, Suction
2014-01 → 2017-01
ended
|
ZRE181 D SA | — | |
| 88704-0Z200 |
Hose Sub-assy, Suction
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 88704-0Z200 note |
Hose Sub-assy, Suction
2014-01 → 2017-01
ended
|
NRE180 D SAP | — | |
| 88704-0Z210 |
Hose Sub-assy, Suction
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 88704-0Z210 note |
Hose Sub-assy, Suction
2014-01 → 2017-01
ended
|
NDE180 D SAP | — | |
| 88704-0Z130 |
Hose Sub-assy, Suction
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 88704-0Z130 note |
Hose Sub-assy, Suction
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88704-0Z140 |
Hose Sub-assy, Suction
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88704-0Z140 note |
Hose Sub-assy, Suction
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88704-0Z150 |
Hose Sub-assy, Suction
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 88704-0Z190 |
Hose Sub-assy, Suction
2017-01 → 2019-12
ended
|
ZRE18# SAP | — | |
| 88704-0Z190 note |
Hose Sub-assy, Suction
2017-01 → 2019-12
ended
|
ZRE181 D SA | — | |
| 88704-0Z200 note |
Hose Sub-assy, Suction
2017-01 → 2019-12
ended
|
NRE180 D SAP | — | |
| 88704-0Z200 |
Hose Sub-assy, Suction
2017-01 → 2019-12
ended
|
NRE180 SAP | — | |
| 88704-0Z210 |
Hose Sub-assy, Suction
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 88704-0Z210 note |
Hose Sub-assy, Suction
2017-01 → 2019-12
ended
|
NDE180 D SAP | — | |
| 88704-0Z190 |
Hose Sub-assy, Suction
2019-12 → —
|
ZRE182 | — | |
| 88707 — Pipe Sub-assy, Suction | ||||
| 88707-02200 |
Pipe Sub-assy, Suction
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88707-02250 |
Pipe Sub-assy, Suction
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88707-02250 note |
Pipe Sub-assy, Suction
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88707-02200 note |
Pipe Sub-assy, Suction
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88707-02200 |
Pipe Sub-assy, Suction
2016-06 → 2019-01
ended
|
NDE180 TUP;ZRE18# N TUP | — | |
| 88707-02200 |
Pipe Sub-assy, Suction
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88707-02200 note |
Pipe Sub-assy, Suction
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88707-02250 note |
Pipe Sub-assy, Suction
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88707-02250 |
Pipe Sub-assy, Suction
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88707-02250 |
Pipe Sub-assy, Suction
2019-12 → —
|
ZRE182 | — | |
| 88710 — Tube Assy, Air Conditioner | ||||
| 88710-02A80 |
Tube Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 88710-02A80 note |
Tube Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NDE180 D SAP | — | |
| 88710-0Z440 |
Tube Assy, Air Conditioner
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88710-0Z480 |
Tube Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NRE180,ZRE18# SA | — | |
| 88710-0Z480 note |
Tube Assy, Air Conditioner
2014-01 → 2017-01
ended
|
NRE180,ZRE181 D SA | — | |
| 88710-0Z500 |
Tube Assy, Air Conditioner
2014-01 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 88710-02A80 |
Tube Assy, Air Conditioner
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 88710-02A80 note |
Tube Assy, Air Conditioner
2017-01 → 2019-12
ended
|
NDE180 D SAP | — | |
| 88710-02C00 |
Tube Assy, Air Conditioner
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88710-02C00 note |
Tube Assy, Air Conditioner
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88710-02C00 |
Tube Assy, Air Conditioner
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 88710-02C00 note |
Tube Assy, Air Conditioner
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88710-0Z440 |
Tube Assy, Air Conditioner
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 88710-0Z480 note |
Tube Assy, Air Conditioner
2017-01 → 2019-12
ended
|
NRE180,ZRE181 D SA | — | |
| 88710-0Z480 |
Tube Assy, Air Conditioner
2017-01 → 2019-12
ended
|
NRE180,ZRE18# SA | — | |
| 88710-0Z500 |
Tube Assy, Air Conditioner
2017-01 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 88710-0Z480 |
Tube Assy, Air Conditioner
2019-12 → —
|
ZRE182 SA | — | |
| 88710-0Z500 |
Tube Assy, Air Conditioner
2019-12 → —
|
ZRE182 GEN | — | |
| 88718L — Clamp, Piping | ||||
| 88718-52280 |
Clamp, Piping
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88718-52260 |
Clamp, Piping
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 88718-52260 note |
Clamp, Piping
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88718-52280 |
Clamp, Piping
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88718-52280 note |
Clamp, Piping
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88718-52280 |
Clamp, Piping
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 88719A — Sensor, Air Conditioner Pressure | ||||
| 88719-33020 |
Sensor, Air Conditioner Pressure
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88719-33020 note |
Sensor, Air Conditioner Pressure
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88719-33020 |
Sensor, Air Conditioner Pressure
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88719-33020 |
Sensor, Air Conditioner Pressure
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88719-33020 note |
Sensor, Air Conditioner Pressure
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88719-33020 |
Sensor, Air Conditioner Pressure
2016-06 → 2019-01
ended
|
NDE180 TUP;ZRE18# N TUP | — | |
| 88719-33020 note |
Sensor, Air Conditioner Pressure
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88719-33020 |
Sensor, Air Conditioner Pressure
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88719-33020 note |
Sensor, Air Conditioner Pressure
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 88719-33020 |
Sensor, Air Conditioner Pressure
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
