Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

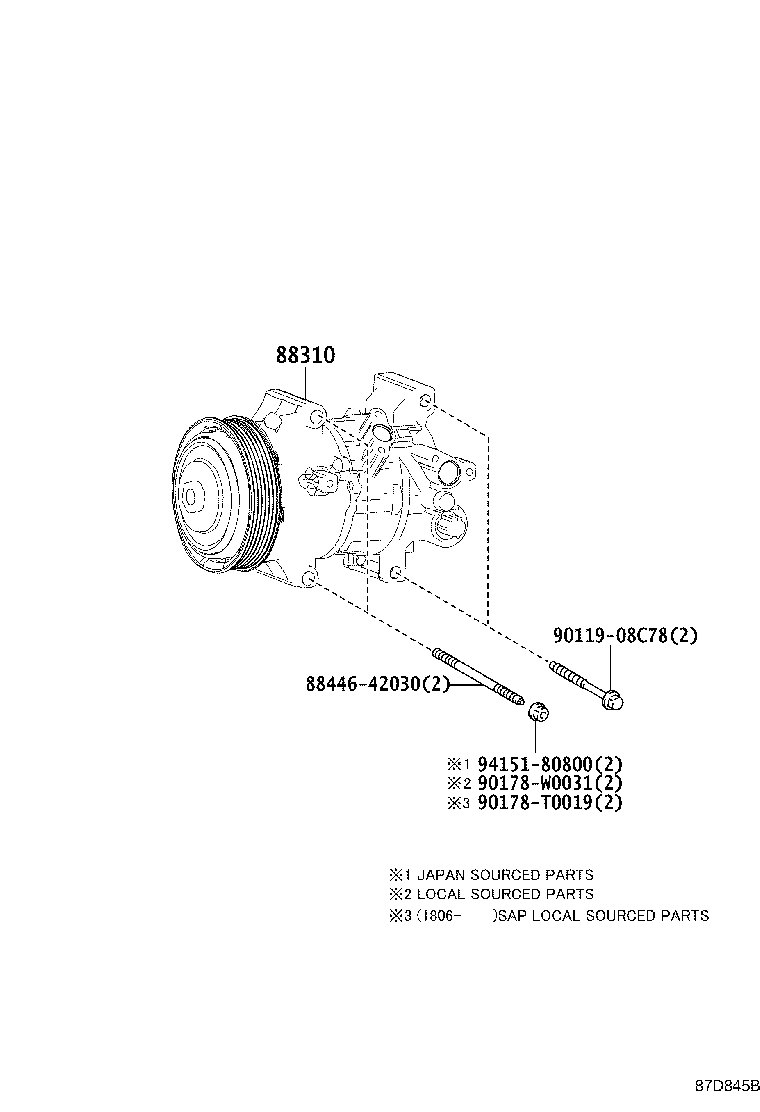

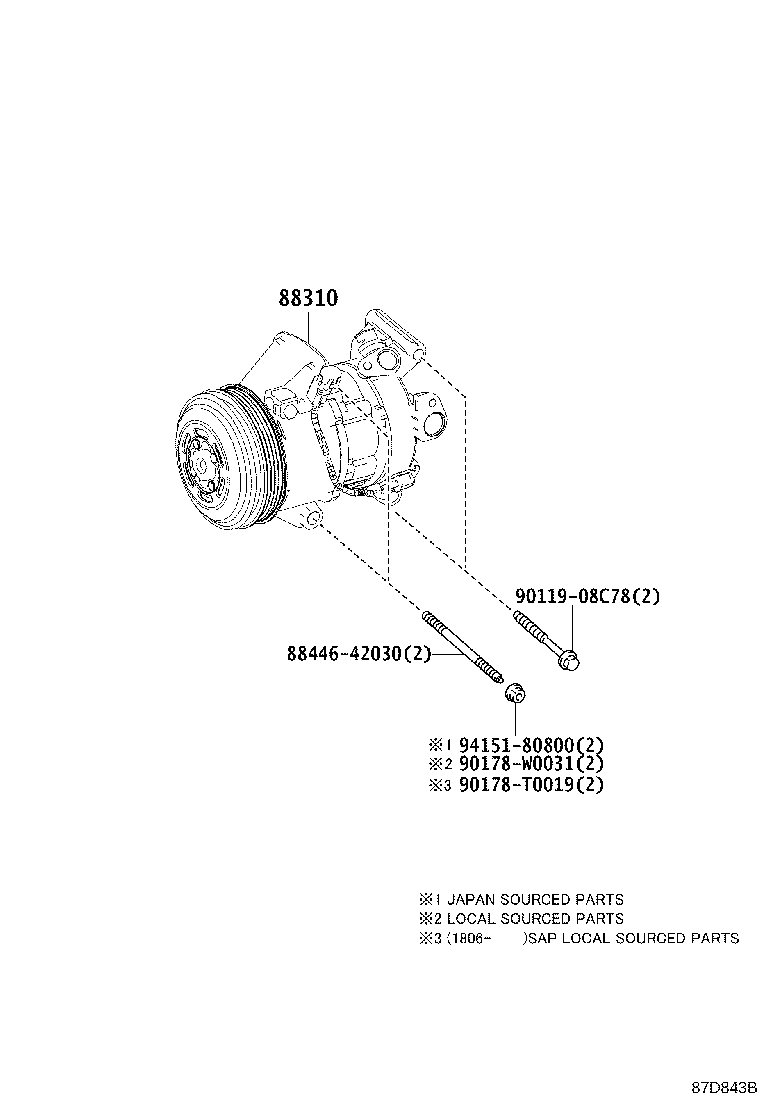

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88310 — Compressor Assy, W/Pulley | ||||
| 88310-02840 |
Compressor Assy, W/Pulley
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88310-02860 |
Compressor Assy, W/Pulley
2014-01 → 2017-01
ended
|
ZRE18# SAP | — | |
| 88310-02860 note |
Compressor Assy, W/Pulley
2014-01 → 2017-01
ended
|
ZRE181 D SA | — | |
| 88310-02870 |
Compressor Assy, W/Pulley
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 88310-02880 |
Compressor Assy, W/Pulley
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 88310-02880 note |
Compressor Assy, W/Pulley
2014-01 → 2017-01
ended
|
NDE180 D SAP | — | |
| 88310-02790 |
Compressor Assy, W/Pulley
2016-06 → 2019-01
ended
|
ZRE18# N TUP | — | |
| 88310-02790 note |
Compressor Assy, W/Pulley
2016-06 → 2019-01
ended
|
ZRE18# D TUP | — | |
| 88310-02830 note |
Compressor Assy, W/Pulley
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 88310-02830 |
Compressor Assy, W/Pulley
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88310-02840 |
Compressor Assy, W/Pulley
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 88310-02860 |
Compressor Assy, W/Pulley
2017-01 → 2019-12
ended
|
ZRE18# SAP | — | |
| 88310-02860 note |
Compressor Assy, W/Pulley
2017-01 → 2019-12
ended
|
ZRE181 D SA | — | |
| 88310-02870 |
Compressor Assy, W/Pulley
2017-01 → 2019-12
ended
|
NRE180 SAP | — | |
| 88310-02880 |
Compressor Assy, W/Pulley
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 88310-02880 note |
Compressor Assy, W/Pulley
2017-01 → 2019-12
ended
|
NDE180 D SAP | — | |
| 88310-02860 |
Compressor Assy, W/Pulley
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
