Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

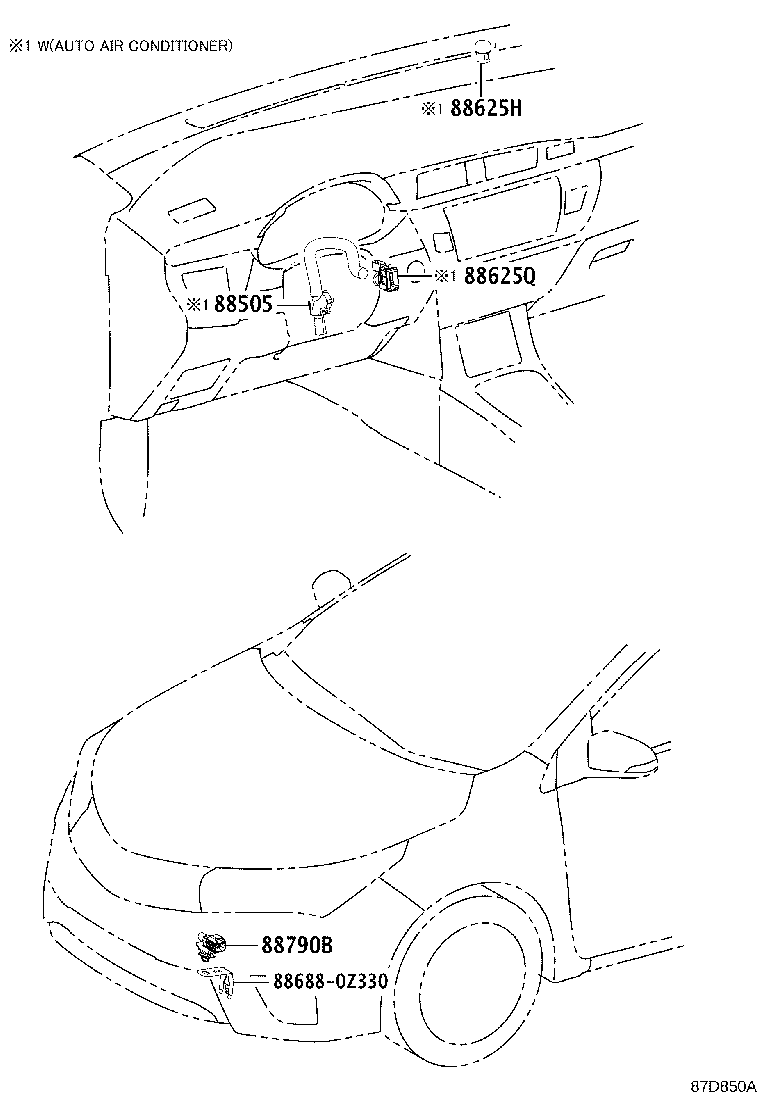

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88505 — Duct Sub-assy,Air Conditioner | ||||
| 88505-02020 note |
Duct Sub-assy,Air Conditioner
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 88505-02020 note |
Duct Sub-assy,Air Conditioner
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 88505-02040 note |
Duct Sub-assy,Air Conditioner
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 88505-02170 note |
Duct Sub-assy,Air Conditioner
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 88505-02020 note |
Duct Sub-assy,Air Conditioner
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88505-02020 note |
Duct Sub-assy,Air Conditioner
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 88505-02040 note |
Duct Sub-assy,Air Conditioner
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 88505-02170 note |
Duct Sub-assy,Air Conditioner
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 88505-02040 |
Duct Sub-assy,Air Conditioner
2019-12 → —
|
ZRE182 G GEN | — | |
| 88505-02170 |
Duct Sub-assy,Air Conditioner
2019-12 → —
|
ZRE182 G SA | — | |
| 88625H — Thermistor, Cooler (SOLAR SENSOR) | ||||
| 88625-51010 note |
Thermistor, Cooler (SOLAR SENSOR)
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 88625-51010 note |
Thermistor, Cooler (SOLAR SENSOR)
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 88790-35070 note |
Thermistor, Cooler (SOLAR SENSOR)
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 88625-51010 note |
Thermistor, Cooler (SOLAR SENSOR)
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88625-51010 note |
Thermistor, Cooler (SOLAR SENSOR)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 88790-35070 note |
Thermistor, Cooler (SOLAR SENSOR)
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 88790-35070 |
Thermistor, Cooler (SOLAR SENSOR)
2019-12 → —
|
ZRE182 G | — | |
| 88625Q — Thermistor, Cooler (ROOM TEMP. SENSOR) | ||||
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2019-12 → —
|
ZRE182 G | — | |
| 88790B — Thermistor Assy | ||||
| 88790-22131 |
Thermistor Assy
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 88790-22131 |
Thermistor Assy
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88790-22131 |
Thermistor Assy
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 88790-22131 |
Thermistor Assy
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 88790-22131 |
Thermistor Assy
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 88790-22131 |
Thermistor Assy
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
