Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

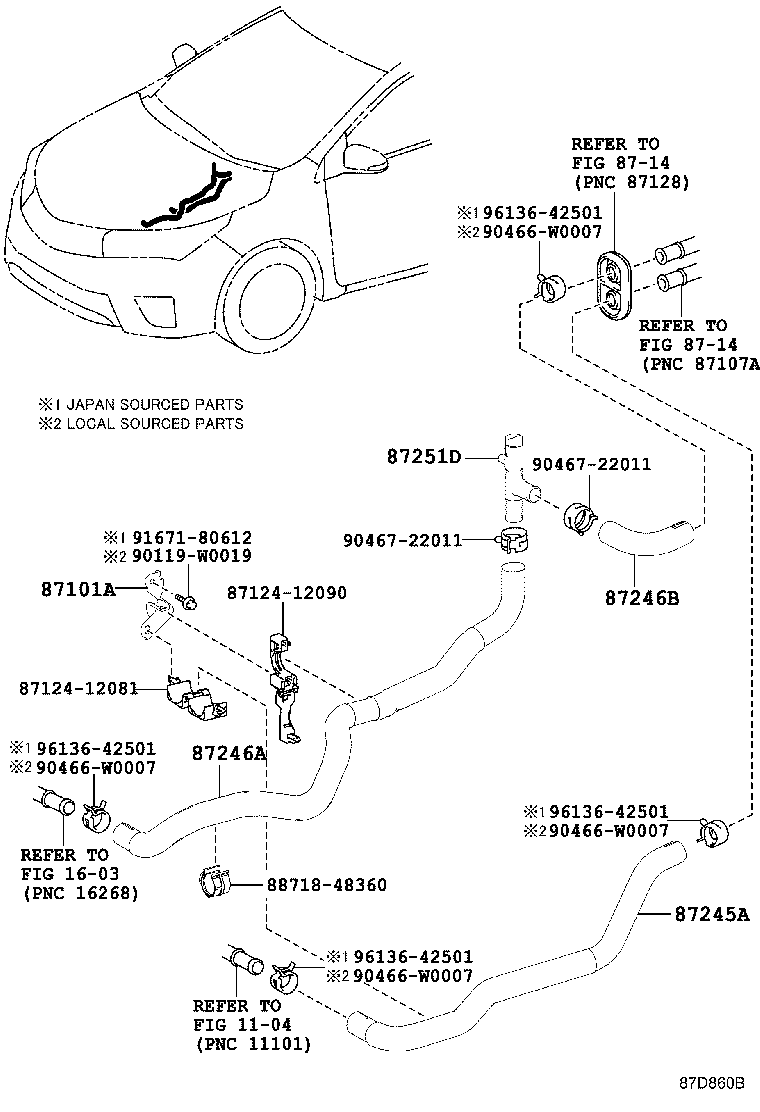

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87101A — Bracket Sub-assy, Heater NO.1 | ||||
| 87101-02110 |
Bracket Sub-assy, Heater NO.1
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 87101-02110 |
Bracket Sub-assy, Heater NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87101-02110 |
Bracket Sub-assy, Heater NO.1
2016-06 → 2019-12
ended
|
NRE180 SAP | — | |
| 87245A — Hose, Heater Water, Inlet A | ||||
| 87245-02640 |
Hose, Heater Water, Inlet A
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 87245-02F10 |
Hose, Heater Water, Inlet A
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87245-12F10 |
Hose, Heater Water, Inlet A
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 87245-12G10 |
Hose, Heater Water, Inlet A
2014-01 → 2017-01
ended
|
ZRE18# SAP | — | |
| 87245-02640 |
Hose, Heater Water, Inlet A
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87245-02640 |
Hose, Heater Water, Inlet A
2016-06 → 2019-12
ended
|
NRE180 SAP | — | |
| 87245-02F10 |
Hose, Heater Water, Inlet A
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 87245-02P00 |
Hose, Heater Water, Inlet A
2016-06 → 2019-01
ended
|
ZRE18# TUP | — | |
| 87245-12F10 |
Hose, Heater Water, Inlet A
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 87245-12G10 |
Hose, Heater Water, Inlet A
2017-01 → 2019-12
ended
|
ZRE18# SAP | — | |
| 87245-12G10 |
Hose, Heater Water, Inlet A
2019-12 → —
|
ZRE182 | — | |
| 87246A — Hose, Heater Water, Outlet A | ||||
| 87209-05041 |
Hose, Heater Water, Outlet A
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 87245-02870 |
Hose, Heater Water, Outlet A
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 87245-02F90 |
Hose, Heater Water, Outlet A
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87245-12A10 |
Hose, Heater Water, Outlet A
2014-01 → 2017-01
ended
|
ZRE18# 6F SAP | — | |
| 87245-12F70 |
Hose, Heater Water, Outlet A
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 87209-05041 |
Hose, Heater Water, Outlet A
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 87209-05041 |
Hose, Heater Water, Outlet A
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 87245-02870 |
Hose, Heater Water, Outlet A
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87245-02870 |
Hose, Heater Water, Outlet A
2016-06 → 2019-12
ended
|
NRE180 SAP | — | |
| 87245-02A20 |
Hose, Heater Water, Outlet A
2016-06 → 2019-01
ended
|
ZRE181 6F TUP | — | |
| 87245-02F90 |
Hose, Heater Water, Outlet A
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 87245-12A10 |
Hose, Heater Water, Outlet A
2017-01 → 2019-12
ended
|
ZRE18# 6F SAP | — | |
| 87245-12F70 |
Hose, Heater Water, Outlet A
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 87209-05041 |
Hose, Heater Water, Outlet A
2019-12 → —
|
ZRE182 CVT | — | |
| 87245-12A10 |
Hose, Heater Water, Outlet A
2019-12 → —
|
ZRE182 6F | — | |
| 87246B — Hose, Heater Water, Outlet B | ||||
| 87245-02G00 |
Hose, Heater Water, Outlet B
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 87245-02G00 |
Hose, Heater Water, Outlet B
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87245-02G00 |
Hose, Heater Water, Outlet B
2016-06 → 2019-12
ended
|
NRE180 SAP | — | |
| 87251D — Joint, Water, NO.1 | ||||
| 87251-12040 |
Joint, Water, NO.1
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 87251-12040 |
Joint, Water, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87251-12040 |
Joint, Water, NO.1
2016-06 → 2019-12
ended
|
NRE180 SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
