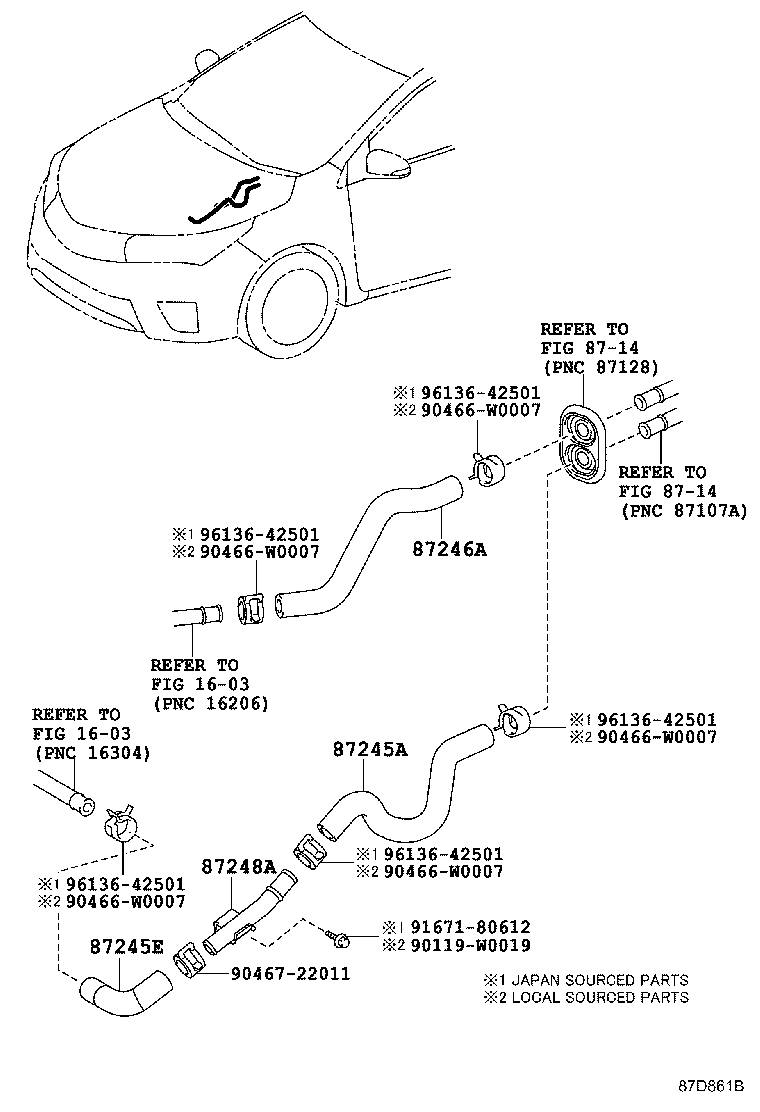

Exploded illustration 87D861B 8714 — not listed in this catalogue 9046722011 — not listed in this catalogue 9167180612 — not listed in this catalogue 90119W0019 — not listed in this catalogue 87248A — PIPE, HEATER WATER INLET, A (4 parts) 87245A — HOSE, HEATER WATER, INLET A (11 parts) 87246A — HOSE, HEATER WATER, OUTLET A (15 parts) 87245E — HOSE, HEATER WATER, INLET E (4 parts) 1603 — not listed in this catalogue 1603 — not listed in this catalogue 90466W0007 — not listed in this catalogue 9613642501 — not listed in this catalogue 90466W0007 — not listed in this catalogue 9613642501 — not listed in this catalogue 90466W0007 — not listed in this catalogue 9613642501 — not listed in this catalogue 90466W0007 — not listed in this catalogue 9613642501 — not listed in this catalogue 90466W0007 — not listed in this catalogue 9613642501 — not listed in this catalogue 8714 — not listed in this catalogue
87D861B · 4 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
87245A — Hose, Heater Water, Inlet A
87245-02640 Hose, Heater Water, Inlet A
2014-01 → 2017-01 ended
NRE180 SAP —
87245-02F10 Hose, Heater Water, Inlet A
2013-06 → 2016-05 ended
NDE180 TUP —
87245-12F10 Hose, Heater Water, Inlet A
2014-01 → 2017-01 ended
NDE180 SAP —
87245-12G10 Hose, Heater Water, Inlet A
2014-01 → 2017-01 ended
ZRE18# SAP —
87245-02640 Hose, Heater Water, Inlet A
2016-06 → 2018-08 ended
NRE180 TUP —
87245-02640 Hose, Heater Water, Inlet A
2016-06 → 2019-12 ended
NRE180 SAP —
87245-02F10 Hose, Heater Water, Inlet A
2016-06 → 2019-01 ended
NDE180 TUP —
87245-02P00 Hose, Heater Water, Inlet A
2016-06 → 2019-01 ended
ZRE18# TUP —
87245-12F10 Hose, Heater Water, Inlet A
2017-01 → 2019-12 ended
NDE180 SAP —
87245-12G10 Hose, Heater Water, Inlet A
2017-01 → 2019-12 ended
ZRE18# SAP —
87245-12G10 Hose, Heater Water, Inlet A
2019-12 → —
ZRE182 —
87245E — Hose, Heater Water, Inlet E
87245-02F00 Hose, Heater Water, Inlet E
2013-06 → 2016-05 ended
NDE180 TUP —
87245-02F00 Hose, Heater Water, Inlet E
2013-06 → 2017-01 ended
NDE180 SAP —
87245-02F00 Hose, Heater Water, Inlet E
2016-06 → 2019-01 ended
NDE180 TUP —
87245-02F00 Hose, Heater Water, Inlet E
2016-06 → 2019-12 ended
NDE180 SAP —
87246A — Hose, Heater Water, Outlet A
87209-05041 Hose, Heater Water, Outlet A
2014-01 → 2017-01 ended
ZRE18# CVT SAP —
87245-02870 Hose, Heater Water, Outlet A
2014-01 → 2017-01 ended
NRE180 SAP —
87245-02F90 Hose, Heater Water, Outlet A
2013-06 → 2016-05 ended
NDE180 TUP —
87245-12A10 Hose, Heater Water, Outlet A
2014-01 → 2017-01 ended
ZRE18# 6F SAP —
87245-12F70 Hose, Heater Water, Outlet A
2014-01 → 2017-01 ended
NDE180 SAP —
87209-05041 Hose, Heater Water, Outlet A
2016-06 → 2019-01 ended
ZRE18# CVT TUP —
87209-05041 Hose, Heater Water, Outlet A
2016-06 → 2019-12 ended
ZRE18# CVT SAP —
87245-02870 Hose, Heater Water, Outlet A
2016-06 → 2019-12 ended
NRE180 SAP —
87245-02870 Hose, Heater Water, Outlet A
2016-06 → 2018-08 ended
NRE180 TUP —
87245-02A20 Hose, Heater Water, Outlet A
2016-06 → 2019-01 ended
ZRE181 6F TUP —
87245-02F90 Hose, Heater Water, Outlet A
2016-06 → 2019-01 ended
NDE180 TUP —
87245-12A10 Hose, Heater Water, Outlet A
2017-01 → 2019-12 ended
ZRE18# 6F SAP —
87245-12F70 Hose, Heater Water, Outlet A
2017-01 → 2019-12 ended
NDE180 SAP —
87209-05041 Hose, Heater Water, Outlet A
2019-12 → —
ZRE182 CVT —
87245-12A10 Hose, Heater Water, Outlet A
2019-12 → —
ZRE182 6F —
87248A — Pipe, Heater Water Inlet, A
87248-02040 Pipe, Heater Water Inlet, A
2013-06 → 2016-05 ended
NDE180 TUP —
87248-02040 Pipe, Heater Water Inlet, A
2013-06 → 2017-01 ended
NDE180 SAP —
87248-02040 Pipe, Heater Water Inlet, A
2016-06 → 2019-01 ended
NDE180 TUP —
87248-02040 Pipe, Heater Water Inlet, A
2016-06 → 2019-12 ended
NDE180 SAP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
