Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

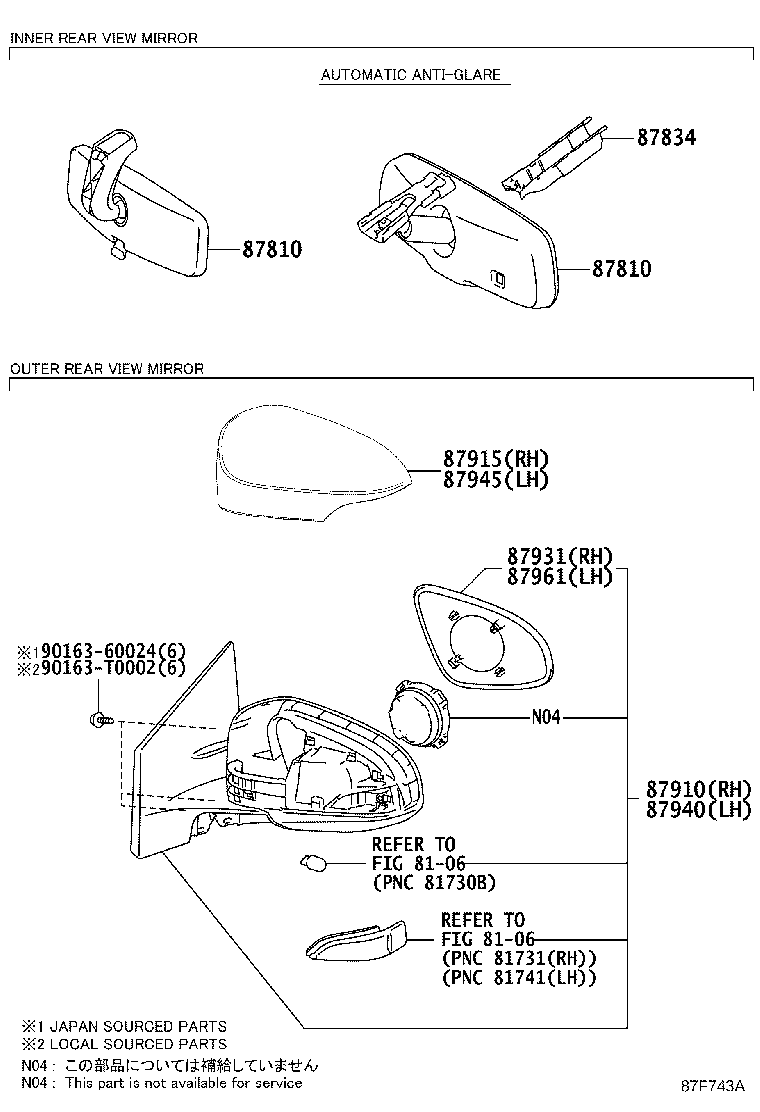

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87810 — Mirror Assy, Inner Rear View | ||||
| 87810-0F010 |
Mirror Assy, Inner Rear View
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87810-0F010 |
Mirror Assy, Inner Rear View
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87810-0W810 note |
Mirror Assy, Inner Rear View
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 87810-0W810 note |
Mirror Assy, Inner Rear View
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 87810-0W810 note |
Mirror Assy, Inner Rear View
2013-06 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 87810-0F010 |
Mirror Assy, Inner Rear View
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87810-0F010 |
Mirror Assy, Inner Rear View
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87810-0F010 |
Mirror Assy, Inner Rear View
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87810-0W810 note |
Mirror Assy, Inner Rear View
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 87810-0W810 note |
Mirror Assy, Inner Rear View
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 87810-0W810 note |
Mirror Assy, Inner Rear View
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 87810-0W810 note |
Mirror Assy, Inner Rear View
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 87810-0F010 |
Mirror Assy, Inner Rear View
2019-12 → —
|
ZRE182 D,N | — | |
| 87810-0W810 |
Mirror Assy, Inner Rear View
2019-12 → —
|
ZRE182 G | — | |
| 87834 — Cover, Inner Rear View Mirror Stay Holder | ||||
| 87818-02070 note |
Cover, Inner Rear View Mirror Stay Holder
2015-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 87818-02070 note |
Cover, Inner Rear View Mirror Stay Holder
2015-06 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 87818-02070 note |
Cover, Inner Rear View Mirror Stay Holder
2014-10 → 2016-05
ended
|
NDE180 N TUP | — | |
| 87818-0W070 note |
Cover, Inner Rear View Mirror Stay Holder
2014-01 → 2015-05
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 87818-0W070 note |
Cover, Inner Rear View Mirror Stay Holder
2013-06 → 2015-05
ended
|
ZRE18# N GEN | — | |
| 87818-0W070 note |
Cover, Inner Rear View Mirror Stay Holder
2013-06 → 2014-10
ended
|
NDE180 N TUP | — | |
| 87818-02070 note |
Cover, Inner Rear View Mirror Stay Holder
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 87818-02070 note |
Cover, Inner Rear View Mirror Stay Holder
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 87818-02070 note |
Cover, Inner Rear View Mirror Stay Holder
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 87818-02070 note |
Cover, Inner Rear View Mirror Stay Holder
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 87818-02070 |
Cover, Inner Rear View Mirror Stay Holder
2019-12 → —
|
ZRE182 G | — | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87910-02G20 note |
Mirror Assy, Outer Rear View, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87910-02G30 note |
Mirror Assy, Outer Rear View, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87910-02G40 note |
Mirror Assy, Outer Rear View, RH
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 87910-02G40 note |
Mirror Assy, Outer Rear View, RH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 87910-02G70 note |
Mirror Assy, Outer Rear View, RH
2014-01 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 87910-02G80 note |
Mirror Assy, Outer Rear View, RH
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 87910-02G90 note |
Mirror Assy, Outer Rear View, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 87910-02J00 note |
Mirror Assy, Outer Rear View, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 87910-02G20 note |
Mirror Assy, Outer Rear View, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87910-02G20 note |
Mirror Assy, Outer Rear View, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87910-02G30 note |
Mirror Assy, Outer Rear View, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87910-02G30 note |
Mirror Assy, Outer Rear View, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87910-02G40 note |
Mirror Assy, Outer Rear View, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 87910-02G40 note |
Mirror Assy, Outer Rear View, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 87910-02G70 note |
Mirror Assy, Outer Rear View, RH
2017-01 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 87910-02G80 note |
Mirror Assy, Outer Rear View, RH
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 87910-02G90 note |
Mirror Assy, Outer Rear View, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 87910-02J00 note |
Mirror Assy, Outer Rear View, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 87910-02G70 note |
Mirror Assy, Outer Rear View, RH
2019-12 → —
|
ZRE182 GEN | — | |
| 87910-02G90 note |
Mirror Assy, Outer Rear View, RH
2019-12 → —
|
ZRE182 SA | — | |
| 87915 — Cover, Outer Mirror, RH | ||||
| 87915-02927 note |
Cover, Outer Mirror, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87915-0F911 note |
Cover, Outer Mirror, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87915-02927 note |
Cover, Outer Mirror, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87915-0F911 note |
Cover, Outer Mirror, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87915-0F911 note |
Cover, Outer Mirror, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87915-02927 note |
Cover, Outer Mirror, RH
2019-12 → —
|
ZRE182 | — | |
| 87931 — Outer Mirror, RH | ||||
| 87931-02F10 note |
Outer Mirror, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 87931-02G70 |
Outer Mirror, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87931-0F120 |
Outer Mirror, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87931-02F10 note |
Outer Mirror, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 87931-02G70 |
Outer Mirror, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87931-0F120 |
Outer Mirror, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87931-0F120 |
Outer Mirror, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87931-02G70 |
Outer Mirror, RH
2019-12 → —
|
ZRE182 | — | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87940-02F60 note |
Mirror Assy, Outer Rear View, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87940-02F70 note |
Mirror Assy, Outer Rear View, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87940-02F80 note |
Mirror Assy, Outer Rear View, LH
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 87940-02F80 note |
Mirror Assy, Outer Rear View, LH
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 87940-02G10 note |
Mirror Assy, Outer Rear View, LH
2014-01 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 87940-02G20 note |
Mirror Assy, Outer Rear View, LH
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 87940-02G30 note |
Mirror Assy, Outer Rear View, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 87940-02G40 note |
Mirror Assy, Outer Rear View, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 87940-02F60 note |
Mirror Assy, Outer Rear View, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87940-02F60 note |
Mirror Assy, Outer Rear View, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87940-02F70 note |
Mirror Assy, Outer Rear View, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87940-02F70 note |
Mirror Assy, Outer Rear View, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87940-02F80 note |
Mirror Assy, Outer Rear View, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 87940-02F80 note |
Mirror Assy, Outer Rear View, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 87940-02G10 note |
Mirror Assy, Outer Rear View, LH
2017-01 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 87940-02G20 note |
Mirror Assy, Outer Rear View, LH
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 87940-02G30 note |
Mirror Assy, Outer Rear View, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 87940-02G40 note |
Mirror Assy, Outer Rear View, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 87940-02G10 note |
Mirror Assy, Outer Rear View, LH
2019-12 → —
|
ZRE182 GEN | — | |
| 87940-02G30 note |
Mirror Assy, Outer Rear View, LH
2019-12 → —
|
ZRE182 SA | — | |
| 87945 — Cover, Outer Mirror, LH | ||||
| 87945-02927 note |
Cover, Outer Mirror, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87945-0F911 note |
Cover, Outer Mirror, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87945-02927 note |
Cover, Outer Mirror, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87945-0F911 note |
Cover, Outer Mirror, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87945-0F911 note |
Cover, Outer Mirror, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87945-02927 note |
Cover, Outer Mirror, LH
2019-12 → —
|
ZRE182 | — | |
| 87961 — Mirror Outer, LH | ||||
| 87961-02E50 note |
Mirror Outer, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 87961-02G10 |
Mirror Outer, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87961-0F110 |
Mirror Outer, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 87961-02E50 note |
Mirror Outer, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 87961-02G10 |
Mirror Outer, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 87961-0F110 |
Mirror Outer, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 87961-0F110 |
Mirror Outer, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 87961-02G10 |
Mirror Outer, LH
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
