Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

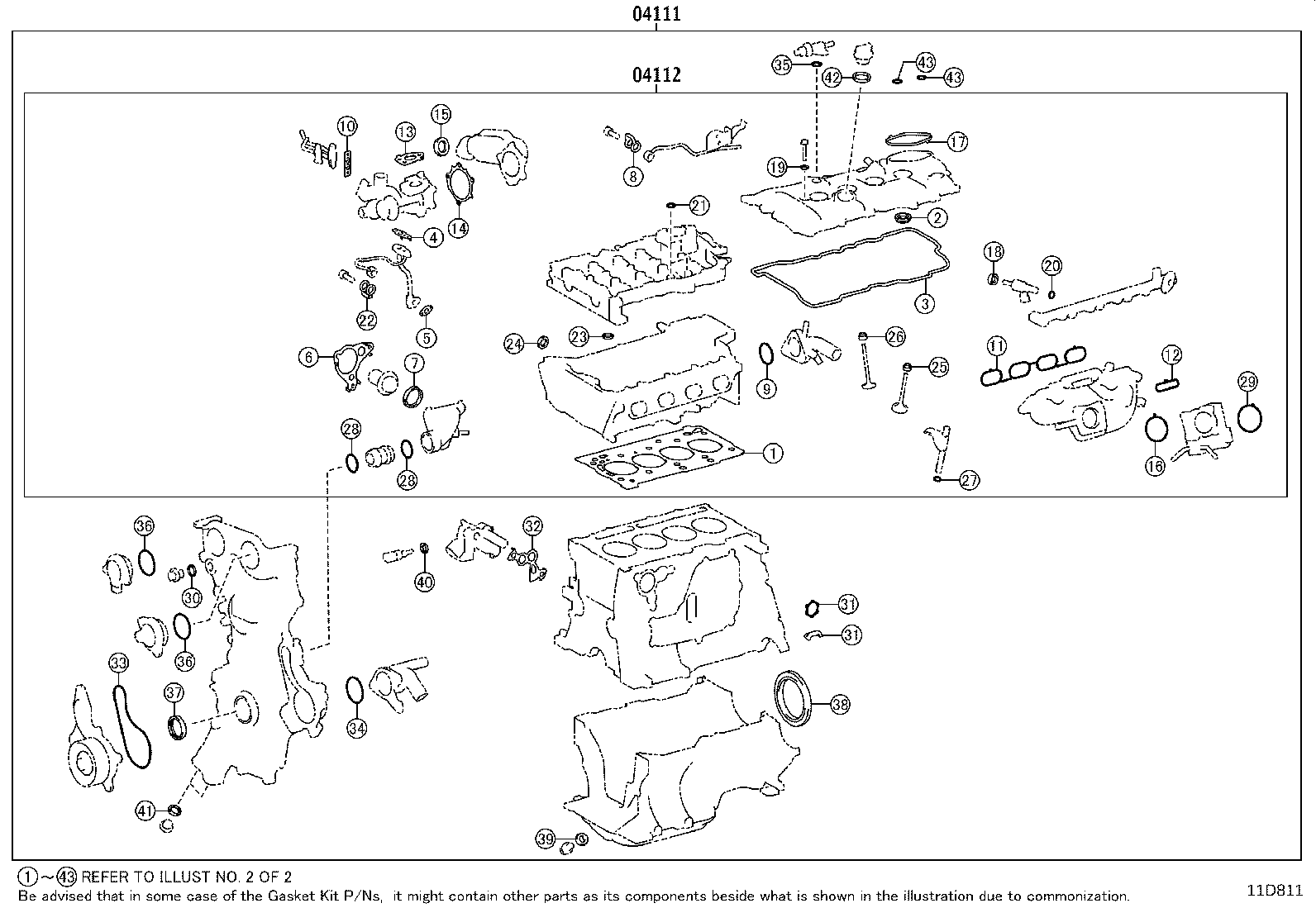

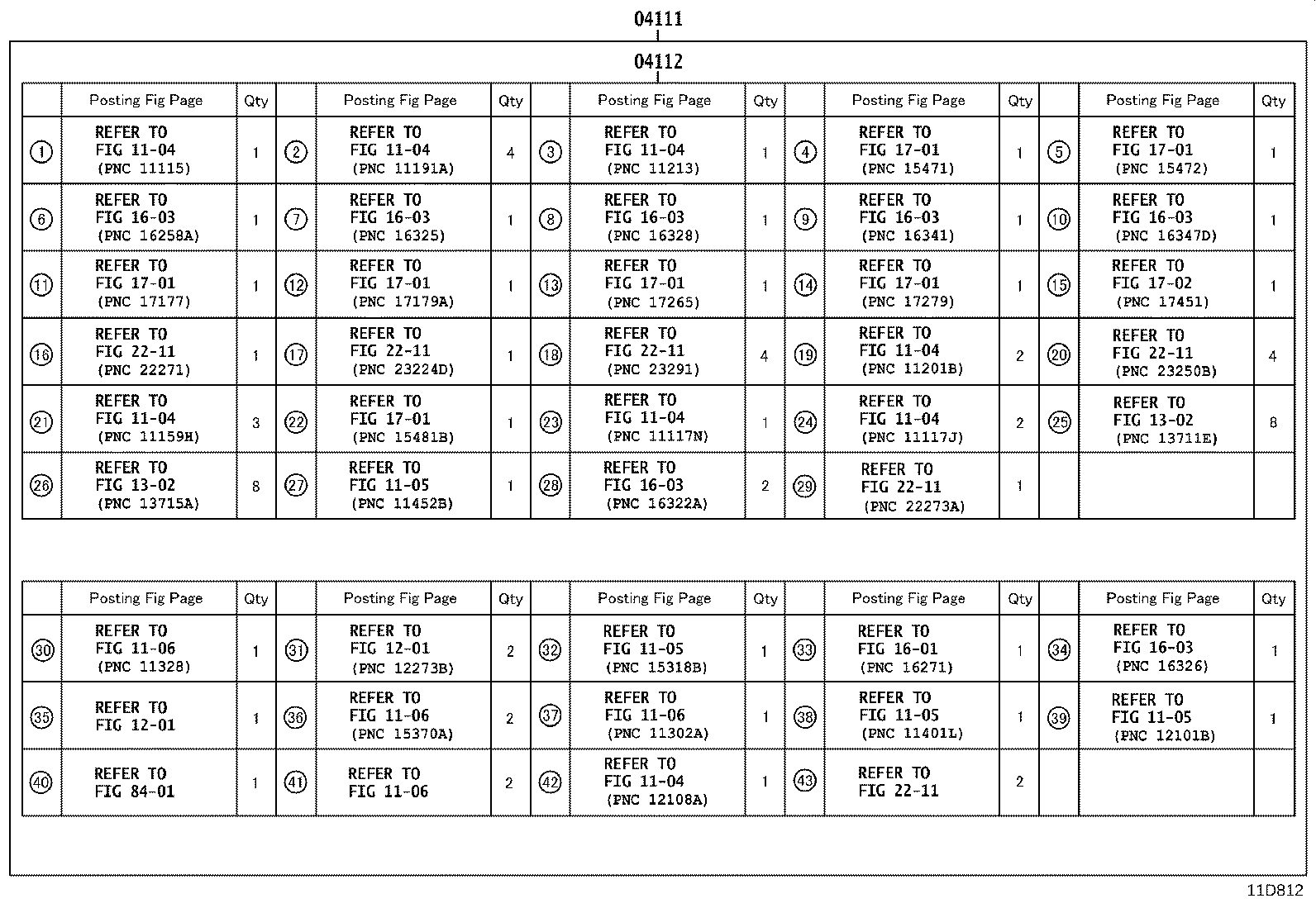

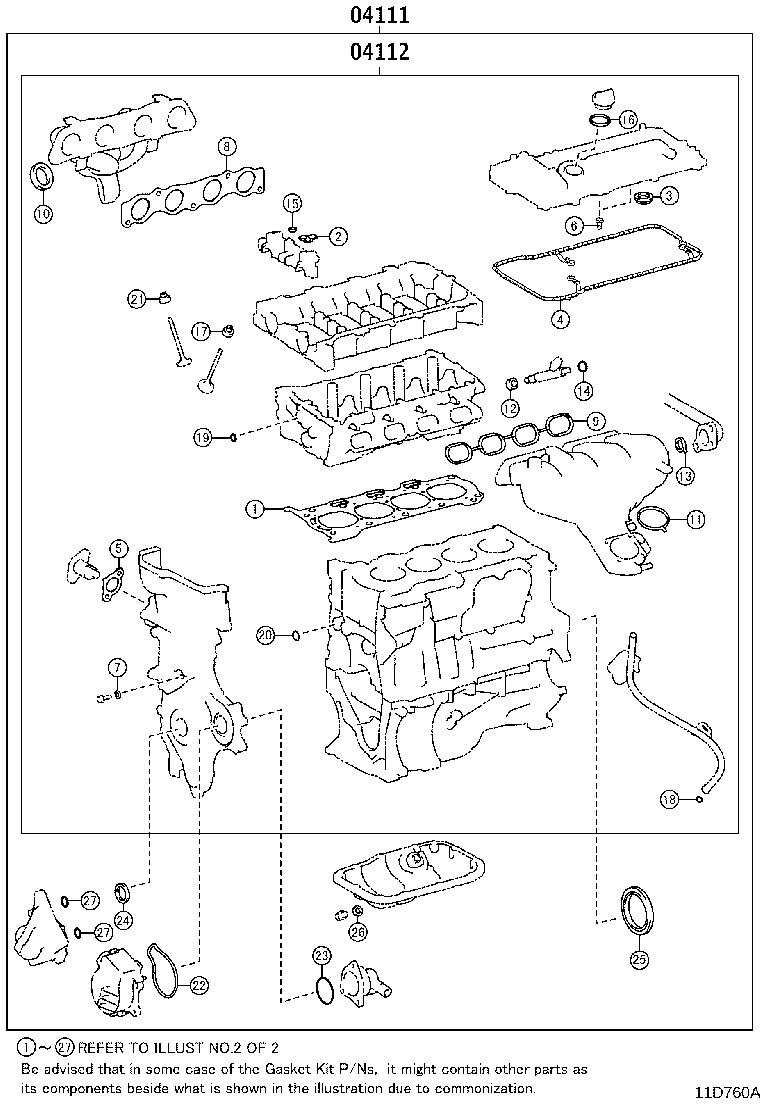

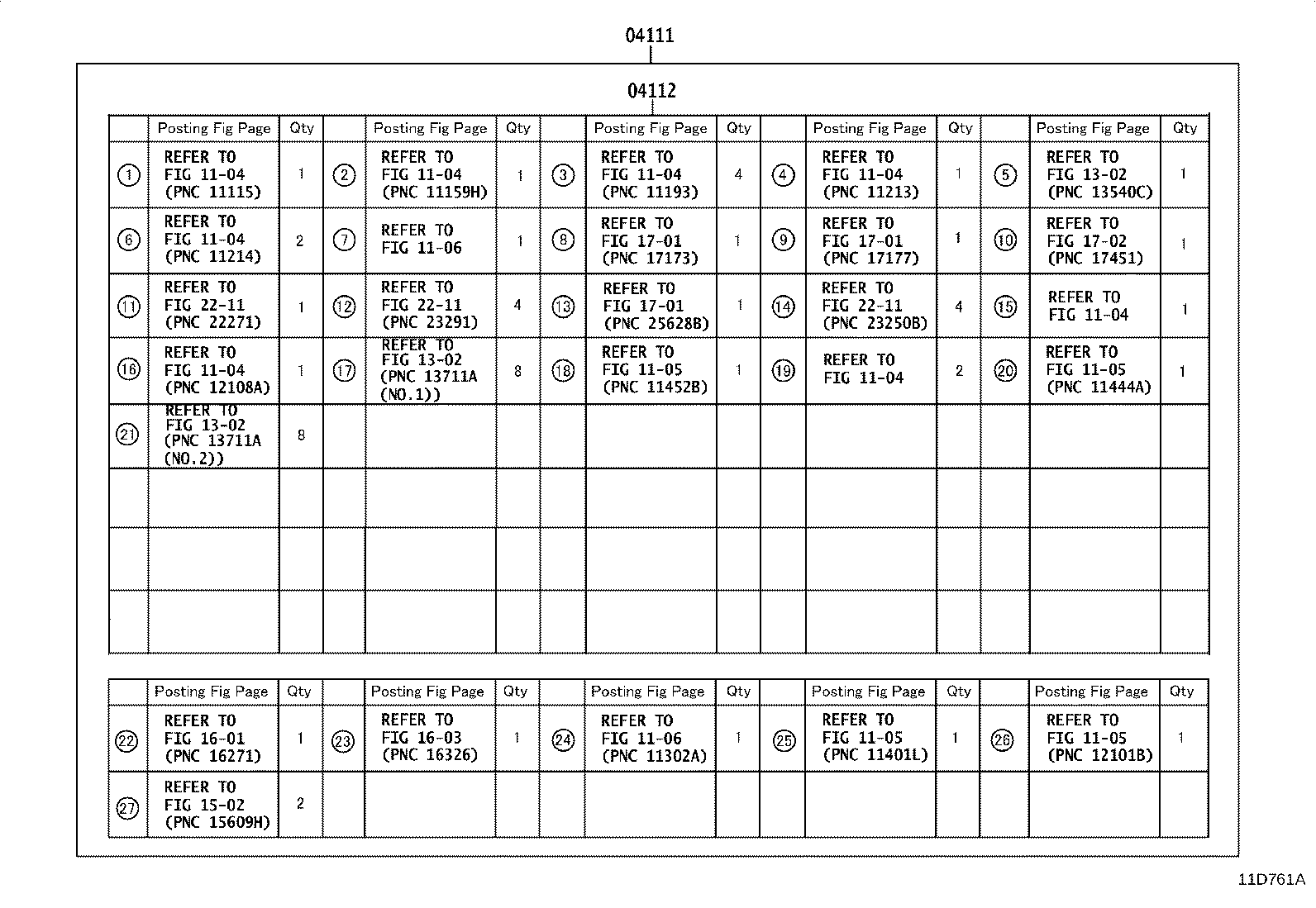

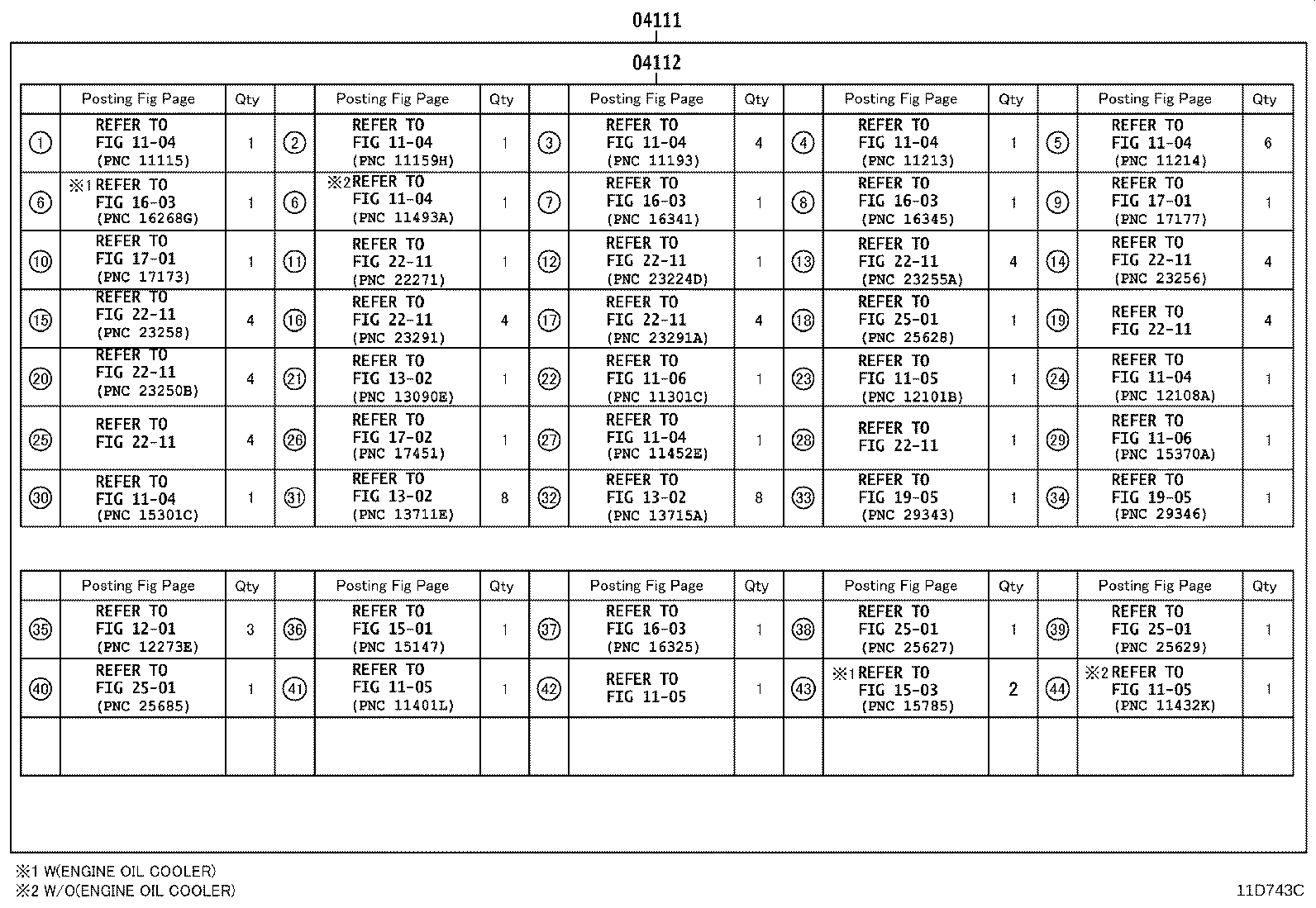

Figure 11D742C 11D742C 2018-06 → — Figure 11D743C 11D743C 2018-06 → — Figure 11D811 11D811 2018-06 → — Figure 11D812 11D812 2018-06 → — Figure 11D760A 11D760A 2018-06 → — Figure 11D761A 11D761A 2018-06 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
