Timing Gear Cover & Rear End Plate

12 part groups · 3 illustrations

Illustrations

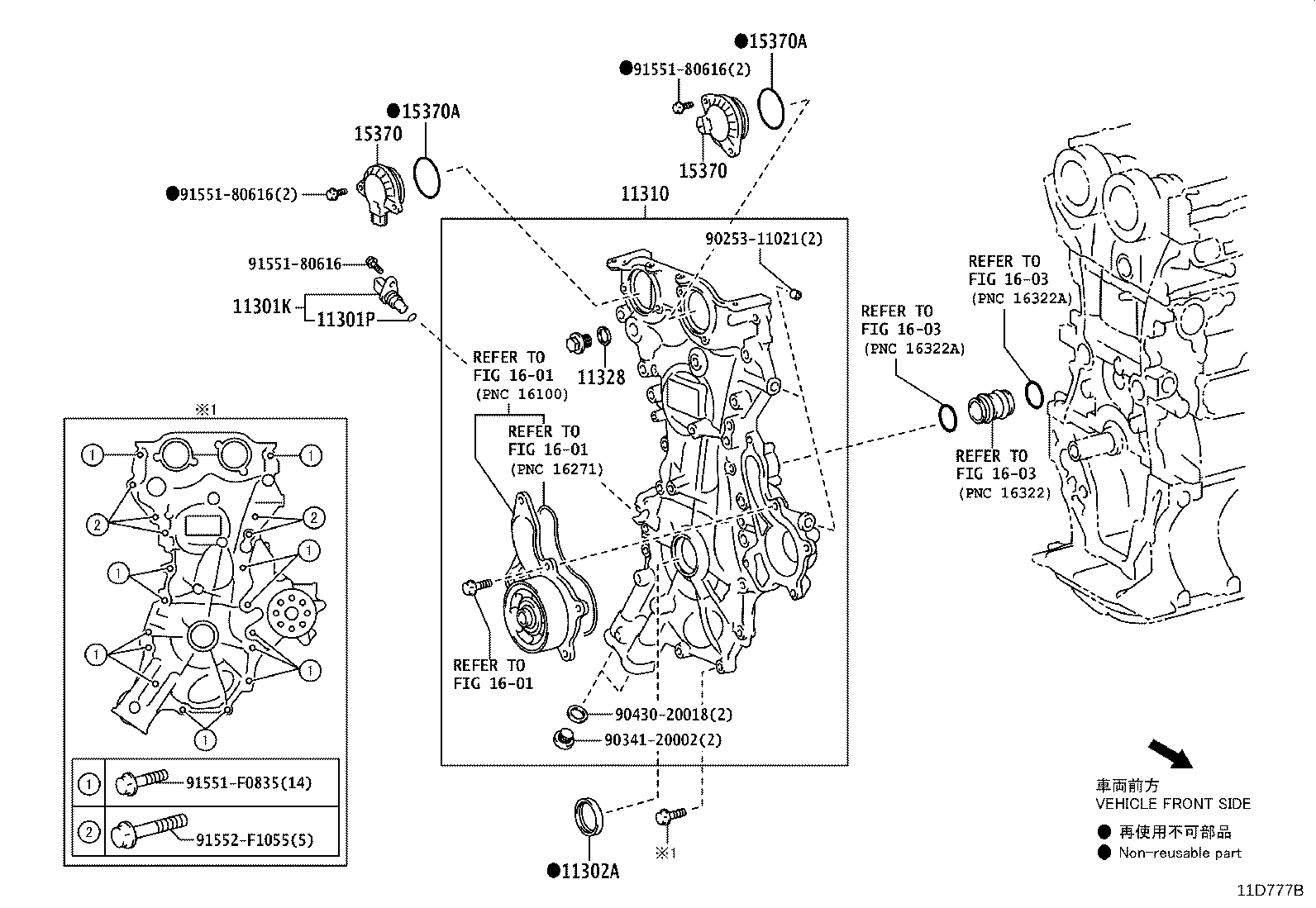

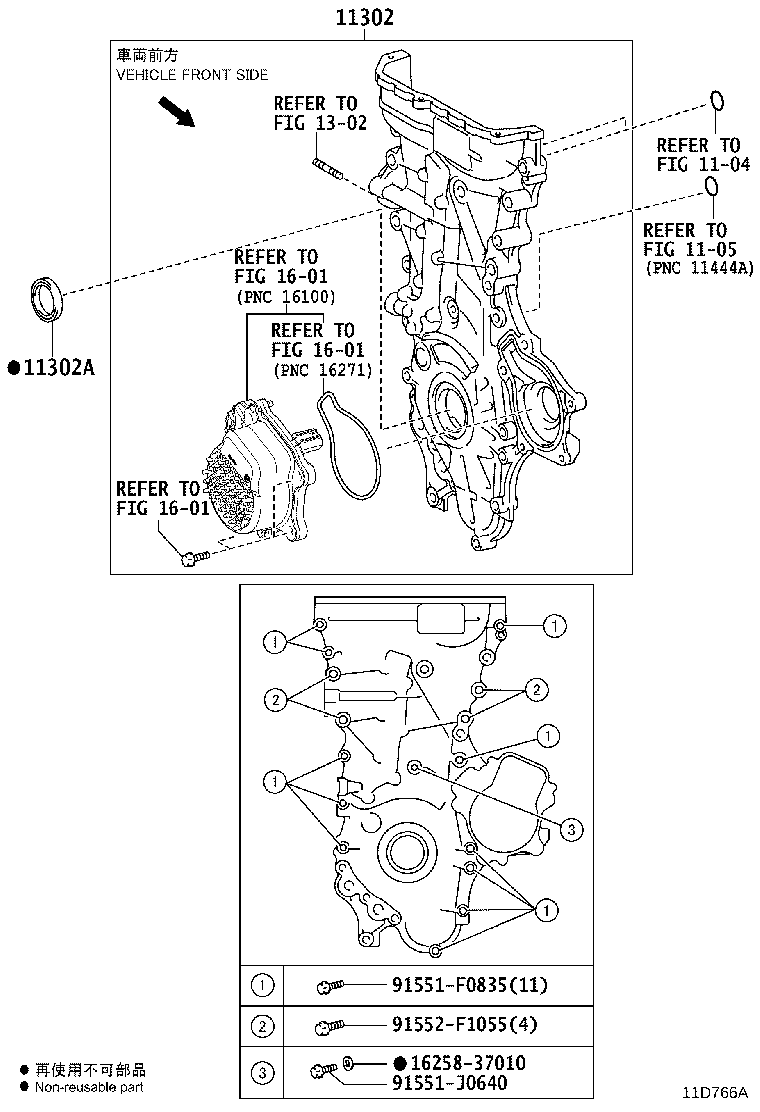

Figure 11D662B 11D662B 2018-06 → — Figure 11D777B 11D777B 2018-06 → — Figure 11D766A 11D766A 2018-06 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11301P O Ring, Crank Position Sensor
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11310 Cover Assy, Timing Chain
11320B Cover Assy, Timing Chain, NO.2
11328 Gasket, Timing Gear OR Chain Cover
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
