Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

12 part groups · 8 illustrations

Illustrations

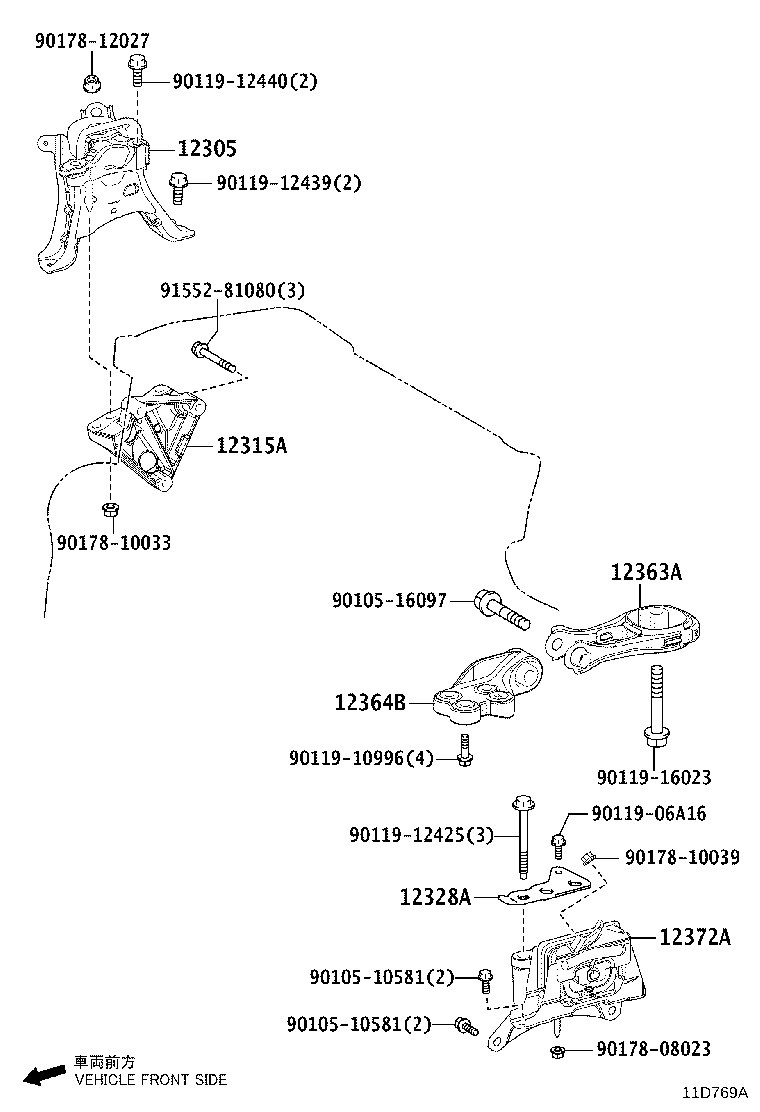

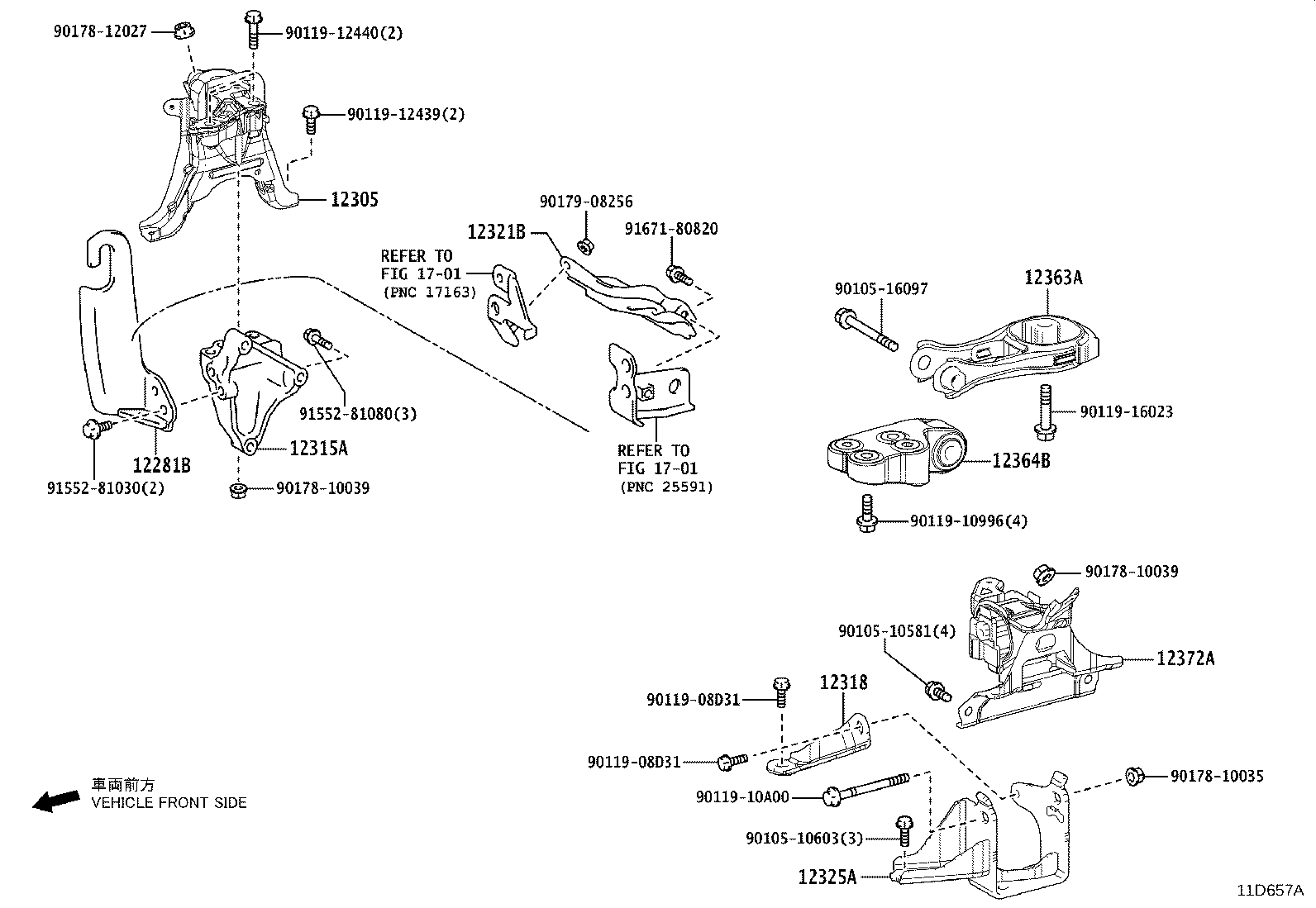

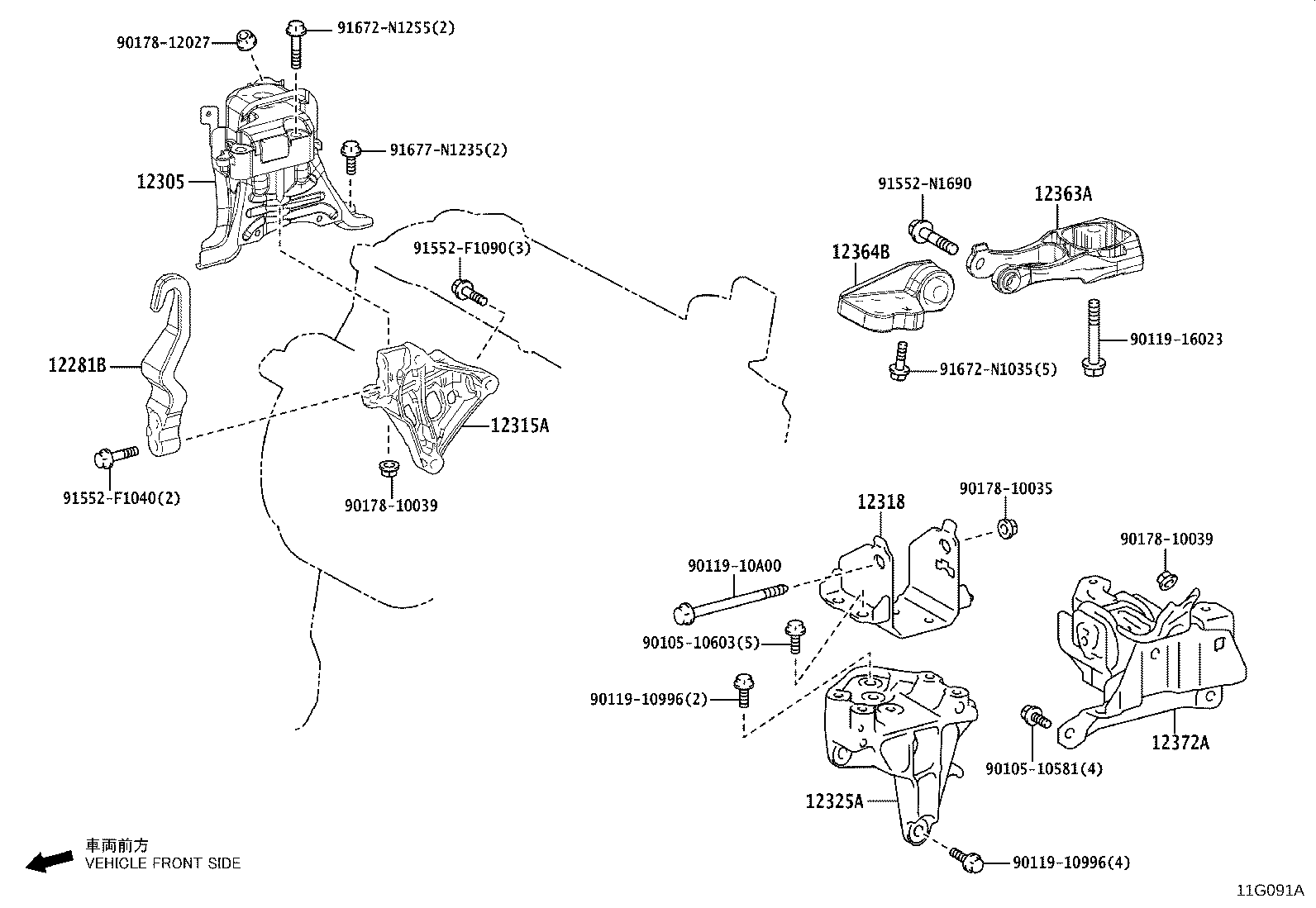

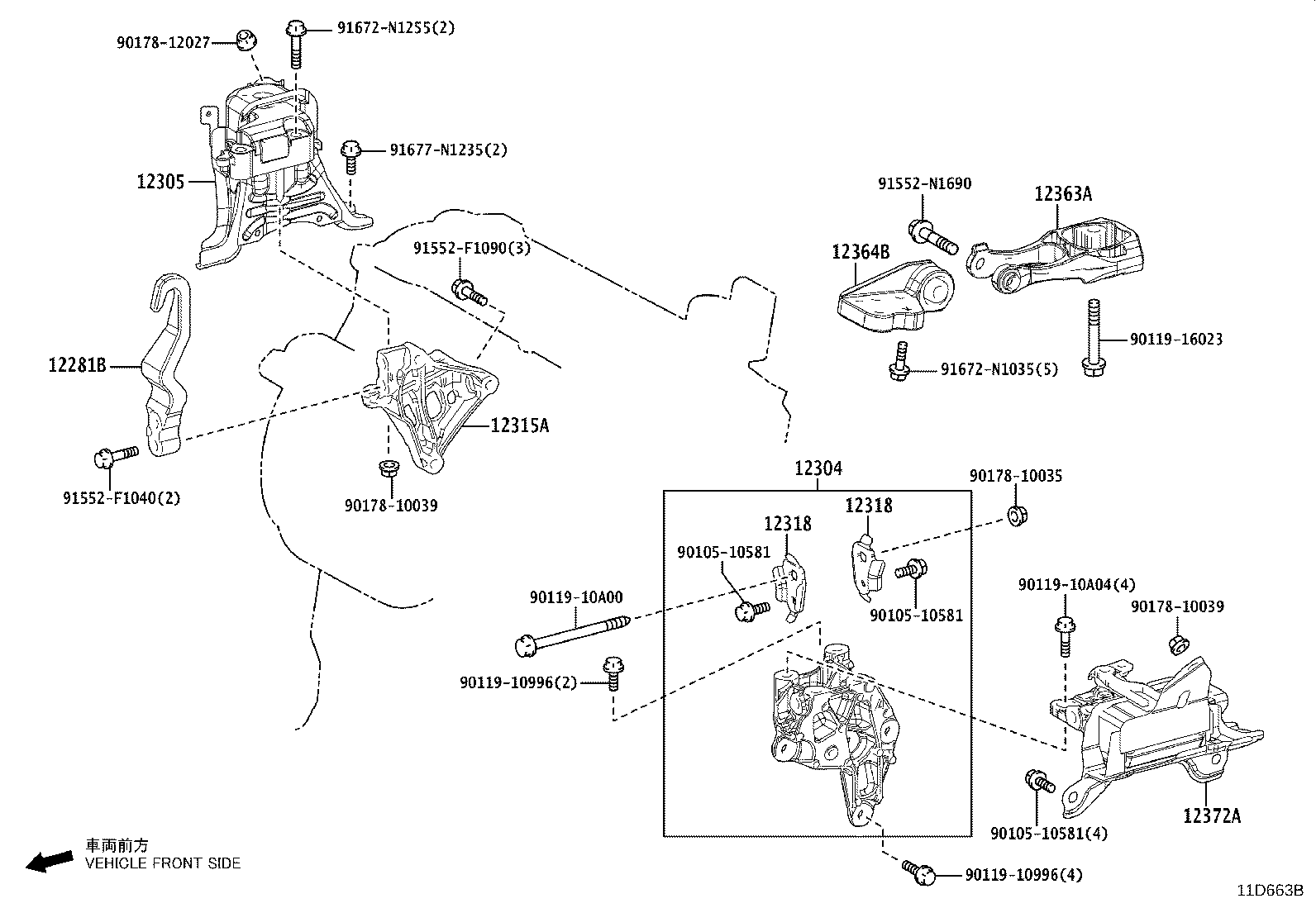

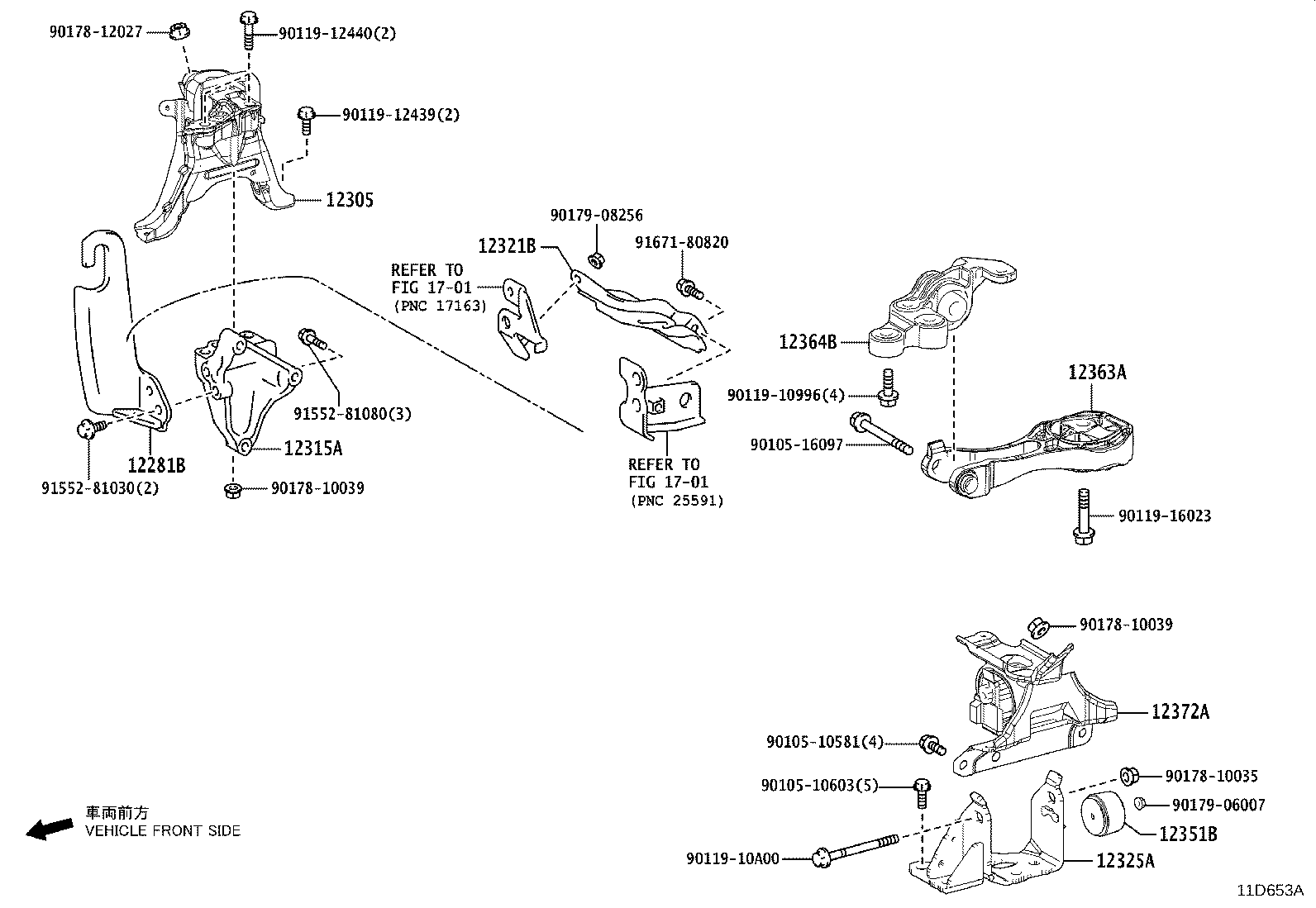

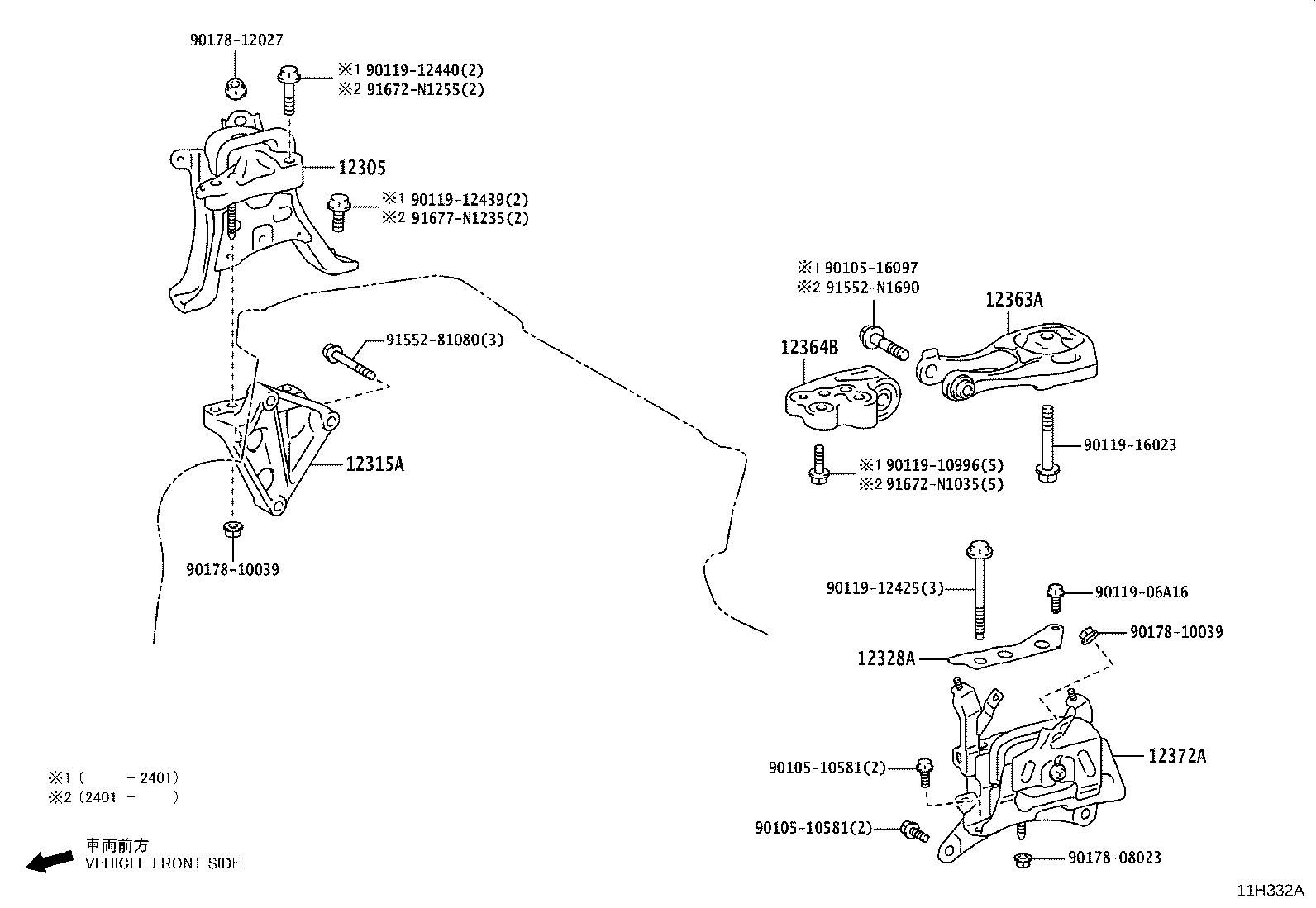

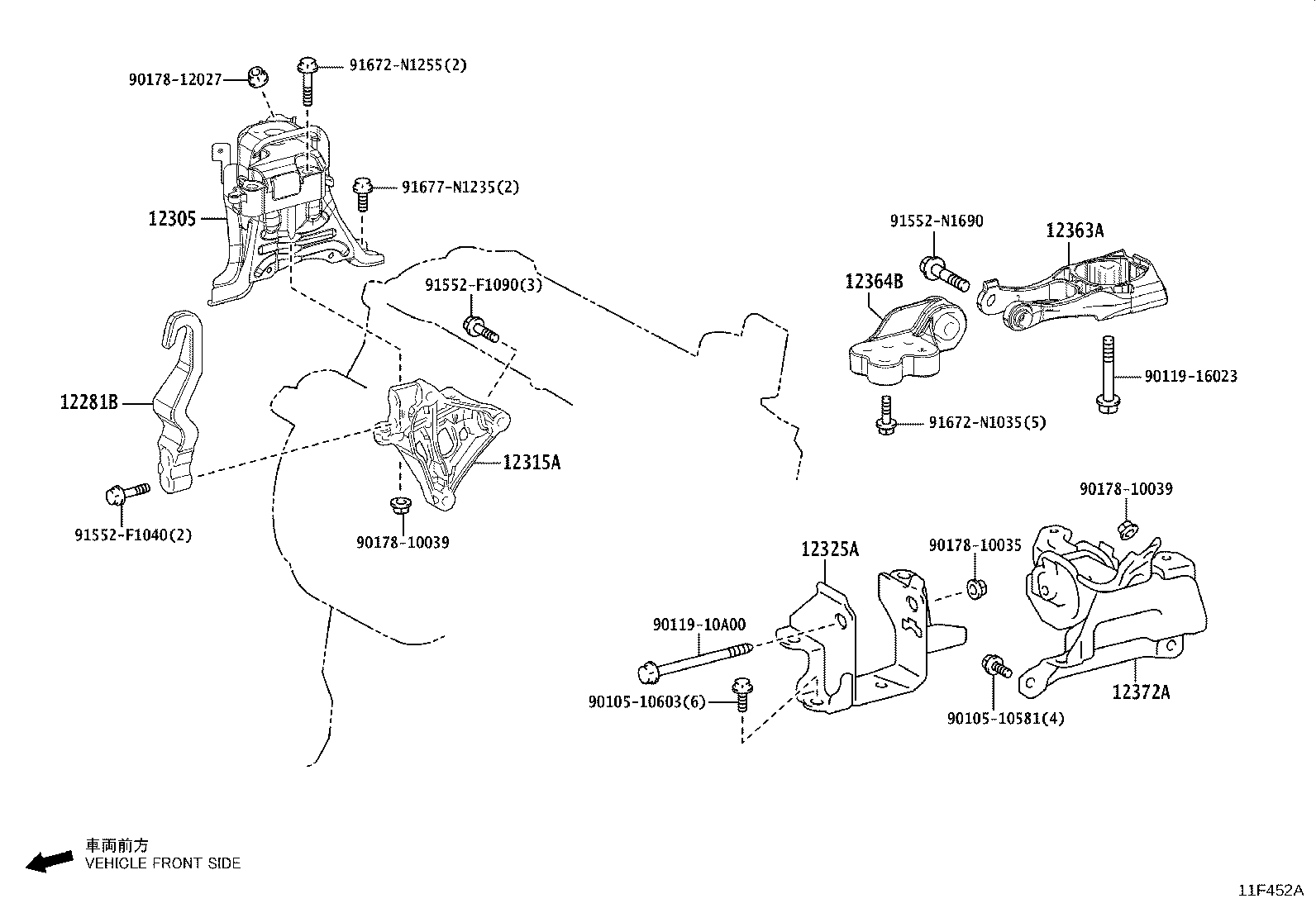

Figure 11D664C 11D664C 2018-06 → 2021-07 Figure 11F452A 11F452A 2021-07 → — Figure 11D663B 11D663B 2018-06 → 2021-07 Figure 11G091A 11G091A 2021-07 → — Figure 11D653A 11D653A 2018-06 → — Figure 11D657A 11D657A 2018-06 → — Figure 11D769A 11D769A 2018-06 → — Figure 11H332A 11H332A 2022-09 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12304 Bracket Sub-assy, Engine Mounting, LH
12305 Insulator Sub-assy, Engine Mounting, RH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12328A Stay, Engine Mounting, NO.2 LH
12351B Damper, Engine Mounting
12363A Rod, Engine Moving Control
12364B Rod, Engine Moving Control, NO.2
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
