Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

7 part groups · 3 illustrations

Illustrations

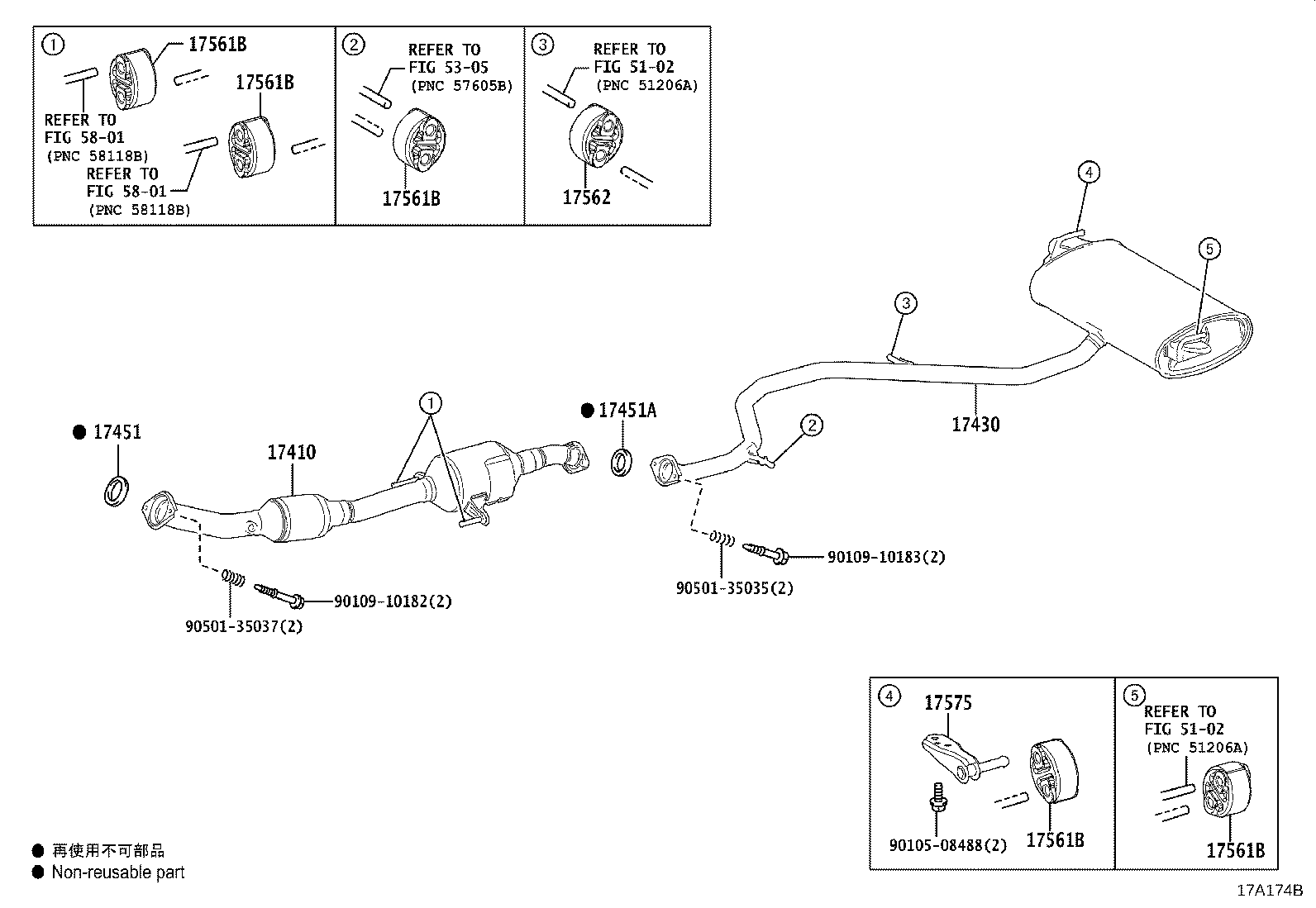

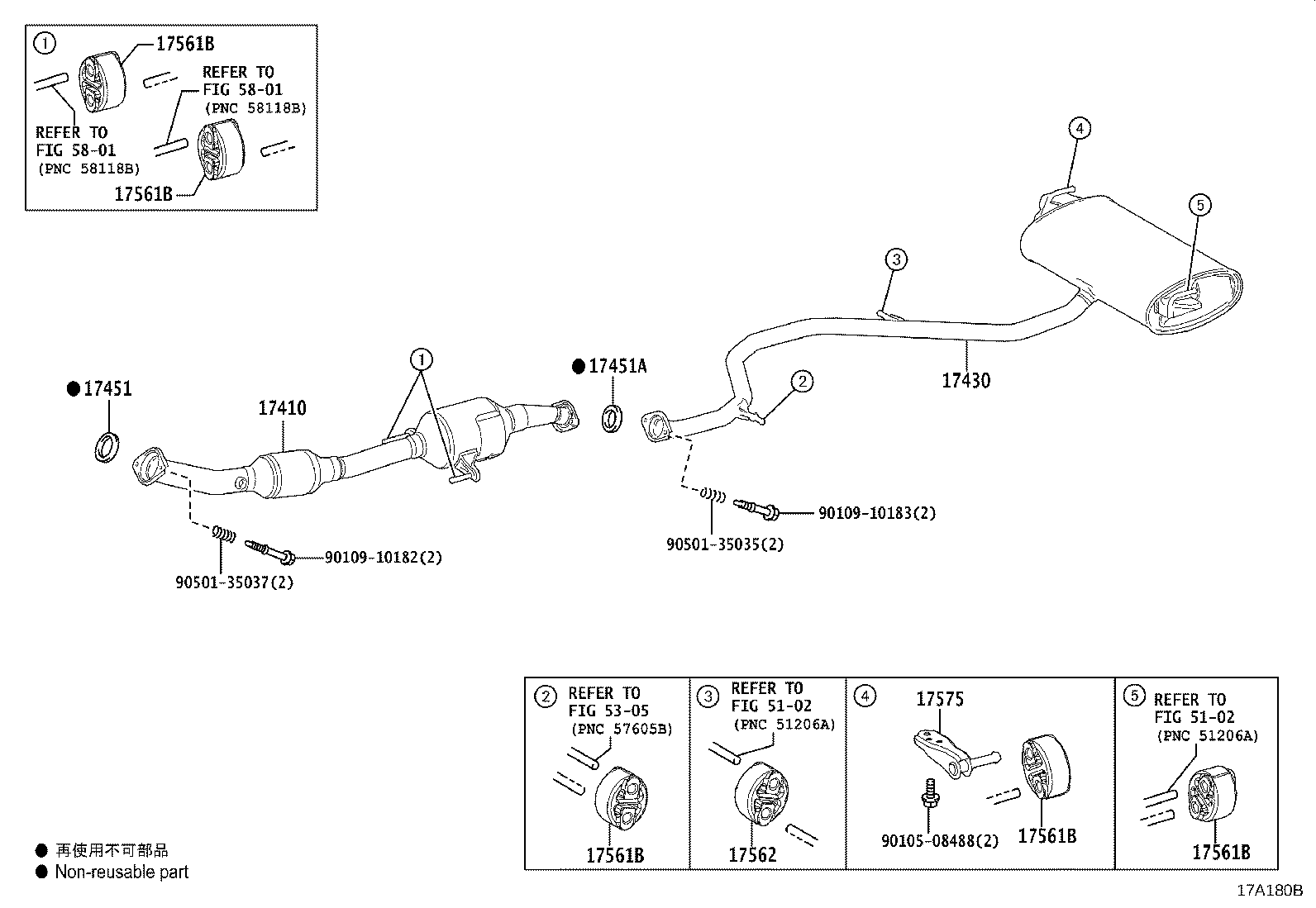

Figure 17A178B 17A178B 2018-06 → — Figure 17A174B 17A174B 2018-06 → — Figure 17A180B 17A180B 2018-06 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17575 Bracket, Exhaust Pipe Support, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
