Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

20 part groups · 4 illustrations

Illustrations

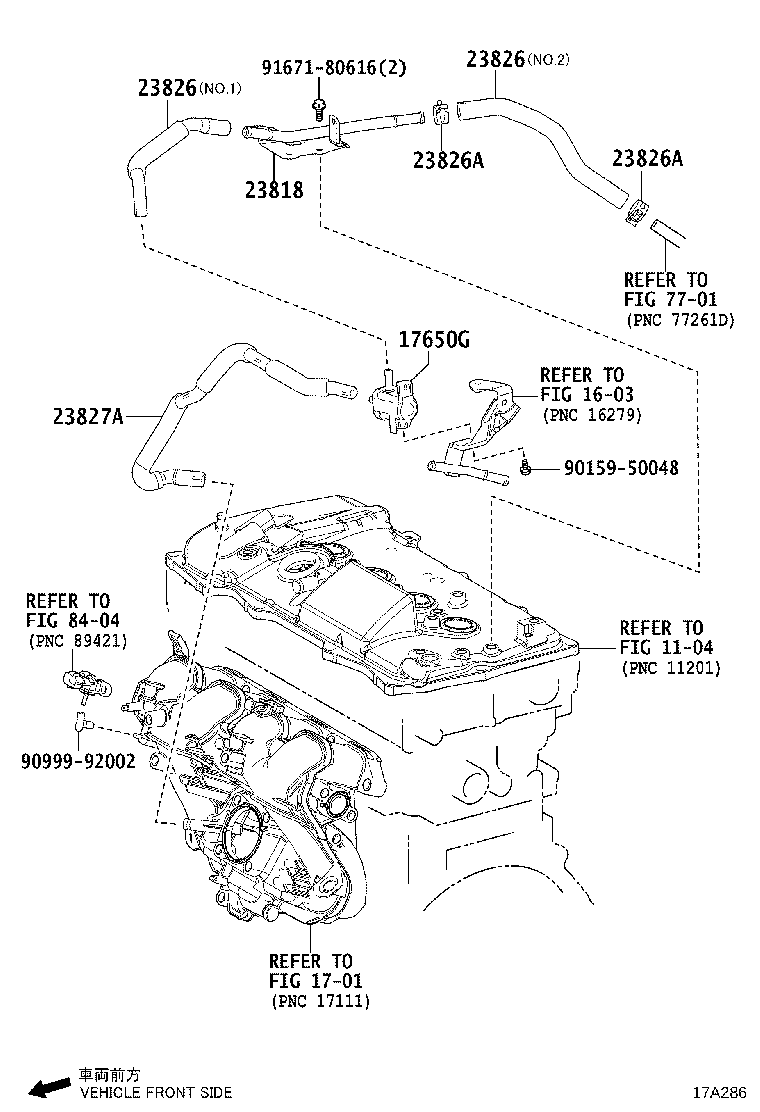

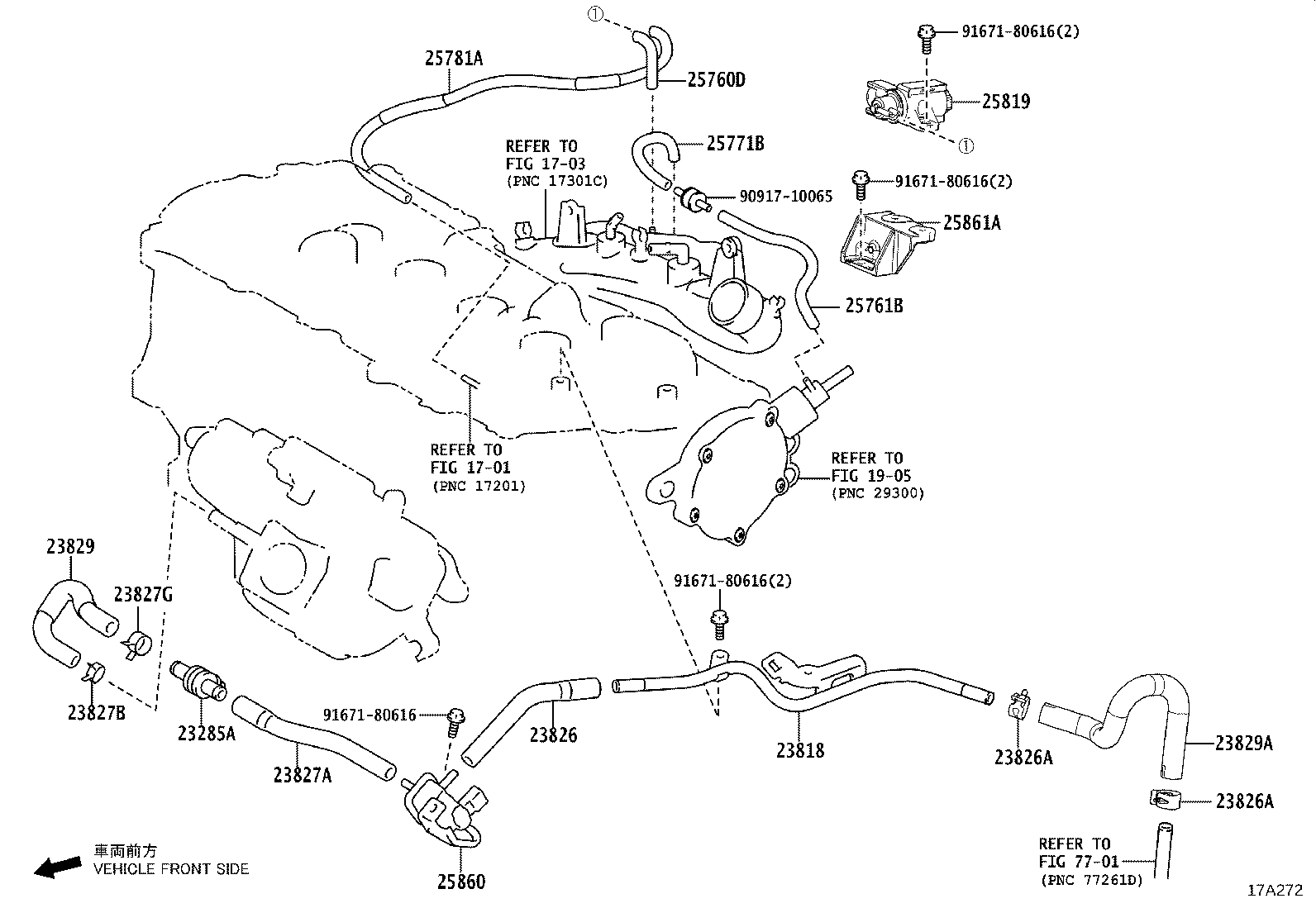

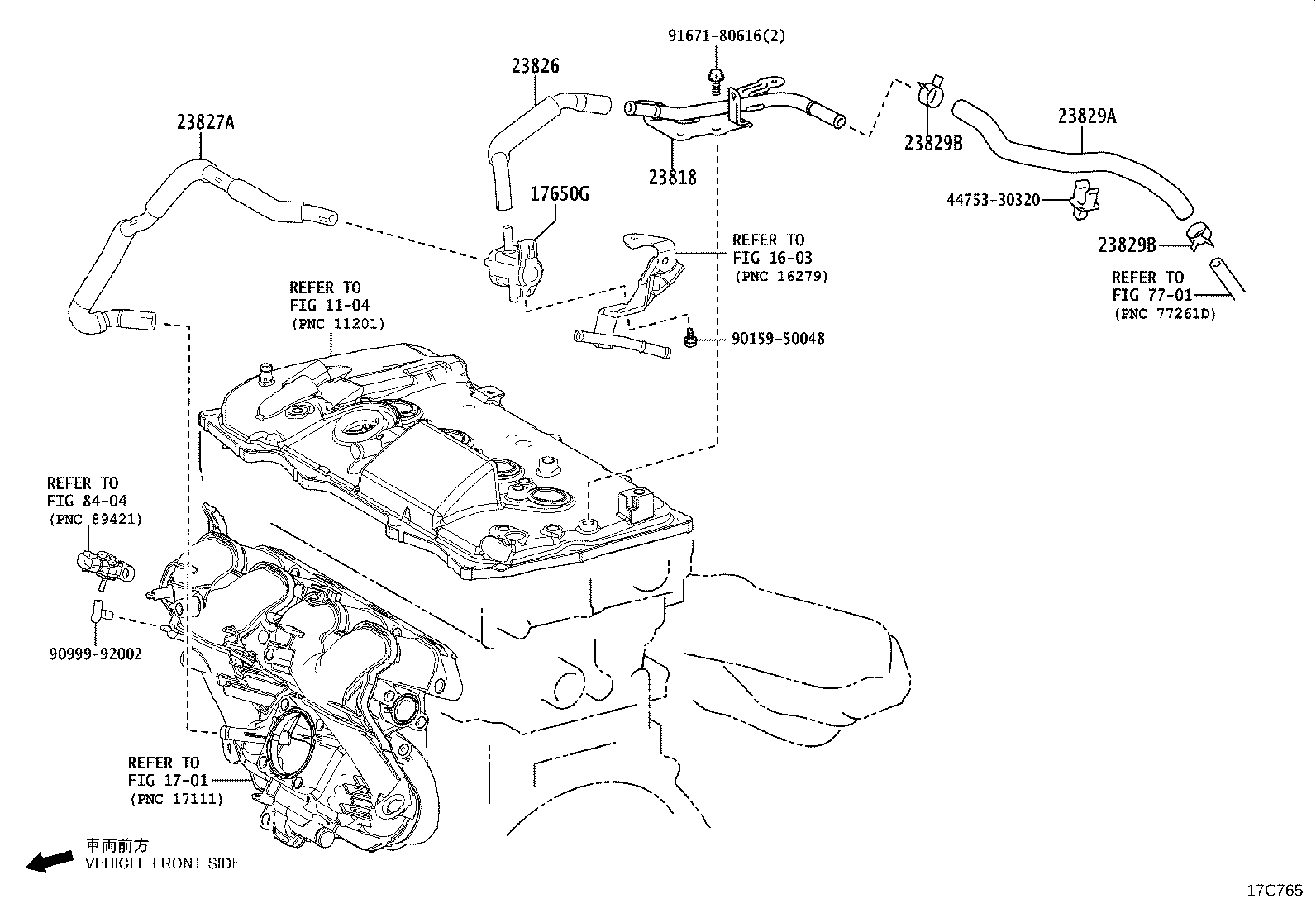

Figure 17A275 17A275 2018-06 → — Figure 17A272 17A272 2018-06 → — Figure 17A286 17A286 2018-06 → — Figure 17C765 17C765 2022-09 → —

Part groups

PNCDescription
17650G Valve, Duty Vacuum Switching
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23827F Hose, Fuel Vapor Feed, NO.3
23827G Clip(FOR FUEL VAPOR FEED HOSE, NO.3)
23829 Hose, Fuel Vapor Feed, NO.3
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25719 Tank, Vacuum Surge
25760D Hose Assy, Vacuum Transmitting, NO.4
25761B Hose, Vaccum Transmitting, NO.1
25771B Hose, Vaccum Transmitting, NO.2
25781A Hose, Vacuum Transmitting, NO.3
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
