Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Release Cylinder

6 part groups · 2 illustrations

Illustrations

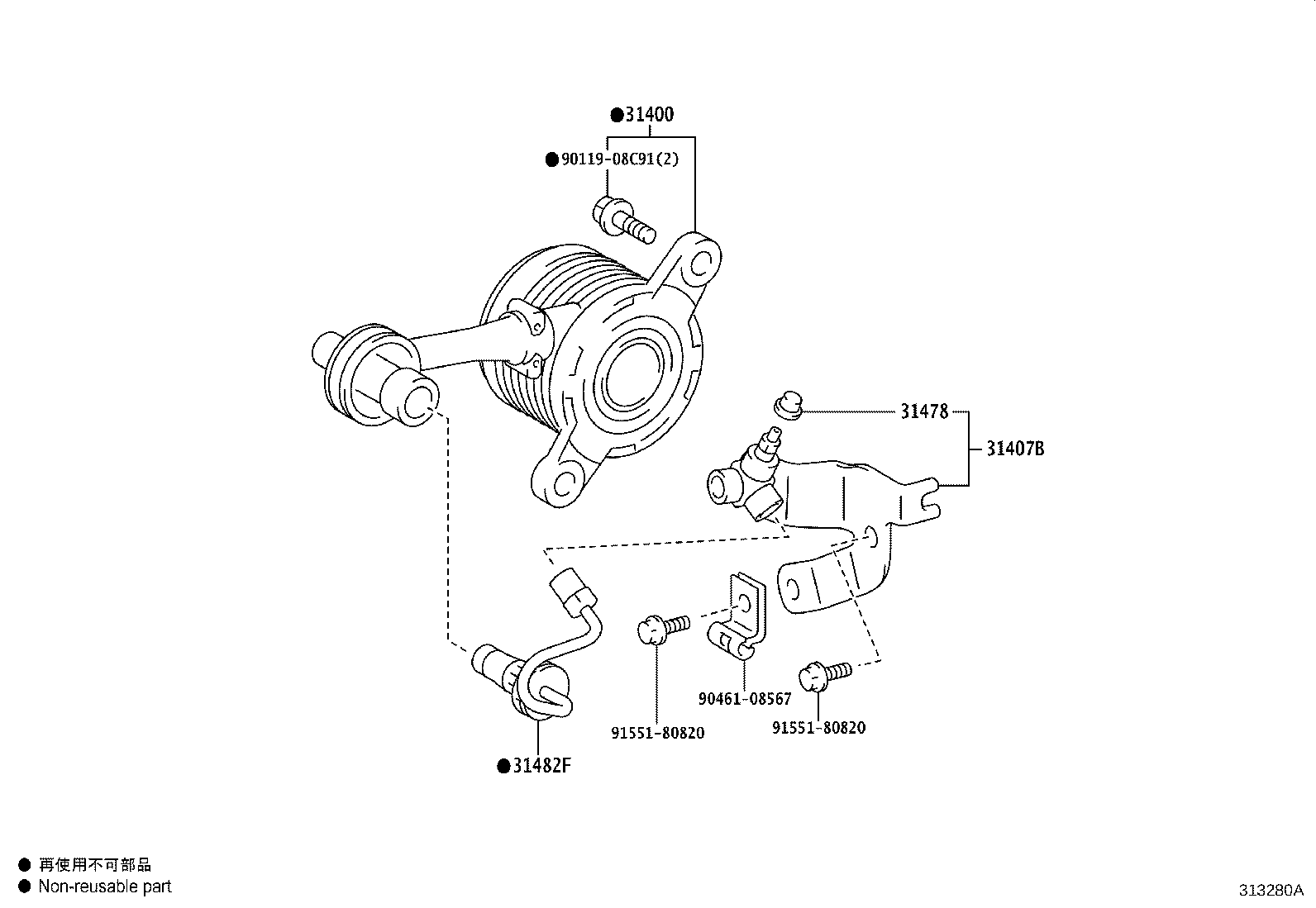

Figure 313279B 313279B 2018-06 → — Figure 313280A 313280A 2018-06 → —

Part groups

PNCDescription
31126B Boot, Clutch Tube
31400 Cylinder Assy, Clutch Release W/Bearing
31407B Bleeder Sub-assy, Clutch Release
31478 Cap, Bleeder Plug(FOR RELEASE CYLINDER)
31482F Tube, Clutch Release Cylinder W/Bearing TO Bleeder
31483 Tube, Bleeder Clutch Release
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
