Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

12 part groups · 9 illustrations

Illustrations

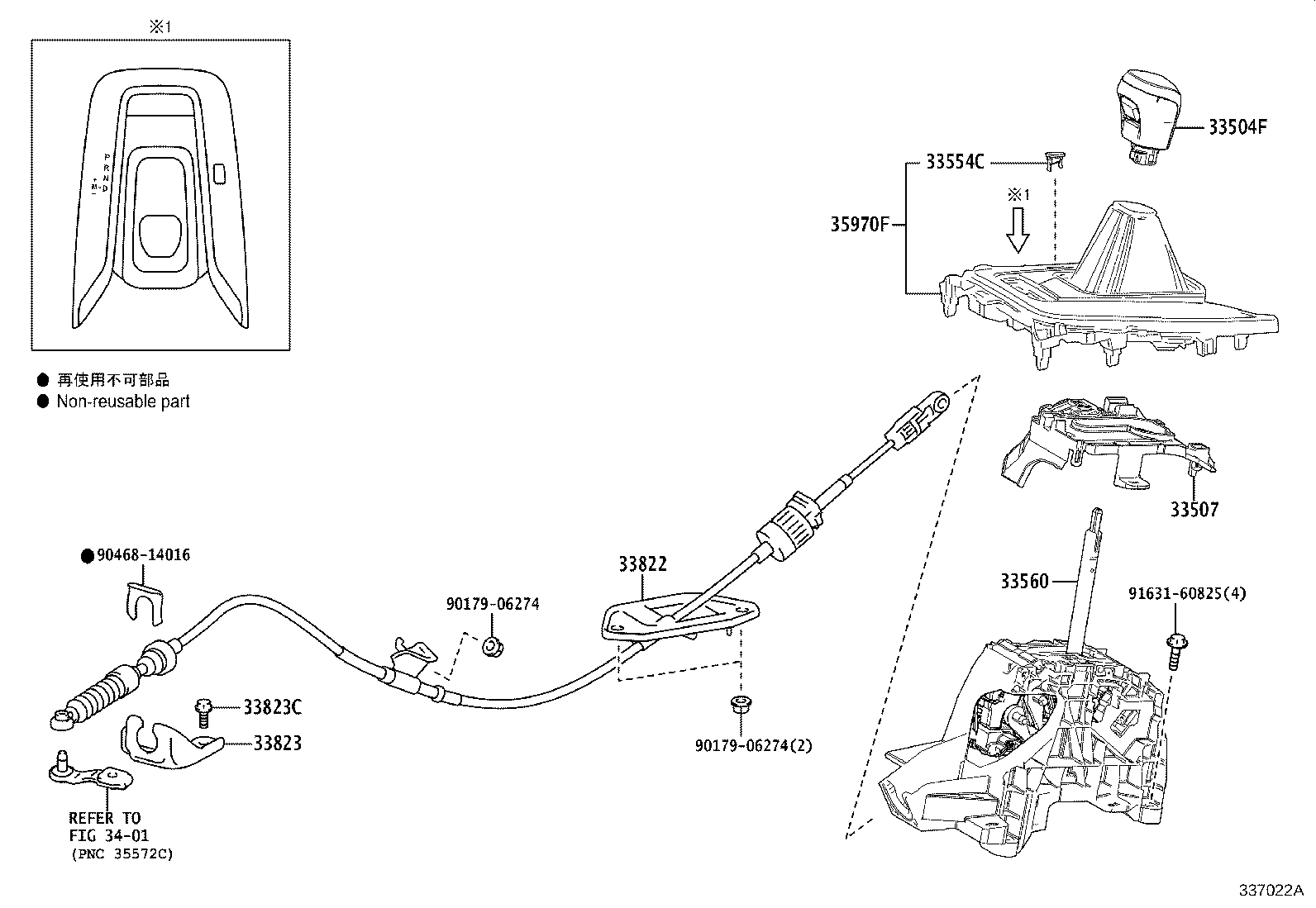

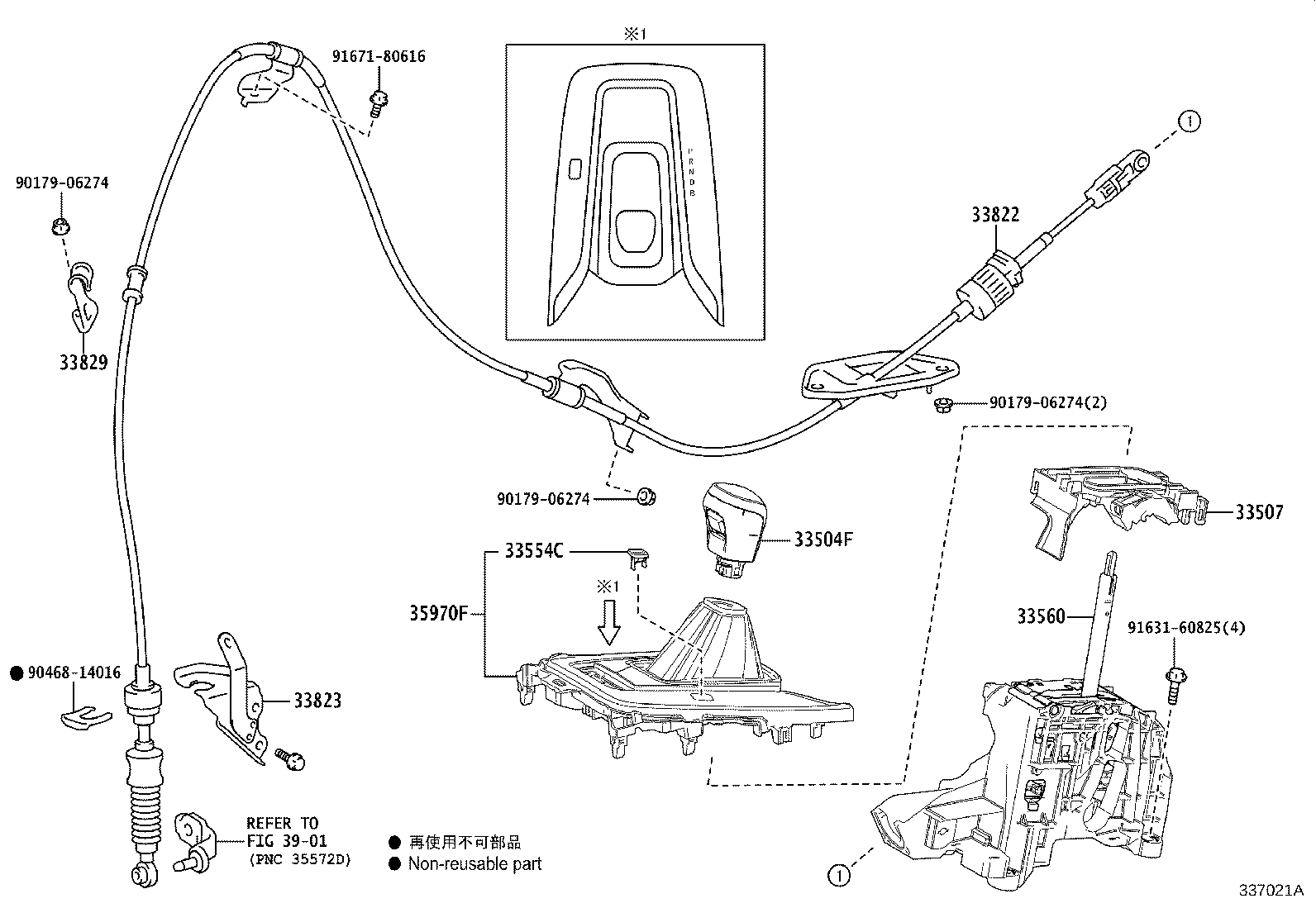

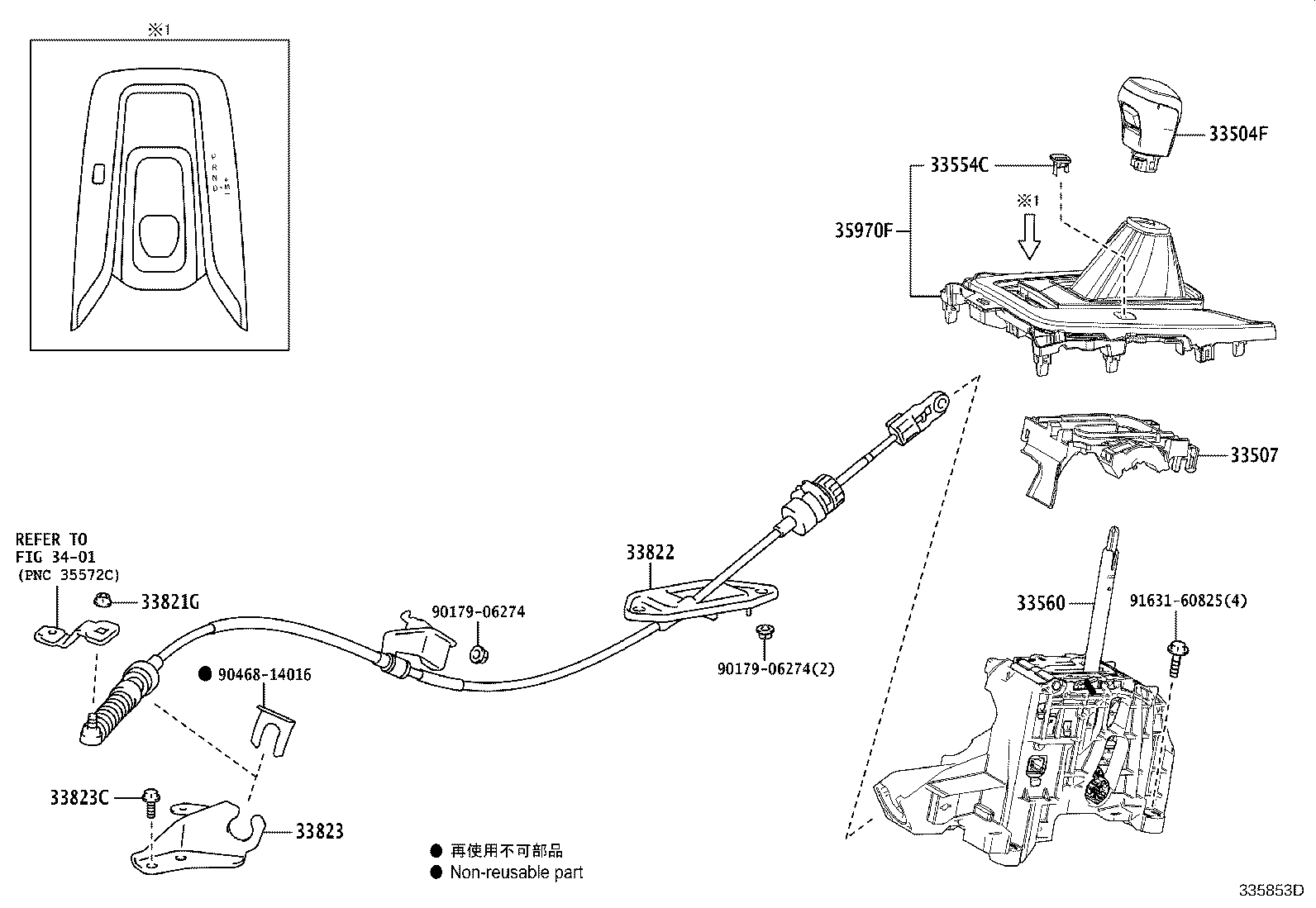

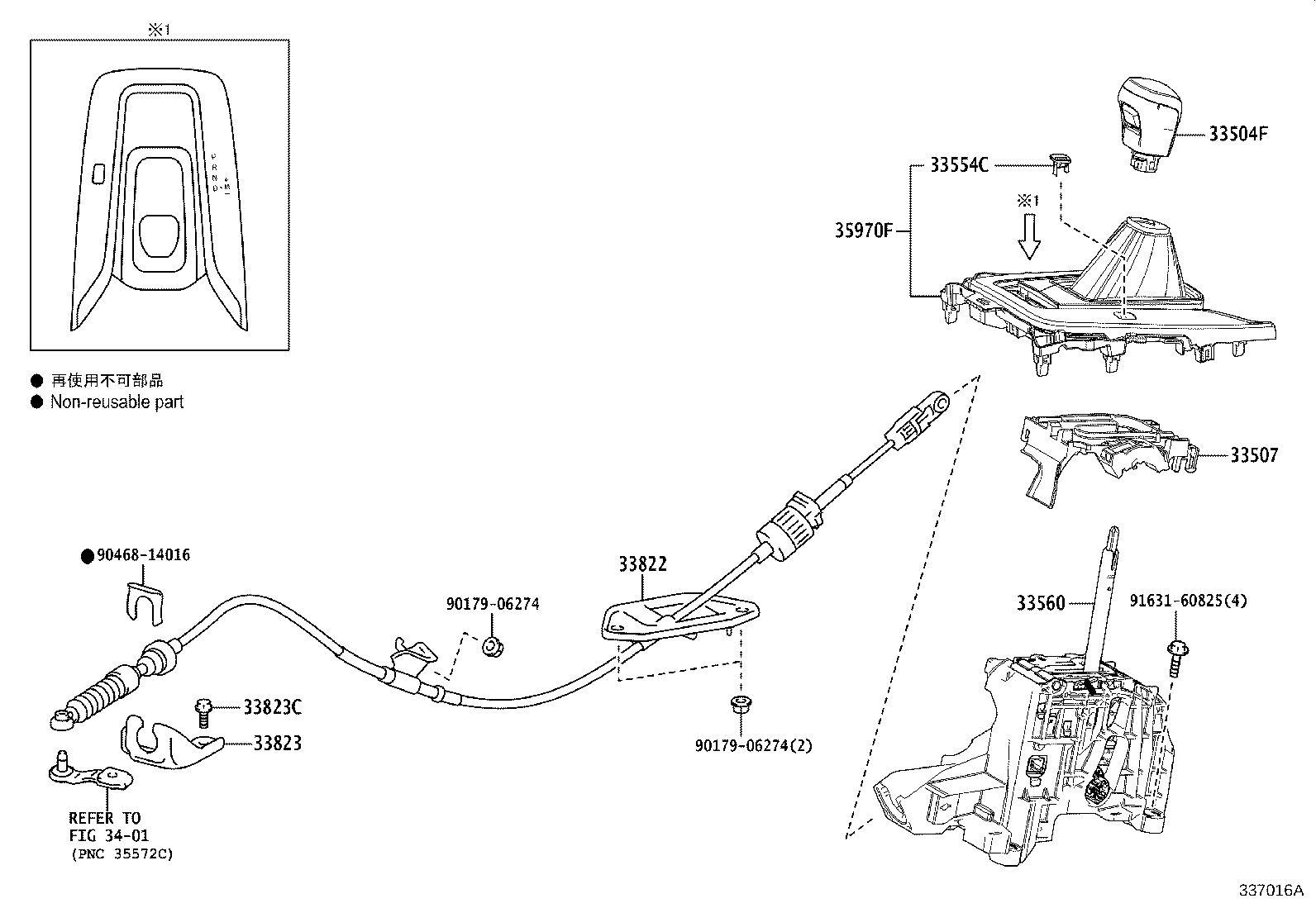

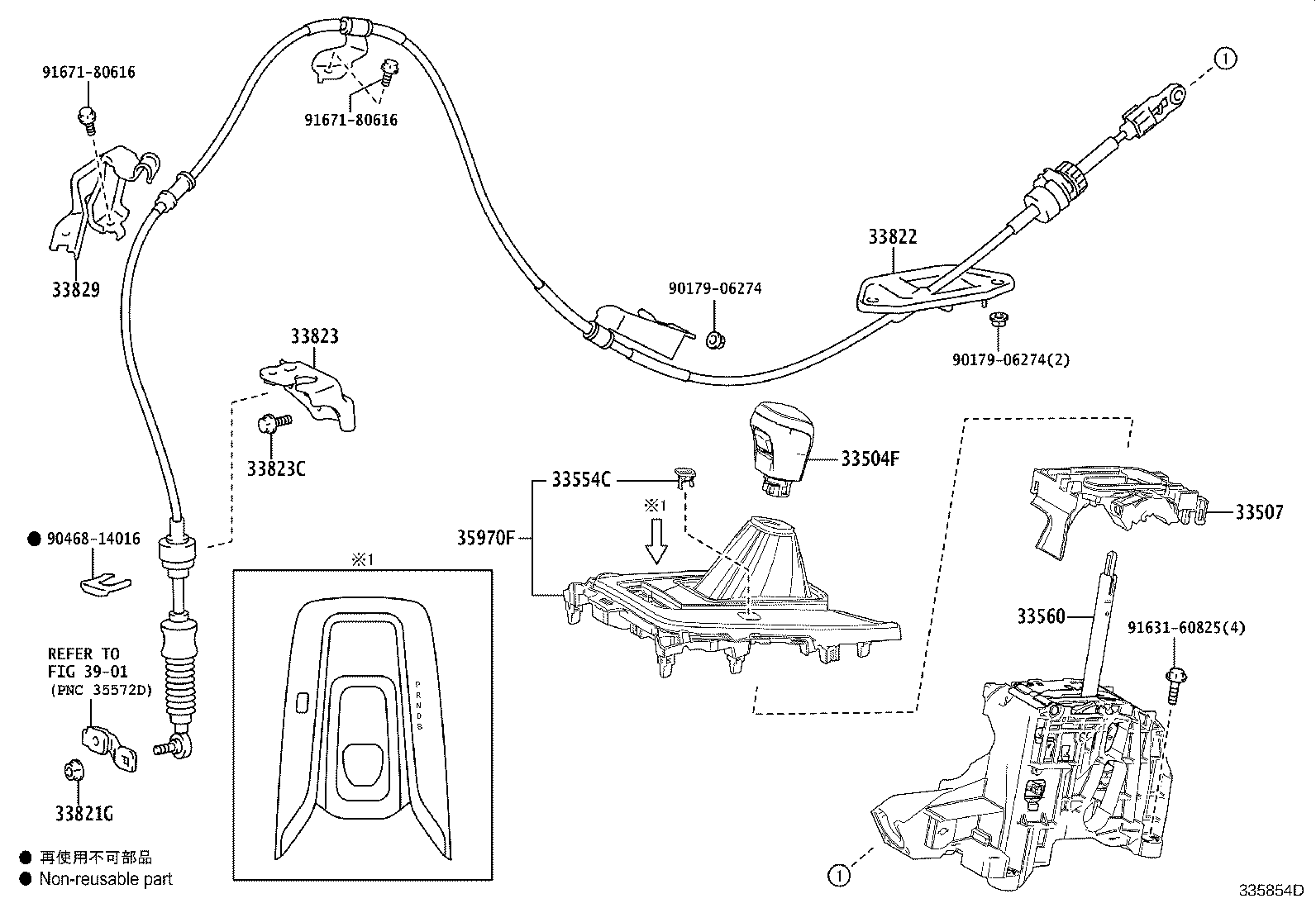

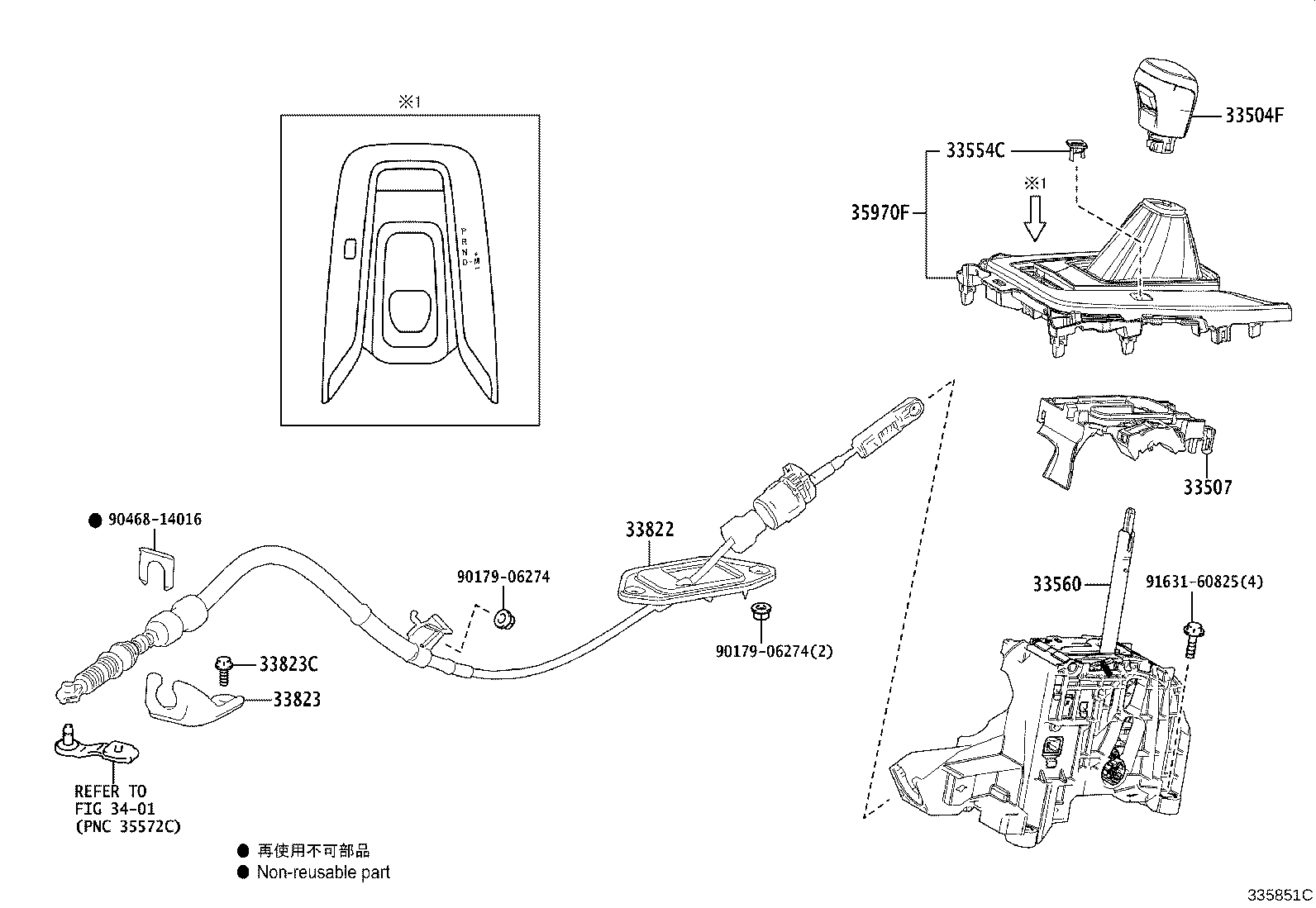

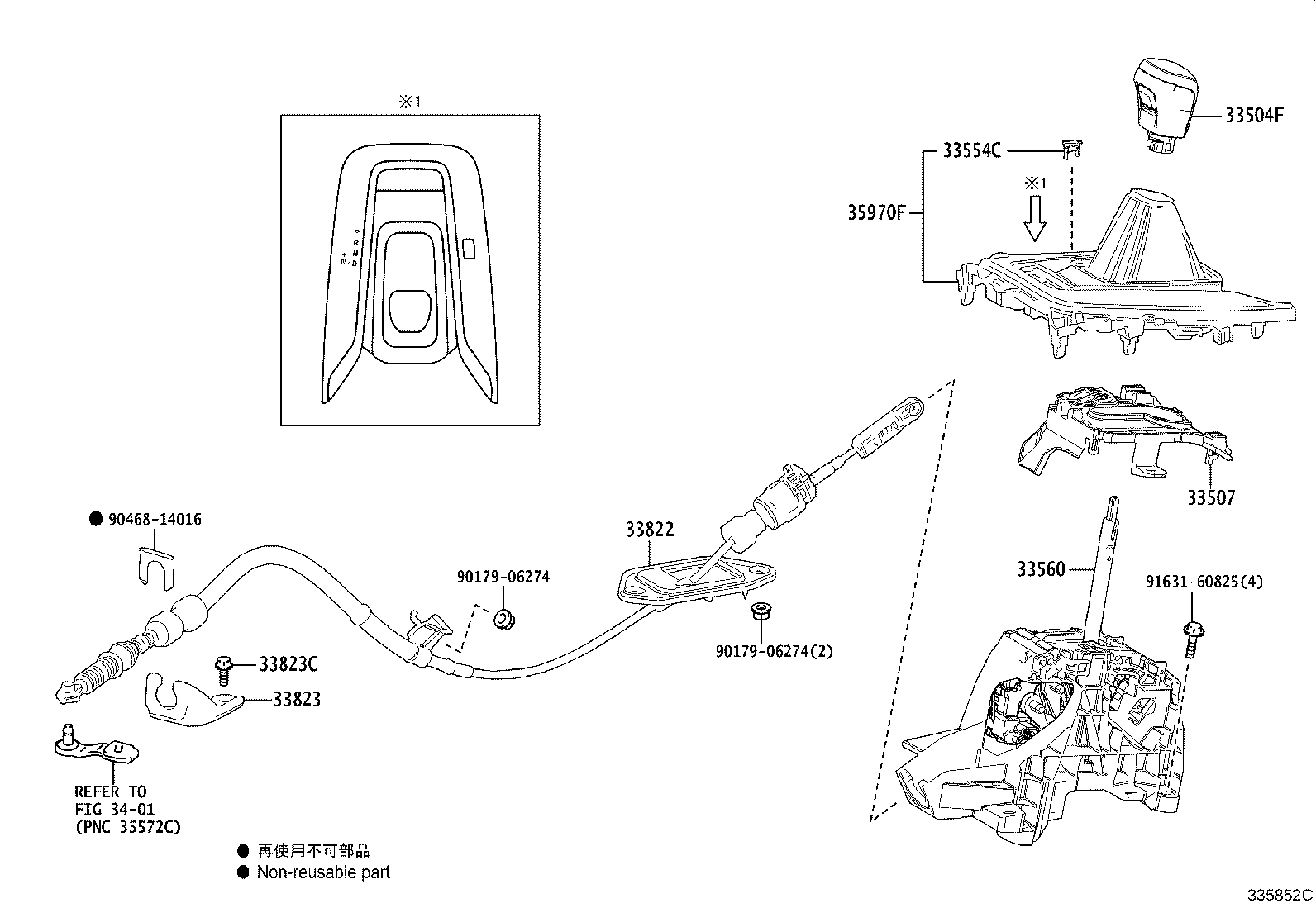

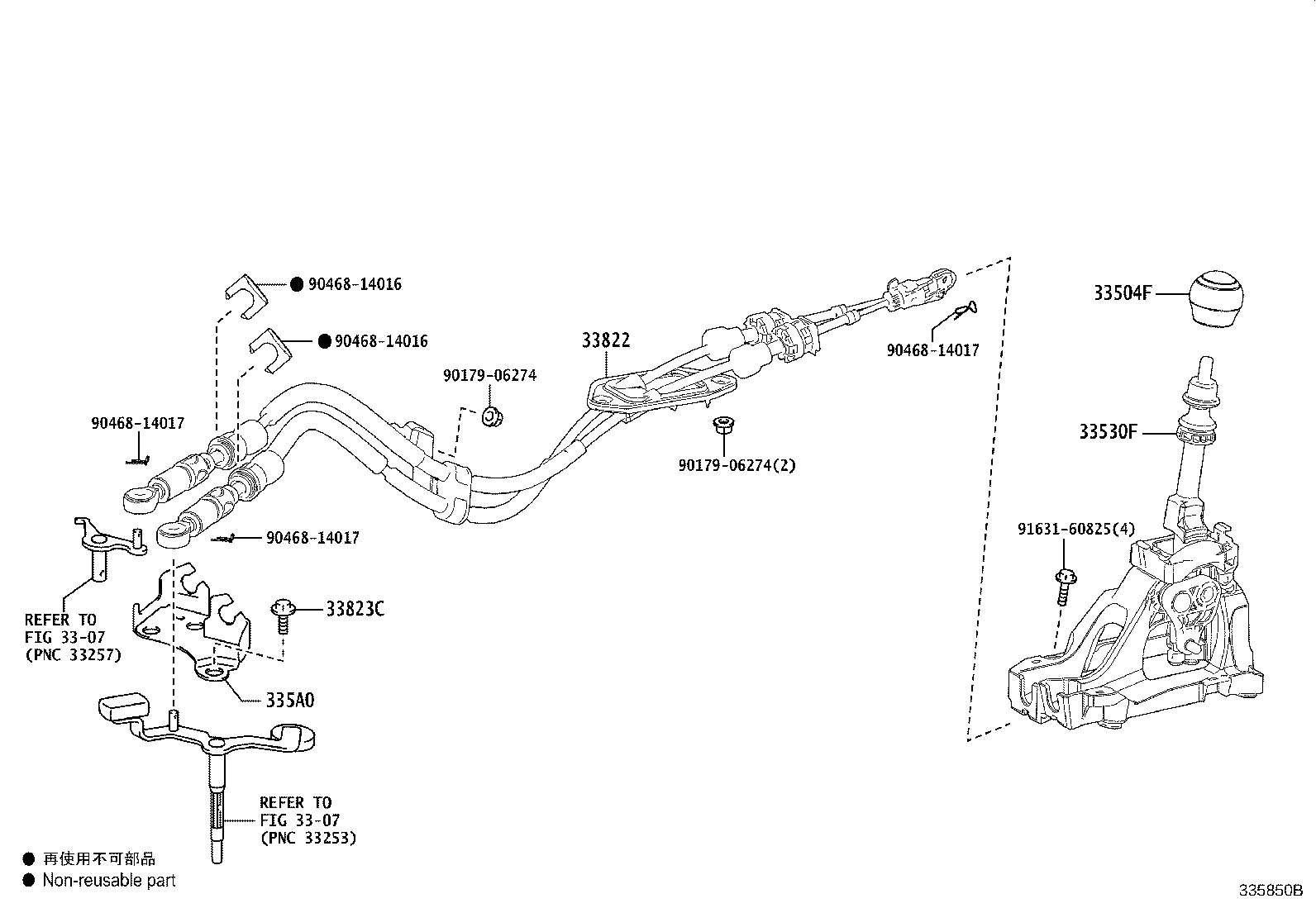

Figure 335849B 335849B 2018-06 → — Figure 335852C 335852C 2018-06 → — Figure 335851C 335851C 2018-06 → — Figure 335850B 335850B 2018-06 → — Figure 335853D 335853D 2018-06 → — Figure 335854D 335854D 2018-06 → — Figure 337016A 337016A 2022-09 → — Figure 337022A 337022A 2022-09 → — Figure 337021A 337021A 2022-09 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33507 Bracket Sub-assy, Shift Lever Housing
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33554C Cover, Shift Lock Release Button
33560 Unit Assy, Shift Lock Control
335A0 Bracket Assy, Control Cable
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33822 Cable Transmission Control Select (FOR FLOOR SHIFT)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33829 Support, Transmission Control Cable
35970F Housing Assy, Position Indicator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
