Toyota Auris/Corolla HB(Jpp
2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General
Supported model
Data version 2022-09

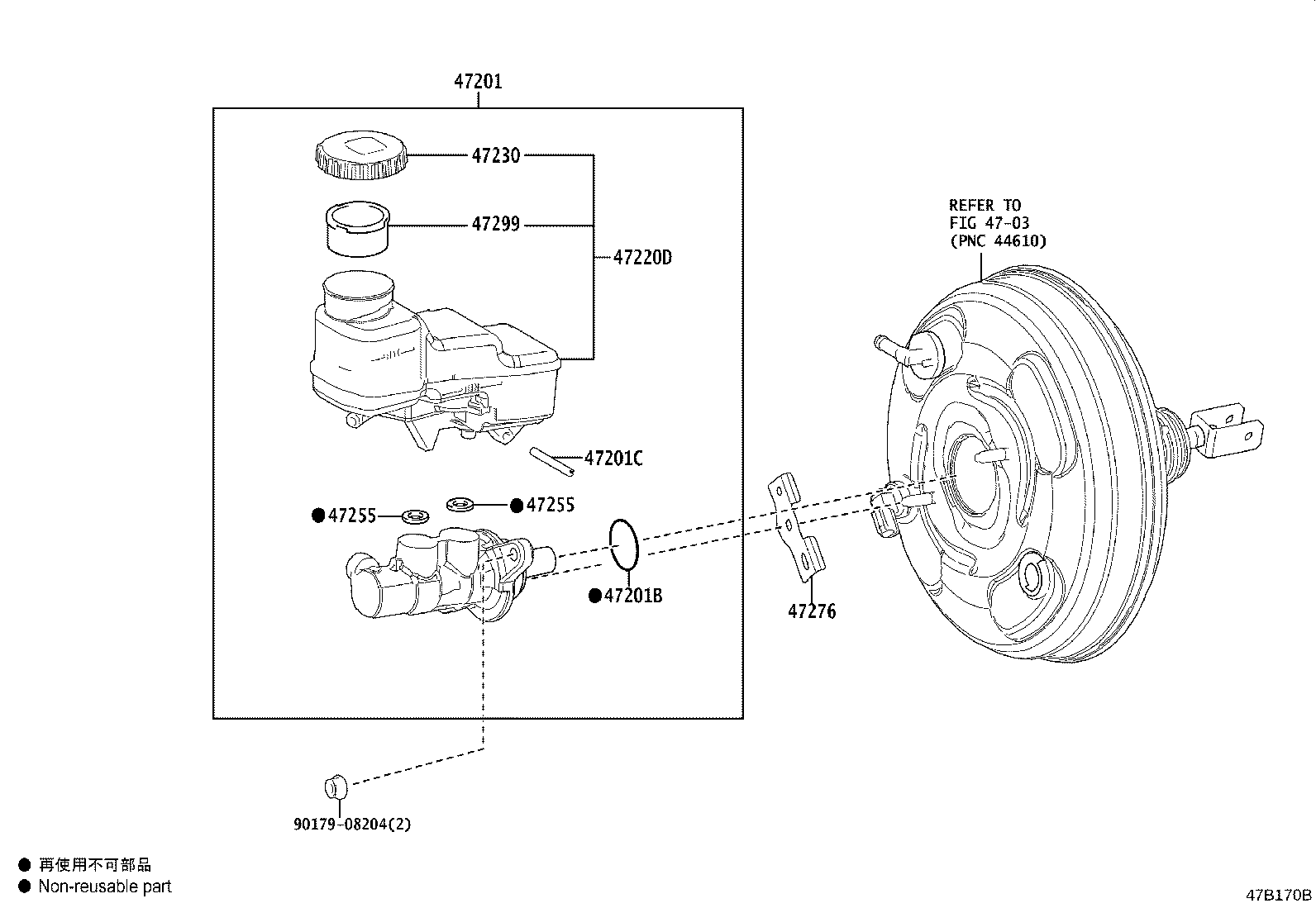

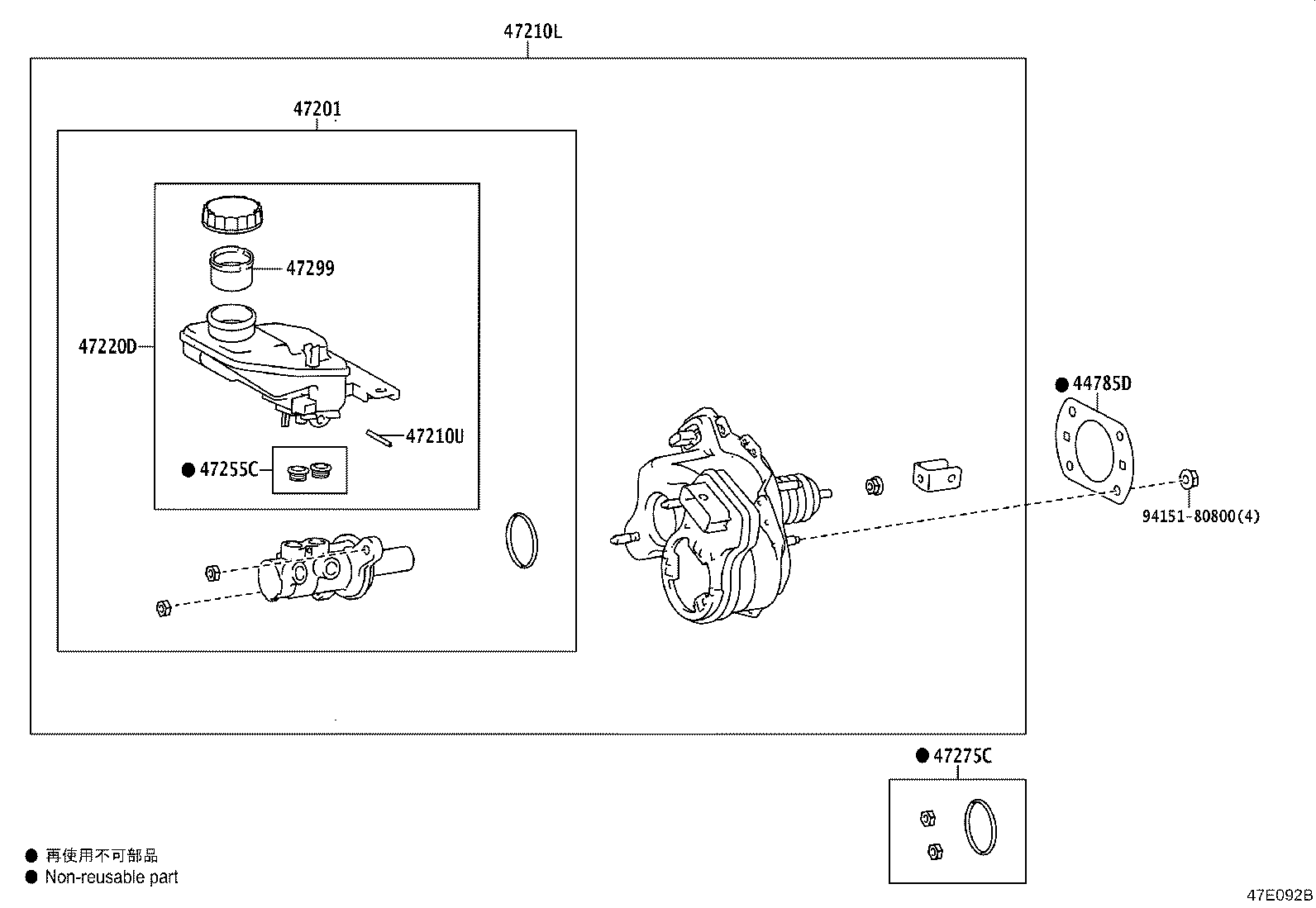

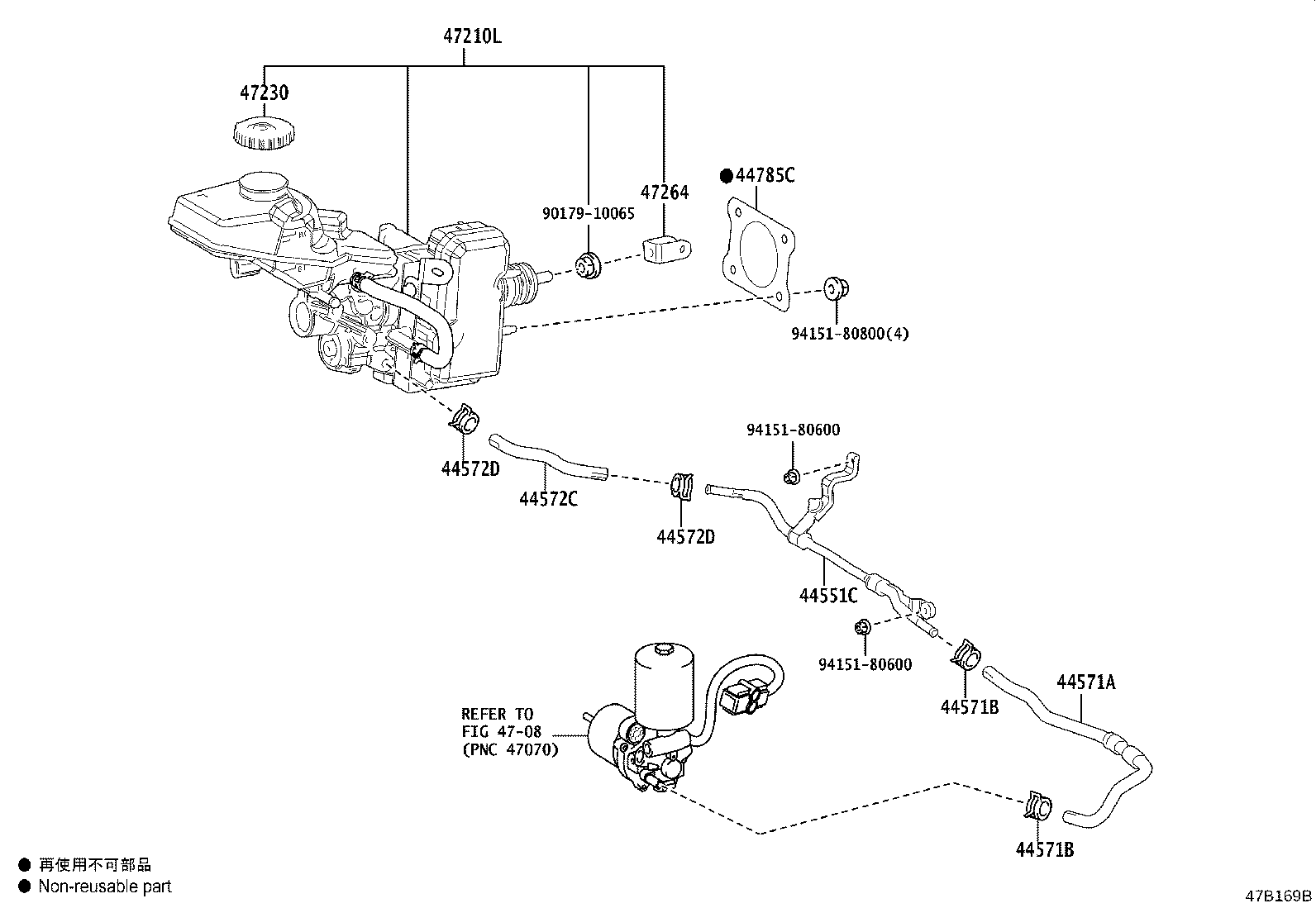

Brake Master Cylinder
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44551C | Tube, Brake Actuator, NO.1 |
| 44571A | Hose, Brake Actuator, NO.1 |
| 44571B | Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1) |
| 44572C | Hose, Brake Actuator, NO.2 |
| 44572D | Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.2) |
| 44785C | Gasket, Brake Booster |
| 44785D | Gasket, Brake Master Cylinder |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47201C | Ring Pin, Brake Master Cylinder |
| 47210L | Brake Booster Assy, W/Master Cylinder |
| 47210U | Pin, Straight(FOR BRAKE MASTER CYLINDER) |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47255C | Grommet Set, Reservoir |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47275C | Overhaul Set, Master Cylinder |
| 47276 | Bracket, Brake Master Cylinder |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
